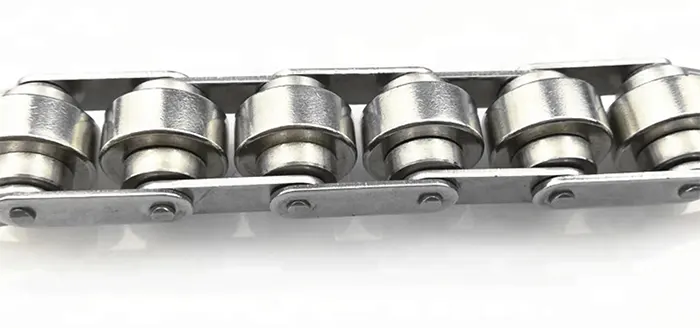

BS30-C216ASS Stainless Steel Double Plus Chain-3 Time Speed Conveyor Chain

Stainless Steel 3 Times Speed Conveyor Chain

BS30-C216ASS Stainless Steel Double Plus Chain-3 Time Speed Conveyor Chain is a type of conveyor chain that is used for conveying materials at a high speed with minimum wear and tear. The chain is made of high-quality stainless steel and is designed to be highly durable and corrosion-resistant.

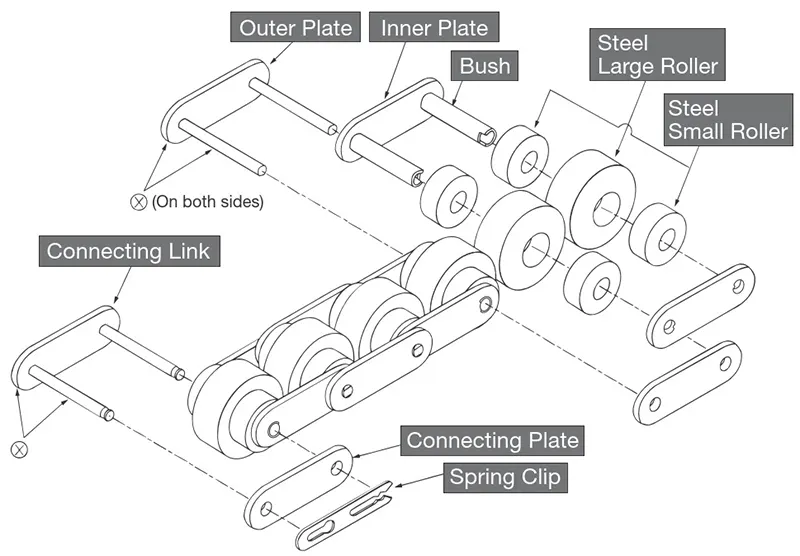

Structure Composition

1. Chain Plate

The chain plate is the basic component of the conveyor chain and is made of stainless steel. It has high strength and wear resistance, and its shape and size determine the carrying capacity and conveying speed of the chain.

2. Pin shaft

The pin shaft is used to connect the chain plates and its material and processing accuracy affects the smooth operation of the chain and its service life.

3. Roller

The roller is installed on the chain plate and is used to reduce the friction between the chain and the guide rail, improving the efficiency of the chain. The material and size of the roller affect the carrying capacity and wear resistance of the chain.

4. Accessories

The accessories are used to connect the chain and the conveying material. Common accessories include hooks, couplings, and trays.

Material Selection

The stainless steel used in the BS30-C216ASS Stainless Steel Double Plus Chain-3 Time Speed Conveyor Chain is of high quality and has excellent corrosion resistance, making it suitable for use in industries with high hygiene requirements, such as food, beverage, and pharmaceutical industries. The type of stainless steel used, its characteristics, and performance are listed below:

• AISI304: Excellent corrosion resistance, good heat resistance, and good formability.
• AISI316: Excellent corrosion resistance, heat resistance, and creep resistance, and good formability.
• AISI630: Martensitic stainless steel with high strength, hardness, and toughness, good corrosion resistance and wear resistance, and good thermal conductivity.

Features and Advantages

• Corrosion resistance: The BS30-C216ASS Stainless Steel Double Plus Chain-3 Time Speed Conveyor Chain is made of high-quality stainless steel that has excellent corrosion resistance, making it suitable for use in industries with high hygiene requirements, such as food, beverage, and pharmaceutical industries.
• Wear resistance: The surface of the chain is specially treated to increase its wear resistance and prolong its service life.
• High temperature resistance: The chain can withstand high temperatures and is suitable for use in high-temperature environments.
• Strong carrying capacity: The chain has high strength and carrying capacity, making it suitable for conveying heavy materials.
• Easy to clean: The surface of the chain is smooth and easy to clean.

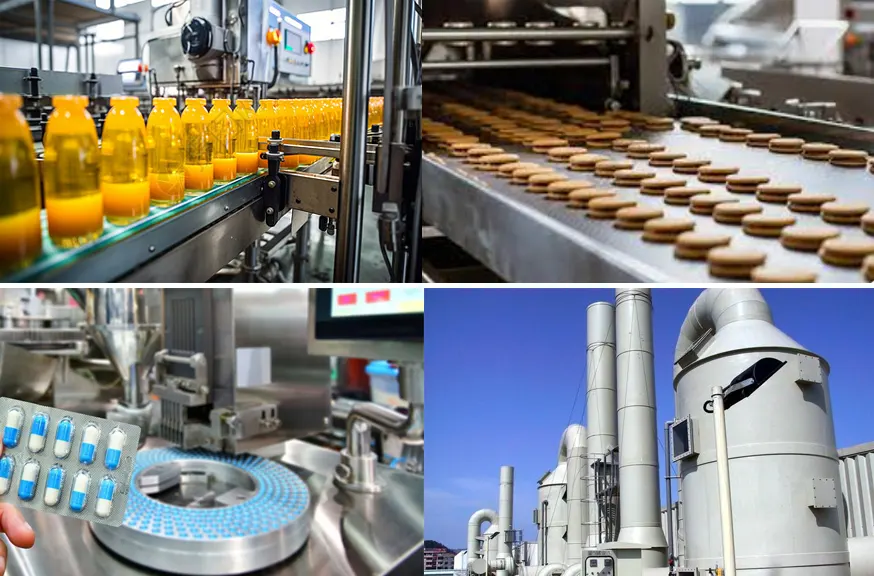

Applications

The BS30-C216ASS Stainless Steel Double Plus Chain-3 Time Speed Conveyor Chain can be used in a wide range of industries, including:

• Food industry: for conveying food, beverages, seasonings, etc.
• Beverage industry: for conveying beer, juice, mineral water, etc.
• Pharmaceutical industry: for conveying drugs, raw materials, excipients, etc.
• Electronics industry: for conveying electronic components, circuit boards, etc.
• Chemical industry: for conveying chemical raw materials and products.

Installation Method

1. Determine the installation direction of the chain.
2. Install the chain on the driving wheel and driven wheel.
3. Adjust the tension of the chain.
4. Check the operation of the chain.

Stainless Steel Sprockets for Chains

Stainless steel sprockets are designed to match the BS30-C216ASS Stainless Steel Double Plus Chain-3 Time Speed Conveyor Chain, ensuring smooth and efficient operation of the chain. Our company provides a variety of stainless steel sprockets for sale, please contact us for more information.

About Our Company

Ever-power is a professional chain manufacturer that produces standard chains and all kinds of special requirement shaped chains. Our stainless steel roller chains are manufactured in accordance with strict ANSI/DIN/ISO standards. Our chains are designed with sturdy rollers to ensure a long service life. In addition, our chains are heat treated and pre-stressed. We offer a wide range of stainless steel materials according to customers' requirements. Our products are manufactured using high-quality alloy steel and precision technology. The pins, bushings and rollers are processed by highly efficient automated equipment and automatic grinding equipment, and then heat-treated by carburizing, carbon and nitrogen protected mesh belt furnace and surface sand blasting process. The factory has excellent equipment, mature and advanced technology and a large technical force team. With quick market response, flexible and modernized production and operation mode, and excellent and considerate after-sales service, we have won the favor of our customers. Our products are exported to Europe, Japan, the United States, Canada, Southeast Asia and other countries and regions.

We encourage customers to explore our products and contact us for purchasing.
