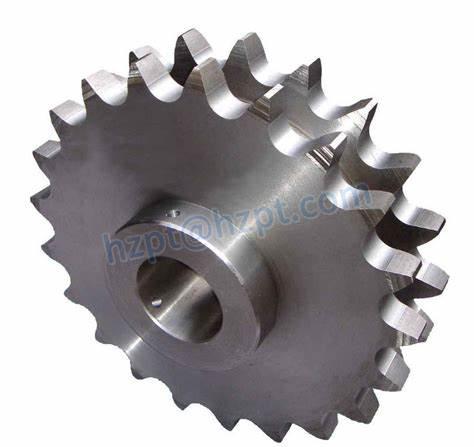

C2060H Double Pitch Sprockets

Our in-stock standard double pitch sprockets are manufactured out of SAE-1045 case hardened steel with extra-hardened teeth and coated with black oxide. These sprockets are extremely durable, high-strength, and manufactured to high precision tolerances. Stock double pitch sprockets include standard roller and carrier roller style.

Below is a chart of all of the standard C2060 double pitch roller chain sprockets. We also stock a full line of high quality C2060 roller chain.

Stock C2060 Roller Chain Sprockets

Sprocket Size Tooth Count Outside Diameter Stock Bore Maximum Bore Length Thru Bore Weight
2060A24
24 6.150" 23/32" -- -- 3.02 LBS
2060A25
25 6.390" 23/32" -- -- 3.36 LBS
2060A26
26 6.630" 23/32" -- -- 3.58 LBS
2060A28
28 7.110" 23/32" -- -- 4.12 LBS
2060A30
30 7.590" 23/32" -- -- 4.88 LBS
2060B11
11 3.000" 3/4" 1" 1-1/4" 1.14 LBS
2060B12
12 3.250" 3/4" 1-1/4" 1-1/4" 1.46 LBS
2060B13
13 3.490" 3/4" 1-5/16" 1-1/4" 1.52 LBS
2060B14
14 3.740" 3/4" 1-9/16" 1-1/4" 1.86 LBS
2060B15
15 3.980" 3/4" 1-3/4" 1-1/4" 2.24 LBS
2060B16
16 4.220" 3/4" 1-27/32" 1-1/4" 2.64 LBS
2060B17
17 4.460" 3/4" 2-3/32" 1-1/4" 3.08 LBS
2060B18
18 4.700" 3/4" 2-9/32" 1-1/4" 3.56 LBS
2060B19
19 4.940" 3/4" 2-11/32" 1-1/4" 3.94 LBS
2060B20
20 5.190" 3/4" 2-9/16" 1-1/4" 4.50 LBS
2060B21
21 5.430" 3/4" 2-3/4" 1-1/4" 5.02 LBS
2060B22
22 5.670" 3/4" 2-3/4" 1-1/4" 5.26 LBS
2060B23
23 5.910" 3/4" 2-3/4" 1-1/4" 5.54 LBS
2060B24
24 6.150" 3/4" 2-3/4" 1-1/4" 5.90 LBS
2060B25
25 6.390" 3/4" 2-3/4" 1-1/4" 6.08 LBS
2060B26
26 6.630" 3/4" 2-3/4" 1-1/4" 6.36 LBS
2060B28
28 7.110" 3/4" 2-3/4" 1-1/4" 7.02 LBS
2060B30
30 7.590" 3/4" 2-3/4" 1-1/4" 7.54 LBS
hzpt oem odm banner

We promise will offer the best price by the high quality in china! We also accept special order about the products. If you are interested in our products. Please do not hesitate to let us know.We are pleased to give you the detailed information.We promise that our products would be safety and were in high quality and reasonable price. If you are interested in our products, please contact us asap.We are sincerely looking for your cooperation.

Most of our products are exported to Europe or Americas, both standard and nonstandard products available. We can produce as per your drawing or sample. Material can be standard or as per your special request. If you choose us, you choose reliable.
