C20BSS-3 Triplex Stainless Steel Roller Chain with Straight Side Plates

Triplex Roller Chain With Straight Side Plates
Category: Tags: , ,
Get a Quote

Triplex Roller Chain With Straight Side Plates Triplex Roller Chain With Straight Side Plates





Chain No.

 Pitch Roller diameter Width between inner plates Pin diameter Pin length Inner plate depth Transverse pitch Ultimate tensile strength Average tensile strength Weight per meter
P d1
max		 bl
min		 d2
max		 L
max		 h2
max		 Pt Q
min		 Qo q
mm mm mm mm mm mm mm KN KN kg/m
C40SS-3

12.7

7.95

7.85

3.96

45.5

12

14.38

27.5

30

2.15
C50SS-3

15.875

10.16

9.4

5.08

56.8

15

18.11

43.7

57.1

3.64
C60SS-3

19.05

11.91

12.57

5.94

71.5

18

22.78

63.7

69.3

5.37
C80SS-3

25.4

15.88

15.75

7.92

91.4

24

29.29

110.7

130.5

9.13
C100SS-3

31.75

19.05

18.9

9.53

112.2

30.18

35.76

159.3

169.6

13.62
C120SS-3

38.1

22.23

25.22

11.1

141.4

35.7

45.44

250.6

262.3

20.45
C08BSS-3

12.7

8.51

7.75

4.45

45

11.8

13.92

31

32.8

2.14
C10BSS-3

15.875

10.16

9.65

5.08

52.7

14.6

16.59

37.8

43.6

2.89
C12BSS-3

19.05

12.07

11.68

5.72

61.5

16

19.46

52

61

3.9
C16BSS-3

25.4

15.88

17.02

8.28

99.7

21

31.88

108

124.2

9.12
C20BSS-3

31.75

19.05

19.56

10.19

114.3

26

36.45

151.2

173.6

11.32
C24BSS-3

38.1

25.4

25.4

14.63

150.4

33.4

48.36

255

285.4

22.12


Introduction to C20BSS-3 Triplex Stainless Steel Roller Chain with Straight Side Plates

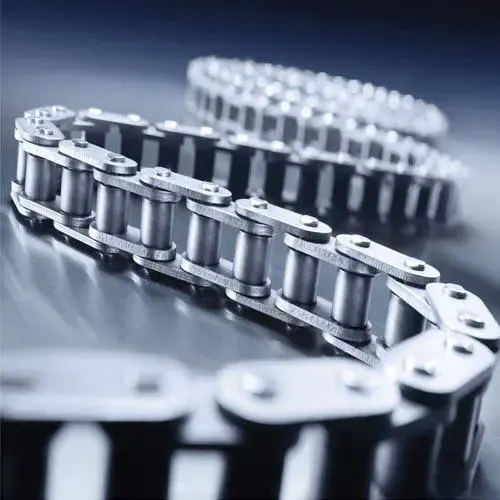

C20BSS-3 Triplex Stainless Steel Roller Chain with Straight Side Plates: Overview

The C20BSS-3 Triplex Stainless Steel Roller Chain with Straight Side Plates is a high-quality product that provides essential functionality in various mechanical transmission systems. Known for its strength, durability, and longevity, this chain serves as a vital component in numerous industrial applications. It ensures efficient power transmission, reducing friction and wear while enhancing the overall system performance.

Structure and Components of the C20BSS-3 Triplex Stainless Steel Roller Chain

1. Chain Plate

The chain plate is the main body of the chain, comprising inner and outer plates, inner and outer pins. The chain plate of this type of chain is a straight plate, making it stronger and more durable.

2. Roller

Rollers are placed on the inner pin of the chain plate. They play a crucial role in power transmission and friction reduction, thereby ensuring smooth operation.

3. Pin

The pin connects the chain plate and the roller, transmitting power to the chain wheel and facilitating efficient mechanical operations.

Roller chain structure

Features of the C20BSS-3 Triplex Stainless Steel Roller Chain

  • The side plates of this roller chain are straight, not shaped like an '8'. This makes the chain slightly heavier than standard roller chains, resulting in improved fatigue resistance, strength, and lifespan.
  • This chain is primarily used in conveyor applications where straight side plates are preferred.
  • The chain is available in straight plate style ISO British Standard and ANSI Standard variants.

Features of the C20BSS-3 Chain

Applications of the C20BSS-3 Triplex Stainless Steel Roller Chain

  • Industrial Machinery: The chain is widely used in various industrial machinery, such as conveyors, cranes, and processing machine tools.
  • Agricultural Machinery: It's also used in agricultural machinery, including harvesters, tractors, and feed processing equipment.
  • Construction Machinery: The C20BSS-3 Triplex Stainless Steel Roller Chain is used in construction machinery, such as tower cranes, lifting machines, and concrete mixers.

  • Transportation Equipment: This chain is used in transportation equipment, like cars, motorcycles, and boats.

Applications of C20BSS-3 Chain

Maintenance and Care of Stainless Steel Industrial Chains

  • Cleaning: Regular cleaning is essential to remove dirt and debris that can compromise chain performance.
  • Lubrication: Proper lubrication reduces friction, heat generation, and wear, thereby extending the chain's lifespan.
  • Regular Inspection: Regular inspections help detect potential issues early and prevent unexpected breakdowns.

stainless steel sprockets for Chains

Stainless Steel Sprockets for Chains serve as the backbone of a robust and durable chain system. The seamless interaction between these sprockets and chains is crucial for smooth and efficient mechanical operations...

Stainless Steel Sprockets

Ever-power: Your Reliable chain manufacturer

Ever-power is a professional chain manufacturer of standard chains and all kinds of special requirement shaped chains...

Ever-power Chain Manufacturer
