Cam Follower Bearings

Cam Follower Bearings

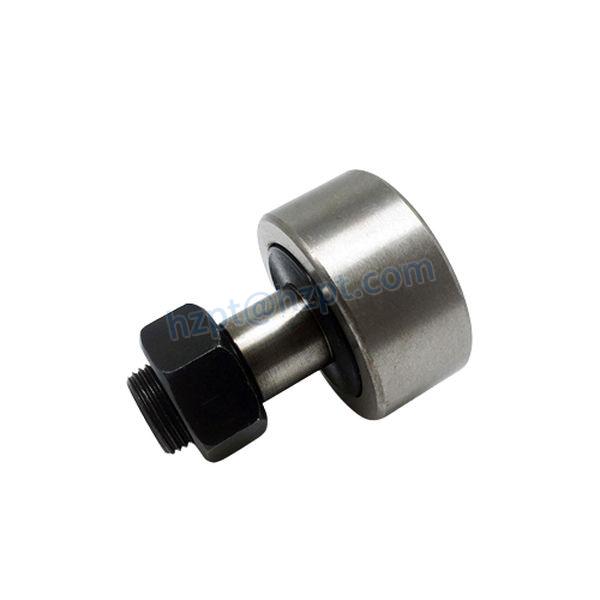

Cam follower bearings—also referred to as track rollers—are motion transmission components designed to work with different varieties of tracks. They are used in conveyor systems, cam drives, and a wide range of similar material handling systems. Regardless of the material or machine, these components play a critical role in track and rail operations.

Category:
Get a Quote

Cam Follower Bearings
Cam follower bearings—also referred to as track rollers—are motion transmission components designed to work with different varieties of tracks. They are used in conveyor systems, cam drives, and a wide range of similar material handling systems. Regardless of the material or machine, these components play a critical role in track and rail operations. Cam follower bearings are available with an outer ring running surfaces or cylindrical (or flat) outer ring running surfaces. While the ideal variety of track roller varies depending on intended use and application, the outer ring running surface is widely considered the gold standard.

NUTR Series Cam Follower Bearings Sizes
Bearing No. Boundary Dimensions Load Ratings Reference Speed Weight
Description d D B C d1 Dynamic
Cr		 Static
C0r
mm mm mm mm mm kN kN RPM kg
NUTR 15 15 35 19 18 20 20.5 24.5 6500 0.099
NUTR 1542 15 42 19 18 20 20.5 24.5 6500 0.158
NUTR 17 17 10 21 20 22 21.8 28.5 5500 0.147
NUTR 1747 17 47 21 20 22 21.8 28.5 5500 0.22
NUTR 20 20 47 25 24 27 36.9 48.9 4200 0.245
NUTR 2052 20 52 25 24 27 36.9 48.9 4200 0.321
NUTR 25 25 52 25 24 31 40.8 58.5 3400 0.281
NUTR 2562 25 62 25 24 31 40.8 58.5 3400 0.45
NUTR 30 30 62 29 28 38 56.8 77.5 2600 0.465
NUTR 3072 30 72 29 28 38 56.8 77.5 2600 0.697
NUTR 35 35 72 29 28 44 63 91 2100 0.63
NUTR 3580 35 80 29 28 44 63 91 2100 0.836
NUTR 40 40 80 32 30 51 87.9 108 1600 0.816
NUTR 45 45 85 32 30 55 93.6 119 1400 0.883
NUTR 4090 40 90 32 30 51 87.9 108 1600 1.129
NUTR 50 50 90 32 30 60 98.9 140 1300 0.95
NUTR 45100 45 100 32 30 55 93.6 119 1400 1.396
NUTR 50110 50 110 32 30 60 98.9 140 1300 1.69

NATR Series Cam Follower Bearings Sizes
Bearing No. Boundary Dimensions Load Ratings Reference Speed Weight
Description d D B C d1 Dynamic
Cr		 Static
C0r
mm mm mm mm mm kN kN RPM kg
NATR 5 PP 5 16 12 11 12 3.05 3 22000 0.014
NATR 6 PP 6 19 13 11 14 3.6 3.65 20000 0.02
NATR 8 PP 8 24 15 14 19 4.5 5.4 15000 0.041
NATR 10 PP 10 30 15 14 23 6.1 7.8 11000 0.064
NATR 12 PP 12 32 15 14 25 6.6 9.8 9000 0.071
NATR 15 PP 15 35 19 18 28 10.5 17.5 7000 0.103
NATR 17 PP 17 40 21 20 32 11.8 19.4 6000 0.144
NATR 20 PP 20 47 25 24 37 17.5 29.8 4900 0.246
NATR 25 PP 25 52 25 24 42 19.5 36.5 3600 0.275
NATR 30 PP 30 62 29 28 51 31 57.5 2600 0.47
NATR 35 PP 35 72 29 28 58 34.5 67.5 2000 0.635
NATR 40 PP 40 80 32 30 66 47 91.5 1700 0.805
NATR 45 PP 45 85 32 30 72 49.1 98 1500 0.91
NATR 50 PP 50 90 32 30 76 50.5 10.6 1300 0.96

KR Series Cam Follower Bearings Sizes
Bearing No. Boundary Dimensions Load Ratings Reference Speed Weight
Description D d B B1 B2 C C1 r d1 G1 G Dynamic
Cr		 Static
C0r
mm mm mm mm mm mm mm mm mm mm mm kN kN RPM kg
KR16-PP 16 6 28 12.2 16 11 0.6 0.2 12.5 8 M6*1 3.14 3.2 25000 0.018
KR19-PP 19 8 32 12.2 20 11 0.6 0.2 15 10 M8*1.25 3.47 3.8 20000 0.029
KR22-PP 22 10 36 13.2 23 12 0.6 0.3 17.5 12 M10*1 4.4 5 17000 0.043
KR26-PP 26 10 36 13.2 23 12 0.6 0.3 17.5 12 M10*1 4.84 6 16000 0.057
KR30-PP 30 12 40 15.2 25 14 0.6 0.6 23 13 M12*1.5 6.44 8 14000 0.088
KR32-PP 32 12 40 15.2 25 14 0.6 0.6 23 13 M12*1.5 6.71 8.5 13000 0.098
KR35-PP 35 16 52 19.6 32.5 18 0.8 0.6 27.6 17 M16*1.5 9.52 13.7 10000 0.164
KR40-PP 40 18 58 21.6 36.5 20 0.8 1 31.5 19 M18*1.5 10.5 14.6 8500 0.239
KR47-PP 47 20 66 25.6 40.5 24 0.8 1 36.5 21 M20*1.5 14.7 24.5 7000 0.381
KR52-PP 52 20 66 25.6 40.5 24 0.8 1 36.5 21 M20*1.5 15.7 27 6500 0.454
KR62-PP 62 24 80 30.6 49.5 29 0.8 1 44 25 M24*1.5 24.6 44 6000 0.77
KR72-PP 72 24 80 30.6 49.5 29 0.8 1.1 44 25 M24*1.5 26 48 5500 1.01
KR80-PP 80 30 100 37 63 35 1 1.1 53 32 M30*1.5 36.9 72 5000 1.608
KR90-PP 90 30 100 37 63 35 1 1.1 53 32 M30*1.5 38 76.5 4500 1.975

Features of Cam Follower Bearings

  • Accommodate high radial loads
    The thick-walled outer ring enables high radial loads, while reducing distortion and bending stresses.
  • Accommodate axial loads
    The integral flange (stud head) and the pressed-on flange ring enable cam followers to accommodate axial loads that can occur because of skew or tilting.
  • Long service life
    The crowned outer ring running surface is beneficial for applications where outer ring tilting relative to the track may occur or where edge stresses need to be minimized.
  • Easy to mount
    The threaded solid stud (pin) of cam followers can be quickly and easily attached to appropriate machine components by means of a hexagonal nut.

Applications of Cam Follower Bearings

Here are examples of applications in which cam followers bearings might be used:​

  • Metals
  • Mining, mineral processing, and cement
  • Railways
  • Material handling
  • Agriculture
  • Construction

Company Information

We are a professional bearing exporter in China, producing many different types and sizes of bearings. We can provide you with excellent service in a wide range of bearings with world-class quality, such as deep groove ball bearings, spherical roller bearings, self-aligning ball bearings, cylindrical roller bearings, tapered roller bearings, angular contact ball bearings, needle roller bearings, crossed roller bearings, pillow block bearing, slewing bearings, plain bearings, etc. Bearings can also provide OEM services according to customer requirements. Our bearings products are widely used in various applications, such as port, ship, vehicle, mining, engineering, lifting, environmental protection, oil, chemicals, light industry, metallurgical machinery, the military, etc. Products are exported to the United States, Germany, Japan, Spain, Canada, Italy, France, Finland, South Korea, India, Singapore, Brazil, Australia, and other countries. If you need cam follower bearings, please contact us.

Q. Are you a trading company or a manufacturer?

A: We are a manufacturer.

Q: How long is your cam follower bearings delivery time?

A: Generally, it is 3-5 days if the goods are in stock. Or it is 15-20 days if the goods are not in stock, according to quantity.

Q: Do you provide samples for cam follower bearings? Is it free or extra?

A: Yes, we could offer the sample for free but do not pay the freight cost.

Q: Could you accept OEM and customize cam follower bearings?

A: We can customize it for you according to the sample or drawing.

Q: What are your terms of payment?

A: Payment<=1000USD, 100% in advance.Payment>=1000USD, 30% T/T in advance ,pay the balance before shippment.

Q: Will you check these products before shipment?

A: Our factory QC Process System will strictly inspect products before shipment. We have a professional QC team.

Q: What will we do if you are unsatisfied with the product?

A: If you have any abnormal, Please contact us for the first time, and we will immediately process them.

If you need cam follower bearings or any models of bearings, please contact me!
