Cast Chain Link RDC200, BDC304.8
We can offer a wide range of cast chain products for use in sewage water treatment equipment and conveying applications in sugar making and steelmaking industries. Our chains can be cast using varied materials based on specific usage requirements and desired technical standards. All cast chains have a simple structure and few pores, boosting high tensile strength.
Cast Chain Link RDC200, BDC304.8
We can offer a wide range of cast chain products for use in sewage water treatment equipment and conveying applications in sugar making and steelmaking industries. Our chains can be cast using varied materials based on specific usage requirements and desired technical standards. All cast chains have a simple structure and few pores, boosting high tensile strength.

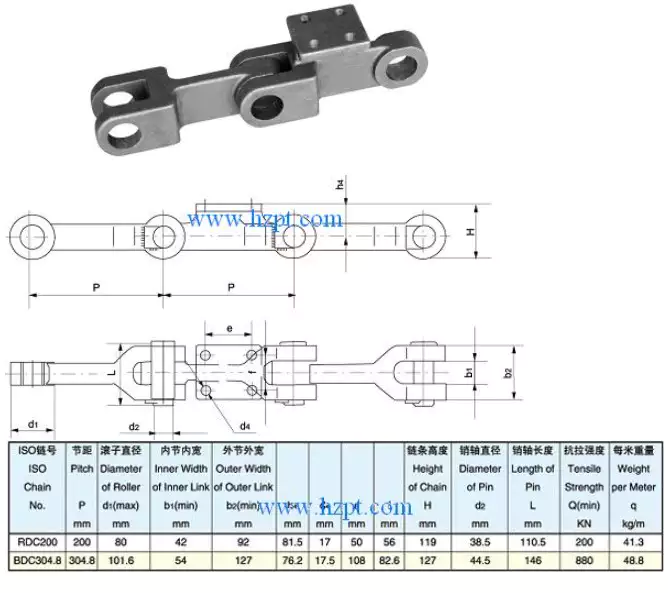

| Chain No. | Pitch P (mm) | Diameter of roller d1 (max) (mm) | The inner width of inner link b1 (min) (mm) | The outer width of outer link b2 (min) (mm) | Other dimensions | Height of chain H (mm) | Diameter of pin d2 (mm) | Length of pin L (mm) | Tensile strength Q (min) (KN) | Weight per meter q (kg/m) | |||
| h4 (mm) | d4 (mm) | e (mm) | f (mm) | ||||||||||
| RDC200 | 200 | 80 | 42 | 92 | 81.5 | 17 | 50 | 56 | 119 | 38.5 | 110.5 | 200 | 41.3 |
| BDC304.8 | 304.8 | 101.6 | 54 | 127 | 76.2 | 17.5 | 108 | 82.6 | 127 | 44.5 | 146 | 880 | 48.8 |
We promise will offer the best price by the high quality in china! We also accept special order about the products. If you are interested in our products. Please do not hesitate to let us know.We are pleased to give you the detailed information.We promise that our products would be safety and were in high quality and reasonable price. If you are interested in our products, please contact us asap.We are sincerely looking for your cooperation.
Most of our products are exported to Europe or Americas, both standard and nonstandard products available. We can produce as per your drawing or sample. Material can be standard or as per your special request. If you choose us, you choose reliable.
