Cast Iron Chain CC600 Case Conveyor Chain

The CC600 case conveyor chain is a type of conveyor chain that is commonly used in material handling applications to transport cases, cartons, and other packaged goods. It is a high-strength chain that is designed to handle heavy loads and withstand the demands of continuous operation. The CC600 case conveyor chain is made up of a series of interconnected links that are typically constructed from high-quality carbon steel or stainless steel. The links are designed to be self-lubricating, which helps to reduce wear and extend the life of the chain.

Get a Quote

Cast Iron Chain CC600 Case Conveyor Chain

The case conveyor chain cc600 is a type of conveyor chain that is commonly used in material handling applications to transport cases, cartons, and other packaged goods. It is a high-strength chain that is designed to handle heavy loads and withstand the demands of continuous operation. The CC600 case conveyor chain is made up of a series of interconnected links that are typically constructed from high-quality carbon steel or stainless steel. The links are designed to be self-lubricating, which helps to reduce wear and extend the life of the chain.

One of the key features of the CC600 case conveyor chain is its ability to be customized to meet the specific needs of different applications. It can be configured with a range of accessories, including flights, pushers, and guide rails, to help ensure that products are transported smoothly and efficiently. Overall, the CC600 case conveyor chain is a reliable and efficient option for material handling applications that require the transport of packaged goods.

Cast Iron Chain CC600 Case Conveyor Chain

▍Benefits of CC600 Case Conveyor Chain:

The CC600 case conveyor chain comes with several benefits that make it a popular choice in material handling applications. Some of the key benefits of the CC600 Case Conveyor Chain are:

1. Durability: The CC600 case conveyor chain is made of high-quality materials, such as carbon steel or stainless steel, which makes it highly durable and resistant to wear and tear. This means that the chain can withstand heavy loads and continuous operation without breaking down or requiring frequent maintenance.

2. Customization: The CC600 case conveyor chain can be customized to meet the specific needs of different applications. It can be configured with a range of accessories, such as flights, pushers, and guide rails, to ensure that products are transported smoothly and efficiently.

3. Self-lubrication: The CC600 case conveyor chain is designed to be self-lubricating, which reduces friction and wear on the chain, extending its lifespan and reducing the need for frequent maintenance.

4. Efficiency: The CC600 case conveyor chain is designed to transport cases, cartons, and other packaged goods efficiently, with minimal downtime. This can help to increase productivity and reduce operating costs.

5. Low noise: Compared to other types of conveyor chains, the CC600 case conveyor chain operates quietly, making it ideal for applications where noise levels need to be kept to a minimum.

▍CC600 Case Conveyor Chain Dimensions:

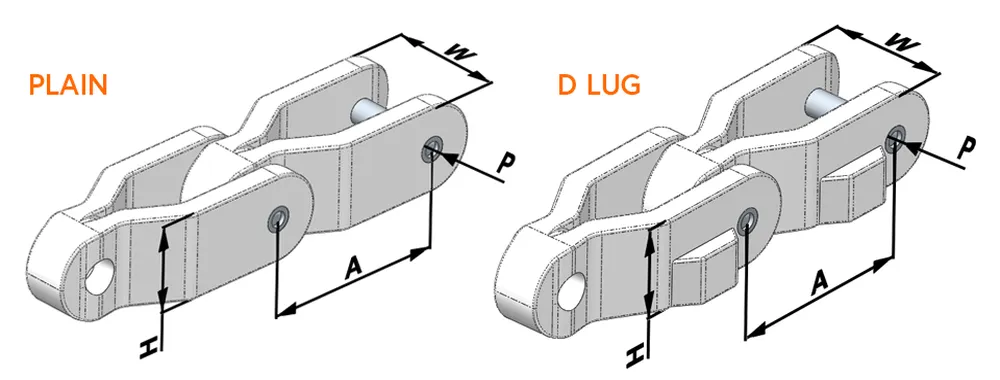

CC600 Case Conveyor Chain Dimensions

Code Description Average Pitch A (mm) Sidebar Height H (mm) Overall Width W (mm) Overall Width W1 (mm) Pin Dia P (mm) Breaking Load Kg Min Radius Turn R (mm)
CC600 Chain Plain chain 63.5 29 43 54 11 5680 483
CC600D Chain Chain with D lug 63.5 29 43 54 11 5680 483
CC1300 Chain Plain chain 82.5 38 52 68 14 9090 1016
CC1300D Chain Chain with D lug 82.5 38 52 68 14 9090 1016

▍CC600 Case Conveyor Chain Common Applications:

The CC600 case conveyor chain is a versatile conveyor chain that can be used in a wide range of material handling applications. Some of the common applications of the CC600 case conveyor chain include the following:

(1) Packaging industry: The CC600 case conveyor chain is commonly used in packaging applications to transport cases, cartons, and other packaged goods from one point to another.

(2) Food and beverage industry: The CC600 case conveyor chain is suitable for the food and beverage industry because it is made of stainless steel and is easy to clean. It is used to transport food and beverage products in a hygienic and safe manner.

(3) Pharmaceutical industry: The CC600 case conveyor chain is also widely used in the pharmaceutical industry to transport products such as tablets, capsules, and vials.

(4) Automotive industry: The CC600 case conveyor chain is used in the automotive industry to transport parts and components, such as engine blocks, cylinders, and transmission components.

(5) Logistics and distribution industry: The CC600 case conveyor chain is used in logistics and distribution centers to transport packages, boxes, and other items from one location to another.

Overall, the CC600 case conveyor chain is a versatile and reliable conveyor chain that can be used in a wide range of industries and applications where the transportation of packaged goods is required.

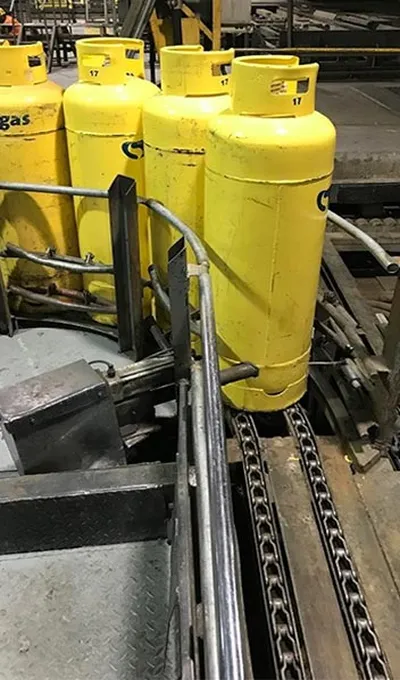

CC600 Case Conveyor Chain Common Applications CC600 Case Conveyor Chain Common Applications CC600 Case Conveyor Chain Common Applications

CC600 Chain Sprockets and CC600 Conveyor Chains

CC600 chain sprockets are the toothed wheels that engage with the CC600 conveyor chain to transfer motion and power. They are typically made of durable materials like steel and are designed to fit the specific dimensions and pitch of the CC600 conveyor chain. CC600 chain sprockets are available in various sizes and configurations to accommodate different conveyor applications.

CC600 conveyor chains are designed for heavy-duty applications that require the transportation of packaged goods, such as cases and cartons. They are made of high-quality carbon steel or stainless steel and feature self-lubricating properties to reduce wear and extend their lifespan. CC600 conveyor chains come in various sizes and configurations to suit different conveyor applications and are compatible with a range of sprockets, flights, pushers, and other accessories that can be customized to meet specific application requirements.

When selecting CC600 chain sprockets and CC600 conveyor chains, it is important to consider factors such as load capacity, speed, temperature, and environment. Proper maintenance, including regular lubrication and tension adjustment, can also help to ensure optimal performance and extend the lifespan of the conveyor system.

CC600 Chain Sprockets Dimensions:

CC600 Chain Sprockets Dimensions

No. of Teeth Reference A Top Dia. B Pitch Circle Dia. C Max. Bore D Dia. E Depth Weight kg Each
8 60082 187 165.9 60 102 44.5 4.5
10 60102 226 205.5 60 108 50.8 5.5
12 60122 265 245.4 65 114 57.2 7.3
14 60142 306 285.4 70 127 57.2 10.0

▍We Also Provide CC600 Plastic Case Conveyor Chain

The CC600 plastic case conveyor chain is a plastic chain that is designed for use in harsh environments. It is made of POM (polyoxymethylene), which is a high-performance plastic that is resistant to chemicals, abrasion, and high temperatures. The chain also has a stainless steel pin, which further enhances its durability.

The CC600 plastic case conveyor chain is available in a variety of sizes, so it can be used for a wide range of applications. It is commonly used in the food industry, the washing machine industry, and other industries where there is a need for a durable and corrosion-resistant chain.

Here are some of the features of the CC600 plastic case conveyor chain:

  • Made of POM, a high-performance plastic that is resistant to chemicals, abrasion, and high temperatures
  • Stainless steel pin for added durability
  • Available in a variety of sizes
  • Reversible operation possible
  • Suitable for use in harsh environments

The CC600 plastic case conveyor chain is a versatile and durable chain that can be used in a wide range of applications. If you are looking for a chain that is resistant to chemicals, abrasion, and high temperatures, then the CC600 plastic case conveyor chain is a good option.

Are you looking for plastic chains cc600?

CC600 Plastic Case Conveyor Chain CC600 Plastic Case Conveyor Chain
Chain Plastic Chain CC600
Pin diameter d2 max. (mm) 10.6
Weight per meter (kg) 1.36
Chain material POM
Pin material Stainless steel
Average yield load (N) 14000

▍How to Choose the Right CC600 Case Conveyor Chain?

Choosing the right CC600 case conveyor chain is important to ensure that the conveyor system operates efficiently and effectively. Here are some factors to consider when selecting the right CC600 case conveyor chain:

Load capacity: Determine the weight and size of the items that will be transported on the conveyor system. This will help to determine the load capacity required for the CC600 case conveyor chain.

Speed: Consider the speed at which the conveyor system will operate. The CC600 case conveyor chain should be able to handle the required speed without causing excessive wear or damage.

Environment: Consider the operating environment of the conveyor system. If the system operates in a harsh or corrosive environment, choose a CC600 case conveyor chain that is resistant to corrosion and wear.

Temperature: Consider the temperature range of the operating environment. Choose a CC600 case conveyor chain that can operate within the required temperature range without losing its strength or durability.

Customization: Determine if any customization is required for the conveyor system. The CC600 case conveyor chain can be customized with a range of accessories, such as flights, pushers, and guide rails, to suit specific application requirements.

Maintenance: Consider the maintenance requirements of the CC600 case conveyor chain. Choose a chain that is easy to maintain and requires minimal lubrication.

CC600 Case Conveyor Chain Manufacturers

We specialize in chains made to customers’ drawings and specifications. Our advantage is reliable quality, competitive price, prompt delivery, and good service. Standard products include various transmission and conveyor chains, like roller chains, palm oil chains, sugar mill chains, leaf chains, flat top chains, side bow chains, lumber chains, agricultural chains, silent chains, PIV chains, stainless steel chains, car parking chain, slient chain, engineering chain, steel pintle chain, welded steel chain, forged chain, malleable iron chain, and many other types. Different kinds of attachments are available.
