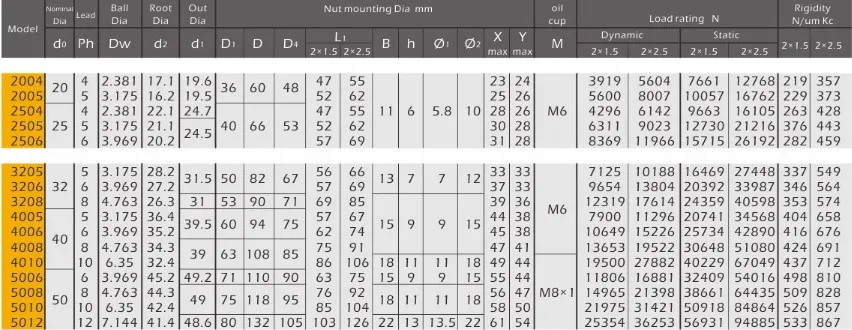

CBT Series Ball Screws

CBT Series Ball Screws

Our ball screw assemblies consist of a lead screw and a nut, each with matching helical grooves. Balls roll between these grooves, providing contact between the nut and the lead screw. These recirculating bearings enable the unit to operate efficiently with excellent static and dynamic load ratings.

We stock ball screw models in various materials and designs, including high carbon and low carbon alloy steels and multiple grades of stainless steel in standard and metric sizes.

Our ball screws provide linear motion solutions for various industries, including Building construction, heavy lifting, transportation, marine, medical, food packaging, and energy.

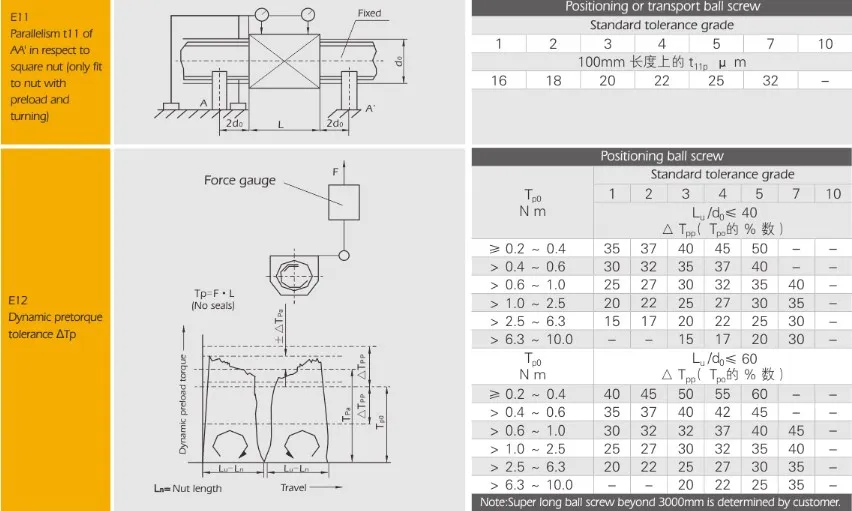

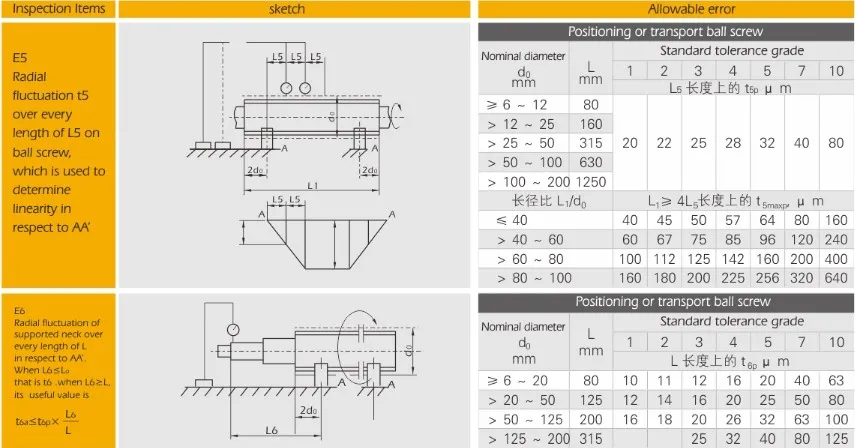

Accuracy Index of Ball Screw

Another is for transmission()The accuracy degree has 7 degrees; 1 is top, then the following Step down.

Features of Ball Screw Pairs

1. High transmission efficiency
In a ball screw assembly, free rolling balls transmit force and motion between the screw and the nut. This transmission method replaces the direct action method between the screw and the nut of the traditional threaded screw pair.
Therefore, the sliding friction of the traditional lead screw is replaced by a very small rolling friction, so that the transmission efficiency of the ball screw pair reaches more than 90%, and the driving torque of the entire transmission pair is reduced to about 1/3 of the sliding lead screw.
Right, the heat generation rate is thus greatly reduced.

2. High positioning accuracy
The ball screw pair has a low heating rate, a small temperature rise, and measures such as pre-stretching and pre-tightening the lead screw to eliminate axial clearance during processing, so that the lead screw pair has high positioning accuracy and repeat positioning accuracy.

3. Transmission reversibility
The ball screw pair has no stick-slip friction of the sliding screw, which eliminates the possible creeping phenomenon during the transmission process. The ball screw pair can realize two transmission modes—converting rotary motion into linear motion or converting linear motion into rotation. Movement and transmission of power.

4. Long service life
Due to the strict control of the accuracy of the shape of the screw raceway, the surface hardness, and the selection of materials, the actual life of the ball screw pair is much higher than that of the sliding screw.

5. Good synchronization performance
Due to the smooth operation of the ball screw pair, the elimination of axial play and the consistency of manufacturing, when multiple sets of ball screw pairs are used to drive the same device or multiple identical components, good synchronization can be achieved.

Why Is Ball Screw Repair Necessary?

Ball screws must be lubricated regularly and at high levels to maximize efficiency and extend operating life. Inadequate lubrication can cause increased friction and reduced efficiency. If metal chips or dirt build up inside the ball thread raceway, the screw may ultimately fail. In such a case, a ball screw repair is necessary.

Wear and tear on ball screws can lead to many performance problems. For example, a worn screw will increase backlash, reduce efficiency, and require more horsepower and torque. Worn ball screws can also lead to poor lead accuracy. Repairing ball screws can be a time-saving option. Nonetheless, be aware of the cost.

When a ball screw is damaged, a specialist can offer a comprehensive range of repair services. They will inspect the ball screw assembly to identify if it's still reusable, and perform a thorough visual inspection to determine whether it's still in good working order. Once the ball screw has been evaluated, the assembly is cleaned and re-loaded with new balls. While achieving "like-new" characteristics is impossible, the repair process will bring the ball screw back to life.
