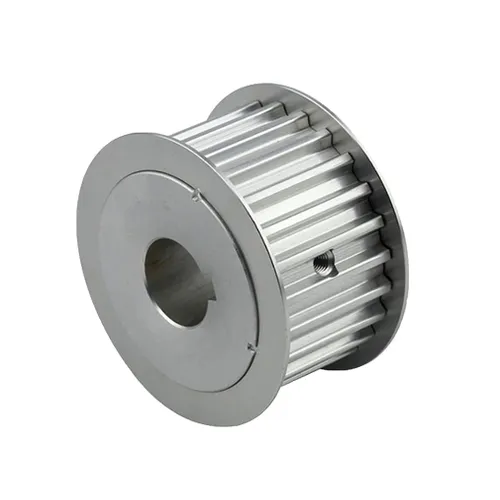

Customized Cast Iron Stainless Steel High Precision Timing Belt Pulley A/B/D/E/F/K Shape

The timing belt pulley is a low-speed and high-torque transmission part that combines the advantages of belt drive, chain drive, and gear drive. It has the advantages of high efficiency, small size, less maintenance, no pollution, and small load on the shaft. The basic shape of the timing belt pulley: A-shape, B-shape, D-shape, E-shape, F-shape, and K-shape.

Category:
Get a Quote

The timing belt pulley is a low-speed and high-torque transmission part that combines the advantages of belt drive, chain drive, and gear drive. It has the advantages of high efficiency, small size, less maintenance, no pollution, and small load on the shaft.

The basic shape of the timing belt pulley: A-shape, B-shape, D-shape, E-shape, F-shape, and K-shape.

Product Parameters

Product Timing Belt Pulley & idler pulley
Teeth type Normal Torque Drive Type:MXL,XL,L,H,XH,XXH
High Torque Drive Type:S2M,S3M,S5M,S8M,HTD2M,HTD3M,HTD5M,HTD8M,P2M,P3M,P5M,P8M
High Precision Position Drive Type:2GT,3GT,5GT,8YU
Light Load Drive Type:T5,T10,T20
Heavy Load Drive Type: AT5, AT10, AT20
Basic shape Type A,Type B,Type D,Type E,Type F,Type K
surface treatment Natural color anodizing, Black anodizing, Hard anodizing, Ni-plating, Blackening
Material 6061(aluminum),S45C(45# steel),SUS304(Stainless steel)
Bore Pilot bore, Taper bore, and Customized bore.
testing equipment projecting apparatus, salt spray test, durometer, coating thickness tester,2D projector
producing  equipment CNC machine, automatic lathe machine, stamping machine, CNC milling machine, rolling machine, lasering, tag grinding machine, etc.
Machining Process Gear Hobbing, Gear Milling, Gear Shaping, Gear Broaching, Gear Shaving, Gear Grinding, and Gear Lapping
Application industry Robot industry, Medical industry, Making machine industry, Automation industry,3C industry equipment, Packaging industry, UAV industry, New energy industry.
Advantages 1. High-temperature resistance, Self-lubrication, Wear resistance, Flame retardant properties
2. Good quality products
3. Competitive prices
4. Fast delivery
5. Best after-sale service
6. OEM/ ODM
7. Good service: satisfactory service before and after the sale.
8. Direct manufacturers

The Characteristics of Timing Belt Pulley

1) Accurate transmission, no slippage during operation, and constant transmission ratio

2) The transmission is stable, with buffering, vibration reduction capabilities, and low noise;

3) High transmission efficiency, up to more than 98%, with noticeable energy saving effect;

4) Easy maintenance, no need for lubrication, low maintenance cost;

5) The speed ratio range is extensive, generally up to 10, and the line speed can reach 50m/s

6) No pollution, you can typically work where pollution is not allowed, and the working environment is relatively harsh.

What is the Purpose of the Timing Belt Pulley?

Timing pulleys are widely used in various industrial sectors.

Engineering: Timing pulleys are widely used in machine tools, foundry equipment, painting systems, compressors, and conveyors.

Pharmaceutical and food processing: These pulleys are widely used in pulp mills for blowers, warehouse conveyors, bakers, labelers, robots, and more.

Textile mills: Synchronous pulleys are widely used in high-speed automatic looms, straight-edge calendars, high-speed winders, looms, packaging machines, and other machines.

Printing Machinery: These pulleys are widely used in different factories and types of machinery. These are used in new paper presses, screen presses, Linotype machine offset presses, etc.

Agricultural industry: Tractors, cultivators, harvesters, rice seeders, etc., are the primary machines used in the farming industry. Timing pulleys are also widely used in these machines.

Paper industry: Synchronous pulleys are widely used in the paper industry. Cut-off saws, edgers, flotation machines, etc., are heavily used for these pulleys.

Why Choose Our Timing Belt Pulley?

Timing pulleys are widely used in various equipment where the timing of both drives is precious, and the display ratio is essential. A timing pulley's benefit is eliminating slippage and maintaining constant angular velocity. Timing pulleys are manufactured per international and national standards with carbon steel/alloy steel/aluminum and hardened teeth to provide long life. We have been ranked as the most dependable and leading firm worldwide and actively emerged to offer a wide array of timing belts. Our sophisticated production unit's timing pulleys are fabricated by our skilled personnel using advanced technology.

Known for superior sturdiness, dimensional accuracy, and durability, the offered range is manufactured in compliance with industry norms and guidelines. Further, we provide these components in various customized forms according to patrons' specific requirements. Apart from this, these pulleys are quality tested by our quality controllers on different parameters.

1) Warranty: our timing pulley's quality is excellent, and with insurance within one year, when you receive the products and find quality problems, we promise you could return it and free maintenance.
2) Drawings: please send your timing pulleys' drawings to us to get the best quotation; If you have no drawings, please get in touch with us, then we can work out CAD drawings and the best reference for you ASAP.
3) Sample: we accept one-piece sample orders. We could do examples until you're satisfied.
4) Confidentiality agreement: Strictly adherence to client confidentiality agreement for timing pulleys.

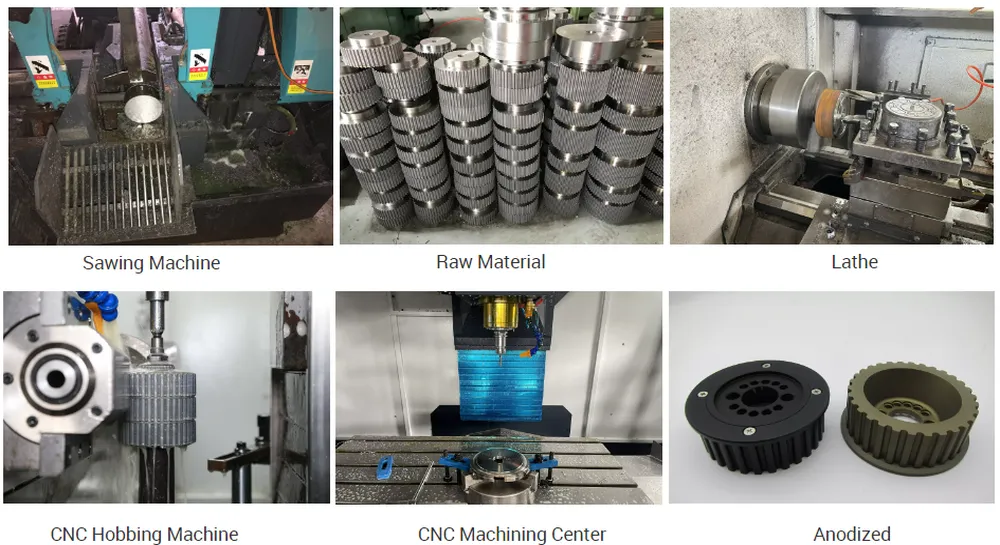

Our Factory
