DKS Series Single Standard Worm Gear Reducer

speed reducer

DKS

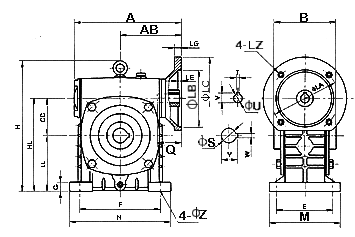

Shaft Direction
speed reducer

SIZE KW RATIO A AB B CC E F H HL LL M N G Z FLANGE INPUT HOLE OUTPUT SHAFT KG
LA LB LC LE LG LZ Q U T×V S W×Y
50 0.18 1/10
1/20
1/30
1/40
1/50
1/60
155 84 107 50 95 110 180 130 80 120 140 15 11 115 95 140 5 10 M8 25 11 4×12.8 20 6×22.8 8
60 0.37 170 92 117 60 105 120 205 150 90 130 150 20 11 130 110 160 5 12 M8 35 14 5×16.3 25 8×28.3 10.5
70 0.37 206 110 131 70 115 150 235 175 105 150 190 25 15 130 110 160 5 12 M8 35 14 5×16.3 30 8×33.3 17
0.75 165 130 200 15 M10 45 19 6×21.8
80 0.75 232 128 144 80 135 180 265 200 120 170 220 25 15 165 130 200 5 15 M10 45 19 6×21.8 35 10×38.3 26
1.5 55 24 8×27.3
100 1.5 266 145 175 100 155 220 327 250 150 190 260 25 15 165 130 200 5 15 M10 55 24 8×27.3 40 12×43.3 38
120 2.2 340 182 200 120 180 260 388 300 180 230 320 30 18 215 180 250 5 18 M12 65 28 8×31.3 45 14×48.8 60
3.0
135 3.0 375 200 212 135 200 290 445 350 215 250 350 30 18 215 180 250 5 18 M12 65 28 8×31.3 60 18×64.4 85
4.0
155 5.5 442 236 312 155 220 320 483 390 235 280 390 38 20 265 230 300 5 20 M12 85 38 10×41.3 70 20×74.9 120
175 7.5 465 240 334 175 250 350 550 435 266 310 430 40 20 265 230 300 6 18 M12 85 38 10×41.3 80 22×85.4 150
