Double Pitch Stainless Steel Conveyor Chains
We stock a full line of double pitch stainless steel roller chains. These chains are typically used in conveying applications that require an anti-corrosive and non-magnetic roller chain. The double pitch stainless steel roller chains we have in stock are manufactured out of 304-grade stainless steel but are available as 316-grade stainless steel upon request.
Double Pitch Stainless Steel Conveyor Chains
We stock a full line of double pitch stainless steel roller chains. These chains are typically used in conveying applications that require an anti-corrosive and non-magnetic roller chain. The double pitch stainless steel roller chains we have in stock are manufactured out of 304-grade stainless steel but are available as 316-grade stainless steel upon request.
1. Material choices: Carbon steel,40Mn, C45 steel,304 stainless steel, 316 stainless steel, and 201 stainless steel.
2. We specialized in producing all kinds of standard chains and special chains, such as A or B series chains, roller chains,
driving chains, conveyor chains, hoisting chains, agricultural chains, sprockets, gears, wheels, and so on;
3. Roller chains: A series(12.7-50.8mm pitches), B series (9.525-50.8mm pitches), and the heavy series.
4. We supply all kinds of different modes of stainless steel roller chains.
5. We also supply the following short pitch precision roller chain
FEATURES
--304 stainless steel 304 stainless steel material is highly corrosion resistant and can withstand high/ambient temperatures from -40 to 752
--Made of solid cold-forged rollers, it can make smoother contact with sprocket and G under heavy load. Solid bushing adopts solid cold-forged bushing, which has excellent wear resistance and can bear BLV load.
--All nitro chains required by industry standards are preloaded on the chain joints, eliminating any initial elongation in the new structure

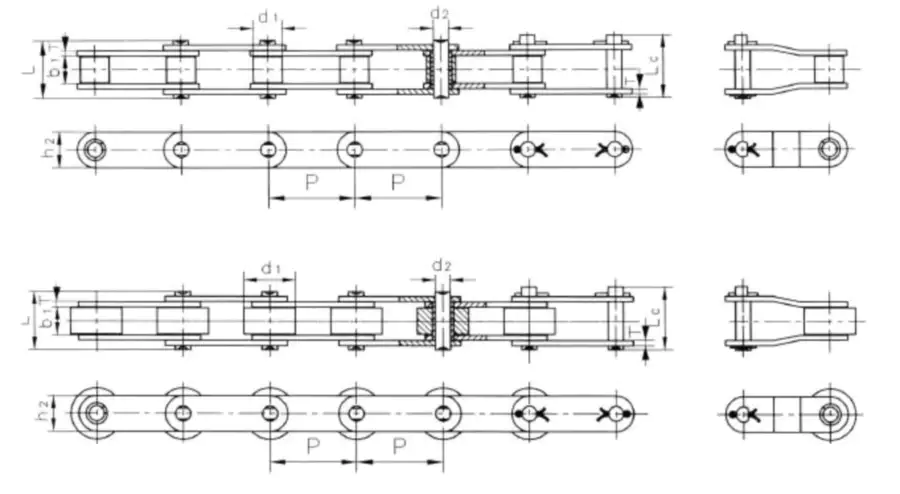

Standard roller type
Large roller type
Specification of Double Pitch Stainless Steel Conveyor Chains
DIN ISO Chain No. | ANSI Chain No. | Pitch | Roller diameter | Width between inner plates | Pin diameter | Pin length | Inner plate depth | Plate thickness | Ultimate tensile strength | Average tensile strength | Weight per meter | |
P | d1 max | b1 min | d2 max | L max | Lc max | h2 max | T max | Q min | Qo | q | ||
mm | mm | mm | mm | mm | mm | mm | mm | kN | kN | kg/m | ||
C208ASS | C2040SS | 25.4 | 7.95 | 7.85 | 3.96 | 16.6 | 17.8 | 12 | 1.5 | 8.46 | 10.02 | 0.5 0.84 |
C208ALSS | C2042SS | 15.88 | ||||||||||
C208AHSS | C2040HSS | 25.4 | 7.95 | 7.85 | 3.96 | 18.8 | 19.9 | 12 | 2.03 | 8.46 | 10.32 | 0.65 |
C208BSS | 25.4 | 8.51 | 7.75 | 4.45 | 16.7 | 18.2 | 11.8 | 1.6 | 10.8 | 11.64 | 0.55 0.89 |
|
C208BLSS | ||||||||||||
C210ASS | C2050SS | 31.75 | 10.16 | 9.4 | 5.08 | 20.7 | 22.2 | 15 | 2.03 | 13.32 | 16.86 | 0.78 |
C210ALSS | C2052SS | 19.05 | 1.27 | |||||||||
C212ASS | C2060SS | 38.1 | 11.91 | 12.57 | 5.94 | 25.9 | 27.7 | 18 | 2.42 | 19.08 | 22.08 | 1.12 |
C212ALSS | C2062SS | 22.23 | 1.61 | |||||||||
C212AHSS | C2060HSS | 38.1 | 11.91 | 12.57 | 5.94 | 29.2 | 31.6 | 18 | 3.25 | 19.08 | 24.96 | 1.44 |
C212AHLSS | C2062HSS | 22.23 | 2.07 | |||||||||
C216ASS | C2080SS | 50.8 | 15.88 | 15.75 | 7.92 | 32.7 | 36.5 | 24 | 3.25 | 34.02 | 39.42 | 2.08 |
C216ALSS | C2082SS | 28.58 | 3.12 | |||||||||
C216AHSS | C2080HSS | 50.8 | 15.88 | 15.75 | 7.92 | 36.2 | 39.4 | 24.4 | 4 | 34.02 | 42 | 2.54 |
C216AHLSS | C2082HSS | 28.58 | 3.58 | |||||||||
C220ASS | C2100SS | 63.5 | 19.05 | 18.9 | 9.53 | 40.4 | 44.7 | 30 | 4 | 53.1 | 61.56 | 3.01 |
C220ALSS | C2102SS | 39.67 | 4.83 | |||||||||
C220AHSS | C2100HSS | 63.5 | 19.05 | 18.9 | 9.53 | 43.6 | 46.9 | 30 | 4.8 | 53.1 | 67.44 | 3.56 |
C220AHLSS | C2102HSS | 39.67 | 5.38 | |||||||||
C224ASS | C2120SS | 76.2 | 22.23 | 25.22 | 11.1 | 50.3 | 54.3 | 35.7 | 4.8 | 76.2 | 88.38 | 4.66 |
C224ALSS | C2122SS | 44.45 | 7.66 | |||||||||
C224AHSS | C2120HSS | 76.2 | 22.23 | 25.22 | 11.1 | 53.5 | 57.5 | 35.7 | 5.6 | 76.2 | 96.54 | 5.26 |
C224AHLSS | C2122HSS | 44.45 | 8.26 | |||||||||
C232ASS | C2160SS | 101.6 | 28.58 | 31.75 | 14.27 | 64.8 | 69.6 | 47.8 | 6.4 | 136.08 | 167.34 | 8.23 |
C232ALSS | C2162SS | 57.15 | 11.95 | |||||||||
C232AHSS | C2160HSS | 101.6 | 28.58 | 31.75 | 14.27 | 68.2 | 73 | 47.8 | 7.2 | 136.08 | 171.48 | 9.06 |
C232AHLSS | C2162HSS | 57.15 | 12.77 |
Matched Stainless Steel Double Pitch Sprockets
We promise will offer the best price by the high quality in china! We also accept special order about the products. If you are interested in our products. Please do not hesitate to let us know.We are pleased to give you the detailed information.We promise that our products would be safety and were in high quality and reasonable price. If you are interested in our products, please contact us asap.We are sincerely looking for your cooperation.
Most of our products are exported to Europe or Americas, both standard and nonstandard products available. We can produce as per your drawing or sample. Material can be standard or as per your special request. If you choose us, you choose reliable.
Surface Treatment
Annealing, natural canonization, heat treatment, polishing, nickel plating, chrome plating, zinc plating,yellow passivization, gold passivization, satin, Black surface painted etc.
Processing Method
CNC machining, punch,turning, milling, drilling, grinding, broaching, welding and assembly
FAQ
Q: Are you trading company or manufacturer ?
A: Our group consists in 3 factories and 2 abroad sales corporations.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: How long is your delivery time ? What is your terms of payment ?
A: Generally it is 40-45 days. The time may vary depending on the product and the level of customization. For standard products, the payment is: 30% T/T in advance ,balance before shipment.
Q: What is the exact MOQ or price for your product ?
A: As an OEM company, we can provide and adapt our products to a wide range of needs.Thus, MOQ and price may greatly vary with size, material and further specifications; For instance, costly products or standard products will usually have a lower MOQ. Please contact us with all relevant details to get the most accurate quotation.
