DR50A-2.25 6-Axis Articulated Robotic Arm for Automation Cutting/Assembly/Handling/Marking/Grinding

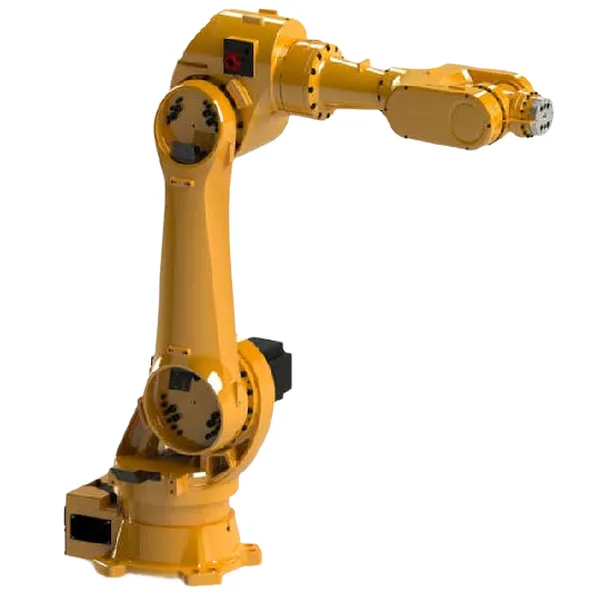

DR50A-2.25 6-Axis Articulated Robotic Arm for Automation

The DR50A-2.25 is a 6-axis articulated robotic arm designed for automation in various industries. It is equipped with advanced features and capabilities that enable it to perform complex tasks with precision and efficiency. The robotic arm is a versatile tool that can be integrated into assembly lines, production processes, and other automated systems to increase productivity and reduce human labor.

Key Features:

6-Axis Articulation: The DR50A-2.25 offers six degrees of freedom, allowing it to move and position objects in a wide range of orientations and angles. This flexibility enables it to perform intricate tasks that require multiple movements and precise positioning.

Payload Capacity: The robotic arm has a payload capacity of 2.25 kilograms (or 5 pounds). This means it can handle objects of various sizes and weights, making it suitable for a wide range of applications.

Reach and Range: The DR50A-2.25 has a maximum reach of X millimeters (specify the reach value if available) and a working range that spans across its articulated joints. This extensive reach enables it to access objects placed within its workspace efficiently.

High Precision: The robotic arm is designed to maintain high precision throughout its movements. It is equipped with advanced sensors and control systems that ensure accurate positioning and repeatable performance.

Advantages of DR50A-2.25 6-Axis Articulated Robotic Arm

1. 2.25 meters arm span, strong load capacity, large working range, strong flexibility.

2. fast running speed, high repetition positioning accuracy, suitable for loading and unloading, handling, sorting, assembly and other places of application, wide range of application.

3. Robot J4J5J6 motor adopts sealed design, with protection level up to IP67, adapting to more severe application environment.

4. the body cable adopts flexible robot special cable.

5. the arm adopts double cantilever cast aluminum parts, the arm is light weight and strong rigidity.

6. New control algorithm, kinematics and dynamics combination. New design, drive algorithm, control algorithm, according to the mechanical parts characteristics, load conditions, to achieve automatic planning, to ensure that the mechanical life while the robot in the maximum allowable capacity range of work, the robot life is longer, the robot to achieve a high-speed response, running faster, more flexible, more stable, faster work beat.

7. with collision detection function, better protection of the robot body and peripheral equipment; with gravity compensation function, the robot is more accurate, to meet the higher precision of the scene application, to broaden the application scenarios.

8. Three-phase filter is installed inside, effectively isolating external interference and preventing internal interference output.

DR50A-2.25 6-Axis Articulated Robotic Arm Technical Parameters

Models	DR50A-2.25
Arm form	Vertical multi-joint (6-axis)
Maximum loads	50KG
Maximum stroke	J1	±180°
	J2	-90°～+135°
	J3	-168°～+80°
	J4	±400°
	J5	±125°
	J6	±450°
Maximum speed	J1	125°/s
	J2	125°/s
	J3	120°/s
	J4	240°/s
	J5	340°/s
	J6	440°/s
Allowable torque	J4	235N.M
	J5	235N.M
	J6	138N.M
Repeat Positioning Accuracy	±0.05
Maximum coverage area	2250
Body weight	560KG
Installation Methods	Floor, ceiling mounted
Installation Environment	Environmental temperature	0-45℃
	Relative humidity	20-80% (no condensation)
	vibratory	Below 0.5G
	other	The robot must be installed away from: flammable or corrosive liquids or gases Electrical interference sources.
IP rating	Wrist IP67, rest IP54
Characteristic	Compact, high speed, high accuracy, high expandability, easy to operate
Application scenario	Cutting, assembly, handling, marking, grinding

DR50A-2.25 6-Axis Articulated Robotic Arm Mounting Interface Diagram

DR50A-2.25 6-Axis Articulated Robotic Arm Scope of Work Diagram

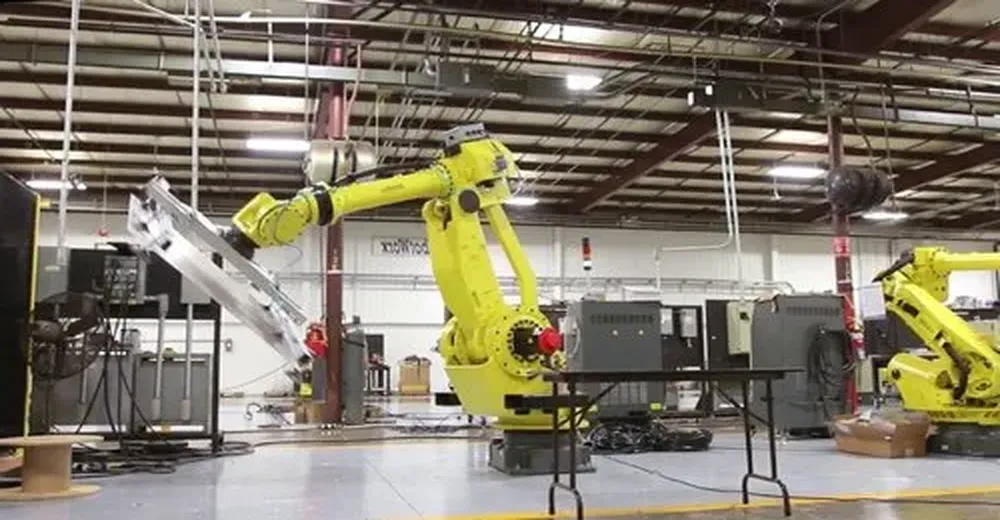

DR50A-2.25 6-Axis Articulated Robotic Arm Applications

The DR50A-2.25 6-Axis Articulated Robotic Arm has a wide range of applications across different industries. Some of the common applications include:

(1) Assembly Operations: The robotic arm can be used for precise and repetitive assembly tasks in industries such as automotive, electronics, and consumer goods. It can handle components, align them accurately, and perform intricate assembly operations with efficiency.

(2) Pick and Place: The robotic arm is well-suited for pick-and-place applications, where it can grasp and move objects from one location to another. This is commonly employed in industries like logistics, warehousing, and packaging.

(3) Material Handling: With its payload capacity and maneuverability, the robotic arm can efficiently handle materials such as boxes, containers, and heavy objects in manufacturing and logistics settings. It can load and unload materials, sort them, and transport them within a production or storage facility.

(4) Machine Tending: The robotic arm can be utilized for machine tending tasks, where it loads and unloads workpieces into machines such as CNC (Computer Numerical Control) machines, presses, or injection molding machines. This helps streamline the production process and reduce manual labor.

(5) Quality Inspection: The robotic arm can be equipped with sensors and cameras to perform quality inspection tasks. It can examine products, detect defects, measure dimensions, and ensure adherence to quality standards. This is commonly applied in industries like automotive, electronics, and pharmaceuticals.

(6) Packaging and Palletizing: The robotic arm can automate packaging processes by picking products, placing them in packaging materials, sealing packages, and labeling them. It can also be used for palletizing, where it stacks boxes or items on pallets according to predefined patterns, optimizing efficiency in warehouses and distribution centers.

(7) Testing and Lab Applications: The robotic arm can be employed in research and development settings, laboratories, and testing facilities. It can assist in conducting experiments, handling samples, and performing repetitive laboratory tasks with precision.

6-Axis Articulated Robotic Arm Manufacturer

HZPT Precision Technology Co., Ltd. was established in April 1995, and the factory is located in the center of the city. HZPT integrates ISO-9001, TS-16949, ISO14001:2004, OHSAS18001:2007 management system; it has been awarded as High and New Technology Enterprise, Intellectual Property Advantageous Enterprise, Provincial Enterprise Technology Center, Intellectual Property Advantageous Cultivating Enterprise, and Typical Manufacturing Informatization Demonstration Enterprise.HZPT has been actively promoting its own automation application for many years. HZPT has been actively promoting its own automation application for many years, fully utilizing HZPT's R&D, casting, machining and assembly capabilities to develop DR series industrial 6-axis articulated robots and supporting automation peripheral equipments such as silos and tilting tables.

The industrial 6-axis articulated robots developed by HZPT are firstly used for the automation application transformation of the existing new and old equipments in the factory, and there are nearly 100 groups of various automated machining cells and automated intelligent manufacturing production lines within the company. In promoting the company's automation development, accumulation of a large number of automation application experience at the same time, HZPT also actively promote their own automation experience, to provide from the processing process design, tooling design, equipment selection, automation program design, automation project implementation and application of maintenance of one-stop service. The service involves machine loading and unloading, welding, packing and blocking, and so on.
