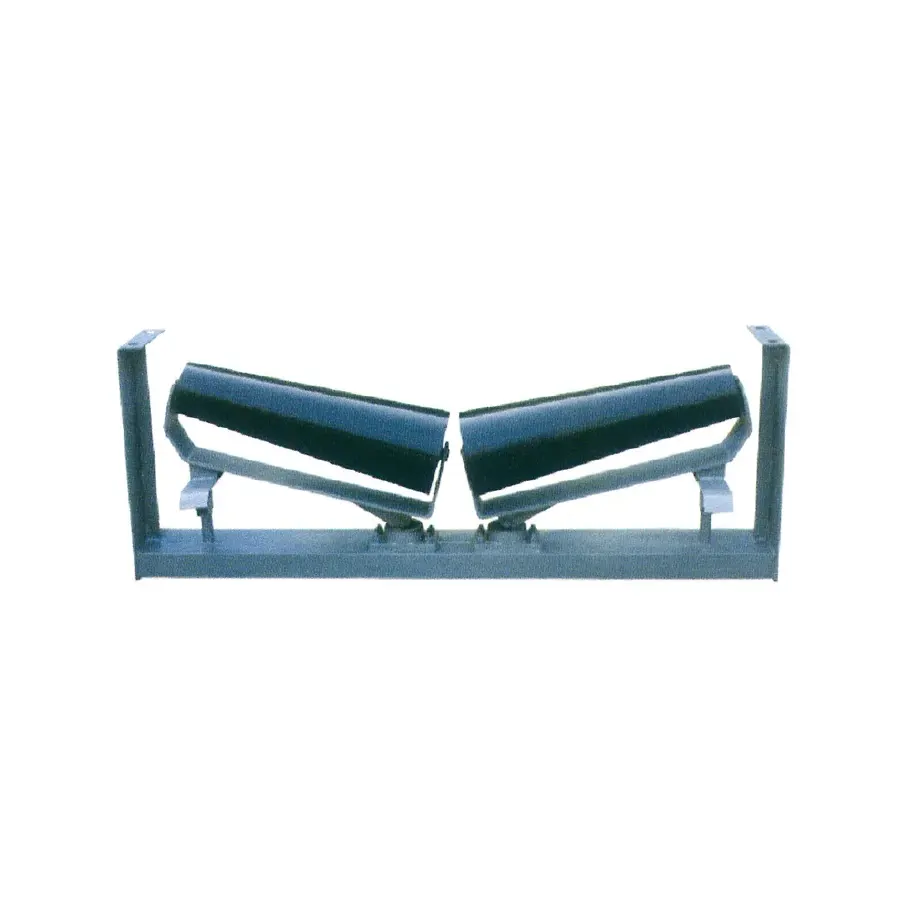

DTII Belt Conveyor Lower Taper Self-aligning for Mining Machinery

The DTII Belt Conveyor Lower Taper Self-aligning Idler is a specialized component in the DTII conveyor system, an advanced version of the TD75 standard, widely used in mining, coal, ports, and other heavy industries. These idlers are designed for the return side (underside) of the conveyor to support the empty belt and automatically correct misalignment.

Featuring tapered rollers arranged in a frame, they pivot to guide the belt back to its centerline, preventing drift and edge damage. Built to withstand harsh mining conditions, these idlers reduce belt wear, minimize maintenance, and ensure smooth operation. This page explains what lower taper self-aligning idlers do, where they’re used, how to install them, what users say, and answers common questions, all in plain language to help you decide if they’re right for your conveyor system.

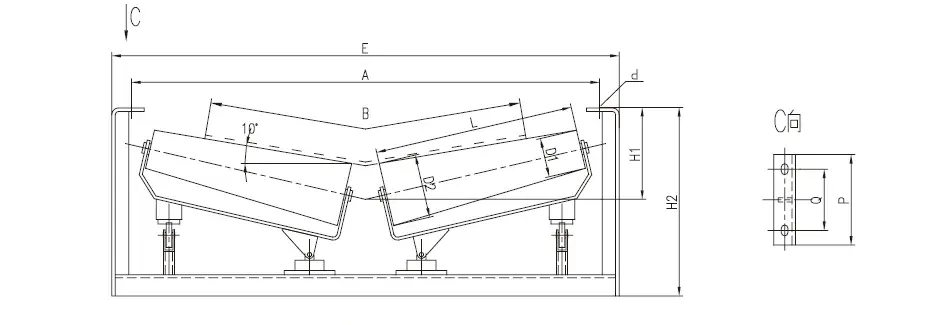

DTII Belt Conveyor Lower Taper Self-aligning for Mining Machinery Dimensions:

Explanation: The fasteners connected to the intermediate frame are included in this assembly drawing.

Unit: mm

Belt width B	D1	D2	L	H1	H2	E	A	P	Q	d	Bearing model	Drawing No
800	108	159	445	217	452	1150	1090	160	90	M12	4G305	DTⅡ03C3043
1000		176	560	254	504	1350	1290			M16		DTⅡ04C3053
1200		194	680	272	529	1600	1540	180			4G306	DTⅡ05C3054
1400			780	291	548	1800	1740					DTⅡ06C3054

DTII Belt Conveyor Lower Taper Self-aligning for Mining Machinery Features:

The DTII Lower Taper Self-aligning Idler is designed to support the return side of the conveyor belt while automatically correcting misalignment, ensuring smooth operation in rugged mining environments. Here’s what it offers:

1. Tapered Roller Design

   • Features two tapered rollers (big end inward) in a pivoting frame, often at 5°, 10°, or 15° angles, to guide the belt back to its centerline when it drifts.

   • Provides quick response to misalignment, reducing belt edge wear and damage.

2. Durable Materials

   • Roller tubes made of Q235 steel (equivalent to SS400/JIS G3101/ASTM A36) for strength under tension.

   • Shafts crafted from 45# steel (equivalent to DIN C45/JIS S45C/ASTM A1045) for precision and durability.

   • Optional stainless steel, HDPE, or rubber coatings for corrosion and wear resistance in harsh environments.

3. High-Quality Bearings

   • Equipped with deep groove ball bearings (6204, 6205, 6305, etc., with C3 clearance, 2RZ/2Z seals) for smooth rotation and long life.

   • Triple labyrinth seals protect against dust, dirt, and moisture, ideal for mining conditions.

4. Low Noise and Vibration

   • Precision manufacturing and balance testing ensure quiet operation and minimal vibration.

   • Reduces wear on the belt and conveyor frame, extending system lifespan.

5. Corrosion Resistance

   • Options for zinc plating, baking paint, or epoxy coatings to resist rust in environments like coastal ports.

   • Stainless steel or high-polymer coatings available for added durability in abrasive or chemical conditions.

6. Customizable Design

   • Roller diameters from 63.5mm to 219mm, lengths from 120mm to 2200mm, fitting belts 400mm to 3000mm wide.

   • Customizable taper angles and frame designs to match specific conveyor layouts and tension requirements.

7. Standards Compliance

   • Meets DTII, DTII(A), CEMA (B, C, D, E), JIS, and ISO 9001:2015 standards for quality and safety.

   • Tested for radial runout (≤0.5mm), axial displacement (≤1.2mm), and rotation resistance (≤3.5N) to ensure reliability.

DTII Belt Conveyor Lower Taper Self-aligning Applications:

The DTII Lower Taper Self-aligning Idler is used on the return side of conveyors to support the empty belt and correct misalignment, particularly in high-tension or long-distance systems. It’s ideal for these industries:

1. Mining

   • Supports and aligns return belts in conveyors moving coal, iron ore, copper, or bauxite in underground or open-pit mines.

   • Suits long-distance systems, like a 7 km conveyor in Inner Mongolia, ensuring stable belt tracking.

2. Metallurgy

   • Supports return belts handling raw or processed metals in smelting plants.

   • Corrosion-resistant coatings withstand abrasive or high-temperature environments.

3. Ports and Terminals

   • Supports return belts during loading/unloading of coal, grain, or aggregates.

   • Rust-resistant options are ideal for salty coastal environments.

4. Construction

   • Supports return belts carrying gravel, sand, or aggregates on job sites.

   • Works with mobile or fixed conveyors for versatile setups.

5. Power Plants

   • Supports return belts handling coal or ash in fuel or waste systems.

   • Built for dusty, high-tension conditions.

DTII Belt Conveyor:

Purpose and Scope of Use:

DTII、DTII(A) fixed belt conveyors. Their main parameters, transmission power, and tension calculation methods adopt ISO international standards, and are widely used in various industries.
The material is transported by a single or multiple unit synthetic transportation system.
This conveyor is suitable for working in temperatures ranging from -25°C to 40°C.

Product Features:

◆ Conveying materials is below 2.5t/m3
◆ Can be divided into 500, 650, 800, 1000, 1200, 1400, 1600, 1800, 2000、2200, 2400
◆ Can be divided into：0.8, 1.0, 1.25, 1.6, 2.0, 2.5, 3.15、4.0, (4.5), 5.0, (5.6), 6.5



Belt  width  (mm)	0.8	1.0	1.25	1.6	2.0	2.5	3.15	4	(4.5)	5.0	(5.6)	6.5
500	69	87	108	139	174	217
650	127	159	198	254	318	397
800	198	248	310	397	496	620	781
1000	324	405	507	648	811	1014	1278	1622
1200		593	742	951	1188	1486	1872	2377	2674	2971
1400		825	1032	1321	1652	2065	2602	3304	3718	4130
1600					2186	2733	3444	4373	4920	5465	6122
1800					2795	3494	4403	5591	6291	6989	7829	9083
2000					3470	4338	5466	6941	7808	8676	9717	11277
2200							6843	8690	9776	10863	12166	14120
2400							8289	10526	11842	13158	14737	17104

Note:
1. The conveying capacity in the table is calculated based on horizontal transportation, with a dynamic stacking angle of 20° and a roller groove angle of 35°.
2. The belt speeds of 4.5m/s and 5.6m/s in the table are non-standard values and are generally not recommended for use.

Installation Guidelines:

Installing DTII Lower Taper Self-aligning Idlers is straightforward with these steps:

1. Verify Specifications

   • Ensure the idler’s diameter, length, taper angle (5°, 10°, 15°), and frame design match your conveyor’s belt and return side requirements.

   • Confirm the frame can support the idler’s weight and belt tension.

2. Position the Idlers

   • Install on the return side of the conveyor, typically spaced 6-10 feet apart, depending on the belt width and tension.

   • Use pivoting frames to secure the tapered rollers, ensuring they can swivel to correct misalignment.

3. Align the Idlers

   • Set idlers perpendicular to the belt to ensure even support and effective tracking.

   • Use a laser level or string line to align the frame with adjacent idlers for consistent tracking.

4. Inspect Bearings and Seals

   • Verify bearings are lubricated with lithium soap grease and triple labyrinth seals are intact.

   • Avoid disturbing seals to maintain dust and water resistance.

5. Adjust Belt Tension

   • Set tension to keep the return belt taut without overloading the idlers. Use:
     [ T = \frac{P_p \cdot 1000}{v} ] where (T) is tension (Newtons), (P_p) is power (kilowatts), and (v) is belt speed (meters/second).

6. Test the System

   • Run the conveyor at low speed with no load to check idler performance, belt alignment, and pivot response.

   • Adjust the frame or roller position if the belt drifts or shows uneven wear.

Installation Tips

• Use trained technicians to meet safety and industry standards.

• Document installation details for maintenance records.

• Contact us for expert setup assistance.

Maintenance Tips

Regular care keeps DTII Lower Taper Self-aligning Idlers performing well:

• Inspect Regularly: Check rollers, bearings, and frames every 3-6 months for wear or damage.

• Lubricate Bearings: Apply lithium soap grease every 6 months to ensure smooth rotation.

• Clean Rollers: Remove any material buildup to maintain alignment performance.

• Check Pivot Mechanism: Verify the pivoting frame moves freely to correct misalignment.

• Use OEM Parts: Replace with DTII-compliant parts to maintain performance.

• Avoid Damage: Do not strike the idler tube or frame with heavy objects to prevent damage to bearings or seals.

Customer Feedback:

Here’s what users of DTII Lower Taper Self-aligning Idlers say:

1. Australian Iron Ore Mine

   “The tapered rollers respond quickly to belt drift. Our belts last longer, and downtime is minimal.” – Liam Brown, Site Engineer

2. South African Port Terminal

   “The corrosion-resistant coatings hold up great by the coast. These idlers need almost no upkeep.” – Naledi Khumalo, Logistics Manager

3. Chilean Copper Mine

   “Our conveyor’s uptime is up 22% thanks to these idlers. They’re reliable and keep the belt centered.” – Sofia Morales, Maintenance Supervisor

These testimonials show Ever-Power delivers dependable idlers that customers trust.

Related Questions (FAQs):

Got questions? Here are clear answers with keywords to help you find us:

1. What’s a DTII Lower Taper Self-aligning Idler?

A return-side idler with tapered rollers that pivots to correct belt misalignment in mining conveyors, ensuring stable tracking.

2. How does it correct misalignment?

Tapered rollers in a pivoting frame swivel to guide the belt back to its centerline when it drifts, reducing edge wear.

3. What’s it made of?

Q235 steel for roller tubes, 45# steel for shafts, with optional stainless steel, HDPE, or rubber coatings for durability.

4. How often should I maintain it?

Inspect every 3-6 months, lubricate bearings, clean rollers, and check pivot mechanism. Don’t tamper with seals.

5. Can it be customized?

Yes, we offer various sizes, taper angles, and coatings to fit your conveyor.

6. Where’s it used?

Mining, metallurgy, ports, construction, and power plants for handling bulk materials like coal or ore.

7. How does it improve my conveyor?

It corrects misalignment, reduces belt wear, and cuts maintenance for better efficiency and safety.
