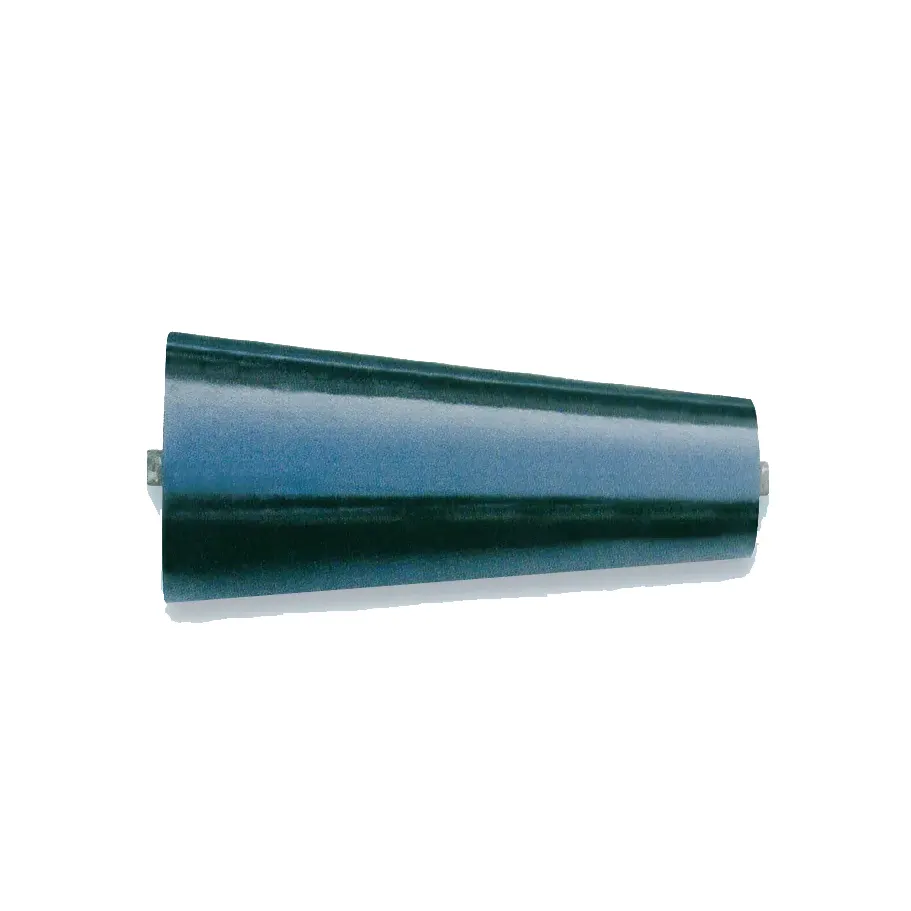

DTII Belt Lower Tape Roller for Mining Machinery

The DTII Belt Conveyor Lower Taper Roller is a critical component designed to keep your mining conveyor belts aligned and running smoothly. Engineered by HZPT, a leader in conveyor solutions, these conical, self-aligning rollers prevent belt deviation, reduce wear, and ensure efficient material handling in harsh mining environments. Whether you’re transporting coal in Shanxi or ore in Australia, our DTII lower taper rollers deliver unmatched durability and performance. Below is a snapshot of key technical specifications to help you choose the right solution for your conveyor system.

DTII Belt Lower Tape Roller for Mining Machinery Dimensions:

Belt width B	D1×D2×L1	D3×L2×C	Bearing model	Applicable models
800	Ø108×Ø159×445	Ø25×479×18	4G305	DTⅡ03C3043
1000	Ø108×Ø176×560	Ø25×594×18	4G305	DTⅡ04C3053
1200	Ø108×Ø194×680	Ø30×714×22	4G306	DTⅡ05C3054
1400	Ø108×Ø194×780	Ø30×814×22	4G306	DTⅡ06C3054

Our DTII lower taper rollers are perfect for mining conveyor systems, bulk material handling, and heavy-duty applications in regions like Shanxi, Inner Mongolia, and Queensland. With a conical design that corrects belt misalignment, these rollers ensure smooth operation, reduce maintenance costs, and boost productivity. Contact us today to customize your solution!

Why DTII Lower Taper Rollers Matter

Belt misalignment is a common issue in mining conveyors, leading to edge wear, material spillage, and costly downtime. The DTII lower taper roller addresses this by using its conical shape to guide the belt back to center, leveraging friction and tension for automatic alignment. Unlike traditional rollers, HZPT’s taper rollers are built with Q235 steel, triple labyrinth seals, and precision bearings, ensuring durability in dusty, humid, or corrosive mining environments. This page explores the features, applications, installation, and customer experiences that make HZPT’s DTII lower taper roller the go-to choice for mining professionals worldwide.

DTII Belt Lower Tape Roller for Mining Machinery Features:

Conical Self-Aligning Design

The DTII lower taper roller features a conical shape that naturally corrects belt deviation by guiding the belt toward the center. This self-aligning mechanism reduces edge wear and prevents material spillage, critical for high-volume mining operations like coal handling in Shanxi. The taper angle is optimized for belts 500mm to 2400mm wide, ensuring compatibility with various conveyor systems.

Durable Materials

• Roller Tube: Made of Q235 steel (equivalent to SS400/JIS G3101/ASTM A36), offering high strength for heavy loads.
• Shaft: Crafted from 45# steel (DIN C45/JIS S45C/ASTM A1045) for precision and durability.
• Coatings: Optional rubber, polyurethane, or HDPE coatings enhance corrosion and abrasion resistance, ideal for wet or salty conditions in Queensland ports.

High-Performance Bearings

Equipped with deep groove ball bearings (6204, 6205, 6305, C3 clearance, 2RZ/2Z seals), these rollers ensure smooth rotation and a lifespan of up to 60,000 hours. Triple labyrinth seals protect against dust and moisture, making them ideal for harsh mining environments, such as Inner Mongolia coal mines.

Low Noise and Vibration

Precision manufacturing and balance testing minimize noise and vibration, promoting worker comfort in enclosed settings like underground mines []. This reduces wear on the belt and frame, extending system life.

Corrosion Resistance

With options for zinc plating, baking paint, or epoxy coatings, our rollers resist rust in corrosive environments, such as coastal ports in South Africa. Rubber or HDPE coatings further enhance durability in abrasive conditions.

Customization Options

We offer customizable roller diameters (89mm to 219mm), lengths (150mm to 2500mm), and taper angles to fit specific conveyor setups. Whether you need a custom DTII taper roller for mining applications or a specialized coating for a Queensland quarry, we tailor our solutions to meet your specific needs.

Standards Compliance

Our rollers meet DTII, DTII(A), CEMA (B, C, D, E), JIS, and ISO 9001:2008 standards, ensuring quality and safety. Tested for radial runout (≤0.5mm), axial displacement (≤1.2mm), and rotation resistance (≤3.5N), they deliver reliable performance.

DTII Belt Conveyor Tape Roller Applications:

Mining

The DTII lower taper roller prevents belt deviation in systems transporting coal, iron ore, or copper in underground or open-pit mines. In Shanxi, a 5 km conveyor equipped with our rollers reduced misalignment incidents by 40%, boosting uptime. Ideal for Shanxi mining conveyor rollers and Inner Mongolia coal mining taper rollers.

Cement Plants

Sticky cement or clinker can cause belt drift, but our taper rollers keep belts aligned, reducing maintenance in abrasive environments. Perfect for cement plant conveyor rollers in regions like Henan.

Ports and Terminals

In coastal ports like those in Queensland or South Africa, our corrosion-resistant coatings ensure durability against salty air, maintaining belt alignment during coal or grain handling. Search for Queensland port conveyor taper roller to see our solutions.

Construction

Our rollers correct belt deviation in systems carrying gravel or aggregates, supporting mobile or fixed conveyors on job sites. Ideal for construction site conveyor rollers in rapidly growing regions like Dubai.

Power Plants

In power plants handling coal or ash, our taper rollers prevent misalignment, ensuring efficient material transport. They’re a top choice for power plant conveyor rollers in regions like Texas.

DTII Belt Conveyor:

Purpose and Scope of Use:

DTII、DTII(A) fixed belt conveyors. Their main parameters, transmission power, and tension calculation methods adopt ISO international standards, and are widely used in various industries.
The material is transported by a single or multiple unit synthetic transportation system.
This conveyor is suitable for working in temperatures ranging from -25°C to 40°C.

Product Features:

◆ Conveying materials is below 2.5t/m3
◆ Can be divided into 500, 650, 800, 1000, 1200, 1400, 1600, 1800, 2000、2200, 2400
◆ Can be divided into：0.8, 1.0, 1.25, 1.6, 2.0, 2.5, 3.15、4.0, (4.5), 5.0, (5.6), 6.5



Belt  width  (mm)	0.8	1.0	1.25	1.6	2.0	2.5	3.15	4	(4.5)	5.0	(5.6)	6.5
500	69	87	108	139	174	217
650	127	159	198	254	318	397
800	198	248	310	397	496	620	781
1000	324	405	507	648	811	1014	1278	1622
1200		593	742	951	1188	1486	1872	2377	2674	2971
1400		825	1032	1321	1652	2065	2602	3304	3718	4130
1600					2186	2733	3444	4373	4920	5465	6122
1800					2795	3494	4403	5591	6291	6989	7829	9083
2000					3470	4338	5466	6941	7808	8676	9717	11277
2200							6843	8690	9776	10863	12166	14120
2400							8289	10526	11842	13158	14737	17104

Note:
1. The conveying capacity in the table is calculated based on horizontal transportation, with a dynamic stacking angle of 20° and a roller groove angle of 35°.
2. The belt speeds of 4.5m/s and 5.6m/s in the table are non-standard values and are generally not recommended for use.

Installation Guidelines:

Installing DTII lower taper rollers is simple with these steps:

1. Verify Specifications:
   • Confirm roller diameter, length, and taper angle match your conveyor’s belt (500mm to 2400mm).
   • Ensure the frame supports the roller’s weight and tension.
2. Position the Rollers:
   • Install on the carrying or return side, typically in pairs, spaced 1-3 meters apart based on belt width.
   • Use sturdy frames aligned with the belt’s trough angle (20°, 35°, or 45°).
3. Align the Rollers:
   • Set rollers at a slight angle to the belt’s centerline to enable self-aligning action.
   • Use a laser level for precise alignment with adjacent idlers.
4. Inspect Bearings and Seals:
   • Ensure bearings are lubricated with lithium soap grease, and triple labyrinth seals are intact.
   • Avoid disturbing seals to maintain dust resistance.
5. Adjust Belt Tension:
   • Calculate tension using: T=Pp⋅1000vT = \frac{P_p \cdot 1000}{v}T=vPp​⋅1000​ where $T$ is tension (Newtons), P_pP_pPp​ is power (kilowatts), and $v$ is belt speed (meters/second).
   • Keep the belt taut without overloading the rollers.
6. Test the System:
   • Run the conveyor at low speed to check alignment correction and belt tracking.
   • Adjust roller positions if drift occurs.

Tips:

• Use trained technicians for safety.
• Document installation for maintenance records.
• Contact us for expert support.

Maintenance Tips

To maximize the lifespan of your DTII lower taper roller:

• Inspect Regularly: Check rollers, bearings, and frames every 3-6 months for wear.
• Lubricate Bearings: Apply lithium soap grease every 6 months.
• Clean Rollers: Remove material buildup to ensure alignment effectiveness.
• Check Alignment: Verify rollers remain angled correctly to prevent drift.
• Use OEM Parts: Replace with HZPT’s DTII-compliant parts.
• Avoid Damage: Don’t strike rollers to prevent bearing or seal damage.

Customer Feedback:

1. Queensland Quarry, Australia


   “Sticky aggregates used to throw our belts off track. EVER-POWER’s self-aligning conveyor rollers keep everything running smoothly. Downtime is minimal, and the corrosion-resistant coatings handle our coastal conditions.” – Emma Davis, Site Engineer

2. South African Port Terminal


   “Our belts were wearing out from misalignment in our salty environment. HZPT’s Queensland port conveyor taper roller with HDPE coatings fixed that. They’re low-maintenance and reliable.” – Thabo Mokoena, Logistics Manager

3. Chilean Copper Mine


   “Heavy ore loads caused belt drift, but EVER-POWER’s DTII taper roller for heavy-duty mining systems corrected it. Uptime is up 25%, and maintenance costs are down.” – Maria Gonzalez, Maintenance Supervisor

FAQs:

1. What is a DTII lower taper roller?
   A conical roller that prevents belt deviation in DTII conveyor systems, ideal for mining,
2. How does it prevent belt deviation?
   The tapered shape uses friction to guide the belt back to center, reducing misalignment.
3. What materials are used?
   Q235 steel for tubes, 45# steel for shafts, with optional rubber or HDPE coatings.
4. How often should I maintain it?
   Inspect every 3-6 months, lubricate bearings, and clean rollers.
5. Can it be customized?
   Yes, EVER-POWER offers custom sizes, angles, and coatings.
   Mining, cement, ports, construction, and power plants, e.g., Shanxi mining conveyor rollers.
6. How does it improve efficiency?
   It reduces belt wear and downtime, boosting productivity.

HZPT’s Unique Advantages:

Quality Inspection Process

• Material Testing: We use Q235 steel and 45# steel, verified for strength and durability.
• Precision Manufacturing: Rollers are tested for radial runout (≤0.5mm) and rotation resistance (≤3.5N).
• Seal Integrity: Triple labyrinth seals are checked to ensure dust and moisture resistance.
• Performance Validation: Each roller undergoes load and alignment tests to meet DTII and CEMA standards.

Customization Expertise

We offer tailored solutions, from custom taper angles to specialized coatings for regions like Queensland or South Africa. Our engineers collaborate with you to meet specific conveyor needs.

Premium After-Sales Service

• Global Support: 24/7 technical assistance via email, phone, or live chat.
• Warranty: [Please provide warranty details, e.g., 2-year warranty].
• Maintenance Guidance: Free consultation for installation and upkeep.
