EP-SSRV040 Stainless Steel Worm Gearbox

Introduction of EP-SSRV040 Stainless Steel Worm Gearbox

The EP-SSRV040 Stainless Steel Worm Gearbox is a series of gearboxes that share the same installation dimensions and selection as the NMRV gearbox. The only difference is that the EP-SSRV040 gearbox features a 304 precision cast flange housing and a 304 wheel core. The worm material is made of 12-2 tin bronze, and it uses fully synthetic worm gear oil. The surface of the gearbox is electrolytically polished, making it resistant to corrosion and easy to clean. With a wide range of speed ratios and high torque, this gearbox is suitable for multi-directional installation.

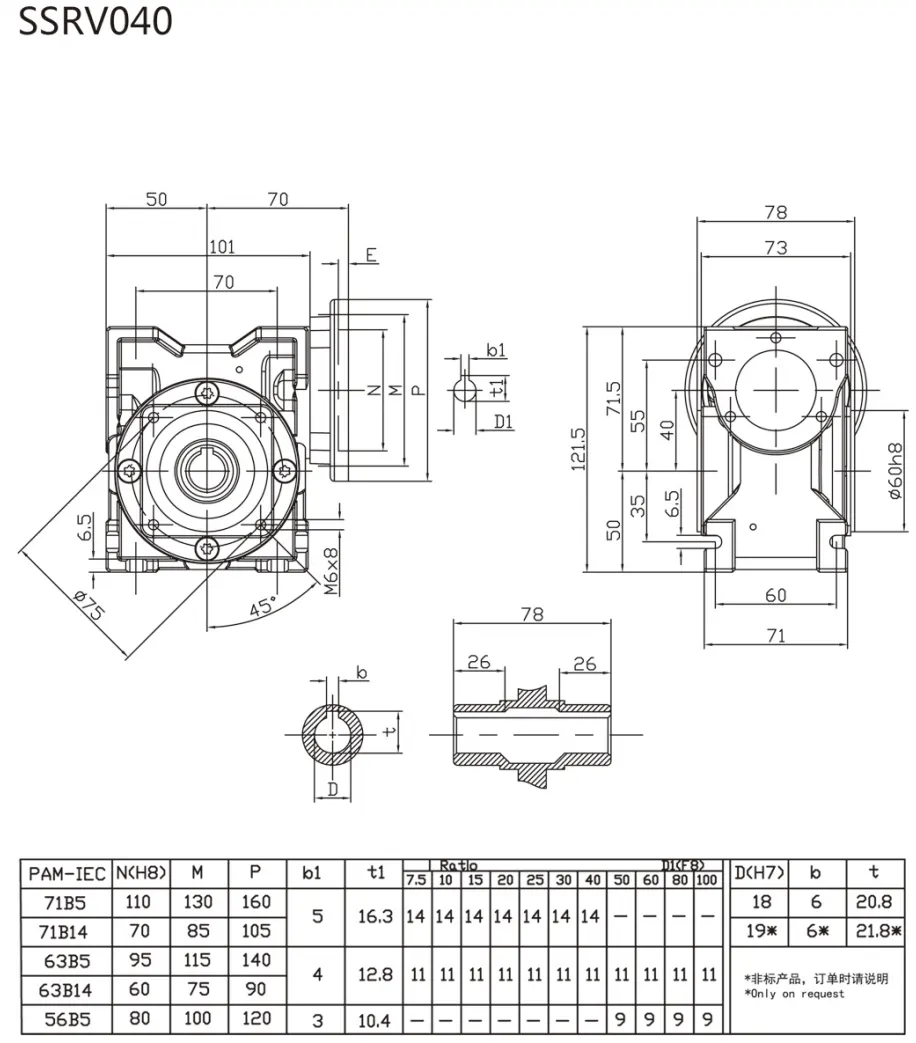

Mounting Dimensions for EP-SSRV040 Stainless Steel Worm Gearbox

The following image shows the installation dimensions for this product:

SSRV...F Output Flange Dimension

The output flange dimension of EP-SSRV040 Stainless Steel Worm Gearbox is as follows:

About SSRV Stainless Steel Worm Gearbox Output Shafts

The output shaft of the EP-SSRV040 Stainless Steel Worm Gearbox is made of 304 material. Please refer to the following image for more details:

SSRV Worm Gearbox Torque Arm

The EP-SSRV040 Stainless Steel Worm Gearbox is equipped with a sturdy torque arm to ensure stable and reliable performance. The torque arm is designed to provide additional support and prevent the gearbox from rotating during operation. Made from high-quality stainless steel material, the torque arm is resistant to corrosion and can withstand harsh operating conditions. See the image below for a visual representation of the SSRV series stainless steel worm gearbox torque arm.

About Application

The EP-SSRV040 Stainless Steel Worm Gearbox is widely used in various industries and applications, including:

• Food and Beverage Industry
• Chemical Industry
• Pharmaceutical Industry
• Packaging Industry

Stainless Steel Worm Reducer Selection

To select the appropriate stainless steel worm gearbox, it is important to consider the following points:

1. Load Requirements: Determine the maximum load that the reducer will need to handle. Consider both the radial load and the axial load.

2. Speed Ratio: Calculate the required speed reduction ratio based on the desired output speed.

3. Efficiency: Consider the efficiency of the gearbox at different operating conditions. This will impact the overall performance and energy consumption.

4. Mounting and Installation: Take into account the available space and mounting options for the gearbox. Ensure proper alignment and secure installation.

5. Environmental Conditions: Evaluate the operating environment, including temperature, humidity, and presence of corrosive substances. Stainless steel gearboxes are resistant to corrosion, making them suitable for harsh environments.

6. Lubrication: Determine the lubrication requirements and maintenance schedule for the gearbox. Proper lubrication is crucial for ensuring smooth operation and extending the lifespan of the reducer.

7. Budget: Consider the cost of the stainless steel worm gearbox and compare it with the available budget.

Here is a table of selection parameters for stainless steel reducers:

Stainless Steel Motors for EP-SSRV040 Stainless Steel Worm Gearbox

Our company not only provides stainless steel gearboxes, but also offers a wide range of stainless steel motors that are perfectly compatible with the EP-SSRV040 Stainless Steel Worm Gearbox. These motors are designed to deliver reliable performance and durability in various applications.

Stainless Steel Worm Reducers Manufacturer

EP-SSRV040 Stainless Steel Worm Gearbox is a product offered by our company (HZPT), and we take great pride in its unique selling points. Our company stands out in terms of product quality and service, among other advantages.

Our stainless steel reducers are manufactured using high-quality materials, ensuring durability and reliability. They are resistant to corrosion and can withstand harsh environmental conditions. This makes them a perfect choice for various industries that require strong and long-lasting reducers.

In addition to stainless steel reducers, HZPT also offers a wide range of other non-standard reducers for sale. These include reducers for fully automatic car wash machines, fountain systems, snow blowers, and more. Our extensive selection caters to the diverse needs of our customers, ensuring that they can find the perfect solution for their specific applications.

At HZPT, we are committed to providing excellent customer service. Our knowledgeable and experienced team is always ready to assist customers with their inquiries and guide them in choosing the right products. We strive to exceed our customers' expectations and build long-term relationships based on trust and satisfaction.
