EP-SSVF50 Stainless Steel Reduction Gearbox

Introduction of EP-SSVF50 Stainless Steel Reduction Gearbox

The EP-SSVF50 stainless steel reduction gearbox is designed based on the VF worm gear reducer. It features a 304 precision cast body, compact structure, a 304 wheel core, and a 12-2 tin bronze worm. The gearbox is coated with electrolytic polishing to enhance corrosion resistance and ease of cleaning. It also offers a variety of speed ratios. Please refer to the following image for more information:

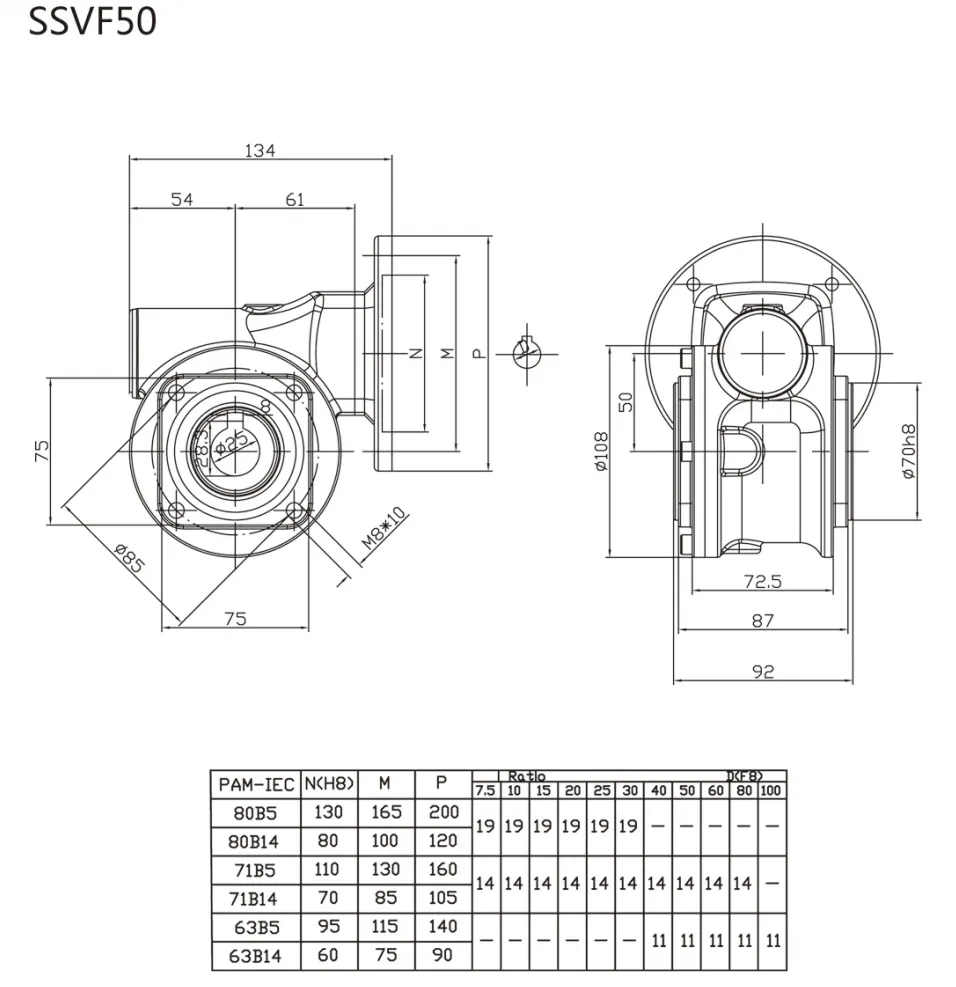

Dimensions of EP-SSVF50 Stainless Steel Reduction Gearbox

The following information showcases the installation dimensions of the EP-SSVF50 Stainless Steel Reduction Gearbox. Please refer to the image below for detailed dimensions.

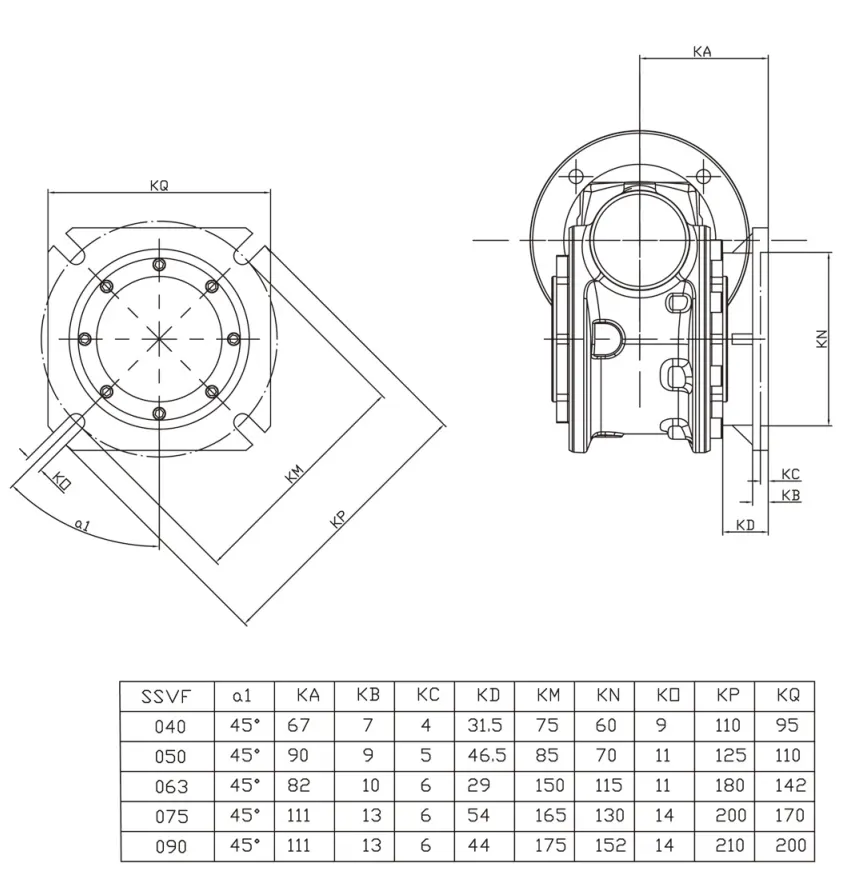

SSVF...F Output Flange Dimension

The SSVF...F reduction gearbox features a stainless steel output flange with dimensions made from 304-grade material. The output flange is designed to provide a secure and reliable connection for various applications.

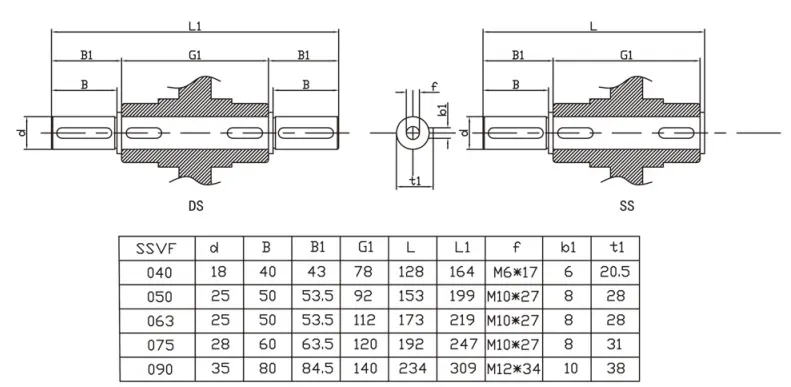

Output Shafts of SSFV Stainless Steel Worm Gearbox

The output shaft of EP-SSVF50 Stainless Steel Reduction Gearbox is made of 304 material. See image below:

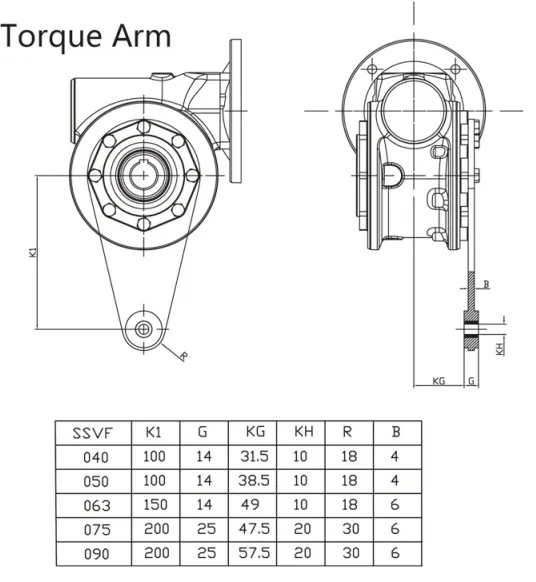

SSFV Worm Gearbox Torque Arm

Application of EP-SSVF50 Stainless Steel Reduction Gearbox

The EP-SSVF50 Stainless Steel Reduction Gearbox is widely used in various industries and scenarios. It provides reliable and efficient power transmission for the following industries:

• Food and beverage processing
• Pharmaceutical and medical equipment
• Chemical and petrochemical
• Agriculture and farming
• Packaging and labeling
• Material handling and conveyor systems
• Water and wastewater treatment
• Renewable energy

Stainless Steel Worm Reducer Selection

EP-SSVF50 Stainless Steel Reduction Gearbox is a reliable and durable option for various industrial applications. When selecting the appropriate stainless steel worm reducer, it is important to consider the following factors:

• Application requirements: Understand the specific requirements of your application and select a reducer that meets those requirements.
• Ratio: Choose a reducer with the appropriate ratio to ensure optimal performance and efficiency.
• Input and output speed: Determine the required input and output speeds to select a reducer that can handle those speeds.
• Load capacity: Ensure that the reducer can handle the maximum load capacity of your application.
• Environmental conditions: Consider the environmental conditions in which the reducer will be operating, such as temperature, humidity, and exposure to corrosive elements.

Please refer to the following parameter tables for EP-SSVF50 Stainless Steel Reduction Gearbox to choose the appropriate model for your application:

Stainless Steel Motors for EP-SSVF50 Stainless Steel Reduction Gearbox

Our company not only provides stainless steel gearboxes, but also offers a range of stainless steel motors that are compatible with the EP-SSVF50 Stainless Steel Reduction Gearbox. These motors are designed to work seamlessly with the gearbox, providing reliable and efficient performance.

Stainless Steel Worm Reducers Manufacturer

EP-SSVF50 Stainless Steel Reduction Gearbox is a testament to our company's unique selling points. We pride ourselves on the exceptional quality and service that sets us apart. Our stainless steel reducers are a testament to our commitment to providing top-of-the-line products.

In addition to stainless steel reducers, HZPT also offers a wide range of other non-standard reduction gearboxes for sale. Our product lineup includes full automatic car wash machine reducers, fountain reducers, snow blower reducers, and many more.
