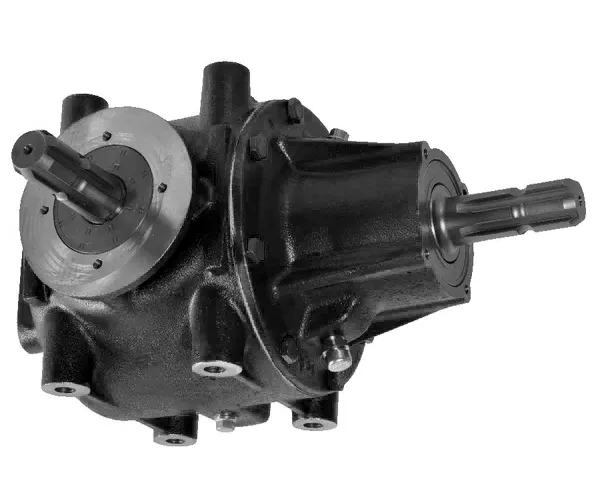

Flail Mower Gearboxes – Replacement of Comer Code T-292B 1.86:1

Flail Mower Gearboxes - Replacement of Comer Code T-292B 1.86:1

The flail mower gearbox T-292B is a model of gearbox specifically designed for flail mowers. Flail mower gearboxes are essential components of flail mowers, which are machines used for cutting grass, shrubs, and other vegetation. The flail mower gearbox is responsible for transmitting the power from the mower's drive shaft to the blades or flails that do the actual cutting.

The flail mower gearbox T-292B is a single-speed model that is designed to work with flail mowers with a cutting width of up to 1.6 meters. It has a power capacity of up to 60 horsepower and a maximum torque of 542 Nm. The flail mower gearbox is designed with high-quality gears and bearings that can withstand the high stresses and strains of cutting thick vegetation. The flail mower gearbox T-292B also has an oil bath lubrication system, which ensures that the gears are properly lubricated and cooled, leading to less wear and a longer lifespan.

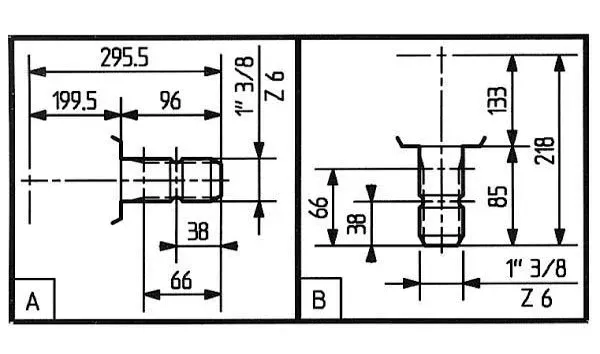

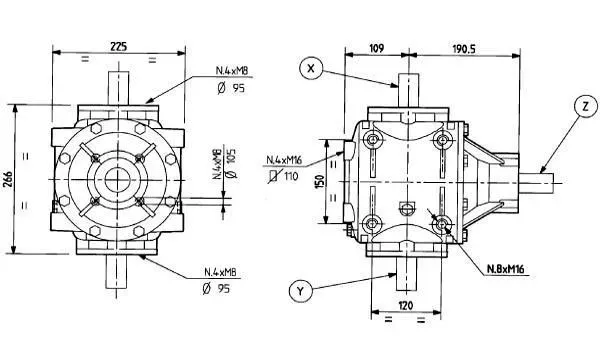

▍Specifications of Flail Mower Gearbox T-292B (1.86:1)

▍Characteristics of Flail Mower Gearbox T-292B (1.86:1)

The flail mower gearbox T-292B is a type of gearbox that is specifically designed for use with flail mowers. It has several characteristics that make it a reliable and efficient flail mower gearbox. Some of these characteristics include:

Durable Material: The flail mower gearbox T-292B is made of high-quality cast iron material that makes it strong and durable. It can withstand heavy loads and tough working conditions.

High-Speed Efficiency: The flail mower gearbox T-292B has high-speed efficiency due to its 1:3.09 gear ratio, which enables it to transfer higher torque to the flail mower blades.

Easy to Mount: The flail mower gearbox T-292B is easy to mount to the flail mower due to its compact design and lightweight. Its mounting system is also simple and flexible to use.

Low Maintenance: The flail mower gearbox T-292B requires low maintenance, which makes it a cost-effective option. The gearbox has a sealed design that protects it from dust, debris, and other environmental factors. It also does not require any lubrication, thus reducing maintenance requirements and costs.

Versatility: This flail mower gearbox T-292B is versatile and can be used with different types of flail mowers. It can be used for a variety of agricultural, landscaping, and forestry applications.

Overall, the flail mower gearbox T-292B is a reliable, efficient, and cost-effective gearbox that is designed for use with flail mowers. Its durability, easy-to-mount design, high-speed efficiency, low maintenance requirements, and versatility make it an excellent choice for many applications.

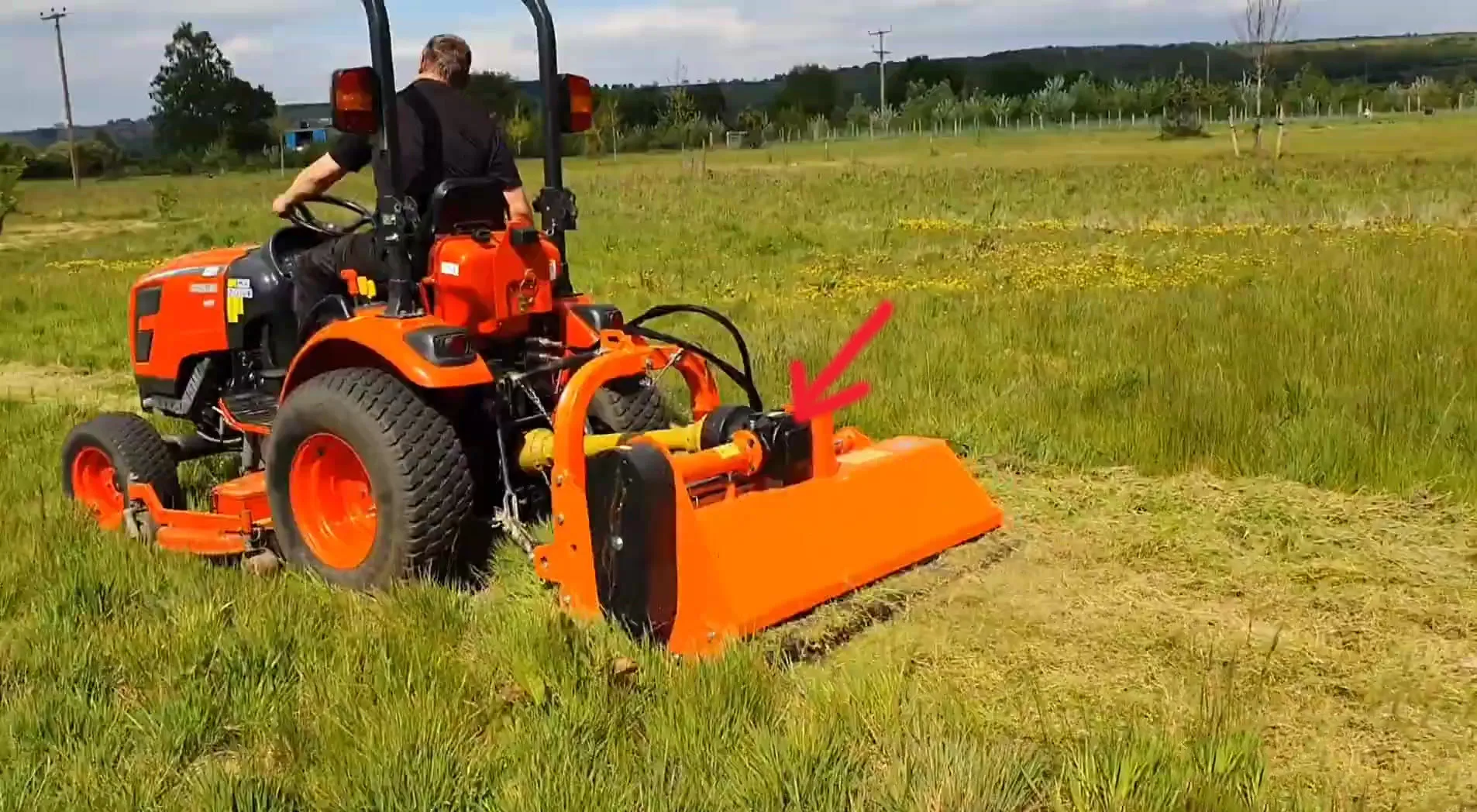

▍Some of Flail Mower Gearbox Common Problems

Like any mechanical equipment, flail mower gearboxes can encounter some common problems. These flail mower gearbox problems may include the following:

Malfunctioning Input Shaft: The input shaft is part of the gearbox that connects to the PTO shaft of the tractor. If it is not properly aligned, it can cause vibrations, leading to the breaking of the flail mower gearbox.

Worn Bearings: Bearings are used to support rotating parts within the gearbox. When they are worn or damaged, they can cause a variety of problems, including unusual noise and failure of the flail mower gearbox.

Gear Wear: The gears of a flail mower gearbox can wear out over time, leading to decreased efficiency and potential gearbox failure.

Leaking Oil: When the seals on the gearbox are damaged, oil can leak out, leading to lubrication loss, increased wear, and, ultimately, flail mower gearbox damage.

PTO Shaft Vibrations: If the PTO shaft is not properly aligned, it can cause vibrations in the flail mower gearbox, leading to damage to the gearbox and PTO shaft.

It is important to regularly inspect and maintain flail mower gearboxes to identify any signs of wear or damage. Proper alignment, regular lubrication, and appropriate use of the gearbox can help prevent common problems and prolong its usefulness. If any issues are identified, it is important to address them promptly to avoid further damage or safety hazards.

▍Agricultural PTO Shaft for Flail Mower Gearbox

An agricultural PTO shaft is a type of driveline that transfers power from the tractor to the equipment being towed or operated by the tractor. It consists of a rotating shaft that connects to the tractor's power take-off (PTO) system on one end and the equipment on the other. The agricultural PTO shaft is an important component for connecting the tractor to the flail mower gearbox.

The flail mower gearbox is equipped with an input shaft that is designed to fit most standard PTO shafts. The PTO shaft is used to transfer the rotational energy from the tractor to the flail mower gearbox, which then powers the blades of the mower.

When installing the agricultural PTO shaft and flail mower gearbox, it is important to ensure that the two components are properly aligned and connected. The PTO shaft should be attached to the tractor's PTO system, and the input shaft of the flail mower gearbox should be connected to the PTO shaft.

It is also important to note that proper maintenance of the agricultural PTO shaft and flail mower gearbox is crucial to ensure their longevity and safe operation. The PTO shaft should be checked regularly for any signs of wear or damage, and the flail mower gearbox should be lubricated according to the manufacturer's recommendations.

In summary, the agricultural PTO shaft and flail mower gearbox are two crucial components in powering the blades of a flail mower. Their proper installation, alignment, and maintenance are essential for safe and efficient operation.

▍We Also Offer Other Agricultural Gearboxes

We also offer other types of agricultural gearboxes, such as rotary cutter gearboxes, fertilizer spreader gearboxes, lawn mower gearboxes, post hole digger gearbox, rotary tiller gearboxes, corn headers gearboxes, fertilizer mixer gearboxes, feed mixer gearboxes, flail mower gearboxes, round baler gearboxes, irrigation reels gearboxes, manure spreader gearboxes, rotary rake gearboxes, gearbox for hay tedders, etc. If you want to buy rotary mower gearboxes, please get in touch with us.
