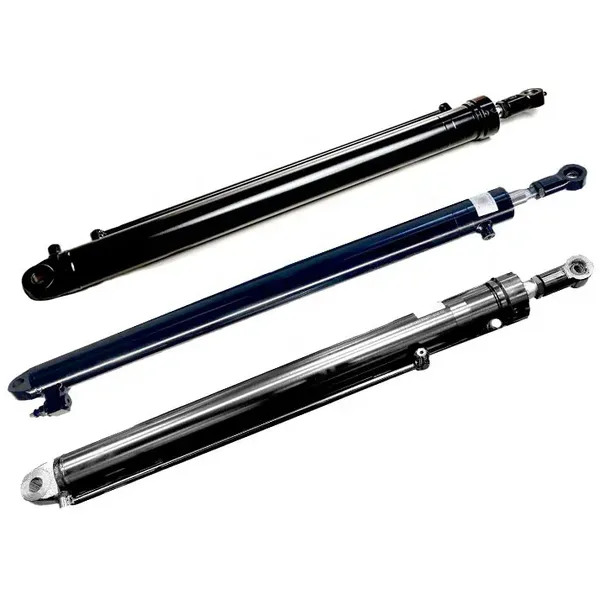

Forklift Distance Adjustment Hydraulic Cylinder

Forklift Distance Adjustment Hydraulic Cylinder

A forklift distance adjustment hydraulic cylinder is a type of hydraulic cylinder that is used to adjust the distance between the forks of a forklift. This can be useful for a variety of tasks, such as loading and unloading pallets, picking and placing objects, and maneuvering in tight spaces.

The hydraulic cylinder is typically mounted on the underside of the forklift and is connected to the forks by a linkage system. When the hydraulic cylinder is extended, the forks are moved apart. When the hydraulic cylinder is retracted, the forks are moved closer together.

The range of adjustment of a forklift distance adjustment hydraulic cylinder is typically between 6 and 12 inches. The exact range will vary depending on the specific model of forklift and hydraulic cylinder.

The pressure rating of a forklift distance adjustment hydraulic cylinder is typically between 3,000 and 10,000 psi. The exact pressure rating will vary depending on the specific model of forklift and hydraulic cylinder.

The distance between forklifts is typically about 20 feet. This is the minimum distance that is required to safely operate two forklifts in close proximity.

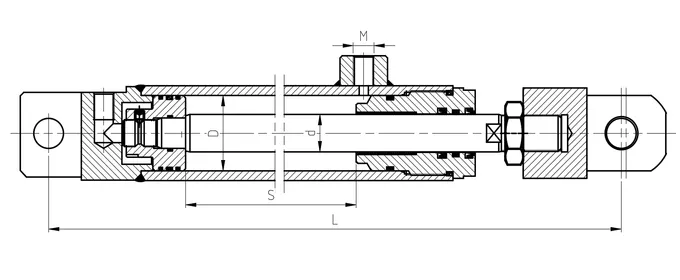

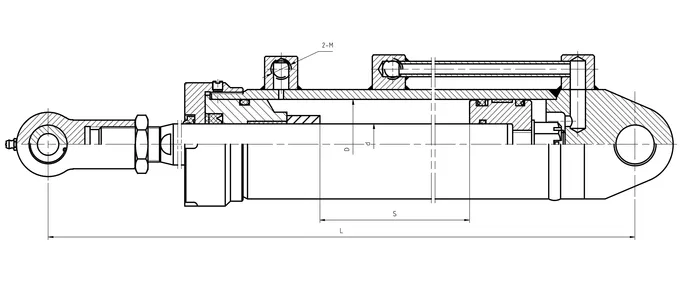

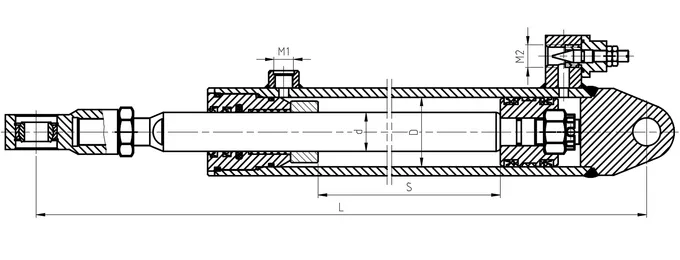

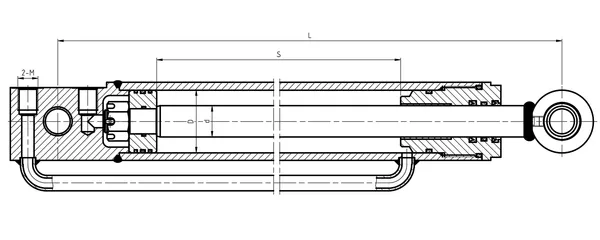

Forklift Distance Adjustment Hydraulic Cylinder Dimensions:

Cylinder Name	Drawing number	Bore diameter (D)	Rod diameter (d)	Stroke (S)	Installation distance (L)	Working pressure	Interface dimensions (M)	Weight
Distance adjustment cylinder	3CS17G-30-00T4	Φ50	Φ25	295	503	16MPa	2-M16*1.5	7kg

Cylinder Name	Drawing number	Bore diameter (D)	Rod diameter (d)	Stroke (S)	Installation distance (L)	Working pressure	Interface dimensions (M)	Weight
Distance adjustment cylinder	7B3-303000-00TA	Φ50	Φ28	750	1040	18MPa	M14*1.5;M16*1.5	14kg

Cylinder Name	Drawing number	Bore diameter (D)	Rod diameter (d)	Stroke (S)	Installation distance (L)	Working pressure	Interface dimensions (M)	Weight
Distance adjustment cylinder	5CS17-40-00Z	Φ50	Φ25	619	889	15MPa	M14*1.5	13kg

Cylinder Name	Drawing number	Bore diameter (D)	Rod diameter (d)	Stroke (S)	Installation distance (L)	Working pressure	Interface dimensions (M)	Weight
Distance adjustment cylinder	8M3-304000A-625	Φ63	Φ32	855	1174	20MPa	2-M16*1.5	22kg

Cylinder Name	Drawing number	Bore diameter (D)	Rod diameter (d)	Stroke (S)	Installation distance (L)	Working pressure	Interface dimensions (M)	Weight
Distance adjustment cylinder	7B3-304000-00	Φ70	Φ30	300	536	18MPa	2-M14*1.5	13.5kg

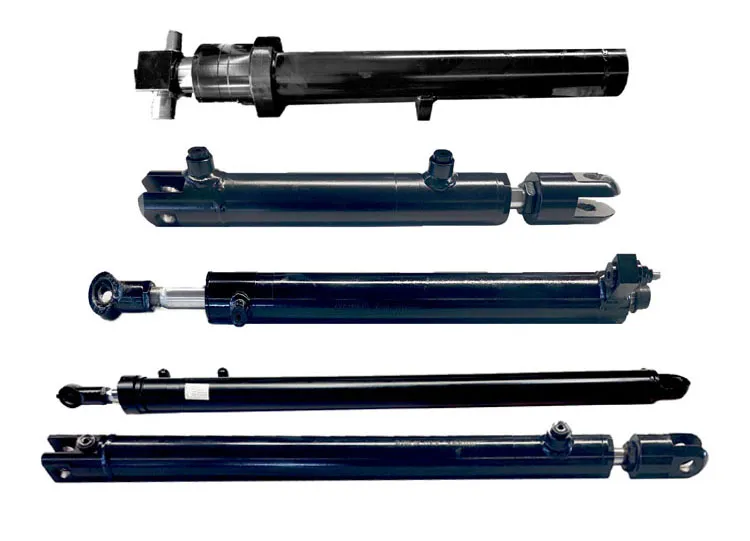

Benefits of Forklift Distance Adjustment Hydraulic Cylinder:

A forklift distance adjustment hydraulic cylinder is a type of hydraulic cylinder that allows the operator to adjust the distance between the forks. This can be useful in a variety of situations, such as:

1. Picking up loads with different load centers. The load center is the point on the load that is directly over the forks. When the load center is closer to the forks, the forklift can lift a heavier load. By adjusting the distance between the forks, the operator can make sure that the load center is always over the forks, even if the load is not evenly distributed.

2. Working in tight spaces. By adjusting the distance between the forks, the operator can make the forklift narrower, which can be helpful when working in narrow aisles or doorways.

3. Loading and unloading trucks. When loading or unloading a truck, the operator often needs to adjust the distance between the forks to accommodate the size of the truck and the load.

The benefits of using a forklift distance adjustment hydraulic cylinder include the following:

(1) Increased lifting capacity. By adjusting the distance between the forks, the operator can make sure that the load center is always over the forks, which can significantly increase the forklift's lifting capacity.

(2) Improved maneuverability. By making the forklift narrower, the operator can more easily maneuver it in tight spaces.

(3) Increased productivity. By being able to quickly and easily adjust the distance between the forks, the operator can save time and improve productivity.

Overall, a forklift distance adjustment hydraulic cylinder is a valuable tool that can help operators improve the safety, efficiency, and productivity of their operations.

Forklift Distance Adjustment Hydraulic Cylinder Application:

A forklift distance adjustment hydraulic cylinder is a type of hydraulic cylinder that is used to adjust the distance between the forks of a forklift truck. This can be useful for a variety of tasks, such as loading and unloading cargo, maneuvering in tight spaces, and adjusting the height of the forks.

The most common application of a forklift distance adjustment hydraulic cylinder is to load and unload cargo. When loading cargo, the forks of the forklift need to be extended to reach the cargo. The hydraulic cylinder allows the forks to be extended or retracted as needed.

Another application of a forklift distance adjustment hydraulic cylinder is to maneuver in tight spaces. When the forklift needs to turn or back up, the forks can be retracted to make the forklift narrower. This can help the forklift to fit through narrow aisles or doorways.

The hydraulic cylinder can also be used to adjust the height of the forks. This can be useful for loading and unloading cargo from different heights, or for adjusting the forks to clear obstacles.

Forklift distance adjustment hydraulic cylinders are an important part of many forklift trucks. They allow the forklift to be used more effectively and efficiently in a variety of applications.

Here are some other specific applications of forklift distance adjustment hydraulic cylinders:

• Adjusting the height of the forks for loading and unloading cargo from different heights.
• Adjusting the width of the forks for maneuvering in tight spaces.
• Adjusting the angle of the forks for picking up and placing cargo in specific locations.
• Compensating for uneven terrain.
• Repairing or replacing damaged or worn cylinders.

The specific application of a forklift distance adjustment hydraulic cylinder will vary depending on the type of forklift truck and the specific tasks that it is used for. However, these cylinders are an essential part of many forklift trucks and allow them to be used more effectively and efficiently.

https://www.youtube.com/embedPariVZaujFM

China Hydraulic Cylinder Manufacturers

HZPT is a company in the R&D and manufacture of hydraulic cylinders. It maintains a leading position in the market segment of hydraulic cylinders for forklifts in China. In 2020, the domestic market share was around 29%. We produce Industrial vehicle hydraulic cylinders, Aerial work vehicle hydraulic cylinders, Agricultural Machinery hydraulic cylinders, and Sanitation machinery hydraulic cylinders.

We have a first-class independent R&D platform for assembly. The forklift cylinder production workshop has four semi-automatic lifting cylinder assembly lines and one fully automatic tilting cylinder assembly line, with a designed annual production capacity of 1 million pieces; the special cylinder workshop is equipped with semi-automatic cleaning and assembly systems of various specifications, with a designed annual production capacity of 200,000 pieces. It is equipped with famous brand CNC machining equipment, machining centers, special equipment for high precision cylinder processing, robot welding machines, automatic cleaning machines, automatic cylinder assembly machines, and automatic paint production lines. We have more than 300 sets of key equipment running. The optimized allocation and efficient utilization of equipment resources ensure the precision requirements of the products and meet the high standard quality requirements of the products.
