General Spindles Series

General Spindles Series

We have more than ten production lines for spindle processing, including high-precision OD grinding machines, taper grinding machines advanced equipment for heat treatment and measuring. On the basis of professional production experience of over 40 years. We are able to process spindles of universality. High speed and high stiffness, such as type A, type B.type C, and type D are used in CNC lathes, spindle are used in the machining center. a grinding machine, a boring machine, etc.
Heat treatment high-frequency hardening. intermediate frequency hardening, salt bath hardening, and nitrogen hardening.

Processing Scope of Universal Machine Tool Spindle（in mm）

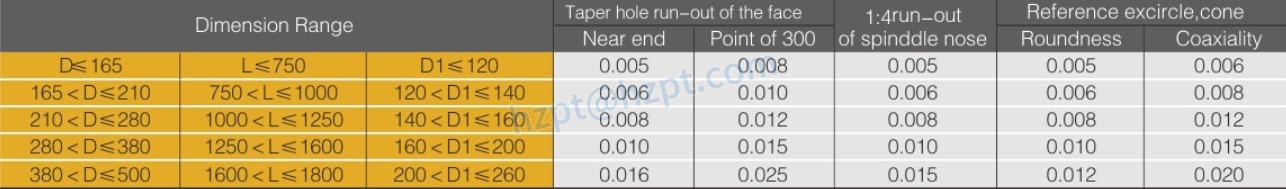

Processing Accuracy（in mm）

Processing Scope of CNC Machine Tool Spindle（in mm）

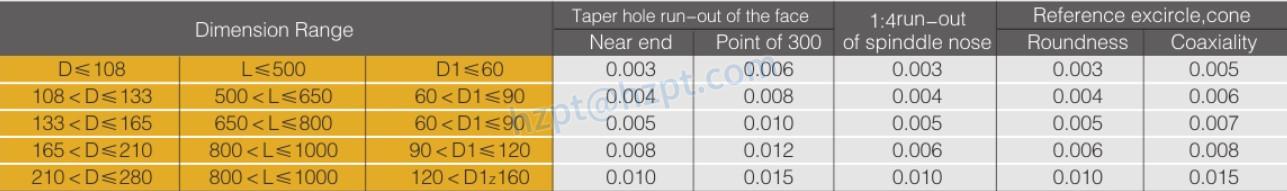

Processing Accuracy（in mm）

Note:

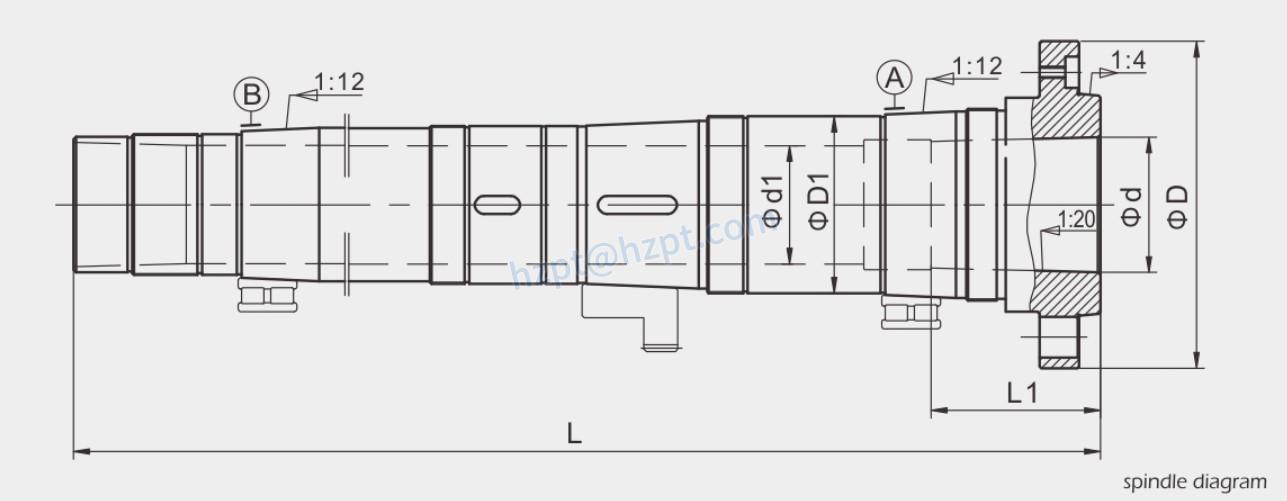

1. The diagram is taking the lathe spindle as an example; the other machine tool spindle also can make reference.
2. for ease of processing, the dimension of the spindle end should be designed according to GB5900-1997, GB 38371-1983.3
3. We can make and test the taper gauge in conformity to GB/T 11853-2003.GB/T 1854003 grade 3. in order to avoid problems resulting from the difference of gauge angle between manufacturer and customer, the gauge should be supplied by the customer or applying our gauge should be specified in the technical agreement.
Cage Nut Cap

Processing Scope of Precision Cage Nut（in mm）

Processing Accuracy（in mm）

Note:
1. General construction is shown in the above figure, customizing withdrawing is also accepted.
2. Radial cage nut is processed standardization all, the delivery time will be shortening if radial cage nut is selected.
3. In the above table, the perpendicularity of the end face is the nut accuracy. If assembled in spindle the run out of the end face is twice of the value in the above table.
4. As the processibility of the maze closed cage nut is worse, its perpendicularity is five times as much as the table value， and the run-out of the end face is three times as much as the table value assembled in the spindle.

Company Profile

HZPT is a professional manufacturer of mechanical parts. Our main products are helical worm gear reducers, sprockets, taper sleeves, gear and racks, coupling, and other transmission parts. Its products are mainly exported to Germany, Britain, France, and other European countries, with an annual export value of 18 million U.S. dollars, accounting for more than 65% of the total output. The annual output value reached 200 million yuan.

Our products all adopt international, European, and American advanced industrial standards, use precise and good processing equipment, develop reasonable production technology, apply efficient and flexible management systems, and improve the quality management system to ensure that the product quality is good and the price is affordable.

Our factory adheres to the enterprise concept of "quality: the basis of enterprise survival, integrity: the basis of enterprise development, service: the source of enterprise development, low price: the instrument of enterprise development." We are always looking forward to the presence of customers at home and abroad, seeking win-win benefits and joint cause development.
