GF100F Crane Hoist Gearbox Reducer for Gantry Overhead Bridge Crane – Replacement of ABM

Product Overview

The GF100F Crane Hoist Gearbox Reducer is a heavy-duty helical-hypoid geared motor designed specifically for high-load hoisting applications in gantry cranes, overhead bridge cranes, and industrial lifting systems. Built with a robust nodular cast iron housing and precision-hardened gears, it delivers exceptional torque output, smooth operation, and long-term reliability under continuous and shock-loading conditions. The GF100F is ideal for primary hoist drives, offering high efficiency, low noise, and excellent resistance to vibration and wear. Its compact yet rigid design ensures stable performance in demanding environments such as factories, shipyards, and logistics centers. As a direct-fit solution, it simplifies maintenance and upgrades in existing crane systems.



GF100F Crane Gearbox Technical Specifications

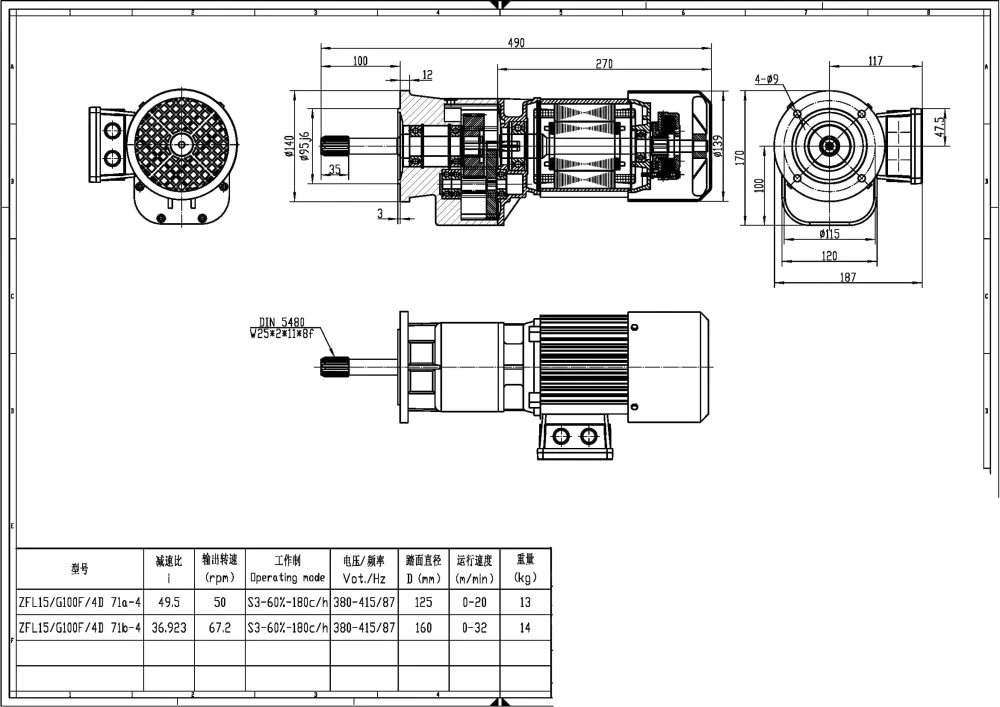

Model	ZFL15/G100F/4B 71a-4	ZFL15/G100F/4B 71b-4
Reduction ratio	49.5	36.923
Output speed	50RPM	67.2
Operating Mode	S3-60%-180c/h	S3-60%-180c/h
Voltage/frequency	380-415/87Vot./Hz	380-415/87Vot./Hz
Output path	125 D/mm	160 D/mm
Running speed	0-20m/min	0-32m/min
Weight	13kg	14kg

Performance Advantages

• Compact & Lightweight Design: Optimized for space-constrained hoist applications without sacrificing strength.
• Hardened Helical Gears: Ground tooth profiles ensure smooth engagement, low vibration, and transmission efficiency up to 95%.
• High Load Capacity: Reinforced bearings and output shaft handle radial and axial loads typical in hoisting operations.
• Low Noise Operation: Noise level ≤72dB(A), suitable for indoor and workshop environments.
• Sealed for Protection: Double-lip seals and labyrinth design prevent contamination from dust and moisture.
• Maintenance-Free: Pre-filled with long-life lubricant for extended service intervals.
• Versatile Mounting: Supports B3 (foot-mounted), B5 (flange-mounted), and B35 (combined) configurations.
• Motor Compatibility: Directly couples with IEC standard AC motors and brake motors (e.g., 63–90 frame sizes).

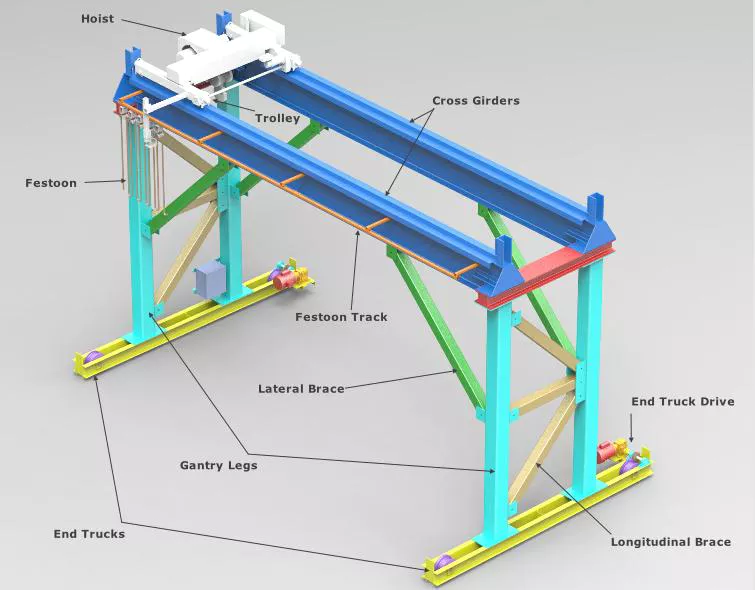

Working Principle in Crane Applications

In gantry and overhead bridge cranes, the GF100F gearbox serves as the core drive unit for the hoist mechanism. The electric motor (typically a brake motor) transmits high-speed rotation to the gearbox input shaft. Through a multi-stage helical-hypoid gear reduction, the speed is significantly reduced while torque is amplified. This high-torque output drives the wire rope drum, enabling controlled lifting and lowering of heavy loads. The gearbox works in conjunction with brakes and control systems to ensure precise positioning, smooth acceleration/deceleration, and safe load holding—critical for operator safety and equipment longevity in repetitive industrial cycles.

Direct Replacement for ABM (Reference Only)

The GF100F is dimensionally and functionally compatible with ABM Alpha 100F, ABM G100F, and GA100F series gearmotors, making it easy for customers to replace aging or damaged units without modifying the crane structure.

⚠️ Important Notice: The mention of ABM is solely for customer reference and sizing convenience. We do not manufacture, distribute, or claim affiliation with ABM GmbH. This product is an independent, non-OEM alternative engineered to meet or exceed original specifications. Our goal is to offer a high-performance, cost-effective solution with faster delivery and full technical support—without infringing on any trademarks or intellectual property.



Application Areas

• Gantry Cranes: Primary hoist drive for outdoor and heavy-capacity material handling.
• Overhead Bridge Cranes: Main or auxiliary hoist in factory workshops and production lines.
• Port & Shipyard Cranes: Reliable lifting power for container and cargo handling.
• Steel & Metallurgy Plants: Used in ladle cranes, charging machines, and transfer systems.
• Power Plants: Hoisting equipment for maintenance and turbine handling.
• Heavy Transport Systems: Integrated into transfer cars and industrial lifting platforms.

How to Choose the Right Model

To select the correct GF100F variant, consider:

• Required reduction ratio (e.g., i=16, 20, 25, 31.5, 40, 50, 63)
• Output torque (Nm) – must exceed your drum and load requirements
• Input power (typically 7.5kW – 30kW) and motor frame size
• Mounting type: B3, B5, or B35
• Output shaft configuration: Solid, hollow, or with keyway
• Brake motor compatibility for controlled stopping
• Environmental conditions (dust, humidity, temperature)

Provide your original ABM model number (e.g., ABM G100F-25) or operating parameters (load, speed, voltage) for a precise match. Our engineering team offers free technical consultation.

Frequently Asked Questions (FAQ)

Q: Is the GF100F compatible with ABM Alpha 100F gearboxes?
A: Yes, it matches the mounting dimensions, shaft size, and output performance for seamless replacement.

Q: Can I use a brake motor with this gearbox?
A: Yes, it is fully compatible with IEC standard brake motors (e.g., 132–160 frame).

Q: What is the maximum input power and output torque?
A: Up to 30 kW input and 12,000 Nm output torque, depending on ratio and design.

Q: Is this an original ABM product?
A: No. This is an independent, high-quality alternative. ABM is referenced only for sizing purposes. We do not sell ABM products.

Q: Do you offer customization?
A: Yes, we support OEM/ODM services including special ratios, lubricants, paint, and shaft modifications.

Q: What is the warranty?
A: 12 months against manufacturing defects. Extended warranty available upon request.
