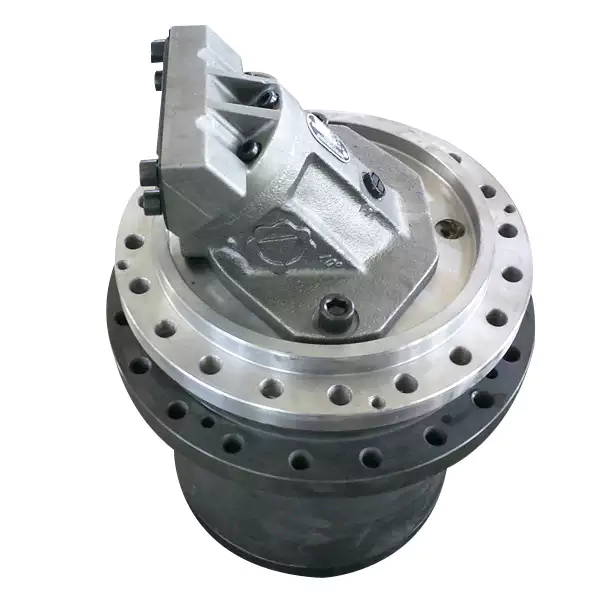

GFT-W Series Planetary Gearbox Replace Bosch Rexroth GFT13W2 GFT17W2 GFT17W3 GFT24W2 GFT26W2 GFT36W3 GFT40W2GFT50W3 GFT60W3 GFT80W3 GFT110W3 GFT160W3 GFT220W3 GFT330W3

HZPT is a professional manufacturer of planetary reducers/gearboxes. Currently, we have developed tens.
Thousands of specifications of planetary reducer/gearbox, travel drive, swing drive, and winch drive. The ratio range is 3.3 ~ 9000, and the output torque range is 500 ~ 1200000n. M. Installation, size, and performance parameters of reducer.
It is identical to famous European brands and can be replaced entirely and interchanged.

Category:
Get a Quote

The Models We Can Replace

GFT-W Series Planetary Gearbox Replace Bosch Rexroth GFT13W2 GFT17W2 GFT17W3 GFT24W2 GFT26W2 GFT36W3 GFT40W2GFT50W3 GFT60W3 GFT80W3 GFT110W3 GFT160W3 GFT220W3 GFT330W3

BOSCH REXROTH GFT13W2 GFT17W2 GFT17W3 GFT24W2 GFT26W2 GFT36W3 GFT40W2
HZPT EP-GFT13W2 EP-GFT17W2 EP-GFT17W3 EP-GFT24W2 EP-GFT26W2 EP-GFT36W3 EP-GFT40W2
BOSCH REXROTH GFT50W3 GFT60W3 GFT80W3  GFT110W3  GFT160W3  GFT220W3 GFT330W3
HZPT EP-GFT50W3 EP-GFT60W3 EP-GFT80W3  EP-GFT110W3  EP-GFT160W3  EP-GFT220W3 EP-GFT330W3

The hydraulic winch driving mobile GFT-W is an ideal driving part of the winch. They work perfectly in the most demanding applications and under harsh operating conditions. Mobile GFT-W winch drives are used for various winches - Mobile and crawler cranes, railway cranes, shipboard, dock, and container cranes. Due to its compact design, the gear unit can be installed in the wire rope drum in a space-saving manner. They are designed to facilitate installation and maintenance. The high-quality manufacturing process and case hardened gears and hardened tempered. Case hardened gear rings ensure excellent load-carrying capacity, operational safety, and low noise operating characteristics.
The gear teeth are designed according to the standard specifications, and our strength calculations are developed based on our comprehensive technical knowledge and best adapted to our manufacturing process. Our hydraulic motors provide the best working efficiency for the driving device.

Features of GFT-W Series Planetary Gearbox

GFT-W Series Planetary Gearbox Replace Bosch Rexroth GFT13W2 GFT17W2 GFT17W3 GFT24W2 GFT26W2 GFT36W3 GFT40W2GFT50W3 GFT60W3 GFT80W3 GFT110W3 GFT160W3 GFT220W3 GFT330W3

  • For direct installation in winch drums, e.g., for crane applications
  • Two- or three-stage planetary gearbox
  • Rope pull force 50 … 684 kN
  • Torque output 9500 … 325000 Nm
  • Compact and space-saving planetary gearbox design
  • The planetary gear adopts a complete set of bearings
  • Robust bearing system to absorb the force exerted by the bearing, the rope broke
  •  Easy to assemble,  Easy oil change
  •  Integrated static multi-disc parking brake
  •  Low noise operation

Parameter of  GFT-W Series Planetary Gearbox

Type/design
GFT-W
Output torque 1)
T2 max
Nm
Rope pull max. 2)
kN
Gear ratio
from/to
i
GFT 17 W2 14000 67 37,6 - 54
GFT 17 W3 14000 74 77,9 - 102,6
GFT 24 W3 19000 99 90,1 - 137,2
GFT 26 W2 18000 84 42,9 - 62
GFT 36 W2 26000 118 67 - 138,8
GFT 40 W2 27000 108 35,9 - 59,1
GFT 50 W2 37500 150 84,2 - 125,6
GFT 60 W2 42500 164 63,8 - 94,8
GFT 80 W2 67000 231 61,3 - 215
GFT 110 W2 100000 300 79,5 - 173,9
GFT 160 W2 140000 373 133 - 251
GFT 220 W2 200000 471 97,7 - 293
GFT 330 W2 275000 595 168,9 - 252
GFT 450 W2 325000 684 293,4 • 421,7

About Us

GFT-W Series Planetary Gearbox Replace Bosch Rexroth GFT13W2 GFT17W2 GFT17W3 GFT24W2 GFT26W2 GFT36W3 GFT40W2GFT50W3 GFT60W3 GFT80W3 GFT110W3 GFT160W3 GFT220W3 GFT330W3

HZPT is a professional manufacturer of planetary reducers/gearboxes. Currently, we have developed tens.
Thousands of specifications of planetary reducer/gearbox, travel drive, swing drive, and winch drive. The ratio range is 3.3 ~ 9000, and the output torque range is 500 ~ 1200000n. M. Installation, size, and performance parameters of reducer.
It is identical to famous European brands and can be replaced entirely and interchanged.
Details are as follows:
Bonfiglioli (300 series, 700C series, 700T series, 600W Series)
Brevini (EM, ED, et, EQ, EC, PD, PDA, CTD, CTU, SL type)
Dinami oil (re, GB, RA, GBA type)
Regiana ridutori (RR, RA type)
Angle (PG, PGA, PGR, PGW type)
Rexroth (GFT, gft-w, GFB type)
Rossi (R2E, R3E, r4e, rce, rc2e, rc3e, mr2e, mr3e, Mr 4E, MRCE, mrc2e, mrc3e)
Zolen (zhp3.13, zhp3-15, zhp1.19, zhp2.20, zhp4.22, zhp6.24, zhp5.25, zhp8.26, zhp7.27, zhp9.29, zhp31, zhp13.32)
FAIRFIELD、AUBURN GEAR、OMNI GEAR、O& K et al. Therefore, our planetary reducers/gearboxes can be used to replace the gearboxes of these brands.
