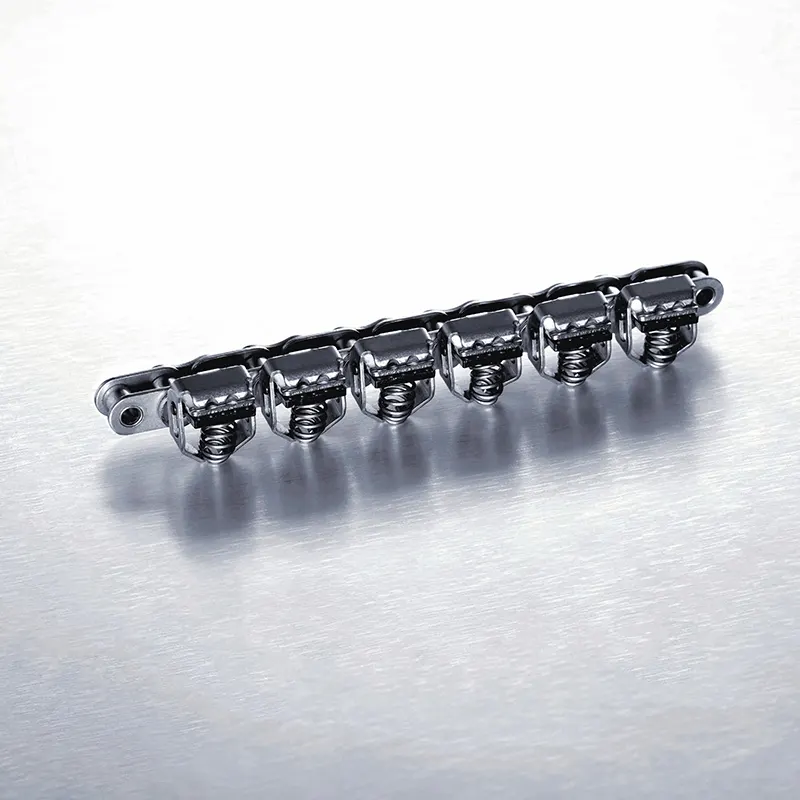

Gripper Chains with Type D Clamp w/extra Plastic
Gripper Chains with w/extra Plastic Clamp Specifications
| HZPT Code | DIN/ISO | Material | Pitch | Inside Width | Roller Dia | Clamp Moving | Clamp Force | Tensile Strength | |||
| Base Chain | Clamp | Spring | P mm |
b1 Max mm |
d1 Max mm |
Vertical x mm |
Horizontal y mm |
Q-C N |
Q Min. kN |
||
| 08B1GC-D | 08B-1 | SS | SS | SS | 12.700 | 7.75 | 8.51 | 4.2 | 3.7 | 50 | 15.0 |
| 08B-1 | NP | SS | SS | 12.700 | 7.75 | 8.51 | 4.2 | 3.7 | 50 | 18.0 | |
| 10B1GC-D | 10B-1 | SS | SS | SS | 15.875 | 9.65 | 10.16 | 6.7 | 5.6 | 70 | 18.5 |
| 10B-1 | NP | SS | SS | 15.875 | 9.65 | 10.16 | 6.7 | 5.6 | 70 | 22.4 | |
Overview of Gripper Chains with Type D w/extra Plastic Clamp
Gripper Chains with Type D Clamp w/extra Plastic offer an optimal solution for form, fill, and vacuum seal wrapping applications across various industries. The unique combination of steel and plastic plates ensures superior wear performance, while the stainless steel base chain and Japan-imported springs provide excellent corrosion resistance and clamping force. Additionally, the Pin & Bush made of AISI 630HT enhances wear-resistance. These chains are supplied in pre-stretched and matched strands, guaranteeing trouble-free machine set-up. The lube-free Nickel Plated chain version is also available upon request. Gripper chains are used not only in the food industry but also in electronics and medical industries for packaging wires, injection syringes, and pharmaceuticals. Trust Gripper Chains with Type D Clamp w/extra Plastic for reliable, efficient, and high-quality packaging solutions.
 |
 |
Gripper Chains with Type D w/extra Plastic Clamp Features
The Gripper Chains with Type D Clamp w/extra Plastic offer combined Steel-Plastic plates which ensure optimum wearing performance. These chains have several notable features:
- Base Chains available in Nickel Plated and Stainless Steel for excellent corrosion resistance
- Stainless springs made of high-quality, Japan-imported material to ensure consistent clamping force
- Pin & Bush made of AISI 630HT in stainless steel base chain, providing outstanding wear-resistance
- Supplied in pre-stretched and matched strands, guaranteeing trouble-free machine set-up
- Option for lube-free Nickel Plated chain version upon request
These Gripper Chains are designed to meet the needs of various industries for Form, Fill, and Vacuum Seal wrapping applications. They find wide applications in:
- Food Industry: Packaging for Ham, sausage, cheese, bread, fish, etc.
- Electronics Industry: Packaging for wires, etc.
- Medical Industry: Packaging for injection syringe, pharmaceutical, etc.
How Does Grip Chains Work?
The Grip Chains with Type D Clamp w/extra Plastic is designed to provide secure and reliable gripping in various applications. This chain works by utilizing its unique design and materials to ensure a strong and stable grip on objects.
When using this grip chain, the Type D Clamp is attached to the object that needs to be gripped. The extra plastic provides additional support and stability. Once the chain is securely attached, it is tightened to ensure a firm hold.
The main purpose of this grip chain is to provide a secure grip on objects to prevent slippage or movement during transportation or handling. It is commonly used in industries such as manufacturing, logistics, and construction. The chain's strong grip ensures that objects remain in place, reducing the risk of accidents and damage.
Gripper Chain Applications
Gripper Chains with Type D Clamp w/extra Plastic are versatile and find their application in various industries. Here are the key areas where these chains are commonly used:
1. Food Industry: Gripper Chains are widely utilized for packaging various food products such as ham, sausage, cheese, bread, fish, and more. The secure clamping force ensures proper sealing and preservation of the packaged items.
2. Electronics Industry: Gripper Chains are suitable for packaging delicate electronic components like wires. The steel-plastic plates provide an optimum wearing performance, ensuring the safety and protection of the packaged items during handling and transportation.
3. Medical Industry: Gripper Chains are essential in the medical field for packaging items like injection syringes, pharmaceutical products, and medical devices. The corrosion resistance of Nickel Plated and Stainless Steel options guarantees the integrity and hygiene of the packaged goods.
How to Order Our Film Gripper Chains?
When ordering Gripper Chains with Type D Clamp w/extra Plastic, please consider the following aspects:
1. Chain Size: You can choose between 08B or 10B.
2. Strand: Select the number of strands you require for your application.
3. Clamp Type: Decide on the Type D Clamp that suits your needs.
4. Base Chain Material: Choose between Stainless Steel or Nickel-Plated Carbon Steel.
For example, if you prefer a Gripper Chain with Type D Clamp w/extra Plastic, a chain size of 08B, a single strand, a Type D Clamp, and Stainless Steel as the base chain material, your order would be:
Chain Size: 08B
Strand: 1
Clamp Type: Type D
Base Chain Material: Stainless Steel
Sprockets for Gripper Chains
Gripper Chains with Type D Clamp w/extra Plastic are an essential component in the machinery industry. These chains and sprockets work hand in hand, providing a reliable and efficient gripping mechanism for various applications. The importance of having well-matched gripper chains and sprockets cannot be overstated, as they ensure smooth operation and optimal performance.
When it comes to Gripper Chains with Type D Clamp w/extra Plastic, it is crucial to have the right sprockets for a seamless integration. Our company offers a range of specially designed sprockets that are compatible with these chains. These sprockets are precisely engineered to provide perfect meshing with the chains, resulting in enhanced durability and reliability.
Our sprockets for Gripper Chains with Type D Clamp w/extra Plastic are made from high-quality materials, ensuring long-lasting performance even in demanding environments. With our extensive selection, we can provide the right sprockets to suit your specific needs and requirements.
About Us
Here at HZPT, we specialize in producing high-quality Gripper Chains with Type D Clamp w/extra Plastic. With more than 20 years of experience in stainless steel chain production, we have become one of the leading manufacturers in China.
Our commitment to continuous study and investment has allowed us to develop almost all popular Gripper Chain models. These high-performance chains are widely welcomed by both OEM and after-market, domestic and overseas customers.
At HZPT, we pride ourselves on our superior production capabilities, exceptional product quality, and competitive pricing. Our dedicated team of professionals is always ready to provide top-notch customer service to ensure complete satisfaction.
If you're looking for high-quality Gripper Chains with Type D Clamp w/extra Plastic, look no further than HZPT. Explore our products and contact us today to place your order.
Don't hesitate, contact us today and experience the HZPT difference!
