HTD Timing Belt Pulleys

HTD timing belt pulleys are a type of pulley that is designed to work with HTD timing belts. HTD stands for High Torque Drive, and these belts are characterized by their deep tooth profile. This profile provides increased surface area contact between the pulleys and the belts, which allows for more efficient power transmission. HTD timing belt pulleys are available in a variety of sizes, materials, and finishes to suit different applications.

Get a Quote

HTD Timing Belt Pulleys

HTD timing belt pulleys are a type of pulley that is designed to work with HTD timing belts. HTD stands for High Torque Drive, and these belts are characterized by their deep tooth profile. This profile provides increased surface area contact between the pulleys and the belts, which allows for more efficient power transmission. HTD timing belt pulleys are available in a variety of sizes, materials, and finishes to suit different applications.

Here are some of the key features of HTD timing belt pulleys:

  • Deep tooth profile for increased surface area contact
  • High-efficiency power transmission
  • Available in a variety of sizes, materials, and finishes
  • Suitable for a wide range of applications

If you are looking for a high-performance timing belt pulley, then HTD timing belt pulleys are a good option to consider. They offer a number of advantages over other types of timing belt pulleys, including increased efficiency, a wider range of sizes, and a variety of materials and finishes to choose from.

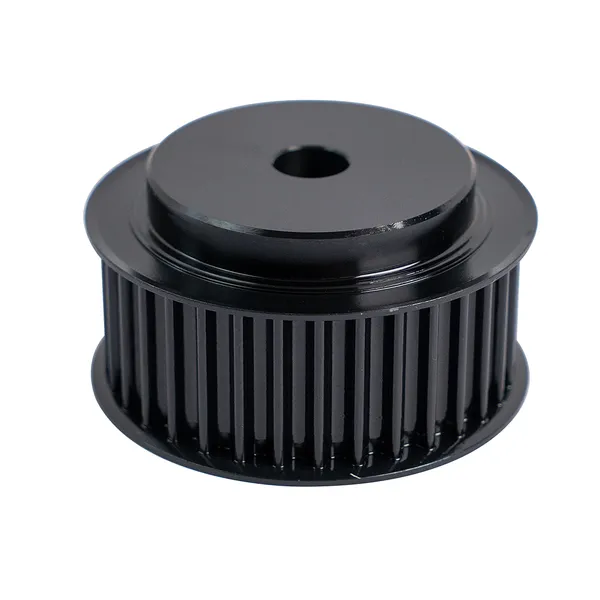

HTD Timing Belt PulleysHTD Timing Belt Pulleys

HTD Timing Belt Pulley Dimensions:

Here are some of the standard timing belt pulley sizes:

  • 3M: 6mm, 9mm, and 15mm
  • 5M: 9mm, 15mm, and 25mm
  • 8M: 20mm, 30mm, 50mm, and 85mm
  • 14M: 40mm, 55mm, 85mm, 115mm, and 170mm

HTD Timing Belt Pulley Dimensions

▍HTD Timing Belt Pulleys 3M-09 & 3M-15

HTD Timing Belt Pulleys 3M-09 & 3M-15

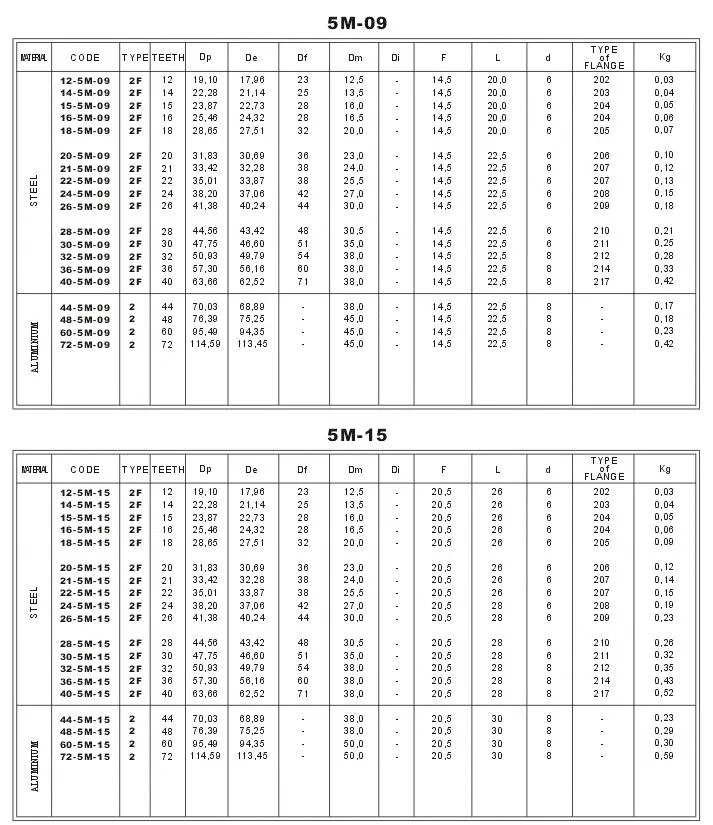

▍HTD Timing Belt Pulleys 5M-09 & 5M-15

HTD Timing Belt Pulleys 5M-09 & 5M-15

▍HTD Timing Belt Pulleys 5M-25 & 8M-20

HTD Timing Belt Pulleys 5M-25 & 8M-20

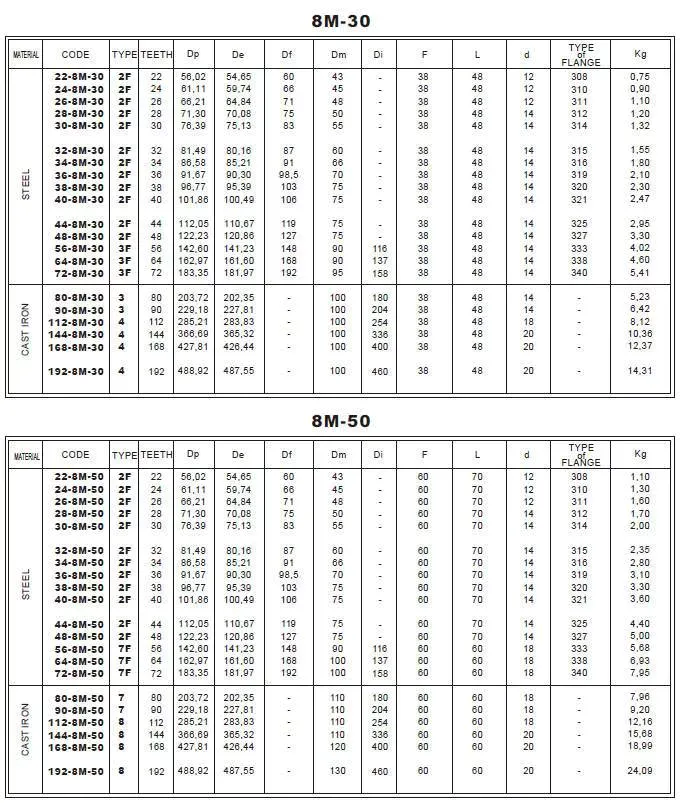

▍HTD Timing Belt Pulleys 8M-30 & 8M-50

HTD Timing Belt Pulleys 8M-30 & 8M-50

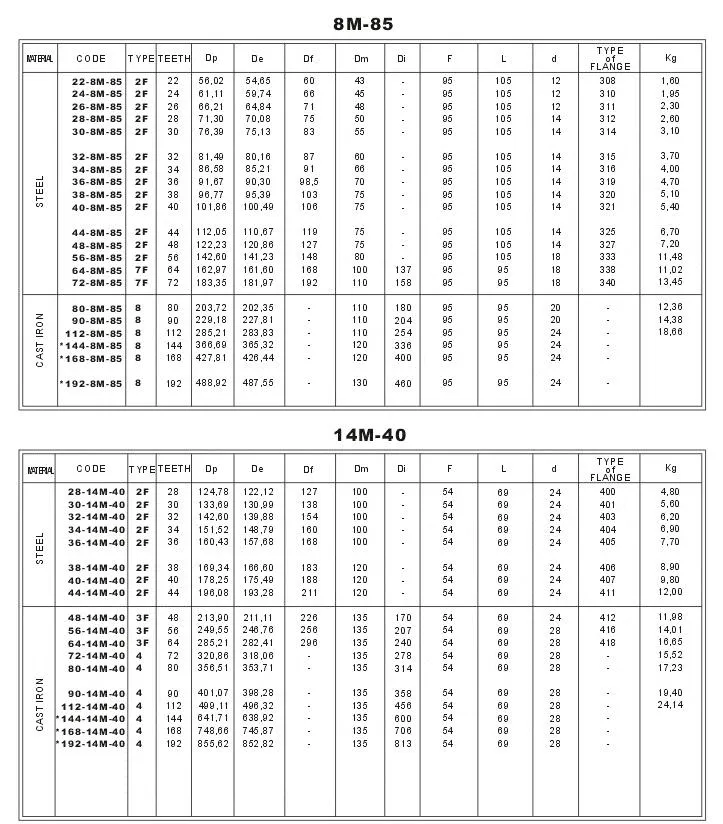

▍HTD Timing Belt Pulleys 8M-85 & 14M-40

HTD Timing Belt Pulleys 8M-85 & 14M-40

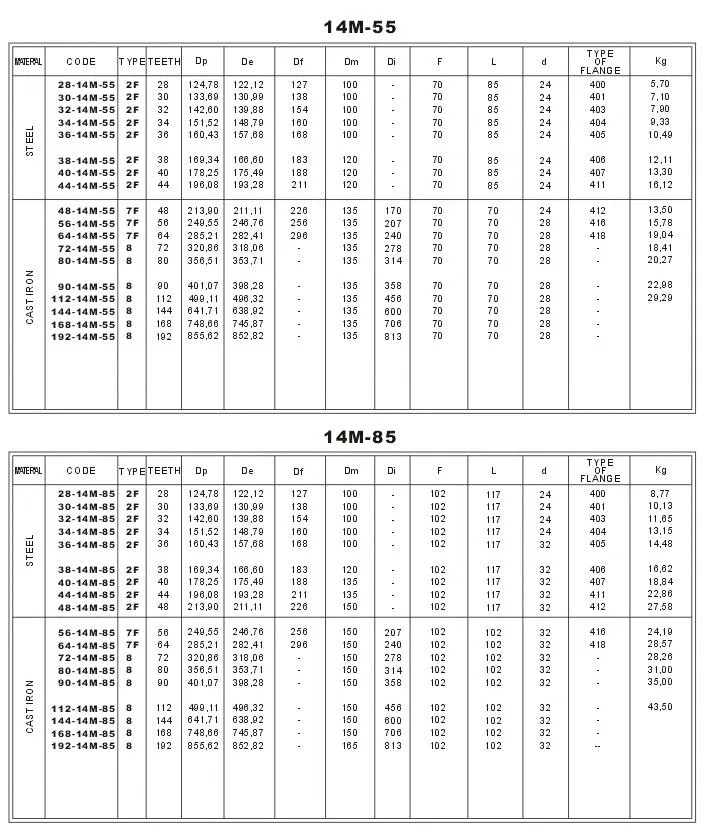

▍HTD Timing Belt Pulleys 14M-55 & 14M-85

HTD Timing Belt Pulleys 14M-55 & 14M-85

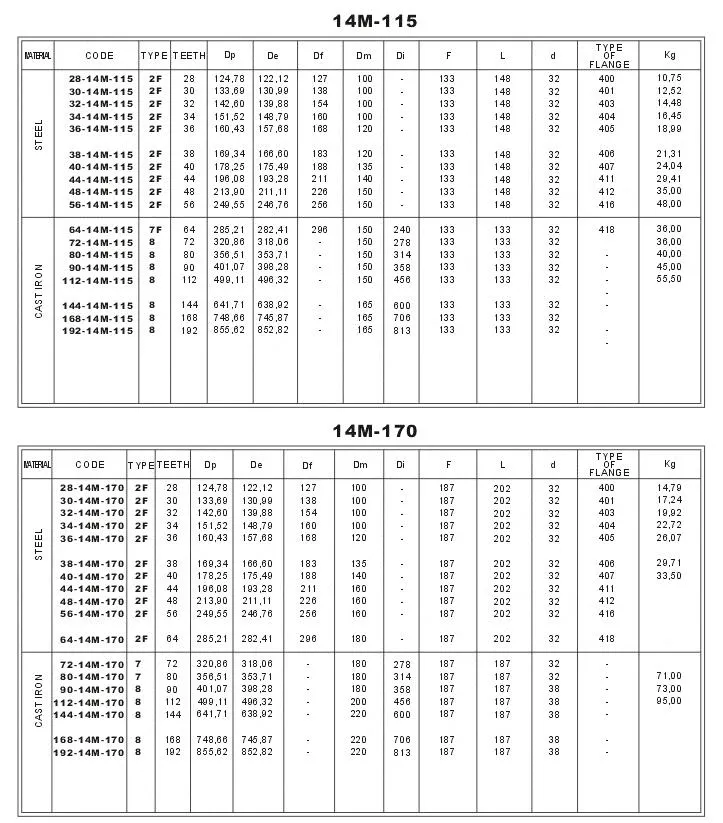

▍HTD Timing Belt Pulleys 14M-115 & 14M-170

HTD Timing Belt Pulleys 14M-115 & 14M-170

Advantages of HTD Timing Belt Pulleys:

HTD timing belt pulleys offer a number of advantages over other types of timing belt pulleys, including:

1. High efficiency: HTD timing belts have a deep tooth profile, which provides increased surface area contact between the pulleys and the belts. This allows for more efficient power transmission.

2. Wide range of sizes: HTD timing belt pulleys are available in a wide range of sizes, which makes them suitable for a variety of applications.

3. Versatile materials: HTD timing belt pulleys can be made from a variety of materials, including nylon, aluminum, and steel. This allows you to choose the material that best suits your application and budget.

4. Long lifespan: HTD timing belt pulleys are designed to last for a long time. They are resistant to wear and tear, and they can withstand high temperatures and pressures.

5. Low maintenance: HTD timing belt pulleys require very little maintenance. They are self-lubricating, so you don't need to worry about adding oil or grease.

Applications of HTD Timing Belt Pulleys:

HTD timing belt pulleys are used in a wide variety of applications, including:

(1) CNC machines: HTD timing belt pulleys are often used in CNC machines because they can transmit high torques over long distances with high efficiency.

(2) Robotics: HTD timing belt pulleys are also used in robotics applications because they are lightweight and can withstand high speeds and accelerations.

(3) Conveyors: HTD timing belt pulleys are a good choice for conveyor applications because they can handle high loads and speeds.

(4) Printers: HTD timing belt pulleys are used in printers to transmit power to the print head. They are able to provide smooth and accurate motion, which is essential for high-quality printing.

(5) Packaging machines: HTD timing belt pulleys are used in packaging machines to move products through the production line. They are able to provide consistent and reliable motion, which is essential for accurate packaging.

(6) Textile machinery: HTD timing belt pulleys are used in textile machinery to control the speed of the machines. They are able to provide precise and accurate motion, which is essential for high-quality textile production.

(7) Other industrial applications: HTD timing belt pulleys are also used in a variety of other industrial applications, including food processing, woodworking, and manufacturing. They are a versatile and reliable solution for power transmission in a wide range of applications.

HTD Timing Belt Pulley Applications

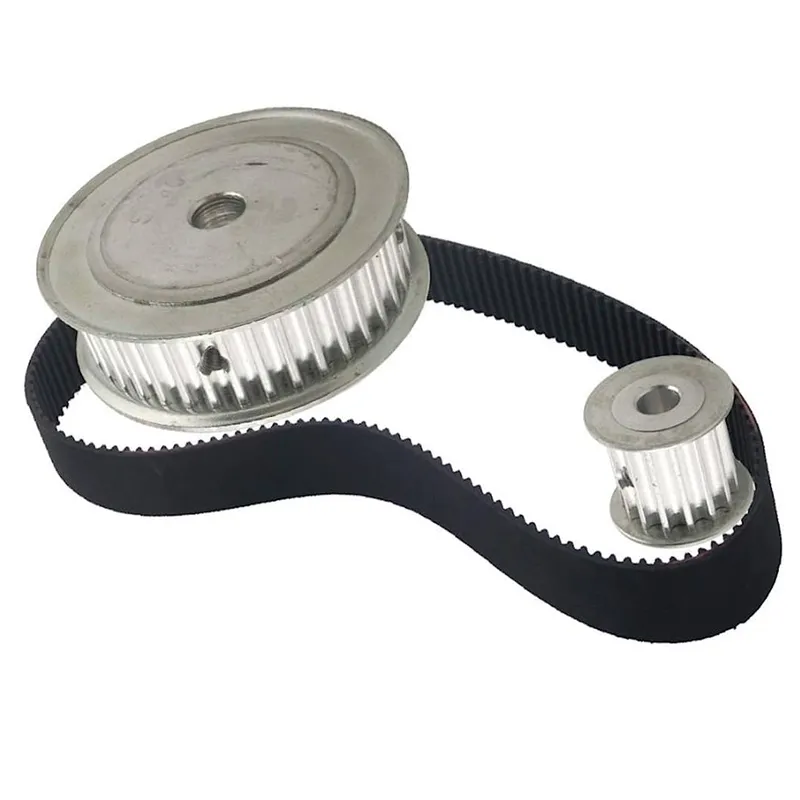

HTD Timing Belts for HTD Timing Belt Pulleys

HTD (High Torque Drive) timing belts and HTD timing belt pulleys are often used together in power transmission systems to provide high torque capacity, low noise and vibration, and long belt life. Here's how they work together:

HTD timing belts are toothed belts with a trapezoidal tooth profile that mesh with matching teeth on the HTD timing belt pulleys. The belt and pulley combination provides a positive drive, which means that there is no slip between the belt and the pulley during operation. The deeper tooth profile of the HTD timing belt and pulley also helps to reduce noise and vibration during operation and increases the torque capacity of the system.

HTD timing belts and pulleys are designed to work together to provide precise and reliable power transmission. The HTD timing belt and pulley sizes and configurations must be matched correctly to ensure proper performance. This includes selecting the correct belt width, pitch, and length, as well as the correct pulley diameter and number of teeth.

HTD timing belts and pulleys are commonly used in a variety of power transmission applications, including industrial machinery, automotive engines, and material handling equipment, among others. They offer several advantages over other types of timing belt systems, including increased torque capacity, reduced noise and vibration, and longer belt life.

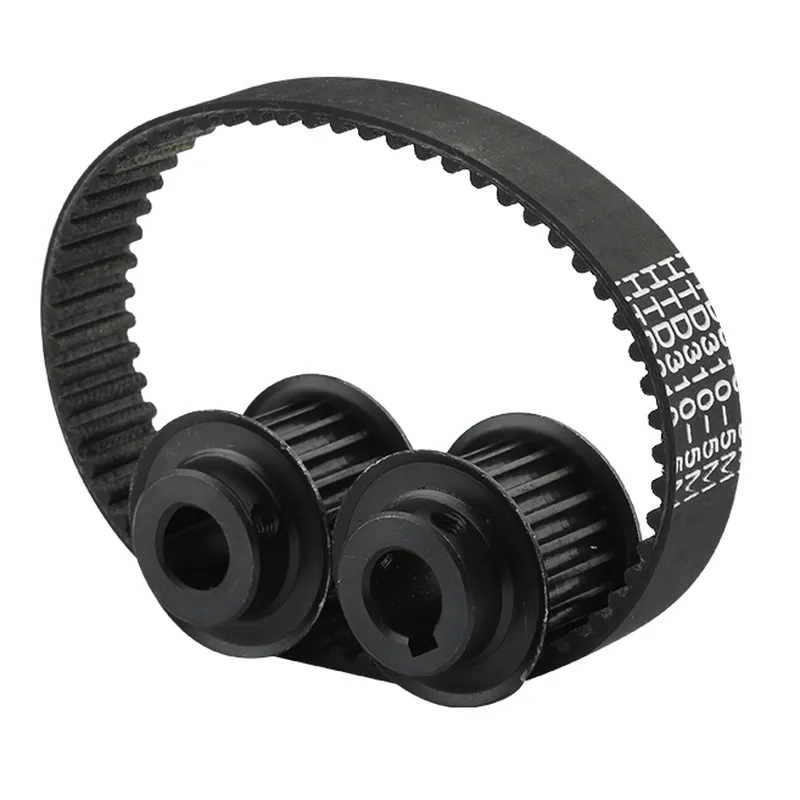

HTD Timing Belts for HTD Timing Belt PulleysHTD Timing Belts for HTD Timing Belt Pulleys

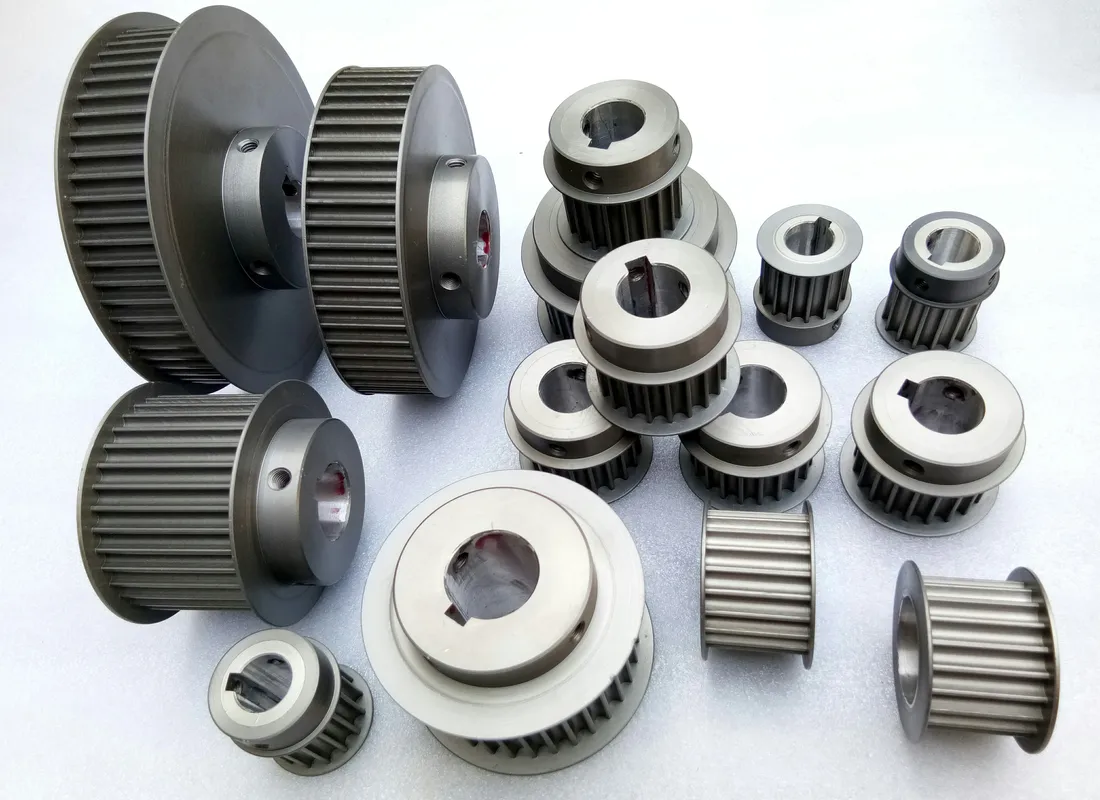

China HTD Timing Belt Pulley Manufacturers

Timing belt pulleys are widely used in various equipment where the timing of both drives is precious, and the display ratio is essential. A timing belt pulley's benefit is eliminating slippage and maintaining constant angular velocity. Timing belt pulleys are manufactured per international and national standards with carbon steel/alloy steel/aluminum and hardened teeth to provide long life. We have been ranked as the most dependable and leading firm worldwide and actively emerged to offer a wide array of timing belts. Our sophisticated production unit's timing belt pulleys are fabricated by our skilled personnel using advanced technology.

Known for superior sturdiness, dimensional accuracy, and durability, the offered range is manufactured in compliance with industry norms and guidelines. Further, we provide these components in various customized forms according to patrons' specific requirements. Apart from this, these timing belt pulleys are quality tested by our quality controllers on different parameters.

1) Warranty: our timing belt pulley's quality is excellent, and with insurance within one year, when you receive the products and find quality problems, we promise you can return it and free maintenance.

2) Drawings: please send your timing belt pulleys' drawings to us to get the best quotation; If you have no drawings, please get in touch with us, then we can work out CAD drawings and the best reference for you ASAP.

3) Sample: we accept one-piece sample orders. We could do examples until you're satisfied.

4) Confidentiality agreement: Strictly adherence to client confidentiality agreement for timing belt pulleys.

China HTD Timing Belt Pulley Manufacturers
