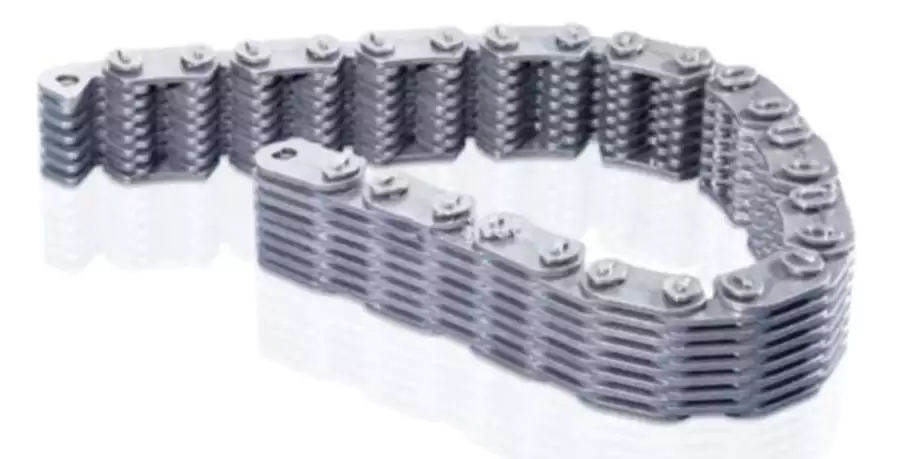

Flank / Croch Contact Inverted Tooth Stainless Steel Silent Chain
Constructed from hardened carbon steel or corrosion-resistant, 304 stainless steel, ever-power chains and sprockets are designed to bring the smooth, quiet operation to fractional horsepower applications. Chains are available in 10 standard widths, with special widths and attachment chains available upon request. All Ramsey 3/16″ pitch chains feature a round pin joint, which allows the chain to backbend, and are manufactured to be fully compatible with sprockets made to ASME standard B29.2M-2007. Ramsey 3/16″ pitch chains and sprockets are well-suited for original or replacement applications.
Flank / Croch Contact Inverted Tooth Stainless Steel Silent Chain
Constructed from hardened carbon steel or corrosion-resistant, 304 stainless steel, ever-power chains and sprockets are designed to bring the smooth, quiet operation to fractional horsepower applications. Chains are available in 10 standard widths, with special widths and attachment chains available upon request. All Ramsey 3/16″ pitch chains feature a round pin joint, which allows the chain to backbend, and are manufactured to be fully compatible with sprockets made to ASME standard B29.2M-2007. Ramsey 3/16″ pitch chains and sprockets are well-suited for original or replacement applications.
Typical applications include food processing equipment, packaging machinery, weighing machinery, check weigher replacement parts, postage meters, sorting machinery, as well as Mettler-Toledo Hi-Speed TM replacement chains and sprockets.
Note: The power capacity of stainless steel chains is less than comparable width carbon steel chains.
Advantages of Stainless Steel Silent Chain
Stainless steel silent chain offers numerous advantages for glass conveying and general industrial conveying.
Higher Temperature Capability
Allows conveyors to operate at significantly higher average temperatures than carbon steel chains will tolerate.
Improved Thermal Properties
Reduces the rate of heat transfer from the chain and may reduce bottle checking.
Superior Corrosion Resistance
Provides tolerance to chemicals and atmospheres which are unsuitable for carbon steel chains.
Flank contact Stainless Steel Silent chains
Advantages of Stainless Steel Silent Chain
Stainless steel silent chain offers numerous advantages for glass conveying and general industrial conveying.
Higher Temperature Capability
Allows conveyors to operate at significantly higher average temperatures than carbon steel chains will tolerate.
Improved Thermal Properties
Reduces the rate of heat transfer from the chain and may reduce bottle checking.
Superior Corrosion Resistance
Provides tolerance to chemicals and atmospheres which are unsuitable for carbon steel chains.

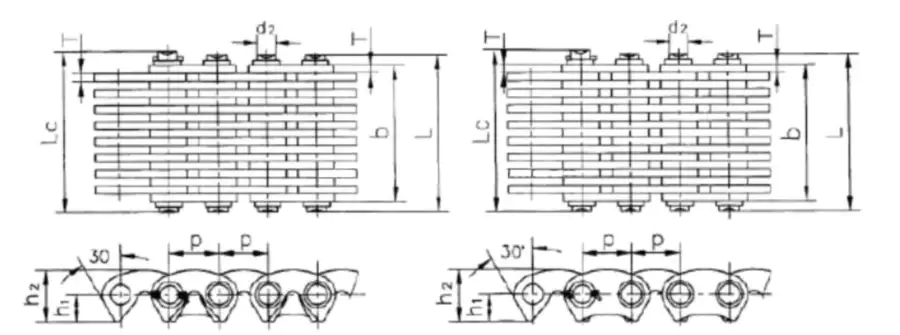

| GB Chain No. | Pitch | Chain width | Pin diameter | Pin length | Distance from hole center to tooth | Plate depth | Plate thickness | Guide form | number of plates | Ultimate tensile strength | Average tensile strength | Weight per meter | |
| P | b(min) | d2(max0 | L(max) | Lc(max) | h1 | h2(max) | T(max) | Q(min) | Q0 | q | |||
| mm | mm | mm | mm | mm | mm | mm | mm | n | kN | kN | kg/m | ||
| CL06SS | 9.525 | 13.5 | 3.95 | 18.5 | 20 | 5.3 | 10 | 1.5 | outside | 9 | 6 | 6.72 | 0.6 |
| 16.5 | 21.5 | 23 | outside | 11 | 7.5 | 8.4 | 0.73 | ||||||
| 19.5 | 24.5 | 26 | outside | 13 | 9 | 10.08 | 0.85 | ||||||
| 22.5 | 27.5 | 29 | outside | 15 | 10.5 | 11.76 | 1 | ||||||
| 28.5 | 33.5 | 35 | inside | 19 | 13.5 | 15.12 | 1.26 | ||||||
| CL08SS | 12.7 | 19.5 | 5.08 | 24.5 | 26 | 7 | 13.4 | 1.5 | outside | 13 | 14.01 | 15.72 | 1.15 |
| 22.5 | 27.5 | 29 | outside | 15 | 16.44 | 18.36 | 1.33 | ||||||
| 25.5 | 30.5 | 32 | outside | 17 | 18.78 | 21 | 1.5 | ||||||
| 28.5 | 33.5 | 35 | inside | 19 | 21.12 | 23.64 | 1.68 | ||||||
| 34.5 | 39.5 | 41 | inside | 23 | 25.8 | 28.86 | 2.04 | ||||||
| 40.5 | 45.5 | 47 | inside | 27 | 30.48 | 34.08 | 2.39 | ||||||
| 46.5 | 51.5 | 53 | inside | 31 | 35.16 | 39.36 | 2.74 | ||||||
| 52.5 | 57.5 | 59 | inside | 35 | 39.84 | 44.58 | 3.1 | ||||||
| CL10SS | 15.875 | 30 | 5.92 | 37 | 38.2 | 8.7 | 16.7 | 2 | inside | 15 | 27.36 | 30.36 | 2.21 |
| 38 | 45 | 46.2 | inside | 19 | 35.16 | 39 | 2.8 | ||||||
| 46 | 53 | 54.2 | inside | 23 | 43.02 | 47.7 | 3.39 | ||||||
| 54 | 61 | 62.4 | inside | 27 | 50.82 | 56.4 | 3.99 | ||||||
| 3.3762.0 | 69 | 70.4 | inside | 31 | 58.62 | 65.04 | 4.58 | ||||||
| CL12SS | 19.05 | 38 | 6.9 | 45 | 46.5 | 10.5 | 20 | 2 | inside | 19 | 42 | 46.56 | 3.37 |
| 46 | 53 | 54.5 | inside | 23 | 51.6 | 57.24 | 4.08 | ||||||
| 54 | 61 | 62.8 | inside | 27 | 61.2 | 67.92 | 4.78 | ||||||
| 62 | 69 | 70.8 | inside | 31 | 70.2 | 77.88 | 5.5 | ||||||
| 70 | 77 | 78.8 | inside | 35 | 79.8 | 88.56 | 6.2 | ||||||
| CL16SS | 25.4 | 45 | 8.9 | 52 | 53.5 | 14 | 26.7 | 3 | inside | 15 | 66.6 | 73.92 | 5.31 |
| 51 | 58 | 59.5 | inside | 17 | 75 | 83.22 | 6.02 | ||||||
| 57 | 64 | 95.5 | inside | 19 | 84.6 | 93.9 | 6.37 | ||||||
| 69 | 76.2 | 77.7 | inside | 23 | 103.2 | 114.54 | 8.15 | ||||||
| 81 | 88.2 | 89.7 | inside | 27 | 121.8 | 135.18 | 9.57 | ||||||
| 93 | 100.2 | 101.7 | inside | 31 | 144 | 156.48 | 10.98 | ||||||
| CL20SS | 31.75 | 57 | 10.84 | 66.6 | 69.9 | 17.5 | 33.4 | 3 | inside | 19 | 99 | 109.86 | 8.42 |
| 69 | 78.6 | 81.6 | inside | 23 | 120.6 | 133.86 | 10.19 | ||||||
| 81 | 90.6 | 93.6 | inside | 27 | 142.2 | 157.92 | 11.96 | ||||||
| 93 | 102.6 | 105.6 | inside | 31 | 163.8 | 181.8 | 13.73 | ||||||
| 105 | 114.6 | 117.6 | inside | 35 | 186 | 204.6 | 15.5 | ||||||
| 117 | 126.6 | 129.6 | inside | 39 | 207.6 | 228.36 | 17.27 | ||||||

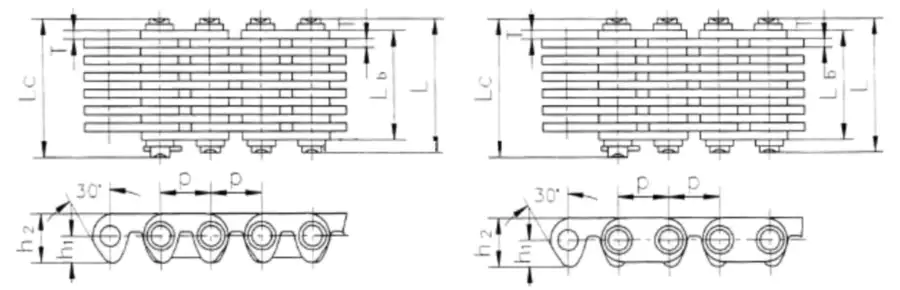

Croch Contact Stainless Steel Silent Chains
| ANSI Chain No. | Pitch | Chain width | Pin diameter | Pin length | Distance from hole center to tooth | plate depth | plate thickness | Guide form | Plate number | Ultimate tensile strength | Average tensile strength | Weight per meter | |
| P | b(min) | d2(max) | L(max) | Lc(max) | h1 | h2(max) | T(max) | Q(min) | Q0 | q | |||
| mm | mm | mm | mm | mm | mm | mm | mm | n | kN | kN | kg/m | ||
| C4-120SS | 12.7 | 19.5 | 5.08 | 24.5 | 26 | 6.62 | 12.1 | 1.5 | Inside | 13 | 12 | 13.32 | 1.2 |
| C4-123SS | 22.5 | 27.5 | 29 | Inside | 15 | 13.8 | 15.3 | 1.37 | |||||
| C4-129SS | 28.5 | 33.5 | 35 | Inside | 19 | 17.1 | 18.96 | 1.72 | |||||
| C4-132SS | 31.5 | 36.5 | 38 | Inside | 21 | 18.9 | 20.94 | 1.89 | |||||
| C4-138SS | 37.5 | 42.5 | 44 | Inside | 25 | 22.8 | 25.26 | 2.22 | |||||
| C4-150SS | 49.5 | 54.5 | 56 | Inside | 33 | 30 | 33.3 | 2.9 | |||||
| C4-320SS | 19.5 | 24.5 | 26 | Outside | 13 | 12 | 13.32 | 1.21 | |||||
| C4-323SS | 22.5 | 27.5 | 29 | Outside | 15 | 13.8 | 15.3 | 1.38 | |||||
| C4-329SS | 28.5 | 33.5 | 25 | Outside | 19 | 17.1 | 18.96 | 1.73 | |||||
| C4-332SS | 31.5 | 36.5 | 38 | Outside | 21 | 18.9 | 20.94 | 1.9 | |||||
| C4-338SS | 37.5 | 42.5 | 44 | Outside | 25 | 22.8 | 25.26 | 2.23 | |||||
