Mobile Crane Outrigger Expansion Cylinder

Mobile Crane Outrigger Expansion Cylinder

A mobile crane outrigger expansion cylinder is a hydraulic cylinder that is used to extend the outriggers of a mobile crane. The outriggers are the legs of the crane that support the weight of the crane when it is lifting a load. The expansion cylinder extends the outriggers horizontally, which increases the surface area of the outriggers in contact with the ground. This increases the stability of the crane and allows it to lift heavier loads.

The mobile crane outrigger expansion cylinder is typically made of a steel barrel and a piston rod. The barrel is filled with hydraulic fluid, and the piston rod is connected to the outrigger. When hydraulic fluid is pumped into the cylinder, it pushes the piston rod out, which extends the outrigger.

The mobile crane outrigger expansion cylinder is a critical component of a mobile crane. It is important to keep the outrigger expansion cylinder in good working order to ensure the safety of the crane and its operators.

Here are some of the key features of a mobile crane outrigger expansion cylinder:

• It is made of high-strength materials to withstand the weight of the crane and the force of the hydraulic fluid.
• It is designed to be compact and lightweight to minimize the weight of the crane.
• It is equipped with a protective sleeve to prevent dirt and debris from entering the cylinder.
• It is fitted with a safety valve to prevent the cylinder from overextending.

Mobile Crane Outrigger Expansion Cylinder Specifications:

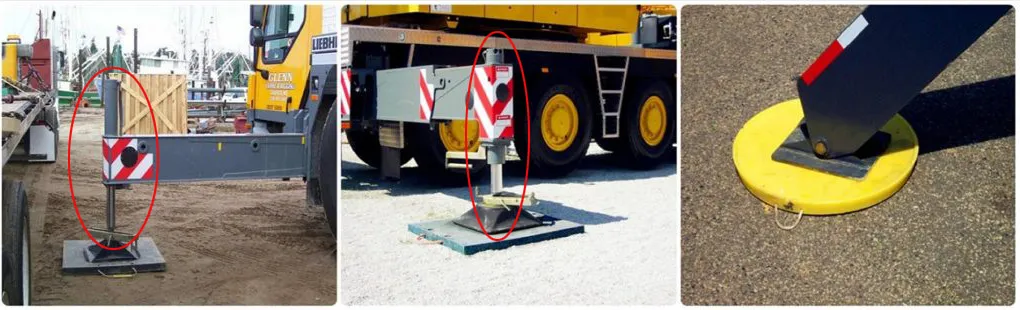

Mobile Crane Outrigger Expansion Cylinder Advantages:

The mobile crane outrigger expansion cylinder offers several advantages that contribute to the safe and efficient operation of mobile cranes:

1. Enhanced Stability: By extending the outrigger beams, the mobile crane outrigger expansion cylinder significantly increases the crane's footprint. This extended stability base prevents the crane from tipping over during lifting operations, especially when handling heavy loads or operating on uneven terrain. This ensures a safer working environment for both the crane operator and the surrounding personnel.

2. Flexible Adjustability: The mobile crane outrigger expansion cylinder allows for precise adjustment of the outrigger beams' extension lengths. This flexibility enables the crane operator to level the crane on uneven ground, compensating for variations in terrain and ensuring optimal stability. The ability to adjust the outriggers independently is particularly useful in confined spaces or when operating near obstacles.

3. Quick and Efficient Setup: The hydraulic system powering the mobile crane outrigger expansion cylinders enables swift deployment and retraction of the outrigger beams. This saves valuable time during the crane setup process, allowing the operator to begin lifting operations promptly. The efficiency of the outrigger expansion cylinder contributes to increased productivity on job sites.

4. Heavy Load Capacity: Mobile cranes are designed to handle substantial loads, and the outrigger expansion cylinders play a vital role in supporting this capacity. The mobile crane outrigger expansion cylinders are built to withstand high working pressures and provide the necessary structural strength to support the crane's weight and the loads it lifts. This allows mobile cranes to tackle a wide range of lifting tasks, including lifting heavy machinery, construction materials, and large components.

5. Safety Features: Mobile crane outrigger expansion cylinders are typically equipped with safety features to ensure secure and reliable operation. These may include load monitoring systems, pressure relief valves, and fail-safe mechanisms that prevent overloading or sudden cylinder failure. These safety measures enhance the overall safety of the crane and minimize the risk of accidents.

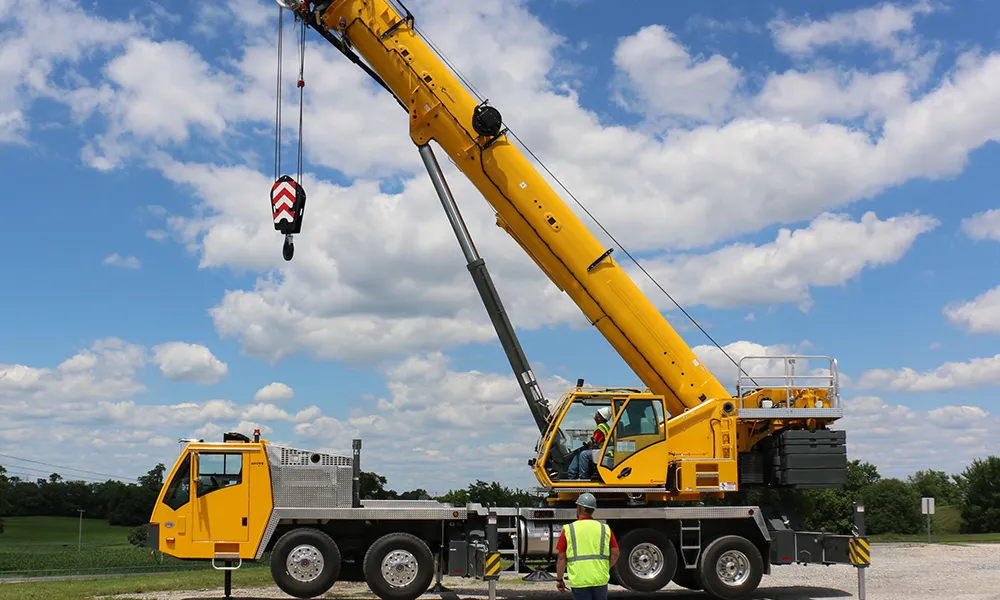

Mobile Crane Outrigger Expansion Cylinder Applications:

Mobile crane outrigger expansion cylinders find applications in various industries and construction projects where heavy lifting and stability are required. Here are some common applications:

(1) Construction Sites: Mobile crane outrigger expansion cylinders are extensively used in construction sites for lifting and moving heavy materials, equipment, and prefabricated structures. They are utilized in erecting steel structures, placing concrete elements, and handling construction machinery.

(2) Infrastructure Development: Mobile crane outrigger expansion cylinders play a crucial role in infrastructure projects such as building bridges, highways, tunnels, and dams. They assist in lifting and positioning large concrete segments, steel beams, and other heavy components required for infrastructure construction.

(3) Industrial Operations: In industrial settings, mobile cranes are employed for various tasks, including lifting and relocating heavy machinery, loading and unloading cargo, and assisting in maintenance activities. The outrigger expansion hydraulic cylinders provide stability during these operations, ensuring safe and precise lifting.

(4) Oil and Gas Industry: The oil and gas sector often requires mobile cranes with outrigger systems for lifting and moving heavy equipment, such as drilling rigs, pipes, and containers. The mobile crane outrigger expansion cylinders enable the cranes to operate on offshore platforms, refineries, and other challenging environments where stability is crucial.

(5) Port and Shipyard Operations: Mobile crane outrigger expansion cylinders are commonly used in ports and shipyards for loading and unloading cargo from ships, stacking containers, and handling heavy equipment. The stability provided by the outriggers ensures safe and efficient material handling in these busy environments.

China Mobile Crane Cylinder Manufacturers

In 30 years of focusing on innovation, HZPT has reached the forefront of the world’s hydraulic industry in terms of both production scale and technical level. Meanwhile, HZPT is now a widely recognized benchmarking enterprise in the domestic hydraulic industry. Headquartered in Hangzhou, HZPT has founded five hydraulic R&D centers in China, Germany, the United States, Japan, and Mexico, and ten manufacturing bases worldwide. HZPT the establishment of a high-precision foundry and a pump & valve factory, HZPT has mastered the key to developing and manufacturing more advanced hydraulic transmission and control components to supply high-pressure cylinders, hydraulic pump valves, motors, precision castings, and the complete hydraulic system. Well sold in over 20 countries and regions, the products are widely applied in various fields such as mobile machinery, agricultural machinery, industrial engineering, offshore, energy technology, and tunnel boring machines.

HZPT is a company in the R&D and manufacture of hydraulic cylinders. It maintains a leading position in the market segment of hydraulic cylinders for forklifts in China. In 2020, the domestic market share was around 29%. We produce industrial vehicle hydraulic cylinders, aerial work vehicle hydraulic cylinders, small excavator bucket cylinders, construction machinery hydraulic cylinders, forklift hydraulic cylinders, crane luffing hydraulic cylinders and sanitation machinery hydraulic cylinders. Hydraulic cylinder is a non-standard product and all products are independently developed by ourselves.

HZPT is committed to providing customers with efficient hydraulic technology solutions and products, maintaining strong partnerships with customers, and leading the development of China’s hydraulic industry through more scientific solutions. HZPT aims to make more contributions to the sustainable development of society, the construction of green cities, and the building of a better future.
