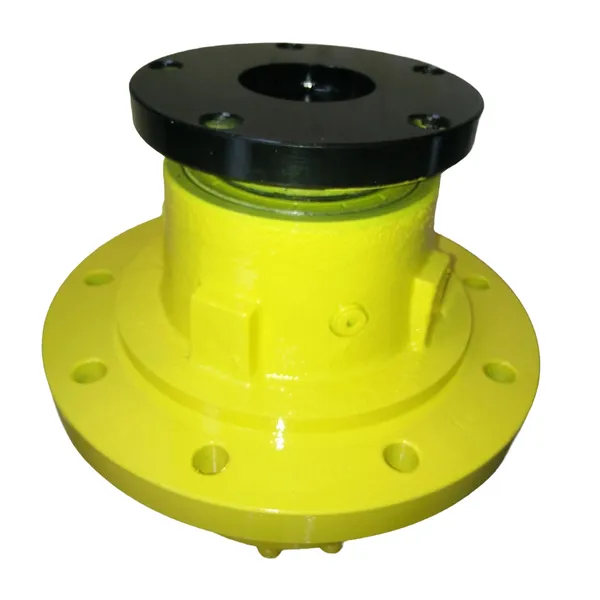

Model 3 Flanged Output Drives Planetary Gearbox

Model 3 Flanged Output Drives Planetary Gearbox Replacement of Auburn Gear Model 3 Planetary Gearbox

The Model 3 flanged output drives planetary gearbox (sometimes referred to as spindle output drives planetary gearbox ) are perfect for vehicles with small diameter drive wheels requiring flange mounts. Such applications include small lift trucks and mowers. Model 3 flanged output drives planetary gearbox can also be applied in applications where bolt-on attachment may be more conducive than a splined or keyed interface.

▍Model 3 Flanged Output Drives Planetary Gearbox Specifications

* Input rotates, and output rotates in the same direction.

* Other ratios and other input types can be special designs.

* For other output shaft options or output spindle options.

▍Model 3 Flanged Output Drives Planetary Gearbox Parameter

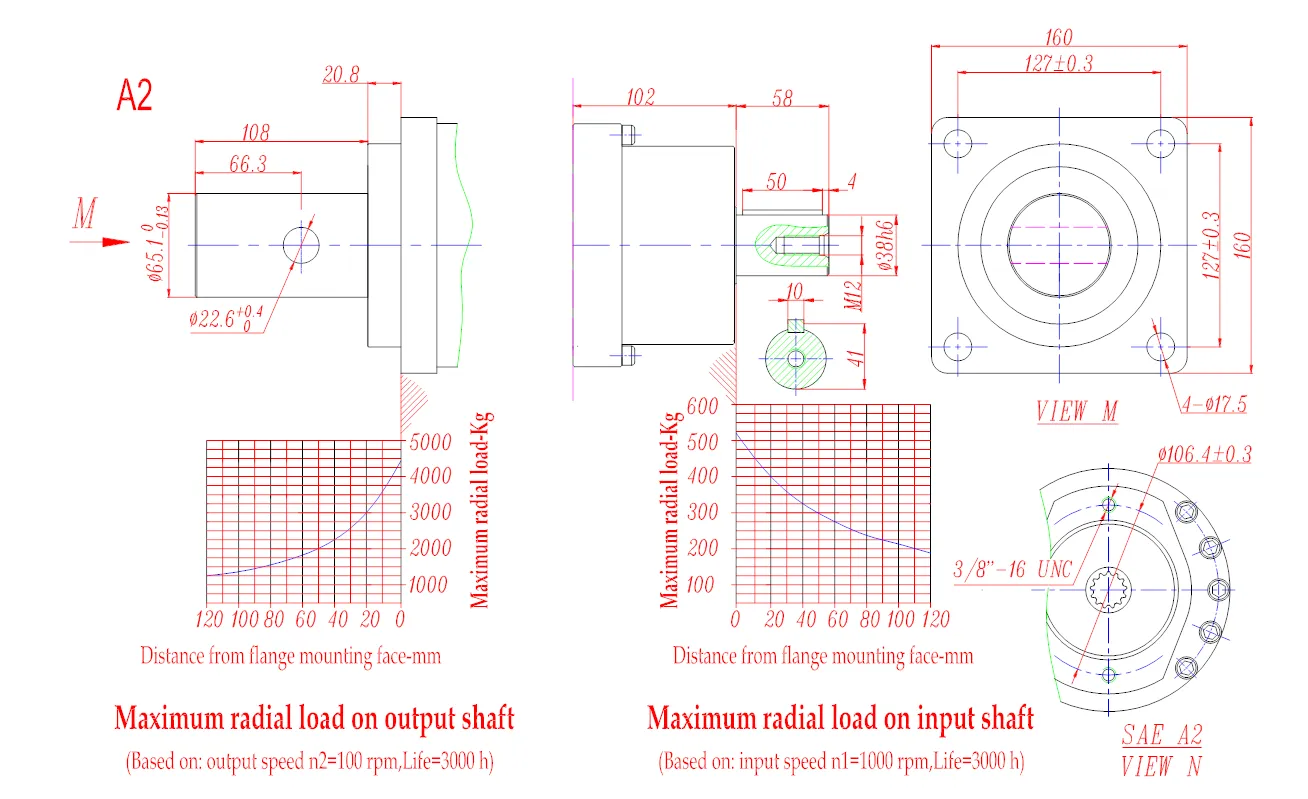

▍Model 3 Flanged Output Drives Planetary Gearbox Dimensions

▍Model 3 Flanged Output Drives Planetary Gearbox Design

The Model 3 flanged output drives planetary gearbox design features include:

Compact size: The Model 3 flanged output drives planetary gearbox is designed to be compact, making it ideal for applications where space is limited.

High torque capacity: Planetary gearboxes are known for their high torque capacity, and the Model 3 flanged output drives planetary gearbox is no exception. It can handle high torque loads while maintaining smooth and reliable operation.

Versatile output: The flanged output driveshaft on the Model 3 flanged output drives planetary gearbox allows for easy connection to other components in a machine or system, making it a versatile solution for power transmission.

Customizable gear ratios: The number of teeth on each gear in the Model 3 flanged output drives planetary gearbox can be customized to achieve the desired gear ratio, allowing it to be tailored to a specific application.

Durable housing: The Model 3 flanged output drives planetary gearbox is typically housed in a durable casing that protects the gears and bearings from contaminants and provides support for the components.

Lubrication options: Planetary gearboxes require proper lubrication to function properly, and the Model 3 flanged output drives planetary gearbox can be designed to use grease or oil lubrication depending on the specific application.

Low backlash: The Model 3 flanged output drives planetary gearbox can be designed with low backlash to minimize the amount of play or slop in the gears, resulting in more precise and accurate motion control.

▍Model 3 Flanged Output Drives Planetary Gearbox Uses

The Model 3 flanged output drives planetary gearbox is a compact, high-efficiency gearbox that is used in a variety of applications, including:

Wheel drives: The Model 3 flanged output drives planetary gearbox can be used to drive the wheels of a vehicle, such as a car or a robot. This allows the vehicle to move at a variety of speeds, while also providing a high degree of torque.

Track drives: The Model 3 flanged output drives planetary gearbox can also be used to drive the tracks of a vehicle, such as a tank or a bulldozer. This allows the vehicle to move over rough terrain, while also providing a high degree of torque.

Conveyors: The Model 3 flanged output drives planetary gearbox can be used to drive conveyor belts, which are used to transport materials in a variety of industries. The gearbox's high efficiency helps to reduce energy costs, while its compact size makes it ideal for use in conveyor systems.

Slew drives: The Model 3 flanged output drives planetary gearbox can be used to drive slewing mechanisms, which are used to rotate objects, such as a crane's boom. The gearbox's high torque capacity allows it to handle heavy loads, while its high efficiency helps to reduce energy costs.

Hoist drives: The Model 3 flanged output drives planetary gearbox can be used to drive hoists, which are used to lift and lower loads. The gearbox's high torque capacity allows it to handle heavy loads, while its high efficiency helps to reduce energy costs.

In addition to these applications, the Model 3 flanged output drives planetary gearbox can also be used in a variety of other applications, such as mixing, pumping, and drilling. The flanged output drives planetary gearbox's high efficiency, compact size, and high torque capacity make it a versatile and reliable choice for a wide range of applications.

▍China Flanged Output Drives Planetary Gearbox Manufacturers

Hzpt is a leading designer and manufacturer of custom-engineered wheel drive planetary gearboxes, shaft output drives planetary gearboxes, flanged output drives planetary gearboxes, swing drives planetary gearboxes, and solutions for diverse mobile equipment applications. Through its expansive product portfolio of planetary gearboxes, electric drive systems, driveline systems, and differentials, Hzpt offers more than 120 base product models covering over 3,200 application solutions that transfer power and torque to wheels, axles, booms, augers, winches, and platforms.

Hzpt serves distributor and original equipment manufacturer (“OEM”) customers that rely on the Company for its unmatched custom engineering and design support, optimized application performance and efficiency, rapid speed-to-market, and the shortest lead times in the industry. With a focus on accounts requiring custom engineering, the Company has built long-standing and collaborative relationships with distributor and OEM customers serving the agriculture, construction, specialty vehicle, aerial work platform, material handling, forestry, mining, oil, marine, military, airport support and automotive/truck end markets.
