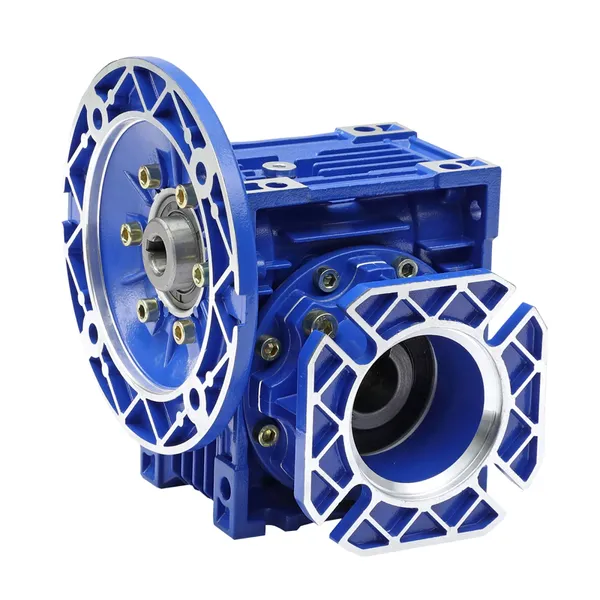

EP-NMRV-F Aluminum Alloy Housing Worm Gearbox with Flange Output

The EP-NMRV…F worm gearbox is extremely convenient to connect with ordinary motors, continuously variable transmissions, and flanged electromagnetic clutch brakes and does not require couplings to connect. It can be installed in all directions, and the output method is flange output, which can be connected to the shaft hole of the matching flange type. The output flange standard is a short output flange ( FA), and a long output flange (FB) is also available.

Get a Quote

EP-NMRV-F Aluminum Alloy Housing Worm Gearbox with Flange Output

The EP-NMRV...F worm gearbox is extremely convenient to connect with ordinary motors, continuously variable transmissions, and flanged electromagnetic clutch brakes and does not require couplings to connect. It can be installed in all directions, and the output method is flange output, which can be connected to the shaft hole of the matching flange type. The output flange standard is a short output flange ( FA), and a long output flange (FB) is also available.

We produce worm gearboxes in strict accordance with ISO9001 standards to provide our customers with superior-quality gearboxes also at competitive prices. HZPT worm gearboxes are equipped with accessories from famous international brands, such as oil seal from NAK or SKF, lubricant from Shell, and bearing from SKF or C&U. The housing and gear are processed in our factory under stringent quality control. All our products are available in large stocks, and we also accept customized orders; please feel confident to contact us.

EP-NMRV-F Aluminum Alloy Housing Worm Gearbox with Flange Output

EP-NMRV-F Worm Reduction Gearbox Specifications:

Series: EP-NMRV-F worm gearbox
Housing: die-cast aluminum alloy(EP-NMRV025-090),  cast iron(EP-NMRV110-150)
Paint: Aluminum alloy housing: shot blasting and special antiseptic treatment, phosphating
Worm wheel: Special wearable nickel bronze alloy
Worm: 20Cr steel, carburization, and nitriding treatment
Output forms: With output shaft, extension worm shaft, torque arm, output flange
Type: EP-NMRV /  EP-NRV
Model: EP-NMRV/EP-NRV 25/30/40/50/63/75/90/110/130/150/185
Reduction Ratio: 5,7.5,10,15,20,25,30,40,50,60,80,100
Flange: FA / FB or as per your demands
Matching Motor: 0.06KW~15KW
Material: Die-casting Aluminum Alloy
Color: Blue /Silver Grey /Customized
Flange Standard: PAM / IEC
Accessories: Shaft, Flange, Torque arm, etc
Lubricant: Synthetic Oil or Worm Gear Oil
Usage: The machinery of foodstuff, ceramics, chemical, packing, dyeing, woodworking, glass industries, etc
Note:
1) please choose from the above specifications.
2) If the above options can not meet your demands, please send us your requirements(ratio, flange, mounting, application, or a picture of your old one), and we will recommend you a suitable type.

Features of EP-NMRV-F Flange Output Worm Gearbox

  1. High Strength/ Light Weight
  2. Small Cubage & High Efficiency
  3. Easy to mount and maintain
  4. Wide output Ratio, Large torque & good capability of enduring overloads
  5. Running Stably, Low noise
  6. Hollow Input Shaft with motor flange& hollow output shafts as per standard
  7. Less Delivery time

Applications of EP-NMRV-F Flange Output Worm Gearbox

Our worm gearbox is used in various sectors like conveyor, cement, coal, automation, food, leather, machine tools, paper, pharmaceutical, plastic, polymer, packing, printing, rayon, rubber, textile, wire, glass, especially for ceramics glaze tiles industries & many other industries.

Applications of EP-NMRV-F Flange Output Worm Gearbox

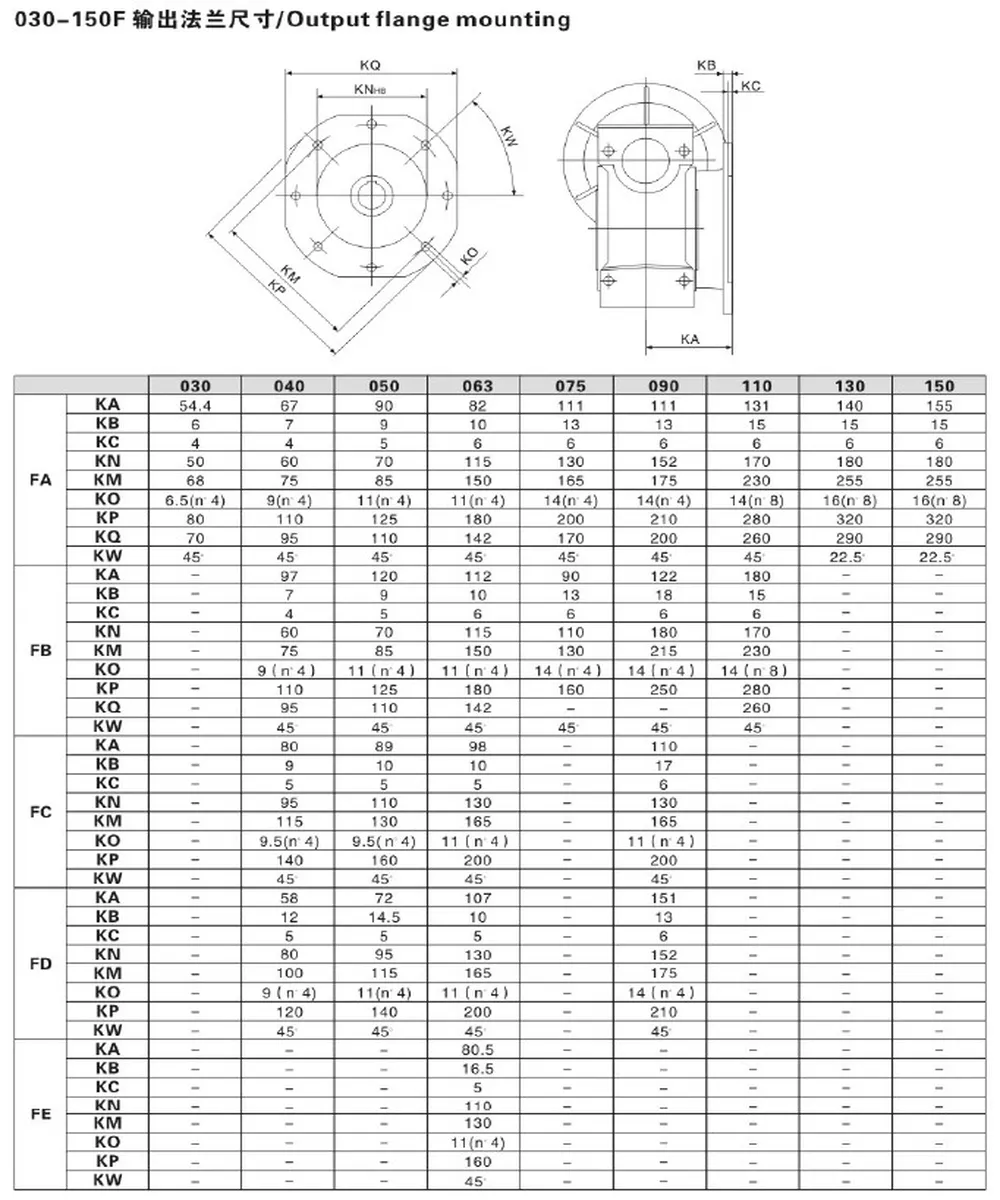

EP-NMRV-F Worm Gearbox Output Flange Dimensions:

EP-NMRV-F Worm Gearbox Output Flange Dimensions

EP-NMRV Worm Gearbox Input Forms:

EP-NMRV Worm Gearbox Input Forms

How Does a Worm Gear Reducer Work?

A worm pinion is a screw used to input power to the assembly. When coupled with a standard spur gear fitted with slightly angled teeth in a perpendicular alignment, known as a worm gear or worm wheel, the pairing becomes a worm gear reducer. As power from an engine or motor turns the worm pinion, its spirals push the teeth on the worm wheel, causing it to turn in accordance with the designed reduction ratio as it applies a load to its drive shaft.

Higher reduction ratios may be achieved by increasing the circumference of the worm gear or by increasing the number of threads on the worm pinion. Accomplishing the same reduction using conventional gear sets requires multiple reductions, which take up more space. Increasing the number of parts raising costs and adding to the risk of component failure. Worm gear reducers provide efficient, space-saving solutions for speed reduction and increased torque when compared with bulkier, higher-maintenance conventional gearsets.

How Does a Worm Gear Reducer Work

Aluminum Worm Gearbox Installation Precautions

After the aluminum alloy EP-NMRV worm gear reducer is installed, the accuracy of the installation position should be thoroughly checked in order, and the reliability of each fastener should be flexibly rotated after installation. If the worm gear reducer is splashed with oil pool splash, the user should remove the screw plug of the vent hole and replace it with the vent plug before running. According to different installation positions, open the oil level plug and screw, check the height of the oil level line, and add oil from the oil level plug until the oil overflows from the oil level plug screw hole. After the oil level plug is screwed up, the no-load test run can be carried out for no less than 2 hours.

The operation should be stable, without impact, vibration, noise and oil leakage. If abnormalities are found, they should be eliminated in time. When installing the transmission member on the output shaft, it is not allowed to strike with a hammer. Usually, the internal friction of the assembly jig and the shaft end is used, and the transmission member is pressed by the bolt, otherwise the internal parts of the worm gearbox may be damaged.

Worm Gear Reducers Operation & Maintenance:

(1) When the worm gearbox starts to work up to 200-400 hours, its lubricant should be replaced.

(2) Worm gear reducers need to replace the oil after 4000 hours.

(3) worm gearbox is fully filled with lubricant oil after finished assembly.

(4) Lubricating oil should be kept enough in the casing and checked at a fixed time.

Flange Output Worm Gearbox Packing and Transportation

●Packaging: In order to ensure the integrity of product appearance, we will choose cartons, wooden pallets, and wooden pallets according to customer needs.

●Delivery time: Each reducer is manufactured and tested in accordance with strict and fixed procedures to ensure that the quality is correct before leaving the factory and delivery on time.

●Transportation mode: We will choose the most suitable mode of transportation for our customers according to the weight and size of the goods. We can also choose the mode of transportation according to the needs of our customers.

●Receiving and after-sales service: After receiving the goods, please check whether they are in good condition. We will provide customers with perfect after-sales service.

Flange Output Worm Gearbox Packing and Transportation

Flange Output Worm Gearbox Manufacturers

Our company is located in the city of Hangzhou, Zhejiang Province of China. We handle the products of power transmission, and our lines mainly cover series products in speed reducers, RV series worm gearboxes, WP series worm gearboxes, HB series helical gearboxes, S/R/K/F series helical gearboxes, X/B series cycloidal gearboxes, ZQ series cylindrical gearboxes, planetary gearboxes, ATA series shaft mounted gearboxes, SMR series shaft mounted gearboxes, associated electric motors, and other power transmission accessories. Based on their versatile functions, our products can be utilized in many fields: machines of wastewater treatment, dredgers, the chemical industry, cranes, metalworking mills, conveyors, the paper industry, the cement industry, cableways, and so on. With excellent quality and reasonable prices, our products enjoy a good reputation from customers and peers all over the world.

Furthermore, the R&D investment is annually increasing for the purpose of better meeting the new demands of our customers and adapting to the new tendency of the industry. Depending on the principles of honestly operating and mutual benefit, We sincerely look forward to cooperating with you.

FAQ

Q1: Are you a trading company or a manufacturer?
A: We are a manufacturer in Zhejiang Province, China. Our company owns the ability to manufacture, processing, design, and R&D. We welcome your visit.

Q2: How do we select models and specifications?
A: According to the specific details of the demands from the part of the inquiry, we will recommend the products’ models upon synthesizing the factors of the field of product usage, power, torque arm, and ratio…

Q3: How is your price? Can you offer any discount?
A: Our prices are always competitive. If the customer can place a large order, we surely will allow a discount.

Q4: How long should I wait for the feedback after I send the inquiry?
A4: We will reply as soon as possible, 12 hours at most.

Q5: What is your product warranty period?
A: We have the certifications of ISO9001, CE, and SGS.

Q6: What industries are your gearboxes being used in?
A: Our gearboxes are widely applied to metallurgical equipment, mining equipment, automation equipment, food machinery, packaging equipment, tobacco equipment, and so on.
