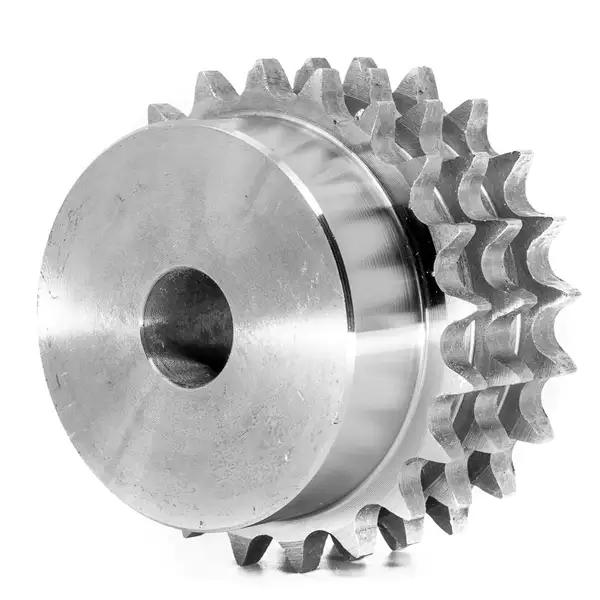

No.35-3 Standard Bore Sprocket

Introduction

A standard bore sprocket is a mechanical device used in various industries to transmit rotary motion between two shafts. It consists of a wheel with evenly spaced teeth that mesh with a chain, allowing it to transfer power and rotate the connected shaft.

Customization Factors

• Material: The choice of material depends on the specific application. Options include high carbon steel, alloy steel, or stainless steel.
• Tooth Profile: The tooth shape determines the type of chain the sprocket will work with, such as ANSI or ISO standard chains.
• Number of Teeth: The number of teeth affects the speed and torque transmission capabilities of the sprocket.
• Dimensions: Proper dimensions ensure compatibility with the machinery and drive system.
• Center Bore: The center hole allows the sprocket to be mounted securely on the shaft.
• Keyway: Keyways provide additional stability by preventing the sprocket from rotating on the shaft.
• Surface Treatment: Surface treatments like rust-proof coating enhance the sprocket's durability and longevity.

Material and Manufacturing Process

Our sprockets are manufactured using high-quality materials and advanced processes. The material options include high carbon steel, alloy steel, or stainless steel, depending on the specific requirements of the application.

Our manufacturing process involves material selection, cutting, stamping or forging, machining (turning, milling, drilling), heat treatment (quenching, tempering, surface hardening), surface treatment (rust-proof coating), and quality testing to ensure superior performance and reliability.

Applications

• Heavy Machinery and Equipment: Sprockets are widely used in heavy machinery, such as construction equipment and industrial machinery.
• Food Processing and Packaging: Sprockets find applications in food processing and packaging machinery, ensuring smooth and efficient operation.
• Chemical and Pharmaceutical: Sprockets are used in chemical and pharmaceutical industries for various processes, including mixing and conveying.
• Assembly Lines: Sprockets play a crucial role in assembly line systems, facilitating the movement of components.
• Logistics and Warehousing: Sprockets are utilized in conveyor systems for efficient material handling and storage.

Maintenance and Troubleshooting

Proper maintenance and regular inspection of sprockets are essential to ensure their optimal performance and longevity.

• Daily Inspection: Regularly check for any signs of damage, wear, or misalignment.
• Cleaning: Keep the sprocket clean from debris and contaminants.
• Lubrication: Apply appropriate lubrication to reduce friction and prevent premature wear.
• Adjustment and Calibration: Periodically adjust and calibrate the sprocket to maintain proper chain tension and alignment.

Common issues that may arise with sprockets include tooth skipping, breakage, wear, excessive noise, and chain detachment. Here are some corresponding solutions:

• Tooth Skipping: Check for misalignment, damaged teeth, or chain tension issues. Adjust or replace as necessary.
• Breakage: Examine for excessive stress or material fatigue. Replace with a new sprocket if needed.
• Wear: Monitor for signs of wear on teeth or the center bore. Replace if wear exceeds acceptable limits.
• Excessive Noise: Inspect for misalignment, lack of lubrication, or worn-out components. Correct the issue accordingly.
• Chain Detachment: Ensure proper tension, alignment, and engagement between the sprocket and chain. Adjust or replace as required.

Other Sprocket Types

In addition to the No.35-3 Standard Bore Sprocket, we also offer a wide range of other sprocket types to cater to diverse industrial needs. These include platewheel sprockets, idler sprockets, qd sprockets, and taper lock sprockets. We also provide matching chains for these sprockets.
