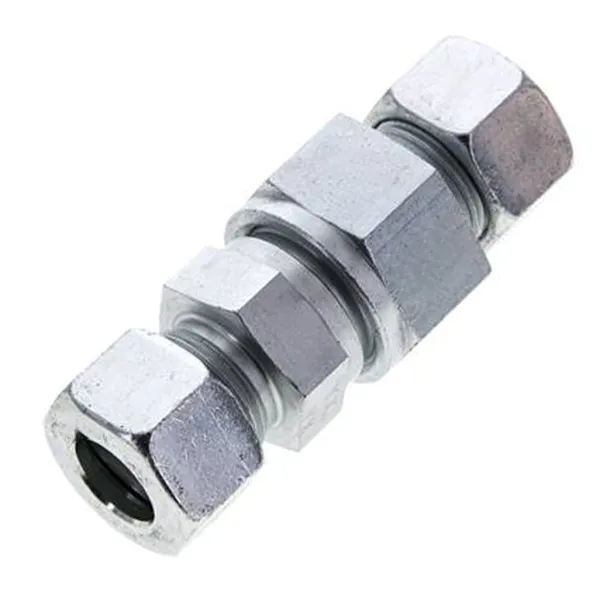

Non-Return Valve-RHD Hydraulic Fittings
Non-Return Valve-RHD Hydraulic Fittings are a type of non-return valve that is specifically designed for use with hydraulic systems. They are made from high-quality materials and are built to withstand the high pressures and temperatures of hydraulic fluid. Non-Return Valve-RHD Hydraulic Fittings are available in a variety of sizes and configurations to suit a wide range of applications. They can be used in both open and closed-circuit hydraulic systems and can be installed in any orientation.
Non-Return Valve-RHD Hydraulic Fittings
Non-return valves, also known as check valves, are essential components in hydraulic systems. They allow fluid to flow in one direction only, preventing backflow. This is important for maintaining system pressure and preventing damage to components.
Non-Return Valve-RHD Hydraulic Fittings are a type of non-return valve that is specifically designed for use with hydraulic systems. They are made from high-quality materials and are built to withstand the high pressures and temperatures of hydraulic fluid.
Non-Return Valve-RHD Hydraulic Fittings are available in a variety of sizes and configurations to suit a wide range of applications. They can be used in both open and closed-circuit hydraulic systems and can be installed in any orientation.

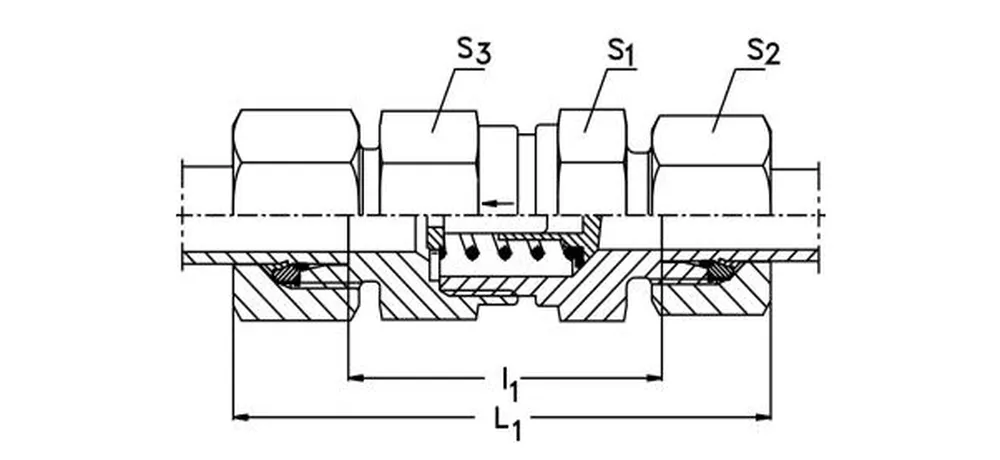

Non-Return Valve-RHD Hydraulic Fitting Size Chart:
| RHD Part no. |
Series Working Pressure (bar/psi) | Tube o.d. | S1 | S2 | S3 | L1 | l1 | DN Size |
| RHD06L | 6 | 17 | 14 | 17 | 58 | 29 | 4 | |
| RHD08L | L Light | 8 | 19 | 17 | 19 | 59 | 30 | 6 |
| RHD10L | 250 bar | 10 | 22 | 19 | 24 | 69.5 | 40.5 | 8 |
| RHD12L | 3625 psi | 12 | 27 | 22 | 30 | 72.5 | 43.5 | 10 |
| RHD15L | 15 | 27 | 27 | 32 | 77.5 | 47.5 | 12 | |
| RHD18L | 160 bar | 18 | 36 | 32 | 36 | 83.5 | 51.5 | 16 |
| RHD22L | 2320 psi | 22 | 41 | 36 | 46 | 93.5 | 61.5 | 20 |
| RHD28L | 100 bar | 28 | 50 | 41 | 55 | 102.5 | 69.5 | 25 |
| RHD35L | 1450 psi | 35 | 60 | 50 | 60 | 117.5 | 74.5 | 32 |
| RHD42L | 42 | 65 | 60 | 70 | 119 | 74 | 32 | |
| RHD06S | S Heavy | 6 | 19 | 17 | 19 | 63.5 | 34.5 | 3 |
| RHD08S | 400 bar | 8 | 19 | 19 | 19 | 63.5 | 34.5 | 4 |
| RHD10S | 5800 psi | 10 | 22 | 22 | 24 | 72.5 | 40.5 | 6 |
| RHD12S | 12 | 24 | 24 | 27 | 74.5 | 42.5 | 8 | |
| RHD14S | 315 bar | 14 | 27 | 27 | 32 | 82.5 | 47.5 | 10 |
| RHD16S | 4560 psi | 16 | 32 | 30 | 36 | 86.5 | 50.5 | 12 |
| RHD20S | 250 bar | 20 | 41 | 36 | 46 | 97.5 | 54.5 | 16 |
| RHD25S | 3625 psi | 25 | 46 | 46 | 50 | 106.5 | 58.5 | 20 |
| RHD30S | 30 | 60 | 50 | 60 | 122.5 | 69.5 | 25 | |
| RHD38S | 38 | 65 | 60 | 70 | 136.5 | 75.5 | 32 |
Benefits of Using Non-Return Valve-RHD Hydraulic Fittings:
1. Reliability: Non-Return Valve-RHD Hydraulic Fittings are made from high-quality materials and are built to withstand the high pressures and temperatures of hydraulic fluid. They are also designed to be leak-proof, ensuring that your hydraulic system operates reliably and efficiently.
2. Durability: Non-Return Valve-RHD Hydraulic Fittings are built to last. They are resistant to corrosion and wear, and they can withstand the rigors of even the most demanding applications.
3. Ease of installation and maintenance: Non-return Valve-RHD Hydraulic Fittings are easy to install and maintain. They can be installed in any orientation, and they do not require any special tools or training.
4. Versatility: Non-Return Valve-RHD Hydraulic Fittings are available in a wide range of sizes and configurations to suit a wide range of applications. They can be used in both open and closed-circuit hydraulic systems, and they can be used with a variety of different hydraulic fluids.
5. Affordability: Non-Return Valve-RHD Hydraulic Fittings are affordable and offer good value for money. They are a cost-effective way to improve the reliability and performance of your hydraulic system.
6. Reduce downtime: By preventing backflow and protecting components from damage, Non-Return Valve-RHD Hydraulic Fittings can help to reduce downtime and maintenance costs.
7. Improve safety: Non-return Valve-RHD Hydraulic Fittings can help to improve safety by preventing accidental operation of hydraulic equipment.
8. Increase efficiency: By maintaining system pressure and preventing backflow, Non-Return Valve-RHD Hydraulic Fittings can help to improve the efficiency of your hydraulic system.
Overall, Non-Return Valve-RHD Hydraulic Fittings offer a number of benefits that make them a valuable addition to any hydraulic system. They are reliable, durable, easy to install and maintain, versatile, and affordable.
China Hydraulic Fitting Manufacturers
We're well-known as one of the leading hydraulic fitting manufacturers and suppliers, specializing in providing different kinds of fittings, instrument valves, and flanges. We warmly welcome you to buy high-quality hydraulic fittings in stock from our factory. Union - G Hydraulic Fittings, Elbow Union - W Hydraulic Fittings, Union Tee - T Hydraulic Fittings, Union Cross - K Hydraulic Fittings, Male Connector-GE-R-ED Hydraulic Fittings, Male Connector-GEO Hydraulic Fittings, Tube End Plug-ROV Hydraulic Fittings, Male Elbow-WE-NPT Hydraulic Fittings, Bulkhead Union-SV Hydraulic Fittings, Tube End Reducer-RED Hydraulic Fittings, Weld Elbow-WAS Hydraulic Fittings, BSPP Pressure Gauge Connector-MAV Hydraulic Fittings, Weld Connector-AS Hydraulic Fittings.
1. We established in July 2008.
2. We are a professional manufacturer of Instrumentation Tube Fittings, Pipe Fittings, Hydraulic Ball Valves, Needle Valves, Ball Valves, Check Valves, Valve Manifolds, DIN 2353 Fittings, SAE Flanges, Sampling systems, and Water Heater Accessories.
3. Products are available in a variety of different materials, such as Carbon Steel, Stainless steel 316/316L, Duplex, Super Duplex, Hastelloy, Monel, Inconel, Incoloy, and Titanium.
4. We are located in Hangzhou City, a two-hour drive to Shanghai, with convenient transportation access worldwide.
5. Our products are widely used in industries of Chemical, Petrochemical, Power Generation, Oil, Gas, and Shipbuilding.
6. Always available to discuss your requirements and ensure full customer satisfaction.
7. We have more than 50 CNC machines, 3D measurement equipment, Raw Material chemical composition inspection equipment, High-pressure test equipment, etc.
8. We have obtained ISO9001 and CE certificates and more than twenty utility model patents.
9. Our products are exported to the United States, Japan, Germany, South America, South Africa, Southeast Asia, and many other countries.
10. We also welcome OEM and ODM orders. Please feel free to contact and visit us.
