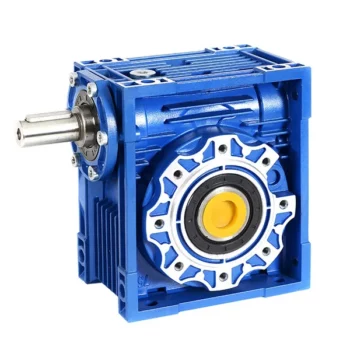

EP-NRV Shaft Input Small Worm Gearbox / Worm Gear Speed Reducer

EP-NRV worm gearbox is one of the RV series worm gearbox models. EP-NMRV means flange input and EP-NRV means shaft input. EP-NRV worm gearbox is generally with a single input shaft, and there are also double input shaft forms, suitable for various transmission needs. The output forms include hollow hole output and flange output. Its internal transmission structure is composed of a worm and a worm gear, which has a compact structure, a large transmission ratio, and a self-locking function under certain conditions, EP-NRV worm gearboxes manufactured by HZPT own the advantages of smooth transmission and low noise.

Get a Quote

EP-NRV Shaft Input Small Worm Gearbox / Worm Gear Speed Reducer

EP-NRV worm gearbox is one of the RV series worm gearbox models. EP-NMRV means flange input and EP-NRV means shaft input. EP-NRV worm gearbox is generally with a single input shaft, and there are also double input shaft forms, suitable for various transmission needs. The output forms include hollow hole output and flange output. Its internal transmission structure is composed of a worm and a worm gear, which has a compact structure, a large transmission ratio, and a self-locking function under certain conditions, EP-NRV worm gearboxes manufactured by HZPT own the advantages of smooth transmission and low noise.

EP-NRV Shaft Input Small Worm Gearbox

EP-NRV Shaft Input Worm Gearbox Specifications:

Product name: EP-NRV worm gearbox
Brand: EPT
Model: EP-NRV 025,030,040,050,063,075,090,110,130,150
Input Configurations: Solid Shaft Input
Worm Shaft Tail Extension Input
Output Configurations: Keyed Hollow Shaft Output
Hollow Shaft with Output Flange
Plug-in Solid Shaft Output
Ratio: 1:7.5,10,15,20,25,30,40,50,60,80,100
Input Power: 0.12kw,0.18kw,0.25kw,0.37kw,0.55kw,0.75kw,1.1kw,1.5kw,2.2kw,4kw,5.5kw,7.5kw,…
Color: Blue/Black/Silver Or On Customer Request
Material: Housing: Die-Cast Iron cast
Worm Gear-Tin Copper
Worm Shaft: 20CrMn Ti with carburizing and quenching
Out Shaft-chromium steel-45#
Bearing: C&U/QC/HRB or upon customer request
Seal: SKF/NAK/KSK or upon customer request,
Lubricant: Synthetic/Mineral
Warranty: 12 months
Packing: Carton/Wooden pallet/ Wooden Case
Place of origin: Hangzhou, China
Supply Ability: 15000pcs/month
Quality Control: ISO9001:2015 certified
Loading Port: Ningbo/Shanghai



Advantages of EP-NRV Worm Gearbox:

  • Quick stop function

For a general gear reducer, it takes 5 to 10 seconds for the stop time, but for the EP-NRV series, the stop state could be reached in only 2 to 5 seconds.

  • High safety

The EP-NRV worm gearbox adopts a different way compared with the traditional one in that it doesn’t need the sprocket and pulley. What’s more, the transmission structure is not exposed so that injuries to the operator could be reduced.

  • Good protection

Grade IP55 is adopted which has good isolation for dust and moisture.

  • Excellent thermal conductivity

The EP-NRV worm gear is equipped with cooling ribs so that the body has excellent thermal conductivity and low temperature-rising.

  • Long service life

The worm gearbox operates smoothly with low noise which is suitable for long-term contact work in harsh environments.

Indication of Model Numbers of EP-NRV Worm Gearbox:

Indication of Model Numbers of EP-NRV Worm Gearbox

EP-NRV Shaft Input Worm Gearbox Installation Size:

EP-NRV Shaft Input Worm Gearbox Installation Size

Applications of EP-NRV Shaft Input Worm Gearbox

The EP-NRV worm gearboxes are widely used in the automation industry, industrial robots, aerospace, CNC machine tools, metallurgical mining, beer and beverage, tobacco light industry, environmental engineering, warehousing logistics, plastics machinery, lifting transport, three-dimensional parking, automobile manufacturing, textiles, food, ceramics, and other fields.

EP-NRV Shaft Input Worm Gear Reducer Precautious:

  1. Before use, please confirm that the worm gear reducer and the mechanical safety supporting strength are within the safe range of the performance parameters of the worm gear reducer.
  2. The worm gearbox has been filled with WA460 lubricant at the factory. After 400 hours of operation, the lubricant should be replaced. The oil change cycle is about 4000 hours later.
  3. The worm gear reducer casing body should retain enough lubricating oil, and regularly check the amount of oil.
  4. Avoid damage to the worm gearbox caused by sharp shaft damage caused by sharp equipment
  5. Check the direction of rotation before installing the machine.
  6. Set a safety cover, etc. in the rotation area.

Other Types of Worm Gearbox Combination Options:

(1) Input: with input shaft, With square flange, With IEC standard input flange

(2) Output: with torque arm, output flange, single output shaft, double output shaft, plastic cover

(3) Worm reducers are available with different combinations: EP-NMRV+EP-NMRV, EP-NMRV+EP-NRV, EP-NMRV+PC, EP-NMRV+UDL, EP-NMRV+MOTORS

Other EP-NMRV Worm Gearbox Types

EP-NRV Shaft Input Worm Gearbox Packing Transportation:

●Packaging: In order to ensure the integrity of product appearance, we will choose cartons, wooden pallets, and wooden pallets according to customer needs.

●Delivery time: Each reducer is manufactured and tested in accordance with strict and fixed procedures to ensure that the quality is correct before leaving the factory and delivery on time.

●Transportation mode: We will choose the most suitable mode of transportation for our customers according to the weight and size of the goods. We can also choose the mode of transportation according to the needs of our customers.

●Receiving and after-sales service: After receiving the goods, please check whether they are in good condition. We will provide customers with perfect after-sales service.

EP-NRV Shaft Input Worm Gearbox Packing Transportation EP-NRV Shaft Input Worm Gearbox Packing Transportation

EP-NRV Shaft Input Worm Gearbox Manufacturers

Our company is located in the city of Hangzhou, Zhejiang Province of China. We handle the products of power transmission, and our lines mainly cover series products in speed reducers, RV series worm gearboxes, WP series worm gearboxes, HB series helical gearboxes, S/R/K/F series helical gearboxes, X/B series cycloidal gearboxes, ZQ series cylindrical gearboxes, planetary gearboxes, ATA series shaft mounted gearboxes, SMR series shaft mounted gearboxes, associated electric motors, and other power transmission accessories. Based on their versatile functions, our products can be utilized in many fields: machines of wastewater treatment, dredgers, the chemical industry, cranes, metalworking mills, conveyors, the paper industry, the cement industry, cableways, and so on. With excellent quality and reasonable prices, our products enjoy a good reputation from customers and peers all over the world.

Furthermore, the R&D investment is annually increasing for the purpose of better meeting the new demands of our customers and adapting to the new tendency of the industry. Depending on the principles of honestly operating and mutual benefit, We sincerely look forward to cooperating with you.

High-Quality-Worm-Gearbox-Manufacturers

FAQ

Q1: Are you a trading company or a manufacturer?
A: We are a manufacturer in Zhejiang Province, China. Our company owns the ability to manufacture, processing, design, and R&D. We welcome your visit.

Q2: How do we select models and specifications?
A: According to the specific details of the demands from the part of the inquiry, we will recommend the products’ models upon synthesizing the factors of the field of product usage, power, torque arm, and ratio…

Q3: How is your price? Can you offer any discount?
A: Our prices are always competitive. If the customer can place a large order, we surely will allow a discount.

Q4: How long should I wait for the feedback after I send the inquiry?
A4: We will reply as soon as possible, 12 hours at most.

Q5: What is your product warranty period?
A: We have the certifications of ISO9001, CE, and SGS.

Q6: What industries are your gearboxes being used in?
A: Our gearboxes are widely applied to metallurgical equipment, mining equipment, automation equipment, food machinery, packaging equipment, tobacco equipment, and so on.
