Chain No.	Width ( W )	Width ( W )
	mm	inch.
LF1843 - K125	31.8	1.25
LF1843 - K200	50.8	2

Plastic Conveyor Chains Sideflexing Plastic Chains With Base Roller Chains 12.7mm(1/2 inch)Pitch Replacement Of System Plast LF1843-K125

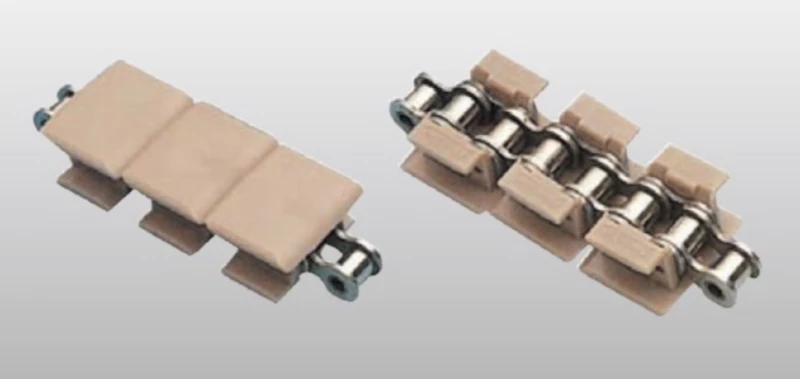

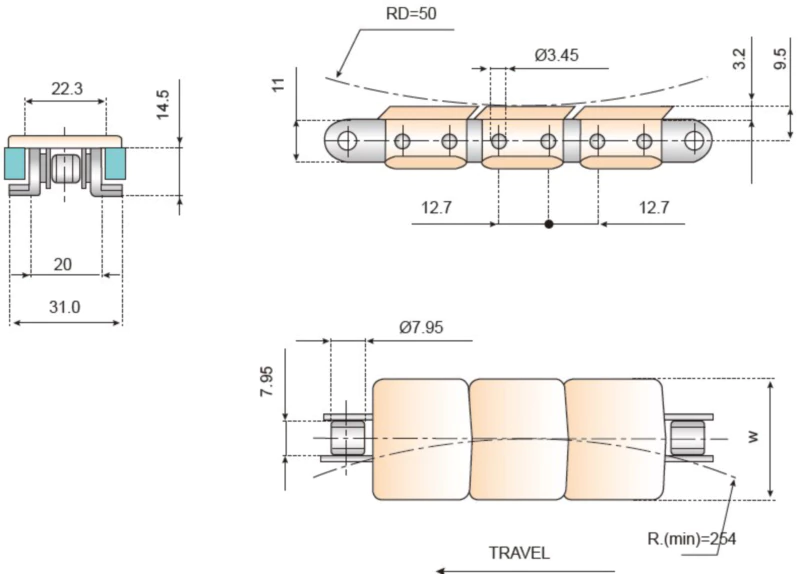

Plastic Conveyor Chains Sideflexing Plastic Chains with Base Roller Chains 12.7mm (1/2 inch) Pitch is a type of plastic conveyor chain with lateral bending capabilities that is suitable for a variety of applications. They have a series of evenly spaced base rollers that serve as the foundation of the chain, providing support and promoting the smooth movement of conveyed items. See the image below for reference:

Features and Benefits of Plastic Conveyor Chains Sideflexing Plastic Chains with Base Roller Chains 12.7mm (1/2 inch) Pitch

• Lateral Bending Capabilities

  These chains have lateral bending capabilities, making them suitable for conveyor systems that require bending in both horizontal and vertical directions. They are able to move along a curved path on the conveyor line and change the conveying direction.

• Base Rollers

  The base rollers on the chain help reduce friction between the chain and the guiding rail, supporting the smooth movement of conveyed items.

• Pitch Size

  12.7mm (1/2 inch) Pitch refers to the center-to-center distance between adjacent chain links. This pitch size is common and balances the load capacity and compactness of the chain.

• Materials

  These chains are typically made of high-quality plastic materials such as polyethylene (PE) or polypropylene (PP). The specific material chosen depends on specific application requirements, including load capacity, environmental conditions, and chemical resistance.

• Lightweight and Low Noise

  Compared to metal chains, plastic conveyor chains are lighter and easier to handle, reducing the overall weight of the conveyor system. Additionally, plastic chains produce less noise during operation, helping to create a quieter work environment.

• Corrosion Resistance

  Plastic chains have high corrosion resistance, making them suitable for applications in wet or corrosive environments. They are unaffected by moisture or chemicals, making them suitable for industries such as food processing or chemical manufacturing.

• Easy Maintenance

  Plastic conveyor chains are relatively easy to maintain. They typically require less lubrication compared to metal chains and can be easily cleaned to remove debris or contaminants.

Applications

Plastic conveyor chains are used in a wide range of applications, including:

• Food processing and packaging
• Logistics and sorting centers
• Manufacturing
• Warehousing and distribution centers
• Packaging and labeling
• Mechanical engineering

See the image below for a better understanding:

Customization Options

When customizing plastic conveyor chains, consider the following:

• Application requirements
• Material selection
• Size and construction

Customizing the chain ensures that it is compatible with your equipment and meets your specific requirements for load, speed, and curve radius.

Installation and Maintenance

Follow these steps for proper installation and maintenance of plastic conveyor chains:

• Preparation

  Before installation, ensure that the installation area for the conveyor chain is clean and prepared. Remove debris, dust, and other obstacles to ensure the chain can move smoothly.

• Alignment and Adjustment

  Before installing the chain, ensure that the conveyor system is aligned and adjusted. Ensure that the chain runs straight, avoiding twisting or deviation from the track.

• Connecting Chain Links

  Align the connecting plates of the chain with the chain links and connect them together using the appropriate connecting pin or snap ring. Ensure that the connection is secure but not too tight, allowing the chain to move freely.

• Tensioning the Chain

  Properly tension the chain according to the manufacturer's recommendations. An overtightened chain may increase friction and wear, while a loose chain may result in chain jumping or instability.

• Maintenance

  Regularly clean and lubricate the chain to remove dust, dirt, and other contaminants. Check the chain for wear, damage, or loose connections, and repair or replace as needed. Ensure the chain is operated within its design environment to ensure optimal performance and longevity. Always follow the manufacturer's instructions for proper installation and maintenance.

Sprockets

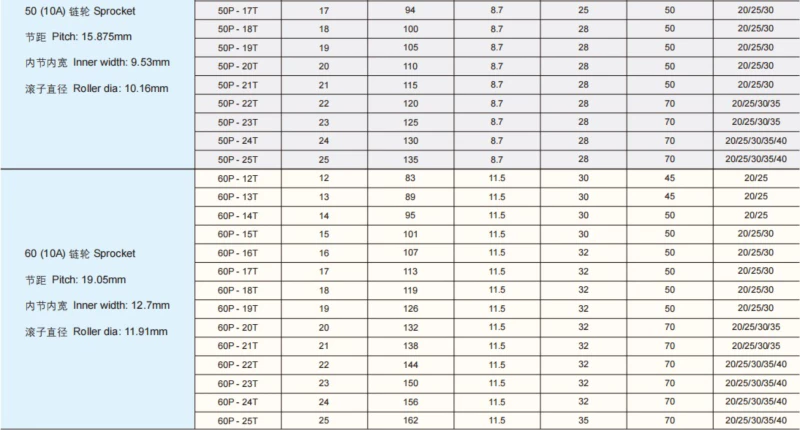

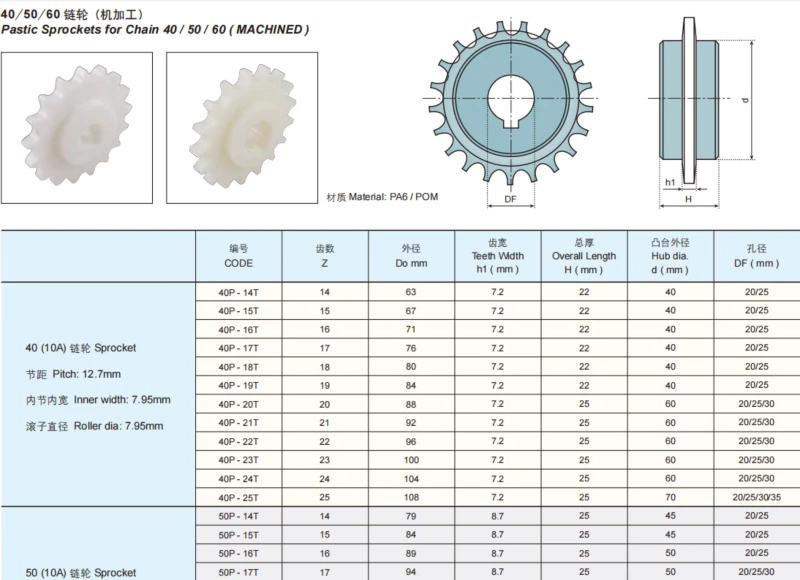

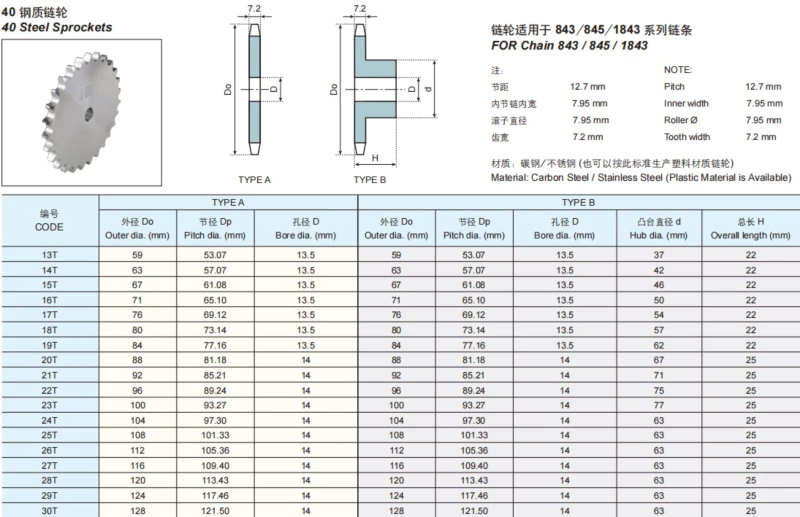

Sprockets are an important component in plastic conveyor chains. They connect the chain to the driving or driven shaft and transfer power between them. See the images below for some examples:

The shape and number of teeth on the sprocket must match the pitch and shape of the chain links. Properly matched sprockets ensure smooth and efficient power transmission between the conveyor chain and the driven shaft.

Other Chain Products

Our company provides a variety of chain products, including Plastic Chain, Stainless Steel Chain, Agricultural Chains, Leaf Chains, and more.

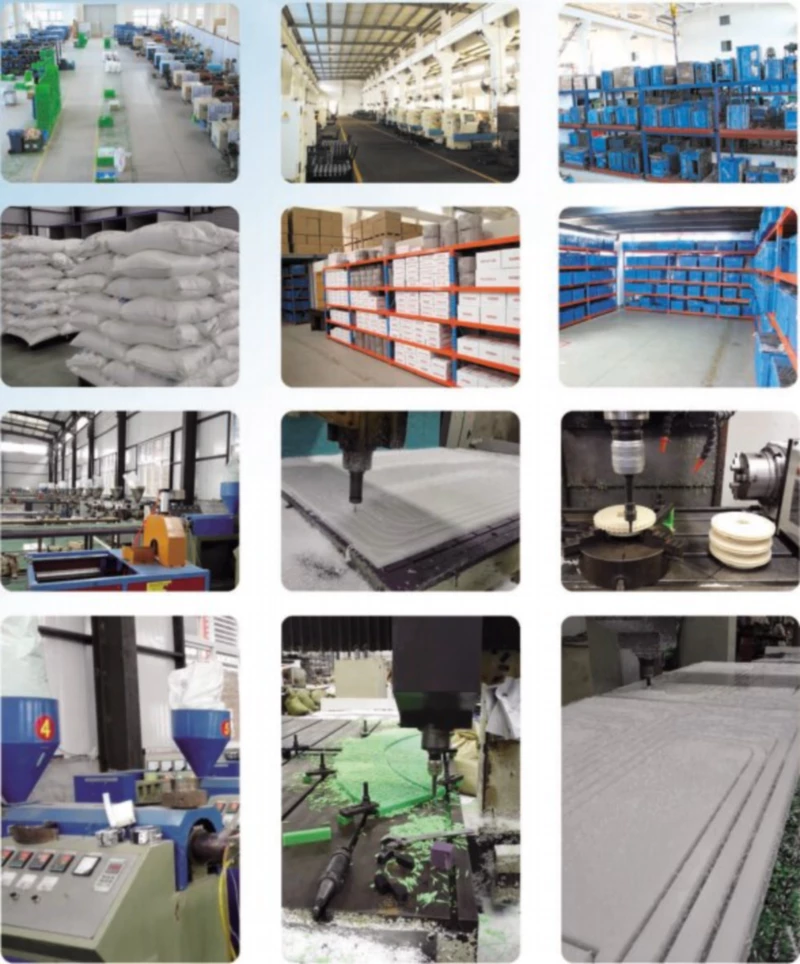

About EVER-POWER

EVER-POWER was established in 2003, and is a professional manufacturer of power transmission products. We have multiple advanced production and testing equipment, including CNC Gear grinding machines, gear measuring machines, CNC gear shapers, machine centers, CMMS, and Torque test systems. We pride ourselves on our professionalism, international certifications, customization services, production equipment, and after-sales services. We welcome customers to inquire or customize products.

FAQ

1. What is the pitch of Plastic Conveyor Chains Sideflexing Plastic Chains with Base Roller Chains 12.7mm (1/2 inch) Pitch?

The pitch of Plastic Conveyor Chains Sideflexing Plastic Chains with Base Roller Chains 12.7mm (1/2 inch) Pitch is 12.7mm (1/2 inch).

2. What applications are Plastic Conveyor Chains Sideflexing Plastic Chains with Base Roller Chains 12.7mm (1/2 inch) Pitch suitable for?

Plastic Conveyor Chains Sideflexing Plastic Chains with Base Roller Chains 12.7mm (1/2 inch) Pitch are suitable for a wide range of applications, including food processing and packaging, logistics and sorting centers, manufacturing, warehousing and distribution centers, packaging and labeling, and mechanical engineering.

3. What materials are Plastic Conveyor Chains Sideflexing Plastic Chains with Base Roller Chains 12.7mm (1/2 inch) Pitch made of?

Plastic Conveyor Chains Sideflexing Plastic Chains with Base Roller Chains 12.7mm (1/2 inch) Pitch are typically made of high-quality plastic materials such as polyethylene (PE) or polypropylene (PP).

4. How do I properly install and maintain Plastic Conveyor Chains Sideflexing Plastic Chains with Base Roller Chains 12.7mm (1/2 inch) Pitch?

Refer to the Installation and Maintenance section above for proper installation and maintenance guidelines for Plastic Conveyor Chains Sideflexing Plastic Chains with Base Roller Chains 12.7mm (1/2 inch) Pitch.

5. What is EVER-POWER, and what products do they provide?

EVER-POWER is a professional manufacturer of power transmission products, including Plastic Chain, Stainless Steel Chain, Agricultural Chains, and Leaf Chains, among others. They also provide customization services, and pride themselves on their professionalism, international certifications, production equipment, and after-sales services. See the About EVER-POWER section above for more information.
