Plastic Conveyor Chains with Base Roller Chains

Plastic Conveyor Chains with Base Roller Chains

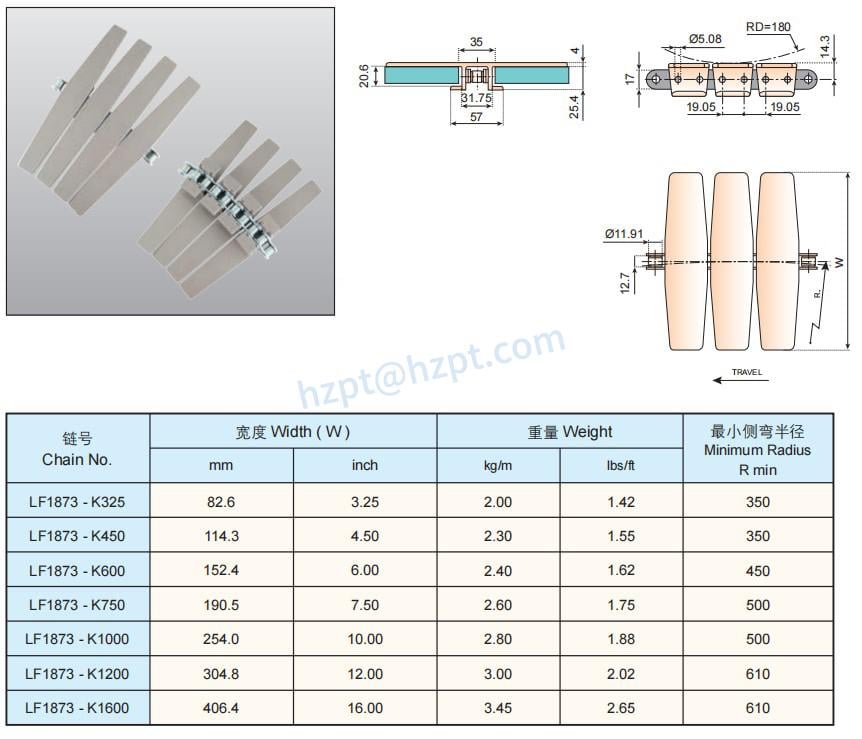

1873 Sideflexing with Base Roller Chains 19.05mm (3/4”) Pitch

Widely used in all kinds of curved  transportation in food industry.
Material ( base roller chain ):  stainless steel SUS304 or carbon steel
The longest distance: 24M
Max. speed: lubricant 90M/min  dryness 60M/min
Packing: 10 feet = 3.048 M/box 26pcs/M

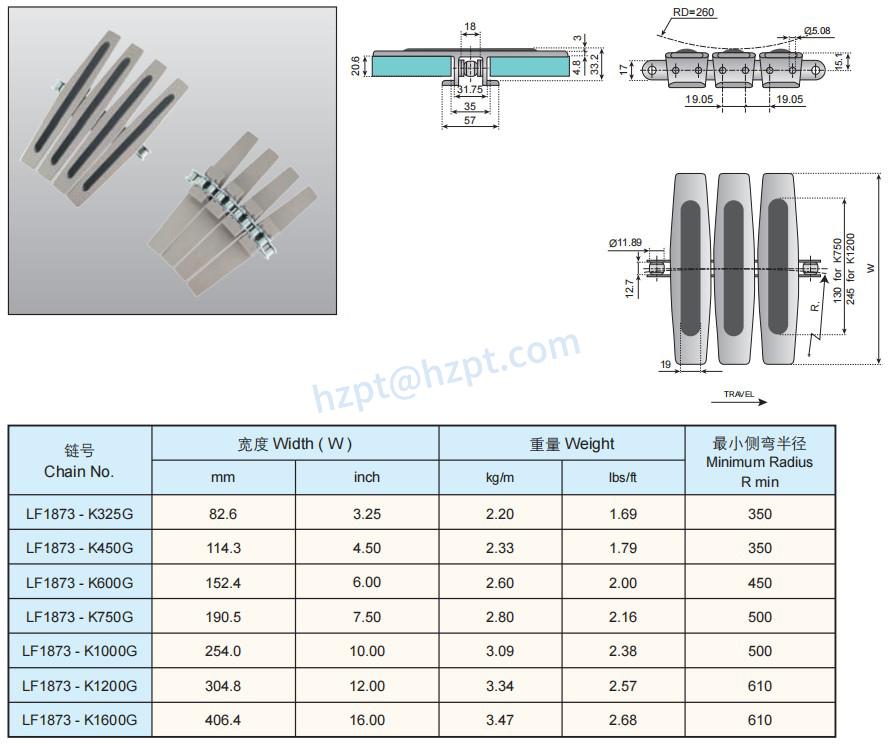

1873g(1) with Rubber Top

Widely used in all kinds of curved transportation in food industry.
Material ( base roller chain ): stainless steel SUS304 or carbon steel
The longest distance: 24M
Max. speed: lubricant 90M/min
dryness 60M/min
Packing: 10 feet = 3.048 M/box 26pcs/M

1873g(2) with Rubber Top

Mainly used for high-speed long-distance curve conveyors, such as food industry, dish conveying.
Bottom chain: carbon steel or stainless steel Consist of metal chain and plastic chain
The longest distance: carbon steel - 30m stainless steel - 24m
Max. speed: lubricant 90M / min  dryness 60M / min
Packing: 10 feet = 3.048 M / box 26pcs / M
Max. tensile strength in carbon≤4000N  stainless steel≤2000N

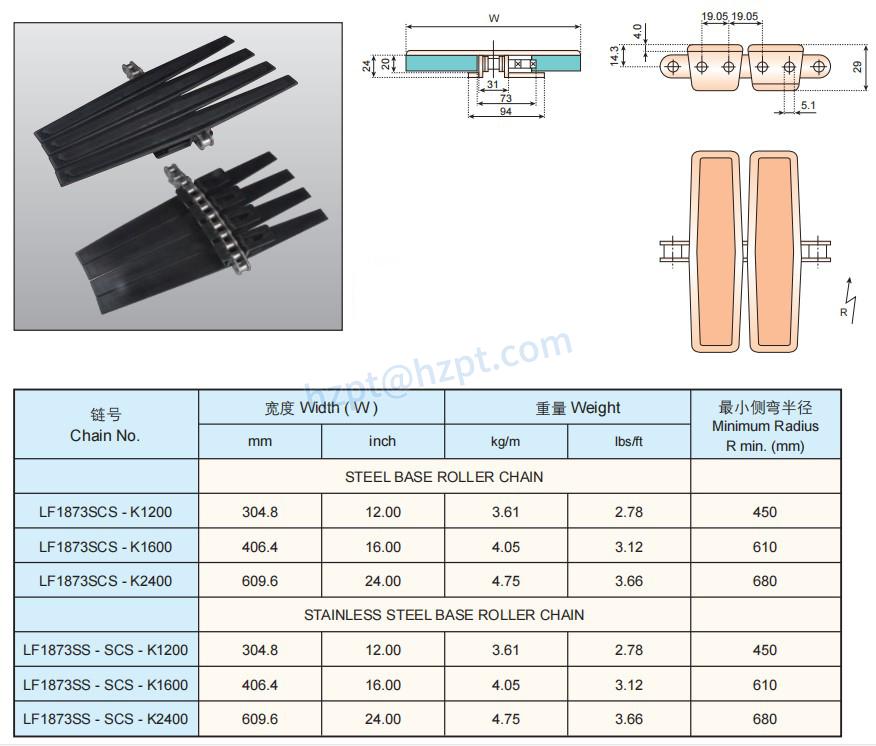

1873scs Chain (Spiral Conveyor System)

Mainly used for high-speed long-distance  curve conveyors, such as food industry, dish conveying.
Bottom chain: carbon steel or stainless steel
Consist of metal chain and plastic chain
The longest distance: carbon steel - 30m  stainless steel - 24m
Max. speed: lubricant 90M / min  dryness 60M / min
Packing: 10 feet = 3.048 M / box 26pcs / M
Max. tensile strength in carbon≤4000N  stainless steel≤2000N

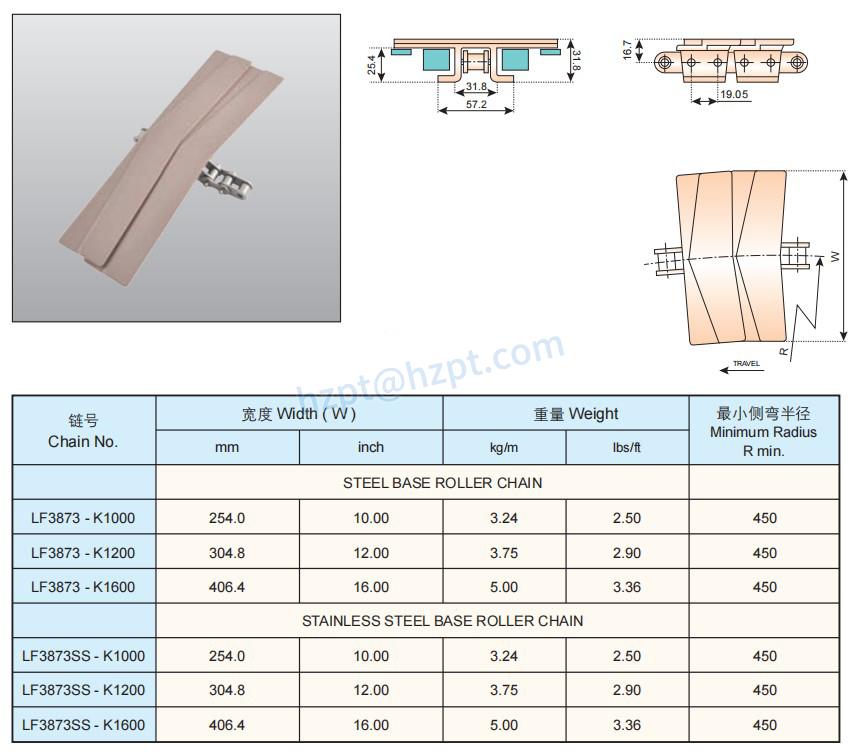

3873 Sideflexing Closed Surface with Base Roller Chains 19.05mm (3/4”) Pitch

Widely used in all kinds of curved  transportation in food industry.
Material ( base roller chain ):  stainless steel SUS304 and carbon steel
The longest distance: 24M
Max. speed: lubricant 90M / min  dryness 60M / min
Packing: 10 feet = 3.048 M / box 26pcs / M

3873g Sideflexing with Rubber Top with Base Roller Chains 19.05mm (3/4”) Pitch

Widely used in all kinds of curved  transportation in food industry.
Material ( base roller chain ):  stainless steel SUS304 and carbon steel
The longest distance: 24M
Max. speed: lubricant 90M / min dryness 60M / min
Packing: 10 feet = 3.048 M / box 26pcs / M

3873-l Sideflexing Chain

Application in high-speed curve conveyors in  food industry dish conveying Long-distance conveying
Bottom chain: carbon steel or stainless steel
Consist of metal chain and plastic chain
The longest distance: carbon steel-30m  stainless steel-24m
Max. speed: lubricant 90M/min  dryness 60M/min
Packing: 10 feet = 3.048 M/box 26pcs/M
Max tensile force in carbon≤4000N  stainless steel≤2000N

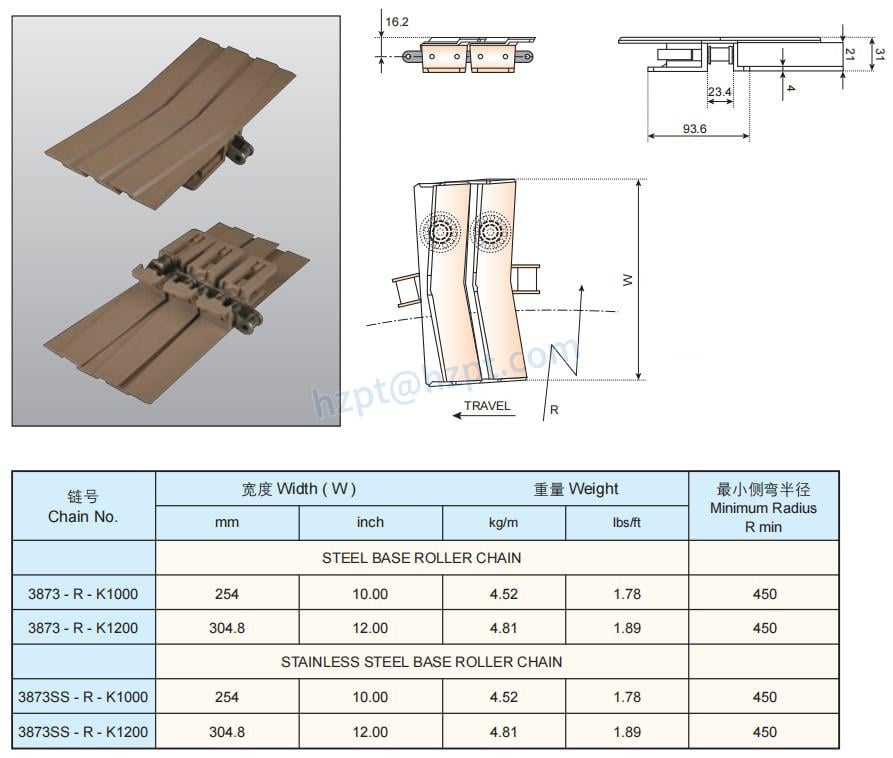

3873-r Sideflexing Chain

Application in high-speed curve conveyors in food industry dish conveying Long-distance conveying
Bottom chain: carbon steel or stainless steel
Consist of metal chain and plastic chain
The longest distance: carbon steel-30m stainless steel-24m
Max. speed: lubricant 90M/min dryness 60M/min
Packing: 10 feet = 3.048 M/box 26pcs/M
Max tensile force in carbon≤4000N stainless steel≤2000N

863 (963) Straight Running Plastic Chains with Base Roller Chains 19.05mm(3/4”)pitch

843 Straight Running Plastic Chains with Base Roller Chains 12.7mm(1/2”)pitch

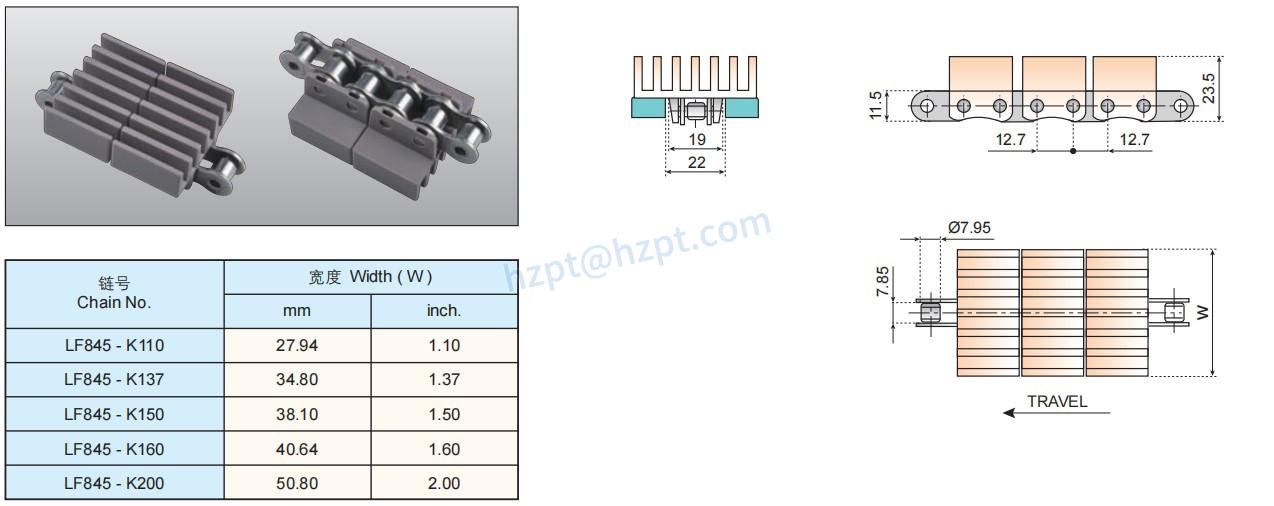

845 Straight Running Plastic Chains with Base Roller Chains 12.7mm(1/2”)pitch

1843 Sideflexing Plastic Chains with Base Roller Chains 12.7mm(1/2”)pitch

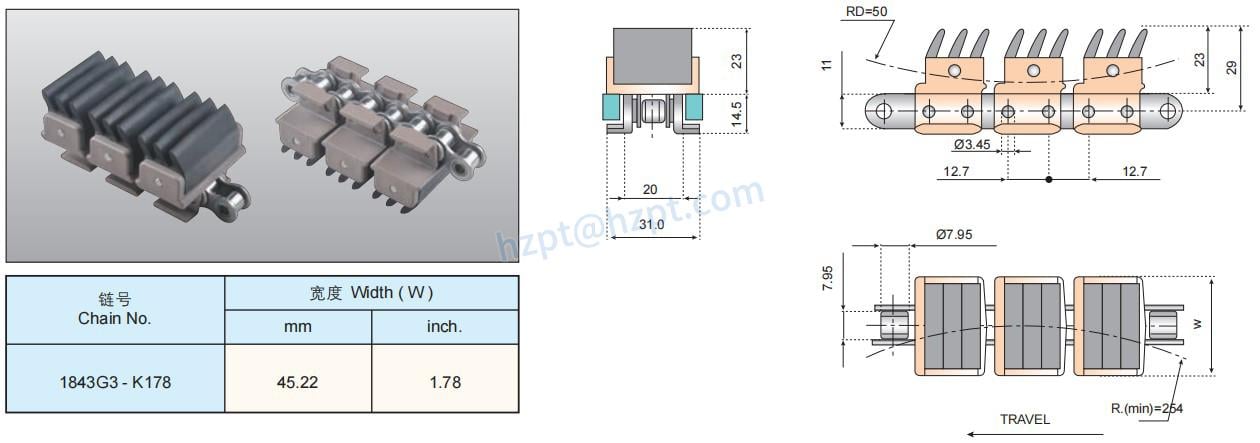

1843g3 Sideflexing Plastic Chains with Base Roller Chains 12.7mm(1/2”)pitch

Chains and Sprockets

A conveyor chain and sprocket drive is a type of power transmission in which a roller chain meshes with two or more gears or sprockets used in an engine as the drive from the crankshaft to the camshaft.

A broken industrial chain sprocket can stop your machine from running. Many machines cannot operate without drive sprockets, and replacing them can cost a lot of time and money. Furthermore, the performance of a conveyor or drive depends on the interaction of the sprocket chain. Using the right sprocket is just as important as choosing the right chain. We offer a wide selection of standard roller chain sprockets at unbeatable prices. Our sprockets are engineered to perform well under pressure and to last.
