R410A Manual Flaring Tool PCF-2 for Air Conditioning and Refrigeration Systems Copper Tubing Flaring

An R410A manual flaring tool is a tool used to create flares on the ends of copper tubing for use in air conditioning and refrigeration systems that use R410A refrigerant. R410A is a high-pressure refrigerant, so it is important to use a flaring tool that is specifically designed for this type of application. A manual flaring tool typically consists of a handle, a die, and a mandrel. The die is the part of the tool that creates the flare, and the mandrel is the part that supports the tubing while the flare is being created. The handle provides the force necessary to create the flare.

Get a Quote

R410A Manual Flaring Tool PCF-2 for Air Conditioning and Refrigeration Systems Copper Tubing Flaring

An R410A manual flaring tool is a tool used to create flares on the ends of copper tubing for use in air conditioning and refrigeration systems that use R410A refrigerant. R410A is a high-pressure refrigerant, so it is important to use a flaring tool that is specifically designed for this type of application.

A manual flaring tool typically consists of a handle, a die, and a mandrel. The die is the part of the tool that creates the flare, and the mandrel is the part that supports the tubing while the flare is being created. The handle provides the force necessary to create the flare.

To use a manual flaring tool, first cut the tubing to the desired length. Then, clean the end of the tubing with a wire brush. Next, insert the tubing into the mandrel and tighten the die onto the tubing. Finally, crank the handle to create the flare.

It is important to follow the manufacturer's instructions when using a manual flaring tool. Improper use of the tool can damage the tubing or create a flare that is not properly sealed. If you are working on an air conditioning or refrigeration system that uses R410A refrigerant, then an R410A manual flaring tool is a valuable tool to have in your toolbox.

▍R410A Manual Flaring Tool PCF-2

Lightweight, Precise Flaring

• Special design for R410A system, also fit for usual tubing
• Aluminum body- 50% lighter than steel designs
• Slide gauge sets the tube to the exact position

R410A Manual Flaring Tool PCF-2

▍R410A Manual Flaring Tool PCF-2 Technical Data:

Model R410A Manual Flaring Tool PCF-2
Tube Sizes 1/4" 5/16" 3/8" 1/2" 5/8" 3/4"

▍R410A Manual Flaring Tool PCF-2 Design Features

The R410A manual flaring tool is a specific model of manual flaring tool designed for creating flares on copper tubing for use in R410A refrigeration and air conditioning systems. Some of the design features of the R410A manual flaring tool include:

Compact Design: The R410A manual flaring tool is a compact tool that can be easily transported to job sites and used in tight spaces.

Durable Construction: The R410A manual flaring tool is made of high-quality materials such as hardened steel and aluminum alloy to ensure durability and long-lasting use.

Quick-Connect Design: The R410A manual flaring tool features a quick-connect design that allows for easy insertion and removal of the tubing, which reduces the time needed to create flares.

Self-Centering Clamp: The clamp on the R410A manual flaring tool is self-centering, which ensures that the tubing is held securely in place during the flaring process and prevents it from slipping or shifting.

Adjustable Cone: The flaring cone on the R410A manual flaring tool is adjustable, allowing for precise flaring of tubing with various diameters.

Ergonomic Handle: The R410A manual flaring tool features an ergonomic handle that provides a comfortable grip and reduces hand fatigue during use.

Overall, the R410A manual flaring tool is designed to be a reliable and easy-to-use tool for creating precise flares on copper tubing for use in R410A refrigeration and air conditioning systems.

▍How to Use the R410A Manual Flaring Tool?

Here are the general steps for using an R410A manual flaring tool:

1. Cut the Copper Tubing: First, cut the copper tubing to the desired length using a tube cutter or hacksaw. Make sure to deburr the cut end of the tubing to remove any sharp edges or burrs.

2. Insert the Tubing: Insert the cut end of the tubing into the clamp of the manual flaring tool, making sure that it is securely held in place.

3. Lubricate the Flaring Cone: Apply a small amount of lubricant to the flaring cone to reduce friction and make it easier to create the flare.

4. Adjust the Flaring Cone: Adjust the flaring cone to the desired diameter of the flare. The cone should be positioned so that it is centered on the end of the tubing.

5. Start Flaring: Use the handle of the manual flaring tool to rotate the flaring cone against the end of the tubing. Apply enough pressure to gradually expand the end of the tubing to the desired flare size. It is important to go slow and apply even pressure to avoid over-flaring.

6. Inspect the Flare: Once the flare is created, inspect it to ensure that it is even and without any cracks or deformations. The flare should be smooth and uniform, with no gaps between the tubing and the flare.

7. Repeat the Process: If you need to create multiple flares, repeat the process for each one, adjusting the flaring cone as necessary for different tubing diameters.

With these steps, you should be able to use an R410A manual flaring tool to create precise flares on copper tubing for use in R410A refrigeration and air conditioning systems.

How to Use the R410A Manual Flaring Tool How to Use the R410A Manual Flaring Tool

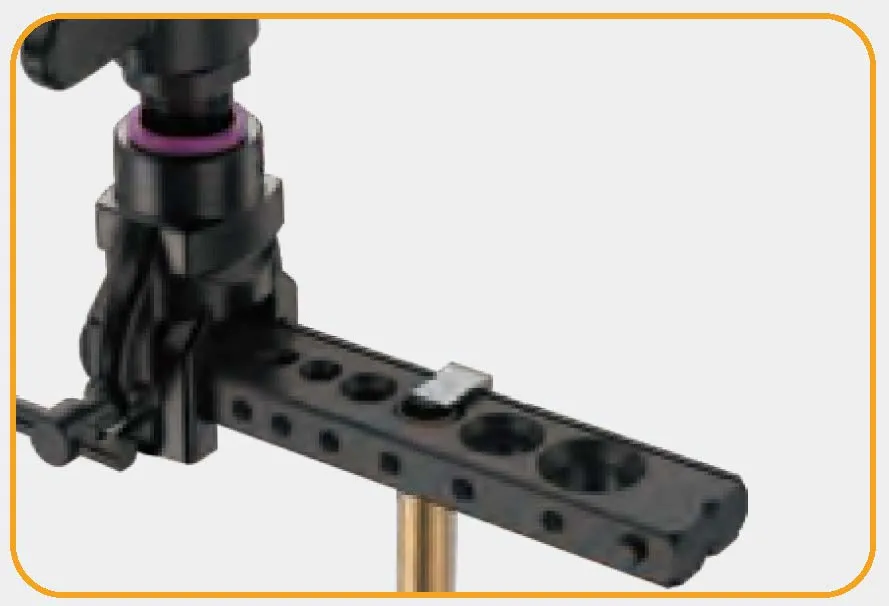

1. The expansion strip is inserted into the expansion body. 2. The copper pipe enters the hole, and the limit plate is on the copper pipe.
How to Use the R410A Manual Flaring Tool How to Use the R410A Manual Flaring Tool
3. Slide the expanding body to the corresponding hole. 4. Complete expanding 45° copper pipe.

Safety Tips for Using an R410A Manual Flaring Tool

Here are some safety tips for using an R410A manual flaring tool:

  • Always wear safety glasses when using an R410A manual flaring tool. This will protect your eyes from flying debris or sparks.
  • Make sure the tubing is properly clamped in place before you begin flaring it. If the tubing is not properly clamped, it could slip and cause injury.
  • Do not overflare the tubing. Overflared tubing can be weak and may leak.
  • Be careful not to get your fingers caught in the tool. The R410A manual flaring tool can close suddenly, causing injury.
  • Do not use the tool if it is damaged. A damaged R410A manual flaring tool could be dangerous to use.
  • Store the tool in a safe place when not in use. Keep the R410A manual flaring tool out of the reach of children and pets.

▍How to Choose the Right R410A Manual Flaring Tool?

Choosing the right R410A manual flaring tool is important to ensure that you can create accurate flares and avoid leaks. Here are some factors to consider when choosing the right R410A manual flaring tool:

(1) Compatibility: Make sure that the R410A manual flaring tool is compatible with the type and size of tubing you are working with. R410A manual flaring tools are typically designed for use with copper tubing of various sizes, but it's important to double-check the compatibility before making a purchase.

(2) Flare types: Consider the types of flares that the tool can create. Most R410A manual flaring tools can create both single-flare and double-flare types, but some may only create one type. Determine which type of flare you need for your project and ensure that the tool you select can create that type.

(3) Durability: Choose an R410A manual flaring tool that is built to last. Look for a tool made of high-quality materials, such as steel or aluminum, that can withstand regular use.

(4) Ease of use: Look for an R410A manual flaring tool that is easy to use and comfortable to hold. A tool with an ergonomic handle can make the flaring process more comfortable and efficient.

(5) Price: Consider your budget when choosing an R410A manual flaring tool. Prices can vary depending on the brand, quality, and features of the tool. Determine how much you are willing to spend and choose a tool that meets your needs within your budget.

(6) Brand reputation: Consider the reputation of the brand when choosing an R410A manual flaring tool. Look for a brand with a good reputation for producing high-quality tools that are reliable and long-lasting.

By considering these factors, you can choose the right R410A manual flaring tool for your needs and ensure that you can create accurate flares for your projects. We can also provide other HVAC tools and HVAC equipment for your need.

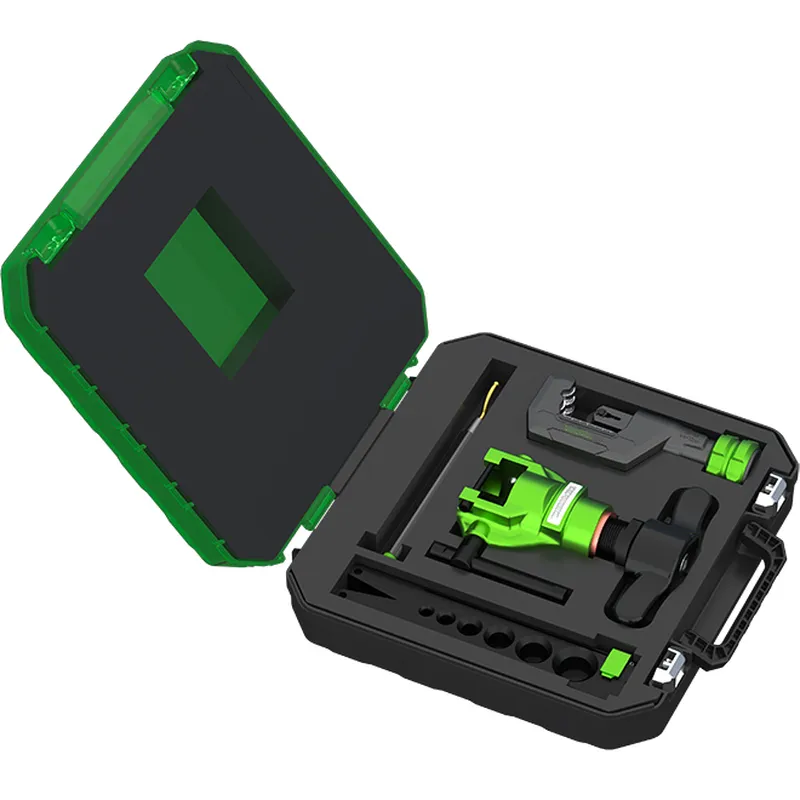

How to Choose the Right R410A Manual Flaring Tool How to Choose the Right R410A Manual Flaring Tool
