Rotary Mower Gearboxes – Replacement of Comer Code LF-141A 1:2.83

The rotary mower gearbox LF-141A is a type of gearbox that is specifically designed for rotary mowers used in agricultural applications. It is a high-quality, heavy-duty rotary mower gearbox that is made with durable materials. The rotary mower gearbox LF-141A is designed with a 1:2.83 gear ratio that provides the optimum speeds and torque output required for efficient mowing. It is compatible with a range of different types of rotary mowers and can be easily attached to most types of tractors using an agricultural PTO (Power Take-Off) shaft.

Get a Quote

Rotary Mower Gearboxes - Replacement of Comer Code LF-141A 1:2.83

The rotary mower gearbox LF-141A is a type of gearbox that is specifically designed for rotary mowers used in agricultural applications. It is a high-quality, heavy-duty rotary mower gearbox that is made with durable materials and designed to withstand the demands of frequent and heavy use.

The rotary mower gearbox LF-141A is designed with a 1:2.83 gear ratio that provides the optimum speeds and torque output required for efficient mowing. It is compatible with a range of different types of rotary mowers and can be easily attached to most types of tractors using an agricultural PTO (Power Take-Off) shaft.

One of the key features of the rotary mower gearbox LF-141A is its compact design, which makes it easy to install and maintain. It is made with high-quality bearings, gears, and seals and includes a heavy-duty input shaft to ensure that it can withstand the demands of heavy-duty agricultural work. Another advantage of the rotary mower gearbox LF-141A is its low maintenance requirements. The gearbox is designed with easy access to components, making it simple to lubricate and replace worn parts as needed.

In summary, the rotary mower gearbox LF-141A is a high-quality and reliable gearbox that is specifically designed for use in rotary mowers used in agricultural applications. It is made with durable materials, has a compact design for easy installation and maintenance, and provides the speed and torque output required for efficient mowing.

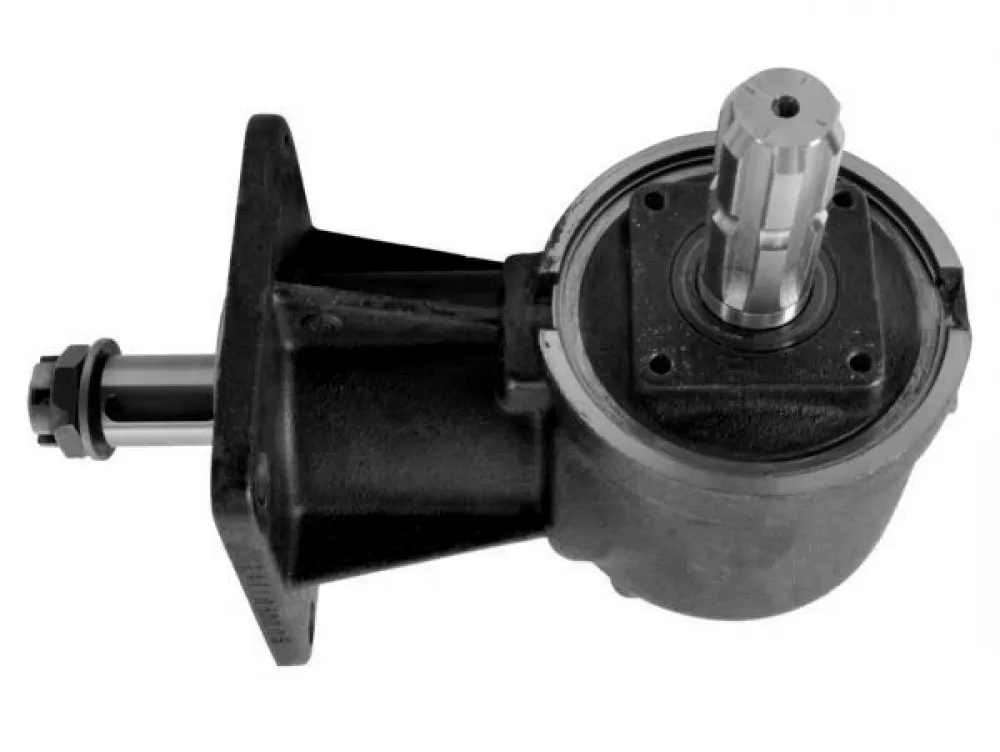

Rotary Mower Gearboxes - Replacement of Comer Gearbox LF-141A

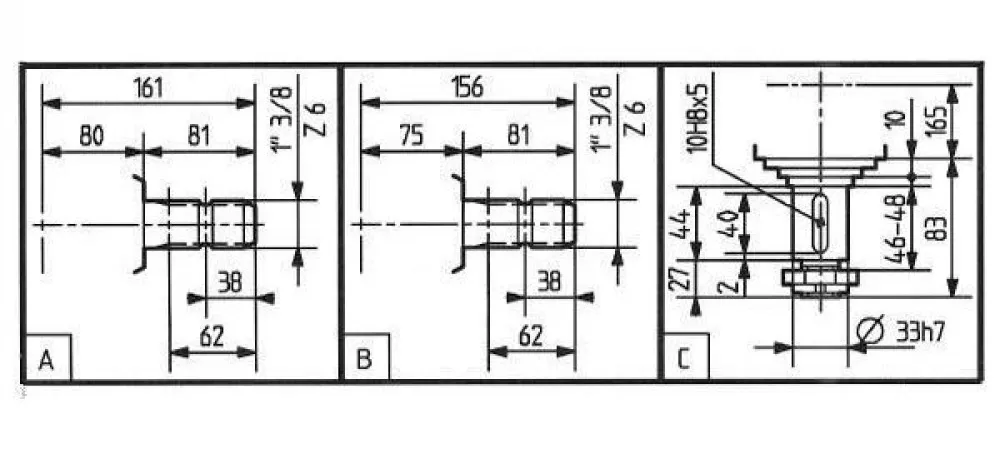

▍Specifications of Rotary Mower Gearbox LF-141A (1:2.83)

Rotary Mower Gearbox LF-141A Specifications Rotary Mower Gearbox LF-141A Specifications
Description
Rotary Mower Gearboxes - Replacement of Comer Gearbox LF-141A 1:2.83
Application
Mowers
Consists of
  • Gearbox
  • Without oil
Technical information
  • If you have any questions regarding performance at different speeds, please do not hesitate to contact us.
  • When using it for the first time, replace the oil after 50 operating hours.
Contains oil
No
Max. oil capacity
0.5 l
Max. oil change interval
500 h
Oil SAE viscosity grade
80W-90
Housing material
Cast iron GG25
Weight
14 kg
Gear arrangement Increasing
23 - 24
Input power kW / HP Increasing
14.7 / 20 kW/HP
Input shaft Increasing
Y
Output Torque DaNm Increasing
8.9 daNm
Ratio Increasing
1: 2.83
Ratio Reducing
2.83: 1
Shaft Y
1 3/8" (6) (B)
Shaft Z
33 (C)

▍Benefits of Rotary Mower Gearbox LF-141A (1:2.83)

The rotary mower gearbox LF-141A offers several benefits that make it a popular choice for agricultural rotary mower applications. Here are some of the key benefits of this gearbox:

1. Efficient Mowing: The rotary mower gearbox LF-141A provides a gear ratio of 1:2.83 that offers the perfect speed and torque output needed for efficient mowing. This makes it easy to operate agricultural equipment and get the best possible results.

2. Durability: This rotary mower gearbox LF-141A is made of high-quality materials and designed to withstand the heavy demands of agricultural applications. The rotary mower gearbox has a heavy-duty input shaft, seals, gears, and bearings that help to ensure its long-lasting performance.

3. Easy Installation and Maintenance: The compact design of the rotary mower gearbox LF-141A makes it easy to install and maintain. The gearbox is designed with easy access to components, making it simple to lubricate and replace worn parts as needed.

4. Compatibility: The rotary mower gearbox LF-141A can be easily attached to most types of tractors using an agricultural PTO (Power Take-Off) shaft. This makes it a versatile and compatible option for a wide range of agricultural equipment.

5. Low Maintenance Requirements: This rotary mower gearbox LF-141A has a low maintenance requirement because it is made with high-quality materials and designed with easy access to components. This makes it a suitable option for busy agriculturalists that focus on maximizing their work output.

6. Improved Performance: The rotary mower gearbox LF-141A improves the performance of agricultural equipment such as rotary mowers, making them more efficient and reliable. This helps agriculturalists to complete their tasks faster and with better results.

In summary, the rotary mower gearbox LF-141A is a durable, compatible, and efficient gearbox that offers improved performance and low maintenance requirements. Its compact design makes it easy to install and maintain, and its features make it a reliable option for any agriculturalist looking for efficient and reliable rotary mowing equipment.

Rotary Mower Gearbox LF-141A Benefits

▍How to Remove the Rotary Mower Gearbox from Rotary Mower?

To remove the rotary mower gearbox from the rotary mower, follow these steps:

1. Depower: Shut off the power to the mower, and then move it to a flat and stable work area.

2. Remove PTO shaft: Unhook and remove the PTO shaft from the rotary mower gearbox.

3. Mark the input and output shaft: Mark the input and output shafts with a permanent marker or paint for easy identification when assembling later.

4. Remove gearbox mounting bolts: Remove the gearbox mounting bolts that attach the rotary mower gearbox to the mower deck.

5. Remove gearbox: Carefully remove the rotary mower gearbox from the mower deck, ensuring not to damage any parts or components during the process.

6. Drain oil: Drain any oil left in the rotary mower gearbox.

7. Clean mounting area: Clean the mounting area left on the mower deck, as well as the rotary mower gearbox itself, to remove any debris, dirt, or rust.

▍Similarities and Differences Between Rotary Mower Gearbox and Flail Mower Gearbox

The rotary mower gearbox is now removed and can be inspected or serviced as required. To reinstall the rotary mower gearbox, follow these steps in reverse order, ensuring that you install it correctly to prevent any damage or future issues.

Rotary Mower Gearboxes and Flail Mower Gearboxes are both essential components of mowers used for clearing and maintaining vegetation in various settings. Here are some similarities and differences between the two gearboxes:

Similarities:

Similarities

1. Both rotary mower gearboxes and flail mower gearboxes have the same purpose, which is to transmit power from the tractor to the mower blades.

2. Both types of gearboxes are designed to withstand the high loads and stresses associated with mowing thick, tall, or dense vegetation.

3. They both have similar maintenance requirements, such as periodic cleaning, inspection, lubrication, and replacement of worn or damaged parts.

Differences:

1. Cutting Mechanism: The main difference between rotary mower gearboxes and flail mower gearboxes is the way they cut vegetation. Rotary Mower Gearboxes have a horizontal cutting blade that spins at high speed to cut vegetation, while Flail Mower Gearboxes have multiple vertical blades attached to chains that rotate at high speed to shred up vegetation.

2. Cutting height: Rotary mower gearboxes are suitable for short to medium-length cutting of grass and vegetation, while flail mower gearboxes are suitable for cutting dense vegetation such as brush and scrub and can handle longer grass and tougher stalks.

3. Cutting quality: Rotary mowers with their horizontal blades provide a more even cut, whereas flail mower gearboxes provide less of an even cut, but they can handle tougher vegetation and can mulch the material more efficiently.

4. Maintenance: Flail mower gearboxes require more maintenance compared to rotary mower gearboxes, as the flail blades require regular inspection and replacement as they get worn out more easily.

5. Cost: Rotary mower gearboxes are generally less expensive than flail mower gearboxes.

In conclusion, the choice between a rotary mower gearbox and a flail mower gearbox depends on the type of vegetation and cutting that is required, as well as the budget and maintenance requirements.

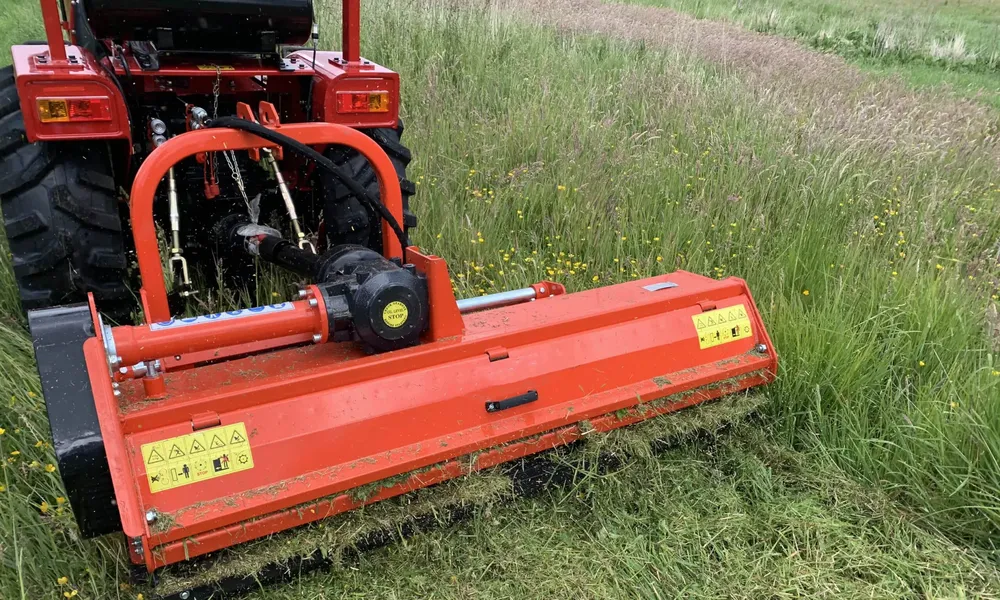

Differences Between Rotary Mower Gearbox and Flail Mower Gearbox Differences Between Rotary Mower Gearbox and Flail Mower Gearbox
Rotary Mower Gearboxes Flail Mower Gearboxes

▍PTO Shaft for Rotary Mower Gearboxes

The PTO (Power Take Off) shaft is an essential component for the proper functioning of a rotary mower gearbox. This shaft transfers power from the tractor's engine to the gearbox, which in turn powers the mower blades. Here are some key considerations for selecting and maintaining a PTO shaft for rotary mower gearboxes:

Size and Compatibility: PTO shafts come in different lengths and diameters. It is essential to choose a shaft that is compatible and fits correctly with your rotary mower gearbox model, tractor engine horsepower, and output shaft size.

Length: The length of the PTO shaft should be adjusted to the right length to ensure the smooth operation of the rotary mower. It is important to measure the distance between the tractor PTO shaft and the rotary mower gearbox accurately to determine the required length.

Speed: It is essential to avoid over-speeding the PTO shaft, which can damage the rotary mower gearbox and cause significant hazards. Follow the recommended speed rating for the PTO shaft and the rotary mower gearbox.

Quality: Look for a high-quality PTO shaft from a trusted manufacturer to ensure durability and reliability for use in demanding and heavy-duty conditions.

Maintenance: Regular maintenance is crucial to the longevity of the PTO shaft. Lubricate the cross and bearing regularly, inspect the shaft and greasing system for damage, and replace worn parts promptly.

Safety: PTO shafts can be dangerous if not used properly. Always take care to follow safety guidelines when installing, using, and maintaining the PTO shaft. Never reach into the moving machine, and keep loose clothing and long hair away from the rotating shaft.

By selecting and maintaining the correct PTO shaft for the rotary mower gearbox, you can ensure the reliable and safe operation of the rotary mower, reduce downtime and equipment damage, and optimize the overall performance of your equipment.

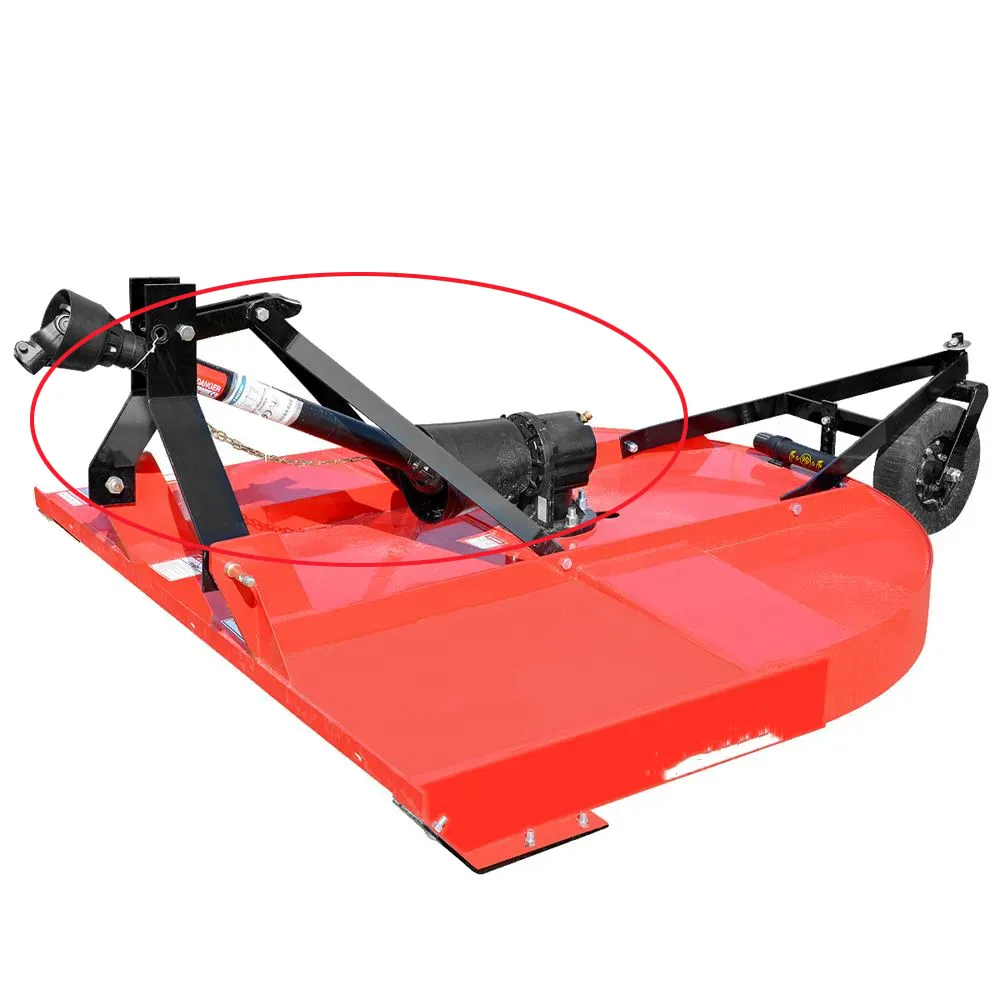

PTO Shaft for Rotary Mower Gearboxes PTO Shaft for Rotary Mower Gearboxes

▍We Also Provide Other Agricultural Gearboxes

We also offer other types of agricultural gearboxes, such as rotary cutter gearboxes, fertilizer spreader gearboxes, lawn mower gearbox, post hole digger gearboxes, rotary tiller gearboxes, corn headers gearboxes, fertilizer mixer gearboxes, feed mixer gearboxes, flail mower gearboxes, round baler gearboxes, irrigation reels gearboxes, manure spreader gearboxes, micro tiller gearboxes, gearbox for rotary rakes, gearbox for hay tedders, etc. If you want to buy rotary mower gearboxes, please get in touch with us.

Other Agricultural Gearboxes
