S Series Industrial Planetary Gear unit Gearbox Replace Brevini Riduttori S300 S400 S600 S1200 S1800 S2500 S3500 S5000 S7500

the installation dimensions of our planet gearbox, wheel drive gearbox, winch drive gearbox, and track drive gearbox are entirely consistent with the following brands, and their performance parameters are very close to them, which can be used instead of their products.

Category:
Get a Quote

S Series Planetary Gearbox

Compared with the traditional spiral solution, our S-Series planetary gearbox can save 40% to 60% space and weight, and the modular design can provide better layout flexibility in various applications. The full range includes 34000 to 217000 nm torque values, standard models. Customized solutions can also be obtained from standard components, making it an economically viable solution with a standard lead time. Our product series has passed the type approval of DNV certification. Non-standard versions or cases requiring certification by other institutions can be obtained according to specific circumstances. All S-Series units can be equipped with negative multi-disc brakes, adapter flanges, and couplings to suit most electric and hydraulic motors.

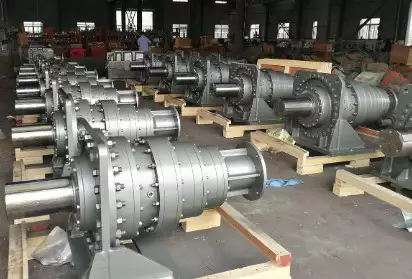

S Series Industrial Planetary Gear unit Gearbox Replace Brevini Riduttori

Feature of S Series Planetary Gearbox

  1.  The best solution for all applications requires high torque capacity and minimal size.
  2.  Optimized torque distribution for all sizes in this range.
  3.  Make full use of the gear capacity by improving the bearing capacity.
  4.  The modular design enables us to customize the gearbox according to each application using standard components.
  5. Negative parking brake.
  6. DNV type approval and ABS product design assessment (PDA). The gear design complies with ISO6336, which enables us to obtain other certifications according to specific conditions.

Alternative Brand/Model Inquiry

Note: the installation dimensions of our planet gearbox, wheel drive gearbox, winch drive gearbox, and track drive gearbox are entirely consistent with the following brands, and their performance parameters are very close to them, which can be used instead of their products.
If you are interested, you can click here to find the specific models that can be replaced.

Trasmital Bonfiglioli Brevini Riduttori Bosch Rexroth Comer Industries
Reggiana Riduttori Rossi Zollern

Tech Data Of S Series Industrial Planetary Gear unit

Size Torque
10.000 h
[Nm]
Max Torque
[Nm]
300 34.000 76.000
400 40.000 84.000
600 63.000 140.000
850 88.000 195.000
1.200 120.000 293.000
1.800 168.000 390.000
2.500 300.000 570.000
3.500 430.000 810.000
5.000 490.000 1.100.000
7.500 712.000 1.800.000
10.000 1.035.000 2.600.000
15.000 1.500.000 3.750.000
20.000 2.170.000 5.400.000

Troubleshooting Of S Series Planetary Gearbox

For the wear problem, the traditional solution is repair welding or brush plating machining repair. Still, both of them have some shortcomings: the high-temperature thermal stress of repair welding can not be eliminated, which is easy to cause material damage, resulting in bending or fracture of parts; Moreover, the thickness of the brush coating is limited, and it is easy to peel off. Moreover, the above two methods are metal repair metals, which cannot change the relationship between "hard and hard." Under the combined action of external forces, it will still cause re-wear. Some large bearings cannot be solved on-site.

S Series Industrial Planetary Gear unit Gearbox Replace Brevini Riduttori

For the leakage problem, the traditional method needs to disassemble the high torque planetary gearbox, replace the gasket or apply sealant, which is time-consuming and laborious, and also challenging to ensure the sealing effect and the leakage will lead to reoccurrence in operation.
In the long-term operation of high torque planetary gearbox, there are often wear, leakage, and other faults, mainly including the following:

  1. High torque planetary gearbox bearing housing wear, including housing bearing housing wear, housing hole bearing housing wear, and gearbox bearing housing wear
  2. The gear shaft diameter of the high torque planetary gearbox is worn, and the main worn parts are the shaft head, keyway, etc.
  3. The bearing position of the transmission shaft of the high torque planetary gearbox is worn.
  4.  Water leakage on the assembly surface of ample torque planetary gearbox
