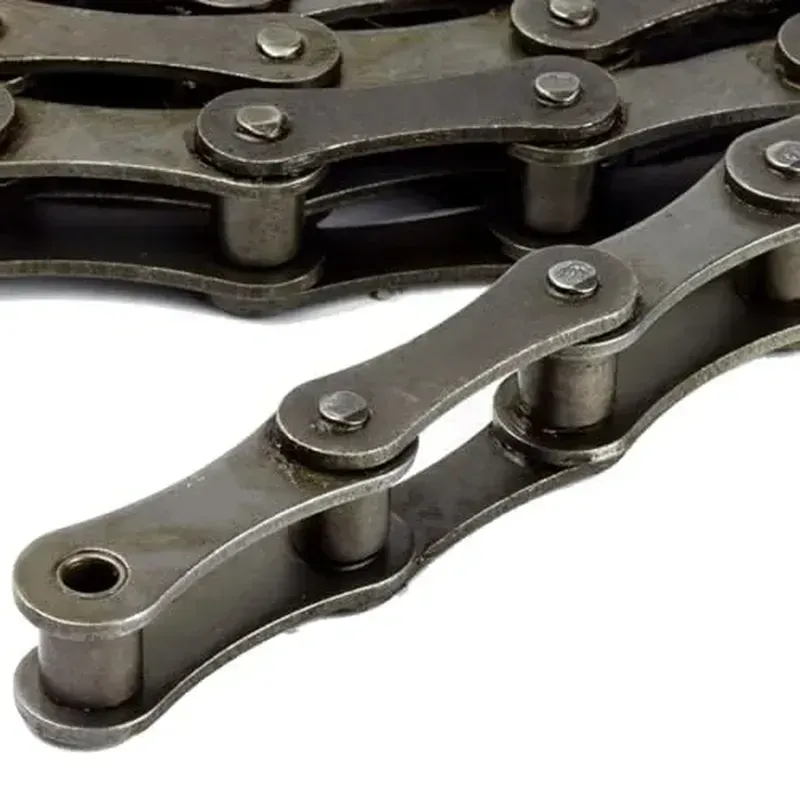

S51 Agricultural Roller Chain

S51 Roller Chain S51 Agricultural Chain

The S51 agricultural roller chain is a heavy-duty roller chain designed for use in agricultural equipment. It is made to DIN8189 standards and features solid rollers, heat-treated components, and a light, high-quality lubricant for extended working life. The S51 chain is available in a variety of lengths and pitch sizes to suit a wide range of applications. The S51 agricultural roller chain is a versatile and reliable option for a wide range of agricultural applications. It is ideal for use in harvesters, tractors combines, and other agricultural machinery.

Here are some of the key features of the S51 agricultural roller chain:

• Heavy-duty construction for durability
• Solid rollers for smooth operation
• Heat-treated components for strength and longevity
• Light high-quality lubricant for extended working life
• Available in a variety of lengths and pitch sizes

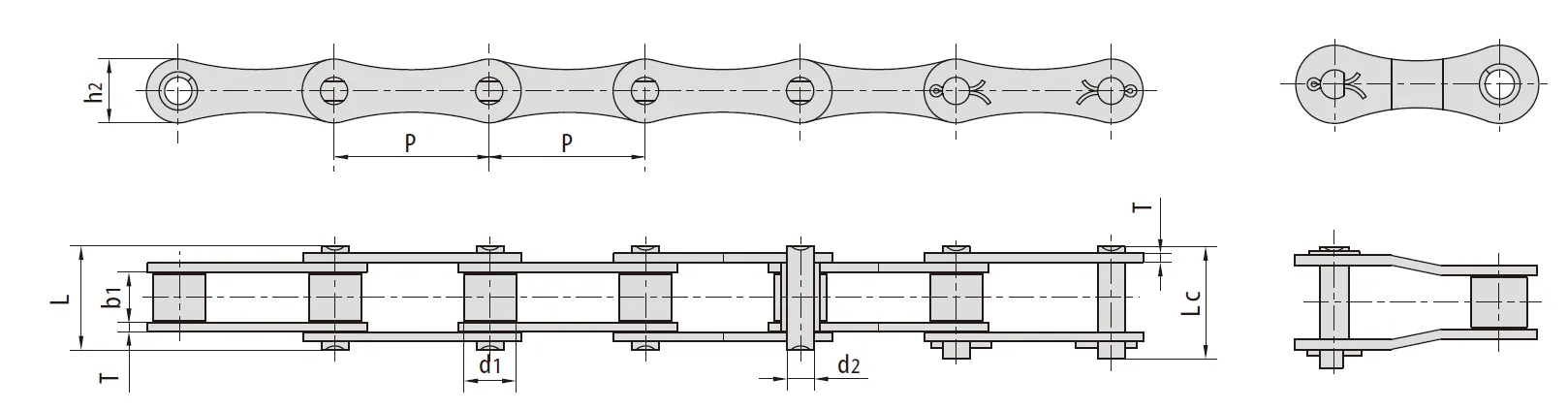

S51 Roller Chain Dimensions

Chain No:	S51 Chain (S51 Roller Chain)
Pitch (P):	38.10mm
Roller Diameter (d1):	15.24mm
Width Between Inner Plates (b1):	16.00mm
Pin Diameter (d2):	5.72mm
Pin Length (L):	30.9mm
Connecting Link Pin Length (Lc):	33.8mm
Inner Plate Depth (h2):	17.3mm
Plate Thickness (T):	2.8mm
Tensile Strength:	7,868 LBS
Weight Per Meter:	3.26 LBS

S51 Agricultural Roller Chain Advantages

The S51 agricultural roller chain offers several advantages that make it well-suited for agricultural applications:

1. Durability and Strength: The S51 roller chain is crafted from high-quality steel, which ensures its longevity and resistance to the harsh conditions often encountered in agricultural environments. Its robust construction allows it to handle heavy loads and high stress, reducing the frequency of replacements and maintenance, ultimately saving time and costs for farmers.
2. Corrosion Resistance: Designed for outdoor use, the S51 agricultural chain features a corrosion-resistant finish. This is particularly beneficial in agriculture, where exposure to moisture, chemicals, and varying weather conditions is common. The chain's ability to withstand rust and degradation ensures continuous performance and reliability, even in challenging environments.
3. Versatility and Compatibility: The S51 chain is compatible with various attachments and agricultural machinery, such as combines and balers. This versatility allows it to adapt to multiple applications, making it a flexible solution for farmers who need reliable equipment across different tasks and machinery types.
4. Smooth Operation: Equipped with precision-engineered links and solid rollers, the S51 agricultural roller chain provides smooth and efficient operation. This design minimizes friction and wear, leading to quieter machinery performance. The efficient power transmission ensures that equipment operates at optimal levels, enhancing productivity in agricultural operations.
5. Enhanced Safety: The reliable and consistent performance of the S51 roller chain contributes to enhanced safety in agricultural operations. By reducing the likelihood of mechanical failures and unexpected breakdowns, it minimizes the risk of accidents and injuries, ensuring a safer working environment for operators and workers.
6. Improved Efficiency: The efficient design of the S51 roller chain allows for superior power transfer, which improves the overall efficiency of agricultural machinery. This translates into better fuel economy and faster completion of tasks, enabling farmers to maximize productivity and meet tight schedules, especially during critical planting and harvesting periods.

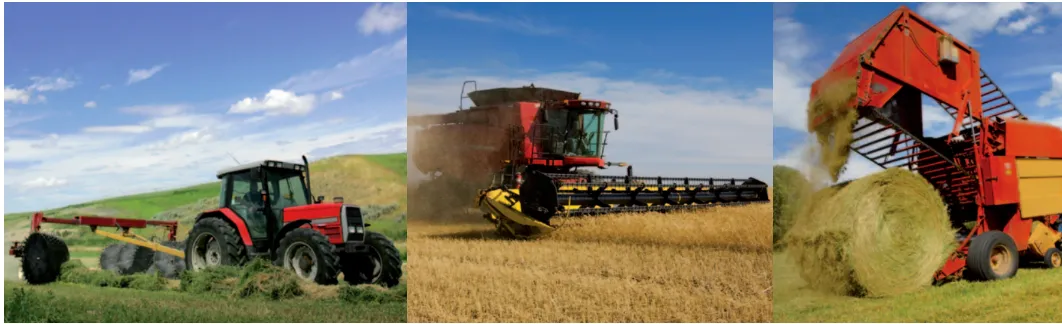

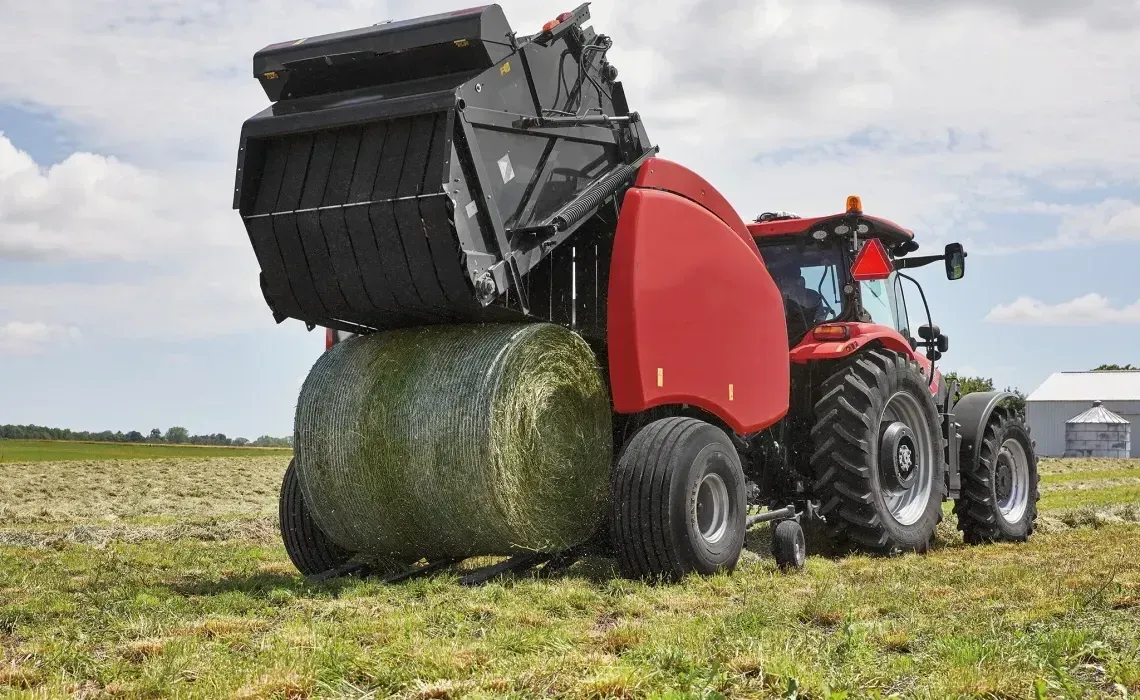

Common Applications of S51 Agricultural Roller Chains

The S51 agricultural roller chain is a versatile component commonly found in various agricultural applications due to its durability, reliability, and efficiency. Some of the common applications of the S51 agricultural roller chains include:

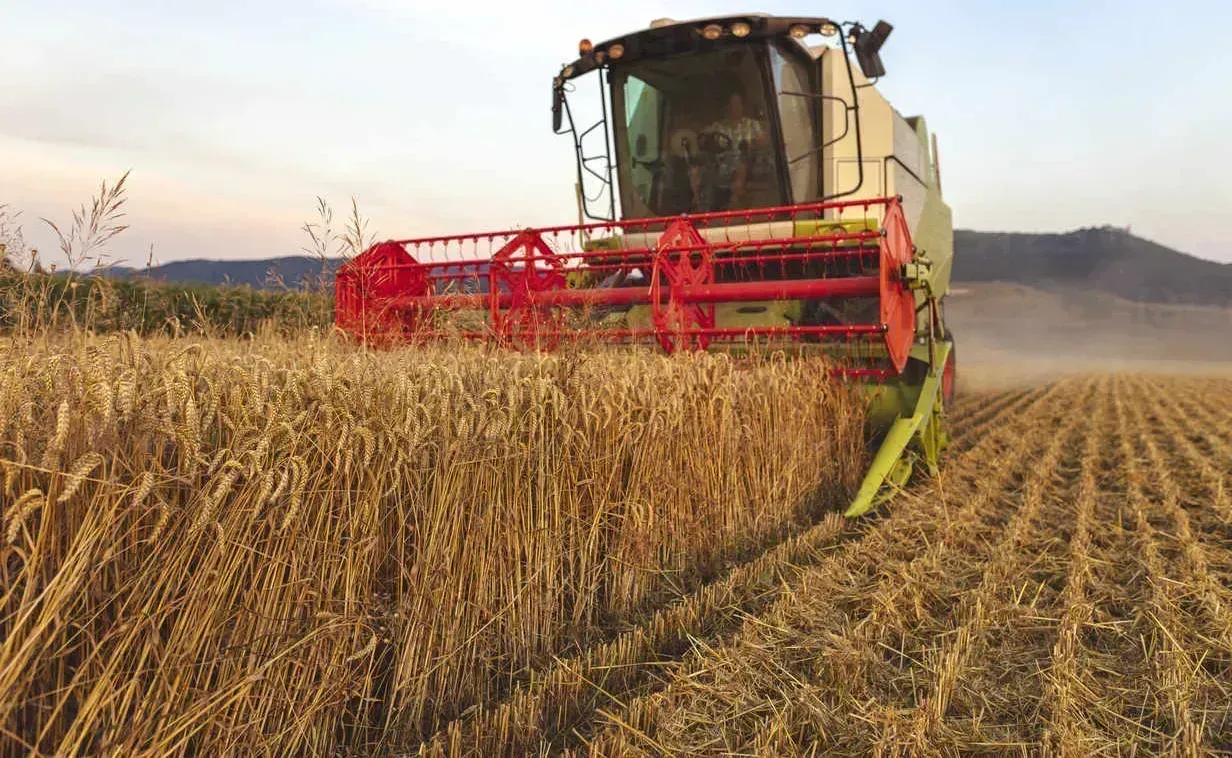

• Combine Harvesters: In combine harvesters, the S51 roller chain plays a crucial role in the efficient movement of various parts, such as the threshing mechanism and grain elevators. Its durability ensures reliable operation during long harvesting periods, allowing for the continuous processing of grains like wheat and barley without frequent downtime or maintenance interruptions.

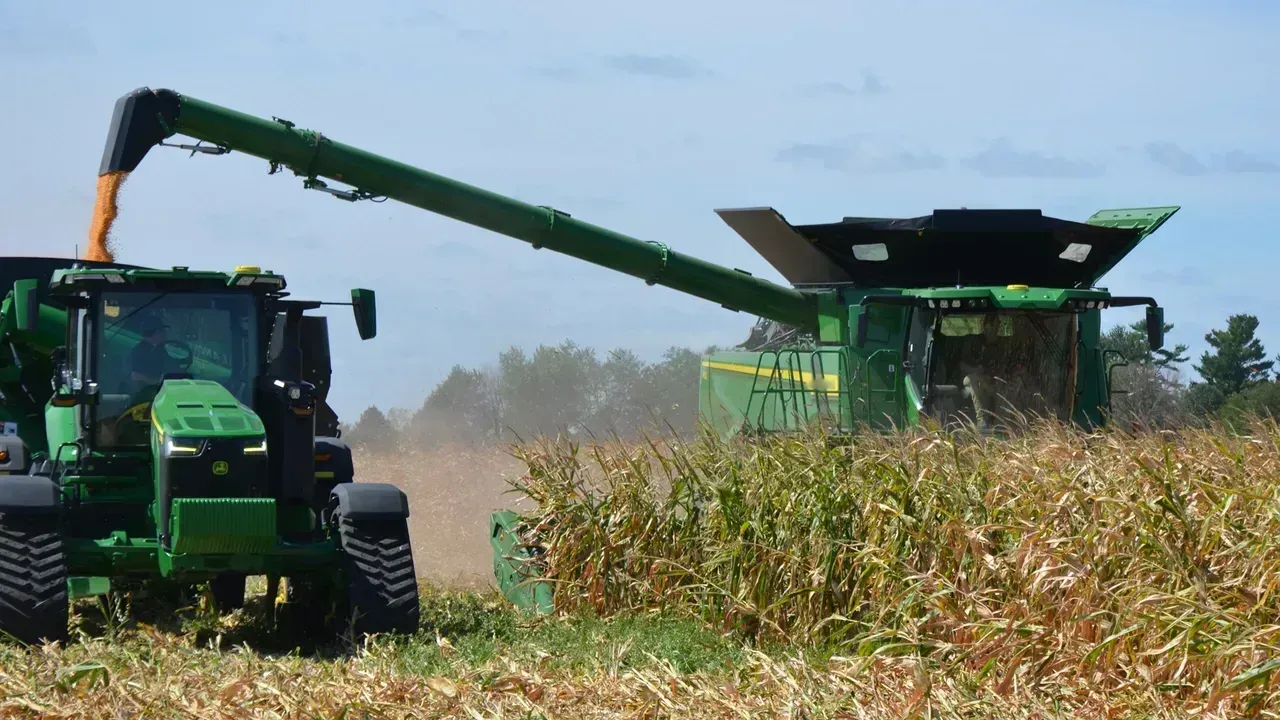

• Corn Harvesters: Corn harvesters benefit from the S51 chain's strength and resilience, which are essential for handling the robust stalks and heavy ears of corn. The chain's smooth operation aids in the efficient gathering and processing of corn, reducing the risk of jams and ensuring that the harvester operates at peak performance throughout the harvesting season.
• Rice Harvesters: Rice harvesters operate in wet and muddy conditions, making the corrosion-resistant properties of the S51 agricultural chain invaluable. The chain's ability to withstand such environments ensures consistent performance and minimizes the risk of failure, enabling the harvester to efficiently cut, thresh, and clean rice crops with minimal mechanical issues.

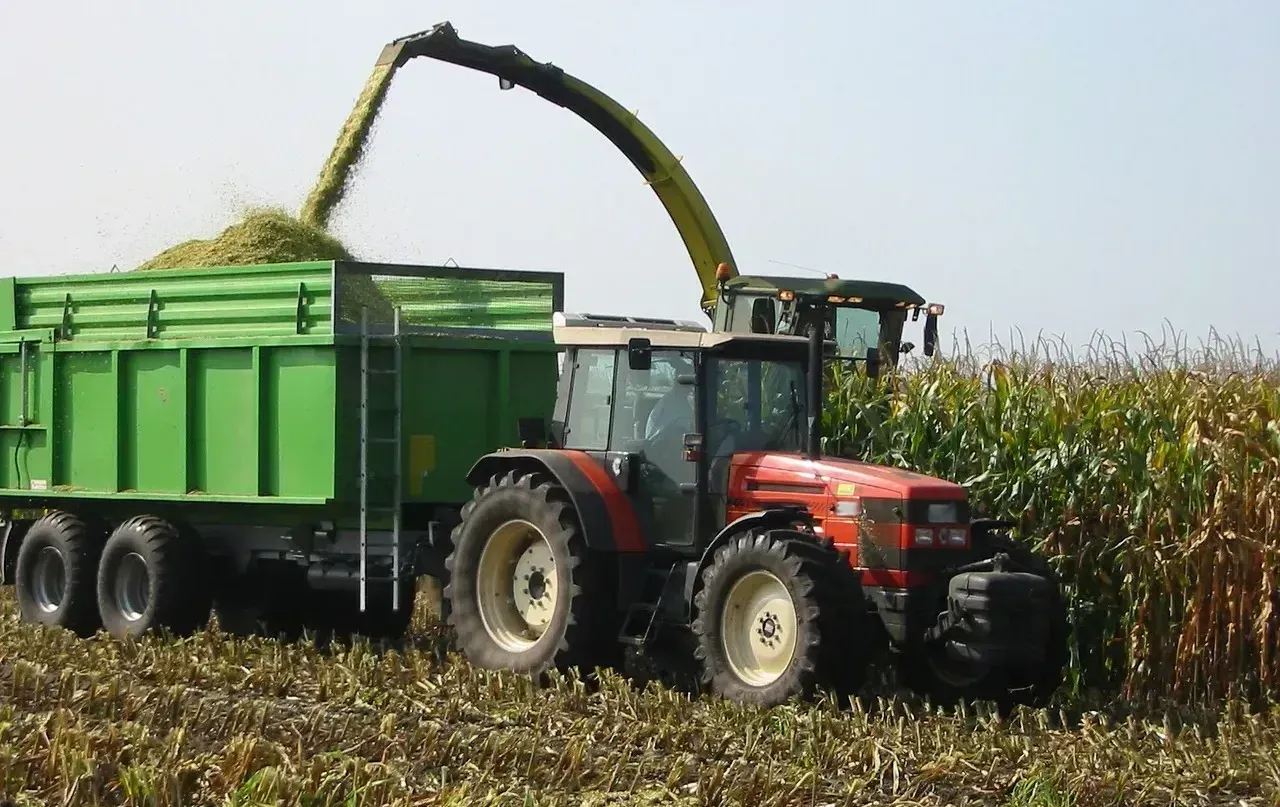

• Silage Harvesters: Silage harvesters require robust chains like the S51 chain to handle the demanding task of chopping and transporting fodder. The chain's durability and smooth operation are crucial for maintaining the high-speed processing of silage, ensuring that livestock feed is prepared efficiently and preserving the nutritional value of the harvested material.
• Manure Spreaders: In manure spreaders, the S51 roller chain is essential for the reliable distribution of manure across fields. Its corrosion resistance and strength allow it to function effectively despite exposure to corrosive materials. This reliability ensures even spreading, which is vital for maintaining soil fertility and supporting crop growth in agricultural operations.
• Hay Balers: Hay balers rely on the S51 agricultural chain to efficiently compress and bind hay into bales. The chain's smooth performance and durability are critical for ensuring that the baling process is quick and efficient, allowing farmers to produce uniform bales that are easy to handle and store, ultimately optimizing hay production and storage.

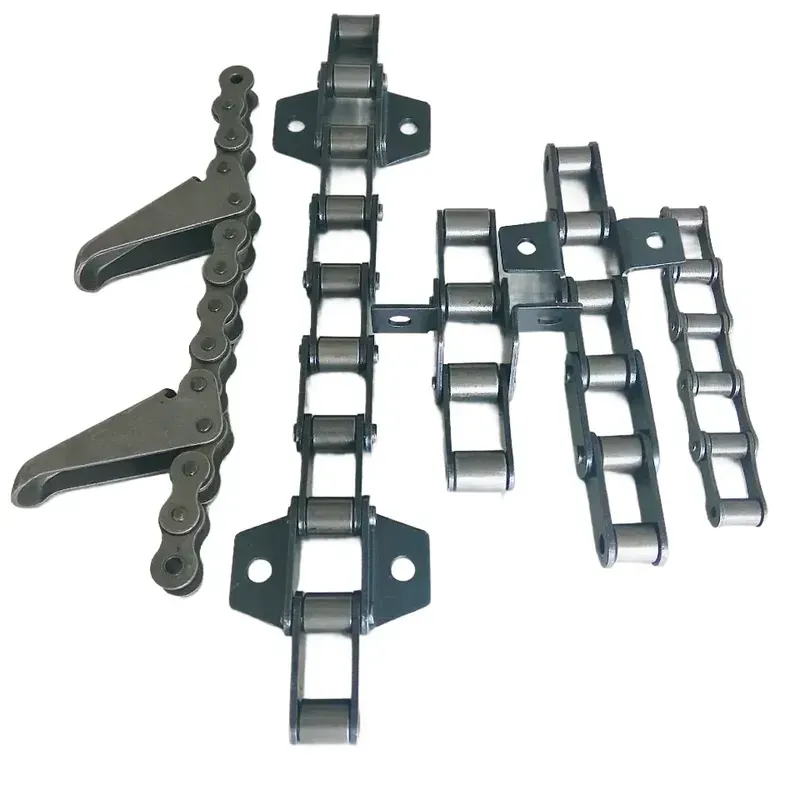

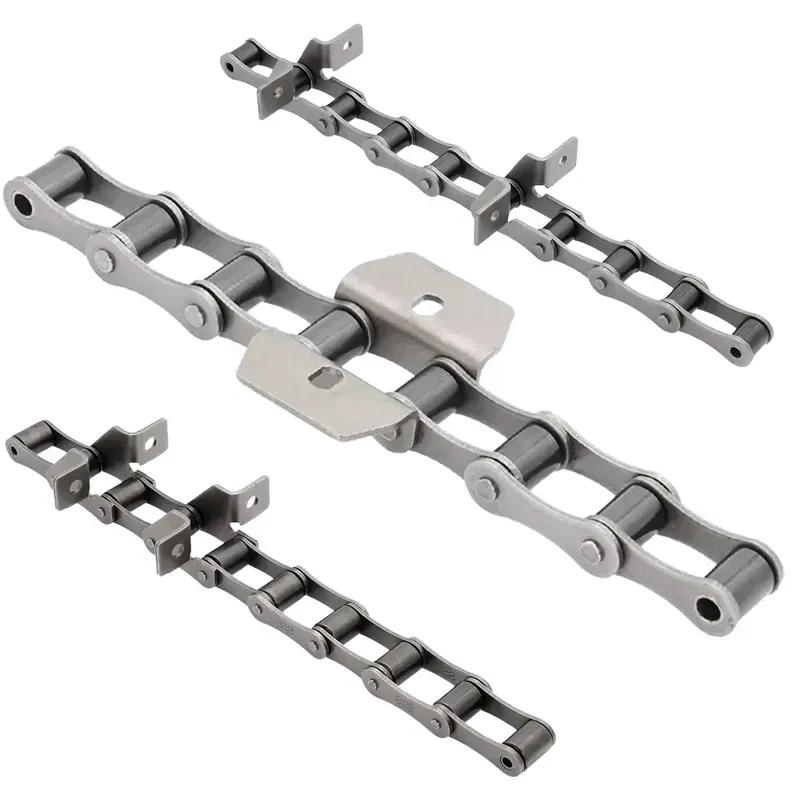

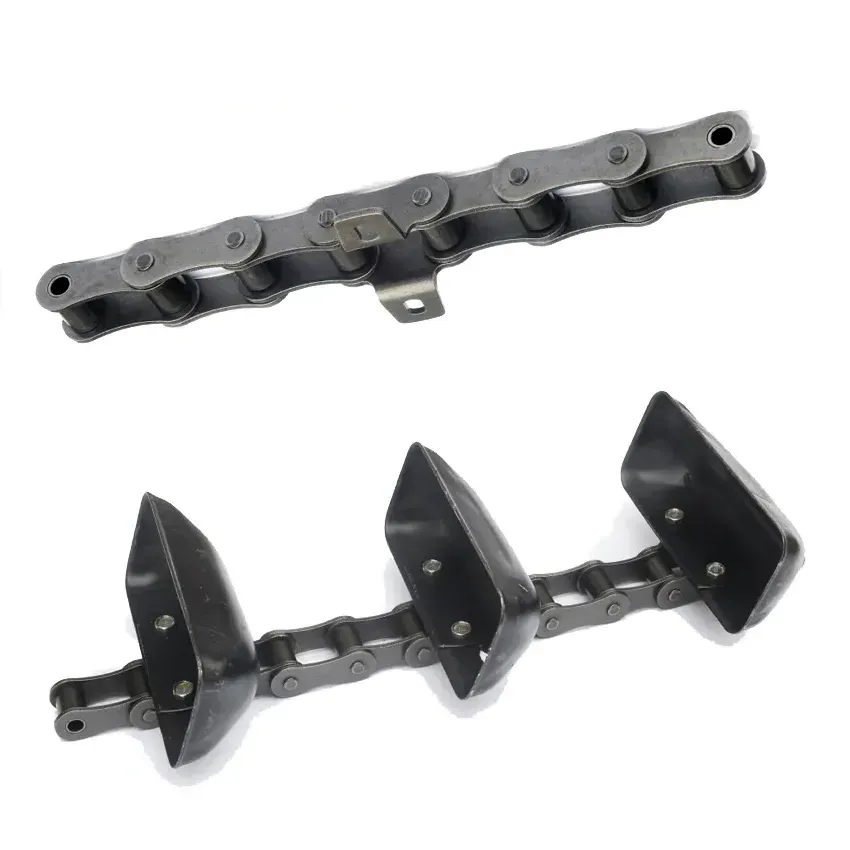

S51 Roller Chain Attachments

S51 roller chain attachments like play a crucial role in enhancing the functionality of the chain in various agricultural applications. These attachments are designed to accommodate specific tasks and requirements, expanding the versatility and utility of the chain. Some common types of attachments that can be found on S51 roller chains include:

S51 Chain K1 Attachment

S51 Agricultural Roller Chain Materials Available

S51 agricultural roller chains are manufactured using various materials to ensure durability, strength, and resistance to the demanding conditions encountered in agricultural applications. Some common materials available for S51 roller chains include:

1. 45Mn Alloy Steel: 45Mn alloy steel is known for its high tensile strength and toughness, making it an excellent choice for S51 roller chains used in heavy-duty agricultural applications. This material offers good wear resistance, which is crucial for chains exposed to the constant friction and stress of farming equipment, ensuring a longer service life.
2. 42CrMo Alloy Steel: 42CrMo alloy steel provides exceptional strength and fatigue resistance, ideal for high-stress environments. It can withstand significant load-bearing tasks without deforming, making it suitable for demanding agricultural machinery. Its superior mechanical properties ensure reliable performance under varying conditions, enhancing the longevity and efficiency of the roller chain.
3. 20CrMo Alloy Steel: 20CrMo alloy steel is prized for its excellent toughness and hardenability, offering a balance between strength and ductility. This makes it suitable for S51 roller chains that need to endure both heavy loads and dynamic movements. Its resistance to wear and fatigue ensures consistent performance, reducing the need for frequent maintenance.
4. SS304 Stainless Steel: SS304 stainless steel is widely used for its corrosion resistance, particularly in environments with high moisture or exposure to chemicals. This makes it an ideal choice for S51 chains in agricultural settings where rust prevention is critical. Its durability and ease of cleaning contribute to maintaining hygienic standards in food-related applications.
5. SS316 Stainless Steel: SS316 stainless steel offers enhanced corrosion and chemical resistance compared to SS304, due to its molybdenum content. This makes it suitable for harsher environments, such as those involving acidic or saline conditions. For S51 roller chains, SS316 ensures long-lasting performance and reliability, even in the most challenging agricultural settings.

Choosing the Right S51 Roller Chain for Agricultural Applications

Selecting the right S51 roller chain for agricultural applications is crucial to ensure optimal performance, longevity, and reliability in farming machinery and equipment. Here are some key factors to consider when choosing the appropriate S51 roller chain:

• Application Requirements: When selecting an S51 roller chain, consider the specific requirements of your agricultural equipment. Analyze the load capacity, speed, and operational conditions. Ensuring the chain matches these needs is crucial for optimal performance. For example, heavier loads may require a chain with higher tensile strength, while lighter tasks might prioritize flexibility.
• Material Selection: Choose the appropriate material based on environmental conditions. If your machinery operates in wet or corrosive environments, stainless steel options like SS304 or SS316 are ideal for their corrosion resistance. For high-strength applications, alloy steels such as 42CrMo or 45Mn provide the necessary durability and wear resistance.
• Durability and Longevity: Assess the chain's durability to ensure it can withstand the rigors of agricultural work. Chains made from high-quality materials like 20CrMo alloy steel offer excellent toughness and fatigue resistance. Selecting a chain with a long lifespan reduces maintenance costs and downtime, ensuring continuous productivity during crucial farming seasons.
• Compatibility with Attachments: Ensure the chain can accommodate necessary attachments, such as the K1 attachment, to enhance versatility and functionality. Compatibility is essential for seamless integration with various agricultural implements, allowing quick changes and adaptations to different tasks, thereby maximizing the chain’s utility across multiple applications.
• Compatibility with Equipment: Ensure the S51 chain is compatible with your existing agricultural machinery. Check the specifications and dimensions to verify that the chain fits perfectly with your equipment. Proper compatibility minimizes installation issues and ensures optimal performance, preventing operational disruptions and enhancing overall machinery efficiency.
• Operational Speed: Consider the operational speed of your equipment when selecting a chain. High-speed applications demand chains with precision engineering to prevent excessive wear and vibration. The right chain will maintain smooth and efficient power transmission, enhancing equipment performance and reducing the risk of mechanical failures.

S51 Roller Chains vs. S55 Roller Chains

S51 roller chains and S55 roller chains are both used in agricultural machinery, but they have distinct differences. The S51 roller chain is typically lighter and designed for applications where moderate strength and flexibility are needed, such as in corn and wheat harvesters. It offers excellent durability and efficient performance under regular agricultural conditions.

On the other hand, the S55 roller chain is heavier and built for more demanding tasks. It is suitable for machinery that requires greater load-bearing capacity and robustness, such as in sugarcane harvesters and larger equipment. The S55 chain’s enhanced strength allows it to handle higher stress and more abrasive environments.

While both chains serve similar functions in conveying and driving mechanisms, the choice between them depends on the specific operational requirements and the intensity of the workload. The S51 is ideal for moderate-duty applications, whereas the S55 chain is better suited for heavy-duty situations, providing greater durability and reliability under challenging conditions.

Feature	S51 Roller Chain	S55 Roller Chain
Weight	Lighter	Heavier
Strength	Moderate	High
Application	Corn and wheat harvesters	Sugarcane harvesters, heavy machinery
Durability	Good for regular conditions	Excellent for harsh conditions
Load Capacity	Moderate load capacity	High load capacity
Flexibility	More flexible	Less flexible
Material	High-quality steel	Reinforced steel
Wear Resistance	Standard wear resistance	Enhanced wear resistance
Maintenance	Low maintenance requirements	Moderate maintenance requirements
Cost	Generally less expensive	More expensive
Compatibility	Compatible with standard sprockets	Requires specific sprockets
Use Case Intensity	Suitable for moderate-duty applications	Suitable for heavy-duty applications
Environmental Suitability	Regular agricultural environments	Harsh, abrasive environments
Performance	Efficient under normal conditions	Reliable under high-stress conditions
Chain Pitch	Standard pitch	May have larger pitch
Operational Speed	Suitable for standard operational speeds	Can handle slower, more powerful operations

S51 Roller Chains	S55 Roller Chains

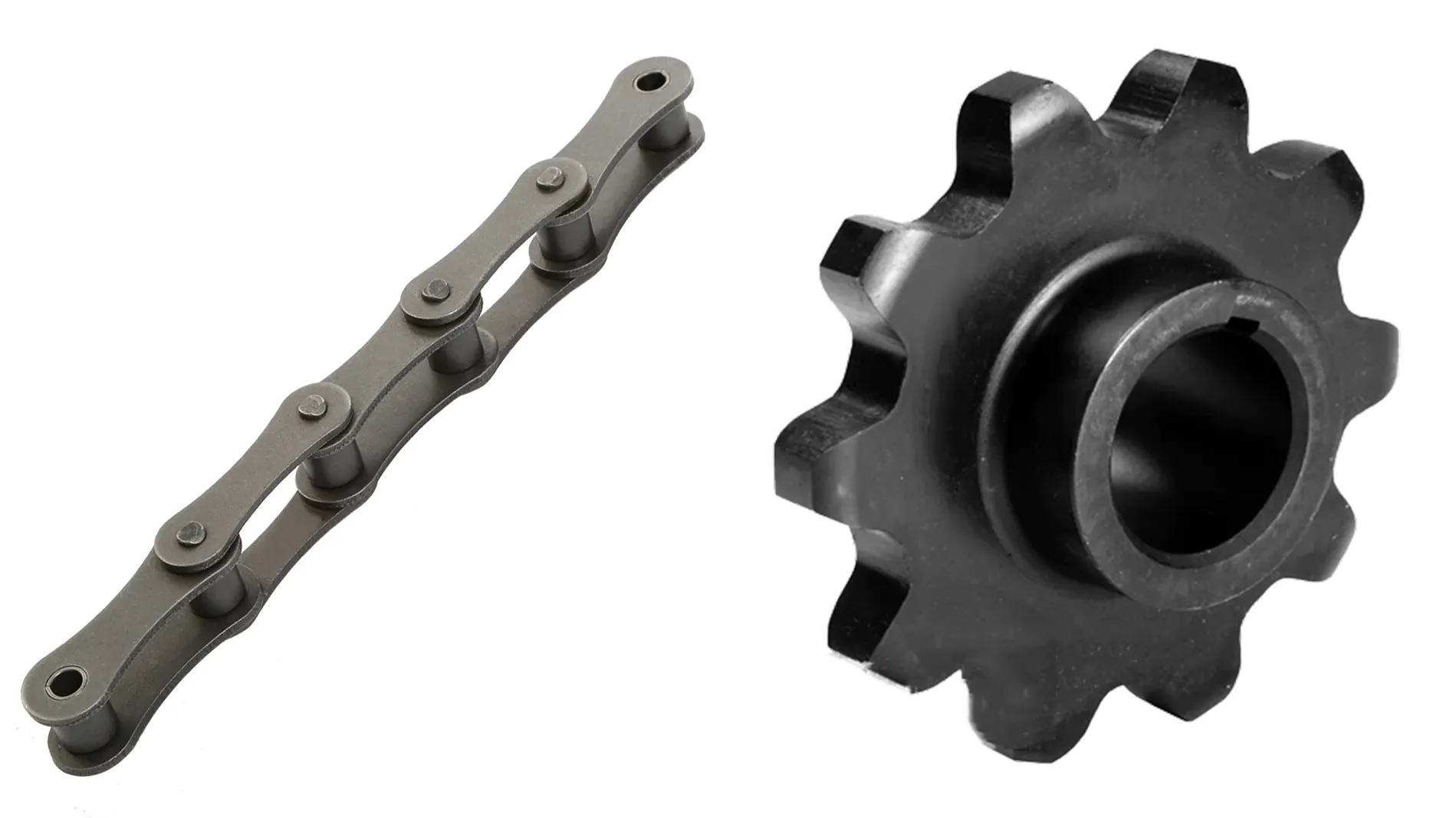

S51 Chain Sprockets for S51 Chains

The S51 chain sprockets and S51 chains are integral to the functioning of agricultural machinery. S51 chains are specifically designed for agricultural applications and are known for their durability and capacity to handle the demanding conditions of farming environments. These chains are used in equipment such as combine harvesters, corn harvesters, and hay balers, where they facilitate the transfer of mechanical power efficiently and reliably.

S51 chain sprockets are equally crucial, as they work in tandem with the chains to transmit motion and force within the machinery. Sprockets are toothed wheels that engage with the chain links, ensuring smooth and efficient movement. The precise interaction between the sprocket teeth and the chain links is essential for maintaining optimal performance and minimizing wear. This synergy ensures that agricultural machinery operates smoothly, reducing the risk of breakdowns and increasing productivity.

The sprockets must be matched to the specific pitch and size of the S51 chains to ensure compatibility. This precise matching is vital because even slight deviations can lead to increased friction, wear, and potential failure of the system. Therefore, selecting the appropriate sprocket for an S51 chain involves careful consideration of factors such as the number of teeth, pitch diameter, and material composition. High-quality materials, such as hardened steel, are often used for sprockets to enhance durability and resist wear, especially in demanding agricultural settings.

In terms of application, the combination of S51 chains and sprockets is used to drive various components of agricultural machinery, such as conveyor systems, cutting mechanisms, and threshing drums. This setup allows for the efficient conversion of engine power into mechanical work, facilitating tasks like harvesting, planting, and processing crops. The reliability of this system is crucial, as any failure can lead to significant downtime and economic losses for farmers.

The S51 chains and sprockets are foundational to the efficiency and reliability of agricultural machinery. Their precise interaction ensures effective power transmission, enabling equipment to perform essential farming tasks efficiently. Regular maintenance and compatibility checks are necessary to maintain this relationship, ensuring that both chains and sprockets function optimally and contribute to the productivity and success of agricultural operations.

China Agricultural Chain Manufacturers

We specialize in chains made to customers’ drawings and specifications. Our advantage is reliable quality, competitive price, prompt delivery, and good service. Standard products include various transmission and conveyor chains, like roller chains, double pitch conveyor chains, hollow pin chains, leaf chains, flat top chains, side bow chains, lumber conveyor chains, 81X conveyor chains, agricultural chains, CA550 roller chains, S55 roller chains, silent chains, X458 conveyor chains, PIV chains, stainless steel chains, nickel/ zinc plated chain, slient chain, engineering chain, steel pintle chain, welded steel chain, drop forged chain, malleable iron chain, and many other types. Different kinds of attachments are available.

FAQs:

Q: What applications are ideal for the S51 roller chain?
A: The S51 roller chain is perfect for use in combines, balers, plows, and other agricultural machinery. Its robust construction and ability to handle heavy loads make it ideal for demanding tasks, ensuring efficient power transmission in various equipment.

Q: How does the S51 roller chain withstand harsh conditions?
A: Made from high-quality steel, the S51 chain offers exceptional resistance to wear and corrosion. This durability allows it to perform reliably in harsh agricultural environments, including exposure to dirt, moisture, and fluctuating temperatures common in farming operations.

Q: What benefits does the S51 chain provide in terms of load capacity?
A: The S51 chain is engineered to handle significant loads, ensuring machinery operates smoothly even under high stress. This capability is crucial for heavy-duty agricultural tasks, providing consistent and reliable performance when transmitting power in equipment like harvesters.

Q: How does the chain enhance machinery efficiency?
A: Precision-engineered rollers and pins in the S51 chain minimize friction and energy loss, enabling smoother operation of machinery. This efficiency not only conserves energy but also contributes to increased productivity, reducing downtime in agricultural processes.

Q: Why is corrosion resistance important for the S51 chain?
A: Agricultural environments often involve exposure to moisture, which can cause rust. The S51 chain's corrosion-resistant materials ensure reliable operation in wet conditions, extending its lifespan and maintaining strength, making it ideal for outdoor and seasonal use.

Q: What maintenance practices are recommended for the S51 chain?
A: Regular inspection and lubrication are essential to maintain the S51 chain's optimal performance. These practices help prevent wear, reduce the risk of mechanical failures, and extend the chain’s lifespan, ensuring consistent operation in agricultural machinery.

Q: Can the S51 chain be customized for different equipment?
A: Yes, the S51 roller chain is available in various lengths and configurations, allowing customization to meet specific machinery requirements. This adaptability enhances its versatility, making it suitable for a wide range of agricultural applications and equipment types.

Q: How does the S51 chain contribute to cost-effectiveness?
A: Although the initial investment might be higher, the S51 chain’s durability and low maintenance needs lead to significant long-term savings. Its robust performance reduces replacement and repair costs, offering a cost-effective solution for large-scale farming operations.

Q: What safety benefits does the S51 chain offer?
A: A well-functioning S51 chain enhances the overall safety of agricultural machinery by preventing mechanical failures that could cause accidents. Its reliable performance ensures equipment runs safely, protecting operators and minimizing the risk of injury or damage.

Q: Why choose the S51 chain over other chains?
A: The S51 chain combines durability, high load capacity, corrosion resistance, and smooth operation, making it a reliable and effective choice for agricultural applications. Its ability to withstand challenging conditions and provide efficient power transmission sets it apart from other chains.
