Scaffolding Coupler for Construction Engineering
A scaffolding Coupler is an essential part of a tube and coupler scaffold. They are used to fix two vertical steel pipes, parallel or at any angle, so as to provide a temporary working platform for high-altitude operations. Scaffolding couplers usually need to comply with EN74 / BS1139 standards.
A scaffolding Coupler is an essential part of a tube and coupler scaffold. They are used to fix two vertical steel pipes, parallel or at any angle, so as to provide a temporary working platform for high-altitude operations. Scaffolding couplers usually need to comply with EN74 / BS1139 standards.
Scaffold couplers used to connect steel pipes when building scaffolds, and connectors between steel pipes and other structures, are widely used in various types of scaffolding projects. There are usually European standards and Japanese standards. HZPT, as China's leading scaffolding coupler supplier, focuses on introducing European standard scaffold fasteners to meet the use of the following countries, Austria, Belgium, Cyprus, Czech Republic, Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Slovakia, Slovenia, Spain, Sweden, Switzerland, and the United Kingdom.

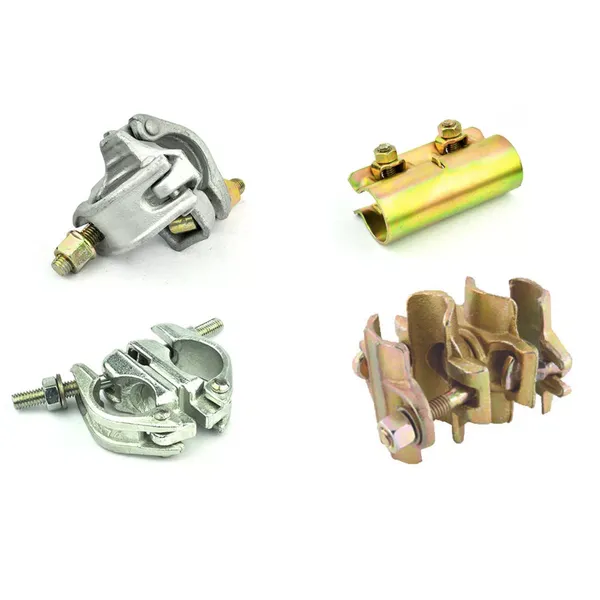

Scaffolding Couplers Types
 |
 |
 |
Right Angle Scaffolding Coupler |
Sleeve Scaffolding Coupler |
Swivel Scaffolding Coupler |
| Right angle scaffolding coupler let tube arranged at the right angle. | The sleeve scaffolding coupler makes tube arrangement end to end coaxially. | Scaffolding pipe can be crossed at any swivel scaffold coupler. |
Types of Scaffolding Coupler
The following five ways to classify help you find the scaffold couplers you want.
(1) British Standard
According To British Standard, EN74-1:2005, Scaffold Coupler Can Be Divided Into The Following Four Types based on Usage Scenarios:
(2) Different Countries
According To The Requirements And Usage Scenarios Of Different Countries, Scaffold Coupler Can Be Divided Into The Following Types:
(3) Production Processes
According To Different Production Processes, There Are Mainly The Following Three Types:
(4) Surface Treatments
The Different Surface Treatments, Is Divided Into The Following Three Categories:
1. Hot-dip galvanized couplers: After degreasing, pickling, dipping, and drying, the scaffold couplers are immersed in the molten zinc solution for a certain period and then taken out.
2. Electro-galvanized couplers: Electro-galvanized couplers are scaffold couplers that need to be processed by degreasing and pickling with electrolysis equipment, then putting them into a solution of zinc salt and then connecting the negative electrode of the electrolysis equipment; Place a zinc plate on the opposite side of the piece and connect it to the positive electrode of the electrolysis device, turn on the power, and use the directional movement of the current from the positive electrode to the negative electrode to gradually deposit a layer of zinc on the surface of the coupler.
3. Hight Protected paint couplers: Spray paint is a coating method that is sprayed through a spray gun or a disc atomizer, dispersed into uniform and fine droplets using pressure or centrifugal force, and applied to the surface of the coupler.
 |
 |
 |
Hot-Dip Galvanized Coupler |
Electro-Galvanized Coupler |
Hight Protected Paint Coupler |
(5) Coupler Specifications
| scaffolding coupler item | size | weight(kg) | Remark | Packing |
| BS double coupler | 48.3*48.3mm | 0.96-0.98 | drop forged Q235 | 25pcs/bag 1250pcs/pallet |
| BS swivel coupler | 48.3*48.3mm | 1.12-1.15 | drop forged Q235 | 25pcs/bag 1250pcs/pallet |
| BS board retains the coupler | 48.3mm | 0.61-0.63 | drop forged Q235 | 25pcs/bag 1600pcs/pallet |
| BS sleeve coupler | 48.3*48.3mm | 1.0 | pressed Q235 | 25pcs/bag 1000pcs/pallet |
| BS beam coupler | 48.3mm | 1.45-1.5 | drop forged Q235 | 20pcs/bag 1000pcs/pallet |
| BS single coupler | 48.3mm | 0.63-0.65 | drop forged Q235 | 25pcs/bag 1600pcs/pallet |
| JIS double coupler | 48.6*48.6mm | 0.56-0.66 | pressed Q235 | 30pcs/bag 1600pcs/pallet |
| JIS swivel coupler | 48.6*48.6mm | 0.56-0.66 | pressed Q235 | 30pcs/bag 1600pcs/pallet |
Scaffolding Coupler Accessories
 |
 |
 |
 |
 |
 |

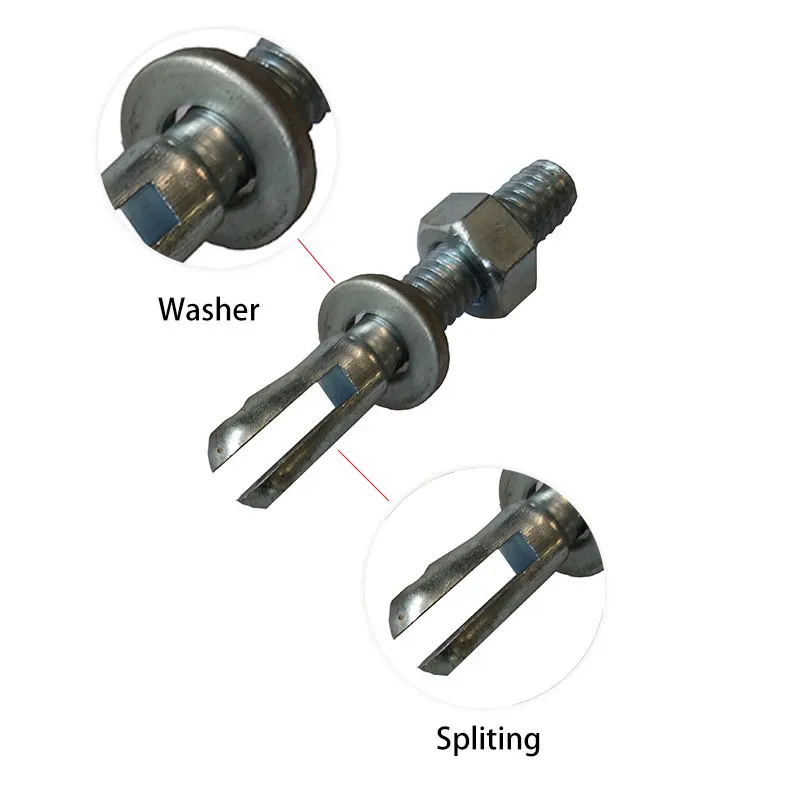

A common type of bolt: T-Bolt, Eye Bolt, Splitting End Bolt
Common types of nuts: Hexagon nuts, wing nuts, and flange nuts.
According to the size of wrenches in different countries, the standard coupler nut sizes are 19mm, 21mm, 22mm, and 23mm.
19mm nuts are generally used in scaffolding couplers in Japan, South Korea, and some Southeast Asian countries. 21mm nuts are usually used in related couplers in the United Kingdom and Commonwealth countries. 22mm nuts are suitable for scaffolding systems in the United States, Germany, and some European countries. 23mm nuts are mainly used in Australia.
