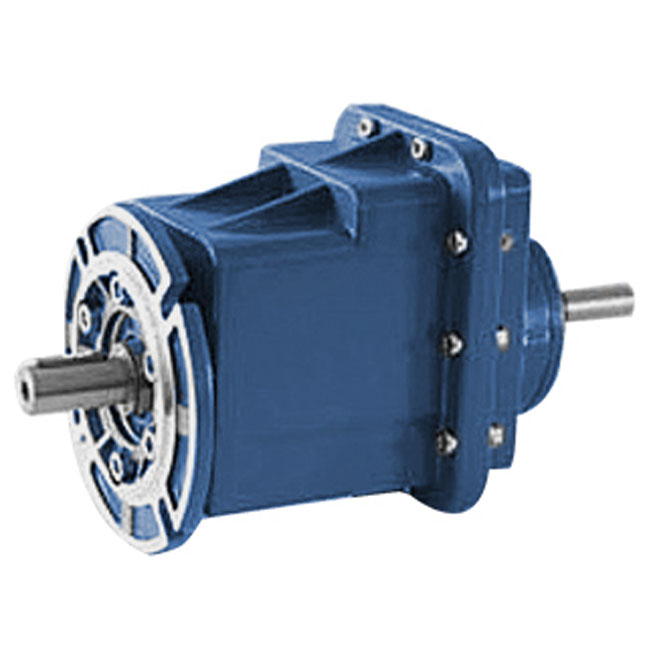

Shaft Input Flange Mounted RC Helical Gear Unit Reducer

Get a Quote

Shaft Input Flange Mounted RC Helical Gear Unit Reducer

Product Description

RC installation usage & maintenace

Pay attention to the following items when installing the reducer
(1) Before assembling the reducer with mechanical equipment, check whether the rotation direction of the output shaft of the reducer is correct;
(2) Before the reducer is assembled with prime mover and equipment, the deviation dimensions of each shaft diameter, hole diameter, key, and keyway shall be checked to avoid too tight and lose assembly affecting the performance of the reducer
(3) The reducer must be firmly installed on the mechanical equipment to avoid looseness or vibration
(4) Try to avoid exposing the reducer to the hot sun and harsh environment
(5) If the reducer is stored for 4-6 months, check whether the oil seal is soaked in the lubricating oil. The lip of the oil seal may stick to the shaft or even lose its elasticity. Since the suitable elasticity is the necessary working condition of the oil seal, it is recommended to replace the oil seal
(6) All rubber parts and vent holes shall not be stained with paint
(7) When matching and connecting with the hollow shaft or solid shaft of the reducer, the matching part of the shaft shall be coated with lubricating oil to avoid jamming or oxidation
(8) The oil level must be checked during use (e.g. oil level mirror hole or open the oil plug, which is not available for small models)
(9) When a new reducer is used, it cannot be started at full load, and the load should be gradually increased
(10) When various motors are used to connect the reducer, if the weight of the motor is too large, a support device shall be set
(11) Ensure a good ventilation environment near the motor fan to avoid affecting the heat dissipation effect; two
The standard working ambient temperature of the reducer is - 5 ℃ to 40 ℃. If it is not in this range, please contact our technical service personnel.

Shaft Input Flange Mounted RC Helical Gear Unit Reducer
Helical Gear Unit
Helical Gear Unit
Helical Gear Unit

Related Products

Helical Gear Unit

industries we service

We promise will offer the best price by the high quality in china! We also accept special order about the products. If you are interested in our products. Please do not hesitate to let us know.We are pleased to give you the detailed information.We promise that our products would be safety and were in high quality and reasonable price. If you are interested in our products, please contact us asap.We are sincerely looking for your cooperation.

Most of our products are exported to Europe or Americas, both standard and nonstandard products available. We can produce as per your drawing or sample. Material can be standard or as per your special request. If you choose us, you choose reliable.

hzpt oem odm banner

pruduct quality report

Surface Treatment

Annealing, natural canonization, heat treatment, polishing, nickel plating, chrome plating, zinc plating,yellow passivization, gold passivization, satin, Black surface painted etc.product materials available

Processing Method

CNC machining, punch,turning, milling, drilling, grinding, broaching, welding and assembly

product finishing


product packages


Q: Are you trading company or manufacturer ?
A: Our group consists in 3 factories and 2 abroad sales corporations.

Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.

Q: How long is your delivery time ? What is your terms of payment ?
A: Generally it is 40-45 days. The time may vary depending on the product and the level of customization. For standard products, the payment is: 30% T/T in advance ,balance before shipment.

Q: What is the exact MOQ or price for your product ?
A: As an OEM company, we can provide and adapt our products to a wide range of needs.Thus, MOQ and price may greatly vary with size, material and further specifications; For instance, costly products or standard products will usually have a lower MOQ. Please contact us with all relevant details to get the most accurate quotation.
