Spiral Bevel Gear

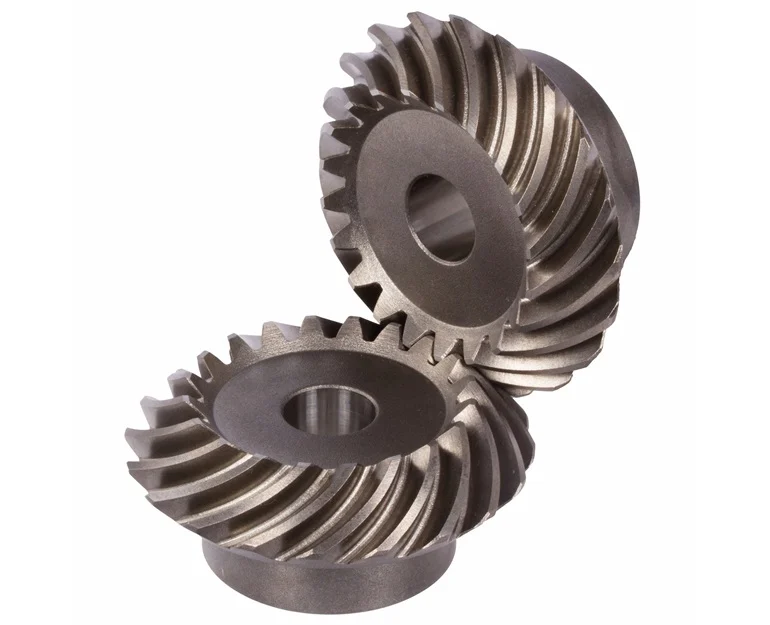

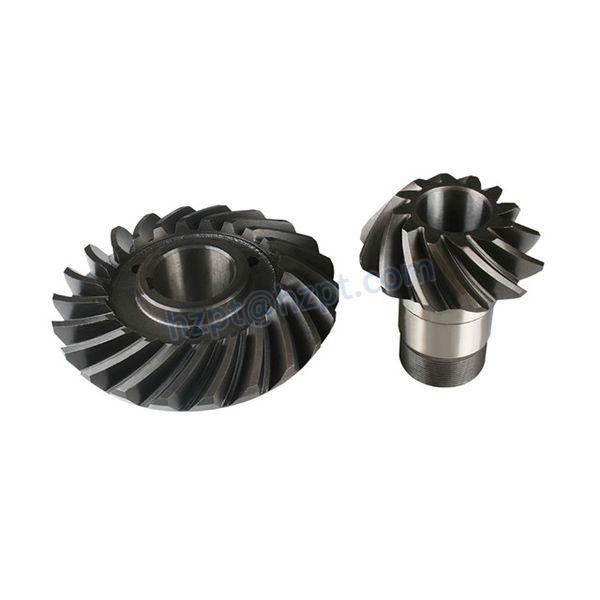

The spiral bevel gear has a curved pitch bevel teeth line. Similar to the meshing process of the straight bevel gear, its meshing is accompanied by the movement of the contact spots along the tooth height direction of the tooth surface.

Category:
Get a Quote

The spiral bevel gear has a curved pitch bevel teeth line. Similar to the meshing process of the straight bevel gear, its meshing is accompanied by the movement of the contact spots along the tooth height direction of the tooth surface. The contact area of the tooth surface starts from one end of the tooth and gradually moves to the other end. Due to the effects of overlapping tooth end faces (with several pairs of teeth entering into the mesh simultaneously), at least two teams of teeth are meshing simultaneously. Therefore, spiral bevel gears can transmit more load and work more smoothly than straight bevel gear and zero degrees spiral bevel gear of the same size (same module). Especially at high speeds, its noise and vibration are significantly less than those of the other two types of gears. The minimum number of teeth of spiral bevel gear can be reduced to six or even five, so the transmission ratio can be improved compared with the straight bevel gear.

Controlling the local contact area of the tooth surface is one of the main characteristics of the spiral bevel gear. The localization of contact significantly improves the stability of the work of the spiral bevel gear, reduces the noise, and improves the gear life. During gear cutting, the position and size of the best contact area of the tooth surface under the given working condition can be obtained through a slight change in the radius of curvature of the tooth surface of the mating gear.

Description

Model Number M3,M4,M5,M8,M12 and etc.
Material Brass, C45 steel, Stainless steel, Copper, POM, Aluminum, Alloy, and so on
Surface treatment Zinc-plated, Nickel plated, Passivation, Oxidation, Anodization,
Geomet, Dacromet, Black Oxide, Phosphatizing, Powder Coating, and Electrophoresis
Standard ISO, DIN, ANSI, JIS, BS, and Non-standard.
Precision DIN6,DIN7,DIN8,DIN9.
Teeth treatment Hardened, Milled, or Ground
Tolerance 0.001mm-0.01mm-0.1mm
Finish shot/sandblast, heat treatment, annealing, tempering, polishing, anodizing, zinc-plated
Items packing Plastic bag+Cartons Or Wooden Packing
Payment terms T/T, L/C
Production lead time 20  business days for sample,25 days for the bulk
Samples Sample price range from $2 to $100.
sample express request paid by clients
Application 1. Automatic controlling machine
2. Semi-conductor industry
3. General industry machinery
4. Medical equipment
5. Solar energy equipment
6. Machine tool
7. Parking system
8. High-speed rail and aviation transportation equipment, etc.

The spiral bevel gears are divided into two types; one is the spiral bevel gear whose large wheel axis intersects the small wheel axis; one is the hypoid spiral bevel gear whose large wheel axis and small wheel axis have a certain offset distance. The spiral bevel gears are widely used in automotive, aviation, mining, and other mechanical transmission fields due to their advantages, such as large overlap coefficient, strong bearing capacity, high transmission ratio, stable transmission, and low noise.
