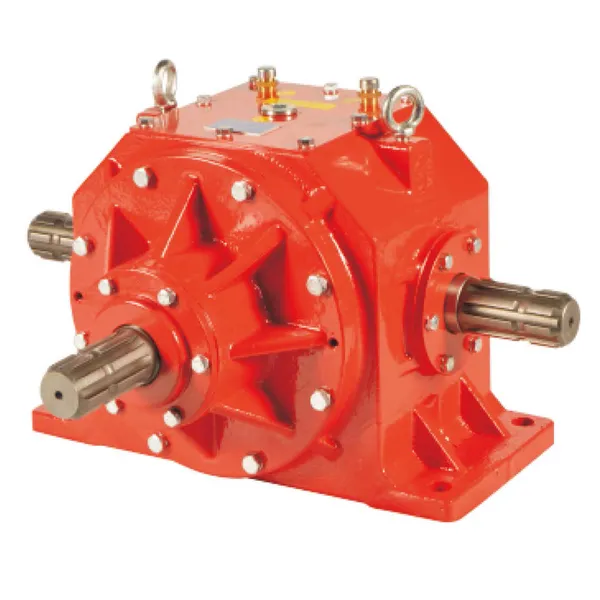

Square Baler Gearbox EP-FK157 for Straw Chopper

Square Baler Gearbox EP-FK157 for Straw Chopper

The Square Baler Gearbox EP-FK157 is a specialized gearbox designed for use in square balers with integrated straw choppers, a critical feature in modern agricultural machinery for crop processing and bale preparation. This gearbox plays a vital role in ensuring the smooth and efficient functioning of the baler's chopping mechanism, which is essential for the proper processing of straw and other crop residues.

The EP-FK157 Square Baler Gearbox is responsible for transmitting mechanical power from the tractor's Power Take-Off (PTO) to the baler's operational components, including the chopping mechanism that processes the straw or other crop residues. It regulates the operational speed of the chopping mechanism, ensuring that it functions at the correct speed to efficiently chop the straw into the desired size, which is crucial for the quality and uniformity of the bales.

Square Baler Gearbox EP-FK157 Dimensions

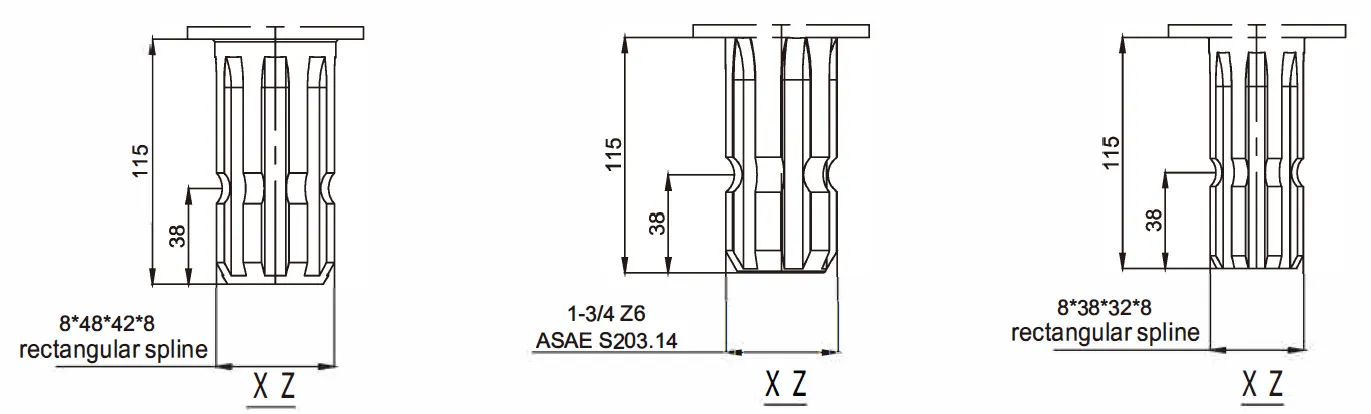

Square Baler Gearbox EP-FK157 Shaft Dimensions

Square Baler Gearbox EP-FK157 Technical Data

i		Suitable	Rpm input	Rpm output	KW(Nom)	KW(Max)	Toothing
			r/min	r/min	hp	hp
Speed increase	1:2.46	Straw chopper, etc	540	1328.4	180	700	Gleason Helical Teeth
Speed increase	1:2.07		720	1190.4	180	700
Remark: If you have any special require feel free let me know, we also accept custom.

Components of Square Baler Gearbox EP-FK157 for Straw Chopper

The Square Baler Gearbox EP-FK157, designed specifically for straw choppers integrated into square balers, comprises various components that work together to ensure the efficient operation of the baler. These components are engineered to withstand the rigorous conditions of agricultural operations, providing durability and reliability. Here's the structural components of the Square Baler Gearbox EP-FK157 for straw choppers:

1. Housing: The housing encases the internal components of the gearbox, protecting them from external elements like dust, debris, and moisture.Typically constructed from durable materials such as cast iron or heavy-duty steel, it ensures structural integrity and longevity.

2. Gears: May include a range of gears such as spur gears, helical gears, or bevel gears, tailored to the specific operational requirements of the baler and straw chopper.The gears interact with each other to effectively transfer power from the tractor’s PTO to the baler’s chopping mechanism, adjusting the speed and torque as necessary.

3. Bearings: Positioned at critical rotation points within the gearbox. Bearings support the smooth and efficient rotation of the shafts and gears, minimizing friction and wear.

4. Shafts: Input Shaft: Connects to the tractor’s PTO, receiving mechanical power and transferring it into the gearbox. Output Shaft: Delivers the adjusted power and speed from the gears to the baler’s chopping mechanism and other operational components.

5. Seals: Seals prevent lubricant leakage and protect the internal components of the gearbox from contaminants. Commonly include oil seals and gaskets placed at openings and junctures to maintain the integrity of the gearbox.

6. Lubrication System: The lubrication system ensures that all moving parts within the gearbox are adequately lubricated, reducing wear and preventing overheating.Typically consists of an oil reservoir, channels or tubes for distributing oil, and filters to keep the lubricant clean and free of contaminants.

Applications of Square Baler Gearbox EP-FK157 for Straw Chopper

The Square Baler Gearbox EP-FK157, designed for straw choppers integrated into square balers, plays a vital role in agricultural operations. Its robust construction and efficient power transmission make it suitable for various applications, particularly focusing on the processing and packaging of crop materials. Here are some of the primary applications of the Square Baler Gearbox EP-FK157 in the realm of straw chopping and baling:

1. Straw Chopping and Baling: The EP-FK157 gearbox powers the straw chopper mechanism within the square baler, ensuring that the straw is chopped into consistent, uniform pieces before baling.This process is crucial for producing high-quality straw bales with uniform density and size, making them easier to handle, store, and transport.

2. Hay Processing: In addition to straw, the gearbox can also be used in balers designed for processing hay. It ensures the efficient operation of the baler's chopping and compressing mechanisms.The resulting hay bales are compact, easy to handle, and ideal for livestock feed, contributing to the efficiency of feed storage and distribution.

3. Silage Baling: The EP-FK157 can be utilized in balers for chopping and baling silage – fermented, high-moisture fodder. The gearbox ensures that the baler operates efficiently, processing the silage into compact bales.Baled silage is protected from air and moisture, preserving its nutritional value and ensuring a steady supply of quality feed for livestock.

How Does the Square Baler Gearbox for Straw Chopper Work?

The gearbox in a square baler used specifically for a straw chopper plays a critical role in the operational efficiency and effectiveness of the baler. Its main function is to translate and adjust the power from the tractor's Power Take-Off (PTO) to the speeds and torques necessary for the baler’s straw chopping and baling operations. Here’s how it generally works:

1. Power Input: The gearbox receives rotational power from the tractor's PTO. This power input typically comes at a standardized RPM (such as 540 or 1000 RPM). The gearbox is directly connected to the PTO through the input shaft, which transfers this rotational force into the gearbox.

2. Gear Conversion: Inside the gearbox, the input rotational force is manipulated through a series of gears. The gears are strategically configured to convert the high-speed, low-torque input from the PTO into lower-speed, higher-torque output. This conversion is essential because the chopping mechanism requires a lot of torque to effectively cut straw but does not need to operate at very high speeds.

3. Torque Amplification: The gearbox’s arrangement of gears—often a combination of spur gears, helical gears, or even planetary gears—increases the torque while reducing the RPM. This process is crucial because the straw chopper needs substantial torque to handle tough, dense, or wet straw and other crop residues.

4. Output Delivery: Once the power is appropriately converted, the output shaft of the gearbox transmits this modified mechanical energy to the straw chopper’s cutting blades. The output shaft speed and torque are calibrated to optimize the chopping blades' performance, ensuring they rotate at the ideal speed to cut the straw efficiently without jamming or stalling.

5. Chopping Mechanism: The output from the gearbox drives the mechanical parts that operate the chopper. This includes the rotation of blades or hammers that chop the straw into smaller pieces. The specific design of the chopping mechanism can vary but generally involves rotating knives or cutting bars that process the straw as it passes through the baler.

6. Integrated Controls: Modern balers often include integrated systems that allow operators to adjust the gearbox settings from the tractor, adapting the output for different conditions (e.g., changing straw types or moisture levels). This flexibility is essential for maintaining high efficiency and minimizing wear and tear on the baler.

Common Troubleshooting of Square Baler Gearbox for Straw Chopper

Troubleshooting the gearbox in a square baler used for straw chopping involves diagnosing and resolving common issues that affect its operation and efficiency. Here’s a detailed guide on how to troubleshoot some typical problems:

1. Excessive Vibration or Noise

• Cause: These symptoms often indicate misalignment, loose or worn gears, inadequate lubrication, or unbalanced moving parts.
• Solution: Check the alignment of the gearbox with the tractor's PTO and realign if necessary. Inspect all gears and bearings for wear and replace any damaged components. Ensure that all bolts and fixtures are tightened properly. Verify the lubrication level and quality, and replenish or replace the oil if it is dirty or insufficient.

2. Gearbox Overheating

• Cause: Overheating can result from overloading the gearbox, insufficient or degraded lubricant, or defective bearings.
• Solution: First, reduce the load to within the gearbox’s operational capacity. Check and replace the lubricant with one appropriate for high-performance and high-temperature conditions. Inspect the bearings for signs of wear or damage and replace them if necessary. Ensure that any cooling mechanisms, such as vents or fans, are clear of obstructions and functioning properly.

3. Oil Leakage

• Cause: Leakage typically occurs due to faulty seals, gaskets, or cracks in the gearbox housing.
• Solution: Inspect the gearbox for any signs of oil seepage. Replace worn or damaged seals and gaskets promptly. If there are cracks in the housing, assess whether welding or a complete replacement is necessary. Always ensure the gearbox is filled to the correct oil level, as overfilling can also cause leaks.

4. Output Shaft Failure to Rotate

• Cause: This could be caused by internal component failure, such as broken gears or a sheared key, or by a disengagement issue.
• Solution: Disassemble the gearbox to inspect for any broken or jammed internal parts. Replace any faulty components. Check the engagement mechanisms to ensure they are functioning correctly and make adjustments or replacements as needed.

5. Inconsistent Chopping Performance

• Cause: Poor chopping can result from inadequate torque transmission, dull or misaligned chopping blades, or mechanical wear within the gearbox.
• Solution: Verify that the gearbox is transmitting adequate torque and adjust as necessary. Sharpen or replace the chopping blades to ensure they cut effectively. Inspect internal gearbox components for wear and replace worn parts to maintain optimal performance.
