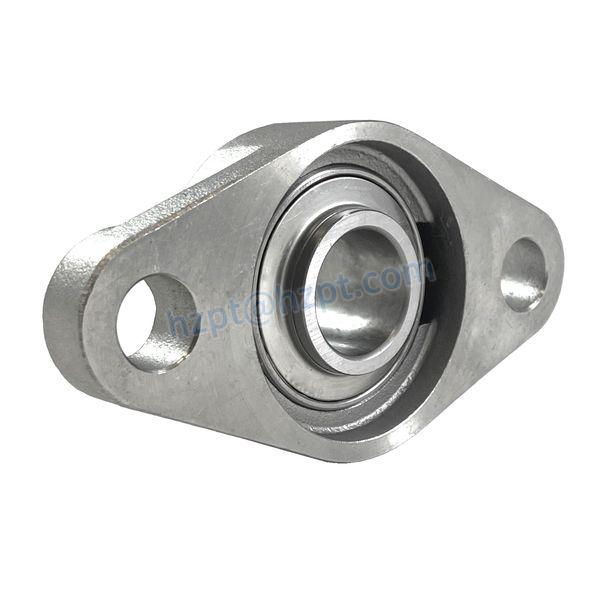

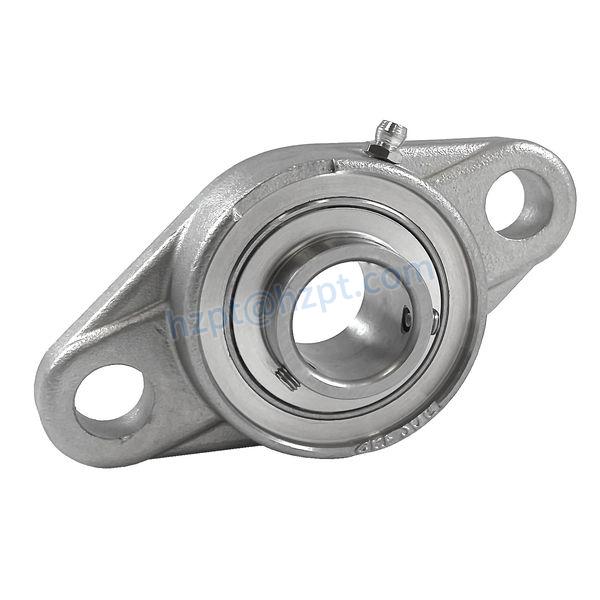

Stainless Steel 2-Bolt Flange Bearings

Stainless steel 2-bolt flange bearing units are designed with two mounting styles and facilitate installation in more compact systems. Our stainless steel double-bolt flange bearings are manufactured from high-quality food-grade stainless steel and feature special features to extend bearing life and enhance performance.

Get a Quote

Stainless Steel 2-Bolt Flange Bearings

Stainless steel 2-bolt flange bearing units are designed with two mounting styles and facilitate installation in more compact systems. Our stainless steel double-bolt flange bearings are manufactured from high-quality food-grade stainless steel and feature special features to extend bearing life and enhance performance. For a quote, additional information, or if you don't see the bearing you need in the table below, please contact us and we'll be happy to help.

Stainless 2-Bolt Flange Bearing Sizes

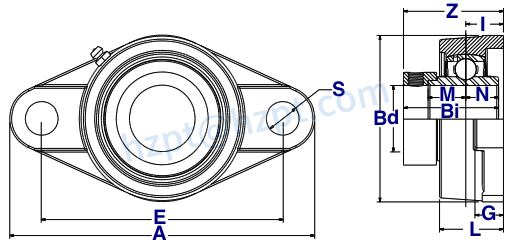

(1) SUCSFTM 200 Normal Duty 2-Bolt Flange Bearing With Set Screws

Bearing #
Shaft Diameter (d)
(A)
(E)
(I)
(G)
(L)
(S)
(B)
(Z)
(Bi)
(N)
(M)
Bolt Size
Dynamic Load Rating (LBS)
Static Load Rating (LBS)
Bearing Insert
Housing Number
Weight (LBS)
SUCSFTM 201 12mm 4.45" 3.54" 0.59" 0.47" 1.00" 0.39" 2.37" 1.31" 1.2205" 0.5000" 0.7205" M8 2,331 1,142 SUC 201 SFTM 204 1.1
SUCSFTM 201-8 1/2" 4.45" 3.54" 0.59" 0.47" 1.00" 0.39" 2.37" 1.31" 1.2205" 0.5000" 0.7205" 5/16" 2,331 1,142 SUC 201-8 SFTM 204 1.1
SUCSFTM 202 15mm 4.45" 3.54" 0.59" 0.47" 1.00" 0.39" 2.37" 1.31" 1.2205" 0.5000" 0.7205" 5/16" 2,331 1,142 SUC 202 SFTM 204 1.1
SUCSFTM 202-10 5/8" 4.45" 3.54" 0.59" 0.47" 1.00" 0.39" 2.37" 1.31" 1.2205" 0.5000" 0.7205" 5/16" 2,331 1,142 SUC 202-10 SFTM 204 1.1
SUCSFTM 203 17mm 4.45" 3.54" 0.59" 0.47" 1.00" 0.39" 2.37" 1.31" 1.2205" 0.5000" 0.7205" 5/16" 2,331 1,142 SUC 203 SFTM 204 1.1
SUCSFTM 204-12 3/4" 4.45" 3.54" 0.59" 0.47" 1.00" 0.39" 2.37" 1.31" 1.2205" 0.5000" 0.7205" 5/16" 2,331 1,142 SUC 204-12 SFTM 204 1.1
SUCSFTM 204 20mm 4.45" 3.54" 0.59" 0.47" 1.00" 0.39" 2.37" 1.31" 1.2205" 0.5000" 0.7205" M8 2,331 1,142 SUC 204 SFTM 204 1.1
SUCSFTM 205-14 7/8" 4.92" 3.90" 0.63" 0.53" 1.06" 0.47" 2.68" 1.41" 1.3425" 0.5630" 0.7795" 3/8" 2,542 1,349 SUC 205-14 SFTM 205 1.5
SUCSFTM 205-15 15/16" 4.92" 3.90" 0.63" 0.53" 1.06" 0.47" 2.68" 1.41" 1.3425" 0.5630" 0.7795" 3/8" 2,542 1,349 SUC 205-15 SFTM 205 1.5
SUCSFTM 205 25mm 4.92" 3.90" 0.63" 0.53" 1.06" 0.47" 2.68" 1.41" 1.3425" 0.5630" 0.7795" M10 2,542 1,349 SUC 205 SFTM 205 1.5
SUCSFTM 205-16 1" 4.92" 3.90" 0.63" 0.53" 1.06" 0.47" 2.68" 1.41" 1.3425" 0.5630" 0.7795" 3/8" 2,542 1,349 SUC 205-16 SFTM 205 1.5
SUCSFTM 206-17 1-1/16" 5.55" 4.61" 0.71" 0.53" 1.22" 0.47" 3.11" 1.58" 1.5000" 0.6260" 0.8740" 3/8" 3,554 1,942 SUC 206-17 SFTM 206 2.0
SUCSFTM 206-18 1-1/8" 5.55" 4.61" 0.71" 0.53" 1.22" 0.47" 3.11" 1.58" 1.5000" 0.6260" 0.8740" 3/8" 3,554 1,942 SUC 206-18 SFTM 206 2.0
SUCSFTM 206 30mm 5.55" 4.61" 0.71" 0.53" 1.22" 0.47" 3.11" 1.58" 1.5000" 0.6260" 0.8740" M10 3,554 1,942 SUC 206 SFTM 206 2.0
SUCSFTM 206-19 1-3/16" 5.55" 4.61" 0.71" 0.53" 1.22" 0.47" 3.11" 1.58" 1.5000" 0.6260" 0.8740" 3/8" 3,554 1,942 SUC 206-19 SFTM 206 2.0
SUCSFTM 206-20 1-1/4" 5.55" 4.61" 0.71" 0.53" 1.22" 0.47" 3.11" 1.58" 1.5000" 0.6260" 0.8740" 3/8" 3,554 1,942 SUC 206-20 SFTM 206 2.0
SUCSFTM 207-20 1-1/4" 6.14" 5.12" 0.75" 0.61" 1.34" 0.51" 3.50" 1.75" 1.6890" 0.6890" 1.0000" 7/16" 4,683 2,626 SUC 207-20 SFTM 207 2.9
SUCSFTM 207-21 1-5/16" 6.14" 5.12" 0.75" 0.61" 1.34" 0.51" 3.50" 1.75" 1.6890" 0.6890" 1.0000" 7/16" 4,683 2,626 SUC 207-21 SFTM 207 2.9
SUCSFTM 207-22 1-3/8" 6.14" 5.12" 0.75" 0.61" 1.34" 0.51" 3.50" 1.75" 1.6890" 0.6890" 1.0000" 7/16" 4,683 2,626 SUC 207-22 SFTM 207 2.9
SUCSFTM 207 35mm 6.14" 5.12" 0.75" 0.61" 1.34" 0.51" 3.50" 1.75" 1.6890" 0.6890" 1.0000" M12 4,683 2,626 SUC 207 SFTM 207 2.9
SUCSFTM 207-23 1-7/16" 6.14" 5.12" 0.75" 0.61" 1.34" 0.51" 3.50" 1.75" 1.6890" 0.6890" 1.0000" 7/16" 4,683 2,626 SUC 207-23 SFTM 207 2.9
SUCSFTM 208-24 1-1/2" 6.77" 5.67" 0.83" 0.59" 1.42" 0.51" 3.90" 2.02" 1.9370" 0.7480" 1.1890" 7/16" 5,294 3,057 SUC 208-24 SFTM 208 3.3
SUCSFTM 208-25 1-9/16" 6.77" 5.67" 0.83" 0.59" 1.42" 0.51" 3.90" 2.02" 1.9370" 0.7480" 1.1890" 7/16" 5,294 3,057 SUC 208-25 SFTM 208 3.3
SUCSFTM 208 40mm 6.77" 5.67" 0.83" 0.59" 1.42" 0.51" 3.90" 2.02" 1.9370" 0.7480" 1.1890" M12 5,294 3,057 SUC 208 SFTM 208 3.3
SUCSFTM 209-26 1-5/8" 7.05" 5.83" 0.87" 0.56" 1.50" 0.59" 4.21" 2.06" 1.9370" 0.7480" 1.1890" 1/2" 5,923 3,507 SUC 209-26 SFTM 209 3.7
SUCSFTM 209-27 1-11/16" 7.05" 5.83" 0.87" 0.56" 1.50" 0.59" 4.21" 2.06" 1.9370" 0.7480" 1.1890" 1/2" 5,923 3,507 SUC 209-27 SFTM 209 3.7
SUCSFTM 209-28 1-3/4" 7.05" 5.83" 0.87" 0.56" 1.50" 0.59" 4.21" 2.06" 1.9370" 0.7480" 1.1890" 1/2" 5,923 3,507 SUC 209-28 SFTM 209 3.7
SUCSFTM 209 45mm 7.05" 5.83" 0.87" 0.56" 1.50" 0.59" 4.21" 2.06" 1.9370" 0.7480" 1.1890" M14 5,923 3,507 SUC 209 SFTM 209 3.7
SUCSFTM 210-30 1-7/8" 7.44" 6.18" 0.87" 0.61" 1.52" 0.59" 4.49" 2.15" 2.0315" 0.7480" 1.2835" 1/2" 6,402 4,046 SUC 210-30 SFTM 210 5.1
SUCSFTM 210-31 1-15/16" 7.44" 6.18" 0.87" 0.61" 1.52" 0.59" 4.49" 2.15" 2.0315" 0.7480" 1.2835" 1/2" 6,402 4,046 SUC 210-31 SFTM 210 5.1
SUCSFTM 210 50mm 7.44" 6.18" 0.87" 0.61" 1.52" 0.59" 4.49" 2.15" 2.0315" 0.7480" 1.2835" M14 6,402 4,046 SUC 210 SFTM 210 5.1
SUCSFTM 210-32 2" 7.44" 6.18" 0.87" 0.61" 1.52" 0.59" 4.49" 2.15" 2.0315" 0.7480" 1.2835" 1/2" 6,402 4,046 SUC 210-32 SFTM 210 5.1
SUCSFTM 211-32 2" 8.54" 7.24" 0.98" 0.75" 1.73" 0.71" 5.24" 2.30" 2.1890" 0.8740" 1.3150" 9/16" 7,931 5,036 SUC 211-32 SFTM 211 6.2
SUCSFTM 211-34 2-1/8 8.54" 7.24" 0.98" 0.75" 1.73" 0.71" 5.24" 2.30" 2.1890" 0.8740" 1.3150" 9/16" 7,931 5,036 SUC 211-34 SFTM 211 6.2
SUCSFTM 211 55mm 8.54" 7.24" 0.98" 0.75" 1.73" 0.71" 5.24" 2.30" 2.1890" 0.8740" 1.3150" M16 7,931 5,036 SUC 211 SFTM 211 6.2
SUCSFTM 211-35 2-3/16" 8.54" 7.24" 0.98" 0.75" 1.73" 0.71" 5.24" 2.30" 2.1890" 0.8740" 1.3150" 9/16" 7,931 5,036 SUC 211-35 SFTM 211 6.2
SUCSFTM 212-36 2-1/4" 9.29" 7.95" 1.14" 0.79" 1.89" 0.71" 5.57" 2.70" 2.5630" 1.0000" 1.5630" 9/16" 9,554 5,921 SUC 212-36 SFTM 212 9.5
SUCSFTM212 60mm 9.29" 7.95" 1.14" 0.79" 1.89" 0.71" 5.57" 2.70" 2.5630" 1.0000" 1.5630" M16 9,554 5,921 SUC 212 SFTM 212 9.5
SUCSFTM 212-38 2-3/8" 9.29" 7.95" 1.14" 0.79" 1.89" 0.71" 5.57" 2.70" 2.5630" 1.0000" 1.5630" 9/16" 9,554 5,921 SUC 212-38 SFTM 212 9.5
SUCSFTM 212-39 2-7/16" 9.29" 7.95" 1.14" 0.79" 1.89" 0.71" 5.57" 2.70" 2.5630" 1.0000" 1.5630" 9/16" 9,554 5,921 SUC 212-39 SFTM 212 9.5

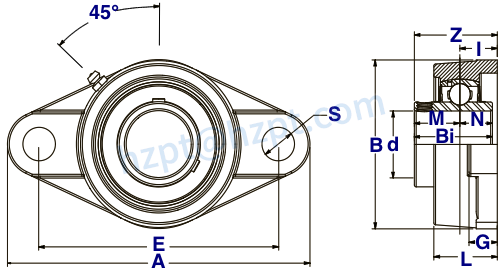

(2) SNCSFTM 200 Normal Duty 2-Bolt Flange Bearing With Eccentric Locking Collar

Bearing #
Shaft Diameter (d)
(A)
(E)
(I)
(G)
(L)
(S)
(B)
(Z)
(Bi)
(N)
(M)
Bolt Size
Dynamic Load Rating (LBS)
Static Load Rating (LBS)
Bearing Insert
Housing Number
Weight (LBS)
SNCSFTM 201-8 1/2" 4.45" 3.53" 0.59" 0.47" 1.00" 0.39" 2.37" 1.64" 1.5472" 0.5000" 0.6732" 5/16" 2,331 1,142 SNC 201-8 SFTM 204 1.2
SNCSFTM 202-10 5/8" 4.45" 3.53" 0.59" 0.47" 1.00" 0.39" 2.37" 1.64" 1.5472" 0.5000" 0.6732" 5/16" 2,331 1,142 SNC 202-10 SFTM 204 1.2
SNCSFTM 204-12 3/4" 4.45" 3.53" 0.59" 0.47" 1.00" 0.39" 2.37" 1.64" 1.5472" 0.5000" 0.6732" 5/16" 2,331 1,142 SNC 204-12 SFTM 204 1.2
SNCSFTM 204 20mm 4.45" 3.53" 0.59" 0.47" 1.00" 0.39" 2.37" 1.64" 1.5472" 0.5000" 0.6732" M8 2,331 1,142 SNC 204 SFTM 204 1.2
SNCSFTM 205-14 7/8" 4.92" 3.89" 0.63" 0.53" 1.06" 0.47" 2.68" 1.69" 1.6220" 0.5630" 0.6850" 3/8" 2,542 1,349 SNC 205-14 SFTM 205 1.6
SNCSFTM 205-15 15/16" 4.92" 3.89" 0.63" 0.53" 1.06" 0.47" 2.68" 1.69" 1.6220" 0.5630" 0.6850" 3/8" 2,542 1,349 SNC 205-15 SFTM 205 1.6
SNCSFTM 205 25mm 4.92" 3.89" 0.63" 0.53" 1.06" 0.47" 2.68" 1.69" 1.6220" 0.5630" 0.6850" M10 2,542 1,349 SNC 205 SFTM 205 1.6
SNCSFTM 205-16 1" 4.92" 3.89" 0.63" 0.53" 1.06" 0.47" 2.68" 1.69" 1.6220" 0.5630" 0.6850" 3/8" 2,542 1,349 SNC 205-16 SFTM 205 1.6
SNCSFTM 206-17 1-1/16" 5.55" 4.59" 0.71" 0.53" 1.22" 0.47" 3.11" 1.89" 1.8110" 0.6260" 0.7165" 3/8" 3,554 1,942 SNC 206-17 SFTM 206 2.1
SNCSFTM 206-18 1-1/8" 5.55" 4.59" 0.71" 0.53" 1.22" 0.47" 3.11" 1.89" 1.8110" 0.6260" 0.7165" 3/8" 3,554 1,942 SNC 206-18 SFTM 206 2.1
SNCSFTM 206 30mm 5.55" 4.59" 0.71" 0.53" 1.22" 0.47" 3.11" 1.89" 1.8110" 0.6260" 0.7165" M10 3,554 1,942 SNC 206 SFTM 206 2.1
SNCSFTM 206-19 1-3/16" 5.55" 4.59" 0.71" 0.53" 1.22" 0.47" 3.11" 1.89" 1.8110" 0.6260" 0.7165" 3/8" 3,554 1,942 SNC 206-19 SFTM 206 2.1
SNCSFTM 206-20 1-1/4" 5.55" 4.59" 0.71" 0.53" 1.22" 0.47" 3.11" 1.89" 1.8110" 0.6260" 0.7165" 3/8" 3,554 1,942 SNC 206-20 SFTM 206 2.1
SNCSFTM 207-20 1-1/4" 6.14" 5.13" 0.75" 0.61" 1.34" 0.51" 3.50" 2.02" 1.9606" 0.6890" 0.7402" 7/16" 4,683 2,626 SNC 207-20 SFTM 207 3.1
SNCSFTM 207-21 1-5/16" 6.14" 5.13" 0.75" 0.61" 1.34" 0.51" 3.50" 2.02" 1.9606" 0.6890" 0.7402" 7/16" 4,683 2,626 SNC 207-21 SFTM 207 3.1
SNCSFTM 207-22 1-3/8" 6.14" 5.13" 0.75" 0.61" 1.34" 0.51" 3.50" 2.02" 1.9606" 0.6890" 0.7402" 7/16" 4,683 2,626 SNC 207-22 SFTM 207 3.1
SNCSFTM 207 35mm 6.14" 5.13" 0.75" 0.61" 1.34" 0.51" 3.50" 2.02" 1.9606" 0.6890" 0.7402" M12 4,683 2,626 SNC 207 SFTM 207 3.1
SNCSFTM 207-23 1-7/16" 6.14" 5.13" 0.75" 0.61" 1.34" 0.51" 3.50" 2.02" 1.9606" 0.6890" 0.7402" 7/16" 4,683 2,626 SNC 207-23 SFTM 207 3.1
SNCSFTM 208-24 1-1/2" 6.77" 5.66" 0.83" 0.59" 1.42" 0.51" 3.90" 2.20" 2.1220" 0.7480" 0.8425" 7/16" 5,294 3,057 SNC 208-24 SFTM 208 3.6
SNCSFTM 208-25 1-9/16" 6.77" 5.66" 0.83" 0.59" 1.42" 0.51" 3.90" 2.20" 2.1220" 0.7480" 0.8425" 7/16" 5,294 3,057 SNC 208-25 SFTM 208 3.6
SNCSFTM 208 40mm 6.77" 5.66" 0.83" 0.59" 1.42" 0.51" 3.90" 2.20" 2.1220" 0.7480" 0.8425" M12 5,294 3,057 SNC 208 SFTM 208 3.6
SNCSFTM 209-26 1-5/8" 7.05" 5.84" 0.87" 0.56" 1.52" 0.59" 4.21" 2.24" 2.1220" 0.7480" 0.8425" 1/2" 5,923 3,507 SNC 209-26 SFTM 209 4.0
SNCSFTM 209-27 1-11/16" 7.05" 5.84" 0.87" 0.56" 1.52" 0.59" 4.21" 2.24" 2.1220" 0.7480" 0.8425" 1/2" 5,923 3,507 SNC 209-27 SFTM 209 4.0
SNCSFTM 209-28 1-3/4" 7.05" 5.84" 0.87" 0.56" 1.52" 0.59" 4.21" 2.24" 2.1220" 0.7480" 0.8425" 1/2" 5,923 3,507 SNC 209-28 SFTM 209 4.0
SNCSFTM 209 45mm 7.05" 5.84" 0.87" 0.56" 1.52" 0.59" 4.21" 2.24" 2.1220" 0.7480" 0.8425" M14 5,923 3,507 SNC 209 SFTM 209 4.0
SNCSFTM 210-30 1-7/8" 7.44" 6.19" 0.87" 0.61" 1.53" 0.59" 4.49" 2.37" 2.2480" 0.7480" 0.9685" 1/2" 6,402 4,046 SNC 210-30 SFTM 210 5.6
SNCSFTM 210-31 1-15/16" 7.44" 6.19" 0.87" 0.61" 1.53" 0.59" 4.49" 2.37" 2.2480" 0.7480" 0.9685" 1/2" 6,402 4,046 SNC 210-31 SFTM 210 5.6
SNCSFTM 210 50mm 7.44" 6.19" 0.87" 0.61" 1.53" 0.59" 4.49" 2.37" 2.2480" 0.7480" 0.9685" M14 6,402 4,046 SNC 210 SFTM 210 5.6
SNCSFTM 210-32 2" 7.44" 6.19" 0.87" 0.61" 1.53" 0.59" 4.49" 2.37" 2.2480" 0.7480" 0.9685" 1/2" 6,402 4,046 SNC 210-32 SFTM 210 5.6
SNCSFTM 211-32 2" 8.54" 7.25" 0.98" 0.75" 1.73" 0.71" 5.24" 2.70" 2.5906" 0.8740" 1.0905" 9/16" 7,931 5,036 SNC 211-32 SFTM 211 6.9
SNCSFTM 211-34 2-1/8" 8.54" 7.25" 0.98" 0.75" 1.73" 0.71" 5.24" 2.70" 2.5906" 0.8740" 1.0905" 9/16" 7,931 5,036 SNC 211-34 SFTM 211 6.9
SNCSFTM 211 55mm 8.54" 7.25" 0.98" 0.75" 1.73" 0.71" 5.24" 2.70" 2.5906" 0.8740" 1.0905" M16 7,931 5,036 SNC 211 SFTM 211 6.9
SNCSFTM 211-35 2-3/16" 8.54" 7.25" 0.98" 0.75" 1.73" 0.71" 5.24" 2.70" 2.5906" 0.8740" 1.0905" 9/16" 7,931 5,036 SNC 211-35 SFTM 211 6.9
SNCSFTM 212-36 2-1/4" 9.29" 7.94" 1.14" 0.79" 1.89" 0.71" 5.57" 2.98" 2.8430" 1.0000" 1.2170" 9/16" 9,554 5,921 SNC 212-36 SFTM 212 10.3
SNCSFTM 212 60mm 9.29" 7.94" 1.14" 0.79" 1.89" 0.71" 5.57" 2.98" 2.8430" 1.0000" 1.2170" M16 9,554 5,921 SNC 212 SFTM 212 10.3
SNCSFTM 212-38 2-3/8" 9.29" 7.94" 1.14" 0.79" 1.89" 0.71" 5.57" 2.98" 2.8430" 1.0000" 1.2170" 9/16" 9,554 5,921 SNC 212-38 SFTM 212 10.3
SNCSFTM 212-39 2-7/16" 9.29" 7.94" 1.14" 0.79" 1.89" 0.71" 5.57" 2.98" 2.8430" 1.0000" 1.2170" 9/16" 9,554 5,921 SNC 212-39 SFTM 212 10.3

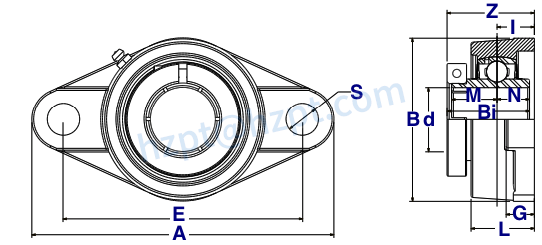

(3) SUESFTM 200 Normal Duty 2-Bolt Flange Bearing With Tru-Loc Concentric Collar Clamp

Bearing #
Shaft Diameter (d)
(A)
(E)
(I)
(G)
(L)
(S)
(B)
(Z)
(Bi)
(N)
(M)
Bolt Size
Dynamic Load Rating (LBS)
Static Load Rating (LBS)
Bearing Insert
Housing Number
Weight (LBS)
SUESFTM 204-12 3/4" 4.45" 3.54" 0.59" 0.47" 1.00" 0.39" 2.37" 1.39" 1.2992" 0.5000" 0.7205" 5/16" 2,331 1,142 SUE 204-12 SFTM 204 1.1
SUESFTM 204 20mm 4.45" 3.54" 0.59" 0.47" 1.00" 0.39" 2.37" 1.39" 1.2992" 0.5000" 0.7205" M8 2,331 1,142 SUE 204 SFTM 204 1.1
SUESFTM 205-14 7/8" 4.92" 3.90" 0.63" 0.53" 1.06" 0.47" 2.69" 1.46" 1.3937" 0.5630" 0.7795" 3/8" 2,524 1,349 SUE 205-14 SFTM 205 1.6
SUESFTM 205-15 15/16" 4.92" 3.90" 0.63" 0.53" 1.06" 0.47" 2.69" 1.46" 1.3937" 0.5630" 0.7795" 3/8" 2,524 1,349 SUE 205-15 SFTM 205 1.6
SUESFTM 205 25mm 4.92" 3.90" 0.63" 0.53" 1.06" 0.47" 2.69" 1.46" 1.3937" 0.5630" 0.7795" M10 2,524 1,349 SUE 205 SFTM 205 1.6
SUESFTM 205-16 1" 4.92" 3.90" 0.63" 0.53" 1.06" 0.47" 2.69" 1.46" 1.3937" 0.5630" 0.7795" 3/8" 2,524 1,349 SUE 205-16 SFTM 205 1.6
SUESFTM 206-17 1-1/16" 5.55" 4.61" 0.71" 0.53" 1.22" 0.47" 3.11" 1.65" 1.5669" 0.6260" 0.8740" 3/8" 3,554 1,942 SUE 206-17 SFTM 206 2.1
SUESFTM 206-18 1-1/8" 5.55" 4.61" 0.71" 0.53" 1.22" 0.47" 3.11" 1.65" 1.5669" 0.6260" 0.8740" 3/8" 3,554 1,942 SUE 206-18 SFTM 206 2.1
SUESFTM 206 30mm 5.55" 4.61" 0.71" 0.53" 1.22" 0.47" 3.11" 1.65" 1.5669" 0.6260" 0.8740" M10 3,554 1,942 SUE 206 SFTM 206 2.1
SUESFTM 206-19 1-3/16" 5.55" 4.61" 0.71" 0.53" 1.22" 0.47" 3.11" 1.65" 1.5669" 0.6260" 0.8740" 3/8" 3,554 1,942 SUE 206-19 SFTM 206 2.1
SUESFTM 206-20 1-1/4" 5.55" 4.61" 0.71" 0.53" 1.22" 0.47" 3.11" 1.65" 1.5669" 0.6260" 0.8740" 3/8" 3,554 1,942 SUE 206-20 SFTM 206 2.1
SUESFTM 207-20 1-1/4" 6.14" 5.12" 0.75" 0.61" 1.34" 0.51" 3.50" 1.79" 1.7283" 0.6890" 1.0000" 7/16" 4,683 2,626 SUE 207-20 SFTM 207 2.9
SUESFTM 207-21 1-5/16" 6.14" 5.12" 0.75" 0.61" 1.34" 0.51" 3.50" 1.79" 1.7283" 0.6890" 1.0000" 7/16" 4,683 2,626 SUE 207-21 SFTM 207 2.9
SUESFTM 207-22 1-3/8" 6.14" 5.12" 0.75" 0.61" 1.34" 0.51" 3.50" 1.79" 1.7283" 0.6890" 1.0000" 7/16" 4,683 2,626 SUE 207-22 SFTM 207 2.9
SUESFTM 207 35mm 6.14" 5.12" 0.75" 0.61" 1.34" 0.51" 3.50" 1.79" 1.7283" 0.6890" 1.0000" M12 4,683 2,626 SUE 207 SFTM 207 2.9
SUESFTM 207-23 1-7/16" 6.14" 5.12" 0.75" 0.61" 1.34" 0.51" 3.50" 1.79" 1.7283" 0.6890" 1.0000" 7/16" 4,683 2,626 SUE 207-23 SFTM 207 2.9
SUESFTM 208-24 1-1/2" 6.77" 5.67" 0.83" 0.59" 1.42" 0.51" 3.90" 2.06" 1.9764" 0.7480" 1.1890" 7/16" 5,294 3,057 SUE 208-24 SFTM 208 3.4
SUESFTM 208-25 1-9/16" 6.77" 5.67" 0.83" 0.59" 1.42" 0.51" 3.90" 2.06" 1.9764" 0.7480" 1.1890" 7/16" 5,294 3,057 SUE 208-25 SFTM 208 3.4
SUESFTM 208 40mm 6.77" 5.67" 0.83" 0.59" 1.42" 0.51" 3.90" 2.06" 1.9764" 0.7480" 1.1890" M12 5,294 3,057 SUE 208 SFTM 208 3.4
SUESFTM 209-26 1-5/8" 7.05" 5.83" 0.87" 0.56" 1.50" 0.59" 4.21" 2.09" 1.9764" 0.7480" 1.1890" 1/2" 5,923 3,507 SUE 209-26 SFTM 209 3.8
SUESFTM 209-27 1-11/16" 7.05" 5.83" 0.87" 0.56" 1.50" 0.59" 4.21" 2.09" 1.9764" 0.7480" 1.1890" 1/2" 5,923 3,507 SUE 209-27 SFTM 209 3.8
SUESFTM 209-28 1-3/4" 7.05" 5.83" 0.87" 0.56" 1.50" 0.59" 4.21" 2.09" 1.9764" 0.7480" 1.1890" 1/2" 5,923 3,507 SUE 209-28 SFTM 209 3.8
SUESFTM 209 45mm 7.05" 5.83" 0.87" 0.56" 1.50" 0.59" 4.21" 2.09" 1.9764" 0.7480" 1.1890" M14 5,923 3,507 SUE 209 SFTM 209 3.8
SUESFTM 210-30 1-7/8" 7.44" 6.18" 0.87" 0.61" 1.52" 0.59" 4.49" 2.19" 2.0709" 0.7480" 1.2835" 1/2" 6,402 4,046 SUE 210-30 SFTM 210 5.2
SUESFTM 210-31 1-15/16" 7.44" 6.18" 0.87" 0.61" 1.52" 0.59" 4.49" 2.19" 2.0709" 0.7480" 1.2835" 1/2" 6,402 4,046 SUE 210-31 SFTM 210 5.2
SUESFTM 210 50mm 7.44" 6.18" 0.87" 0.61" 1.52" 0.59" 4.49" 2.19" 2.0709" 0.7480" 1.2835" M14 6,402 4,046 SUE 210 SFTM 210 5.2
SUESFTM 210-32 2" 7.44" 6.18" 0.87" 0.61" 1.52" 0.59" 4.49" 2.19" 2.0709" 0.7480" 1.2835" 1/2" 6,402 4,046 SUE 210-32 SFTM 210 5.2
SUESTM 211-32 2" 8.54" 7.24" 0.98" 0.75" 1.73" 0.71" 5.24" 2.34" 2.2283" 0.8740" 1.3150" 9/16" 7,931 5,036 SUE 211-32 SFTM 211 6.3
SUESTM 211-34 2-1/8" 8.54" 7.24" 0.98" 0.75" 1.73" 0.71" 5.24" 2.34" 2.2283" 0.8740" 1.3150" 9/16" 7,931 5,036 SUE 211-34 SFTM 211 6.3
SUESTM 211 55mm 8.54" 7.24" 0.98" 0.75" 1.73" 0.71" 5.24" 2.34" 2.2283" 0.8740" 1.3150" M16 7,931 5,036 SUE 211 SFTM 211 6.3
SUESTM 211-35 2-3/16" 8.54" 7.24" 0.98" 0.75" 1.73" 0.71" 5.24" 2.34" 2.2283" 0.8740" 1.3150" 9/16" 7,931 5,036 SUE 211-35 SFTM 211 6.3
SUESFTM 212-36 2-1/4" 9.29" 7.95" 1.14" 0.79" 1.89" 0.71" 5.57" 2.76" 2.6220" 1.0000" 1.5630" 9/16" 9,554" 5,921 SUE 212-36 SFTM 212 9.7
SUESFTM 212 60mm 9.29" 7.95" 1.14" 0.79" 1.89" 0.71" 5.57" 2.76" 2.6220" 1.0000" 1.5630" M16 9,554" 5,921 SUE 212 SFTM 212 9.7
SUESFTM 212-38 2-3/8" 9.29" 7.95" 1.14" 0.79" 1.89" 0.71" 5.57" 2.76" 2.6220" 1.0000" 1.5630" 9/16" 9,554" 5,921 SUE 212-38 SFTM 212 9.7
SUESFTM 212-39 2-7/16" 9.29" 7.95" 1.14" 0.79" 1.89" 0.71" 5.57" 2.76" 2.6220" 1.0000" 1.5630" 9/16" 9,554" 5,921 SUE 212-39 SFTM 212 9.7

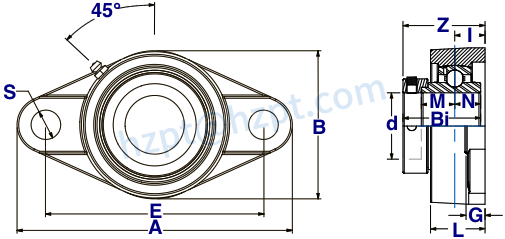

(4) SUCSFLM 200 Normal Duty 2-Bolt Flange Bearing With Set Screws

Bearing #
Shaft Diameter (d)
(A)
(E)
(I)
(G)
(L)
(S)
(B)
(Z)
(Bi)
(N)
(M)
Bolt Size
Dynamic Load Rating (LBS)
Static Load Rating (LBS)
Bearing Insert
Housing Number
Weight (LBS)
SUCSFLM 201 12mm 4.45" 3.54" 0.59" 0.47" 1.00" 0.47" 2.36" 1.31" 1.2205" 0.5000" 0.7205" M10 2,331 1,142 SUC 201 SFLM 204 1.3
SUCSFLM 201-8 1/2" 4.45" 3.54" 0.59" 0.47" 1.00" 0.47" 2.36" 1.31" 1.2205" 0.5000" 0.7205" 3/8" 2,331 1,142 SUC 201-8 SFLM 204 1.3
SUCSFLM 202 15mm 4.45" 3.54" 0.59" 0.47" 1.00" 0.47" 2.36" 1.31" 1.2205" 0.5000" 0.7205" M10 2,331 1,142 SUC 202 SFLM 204 1.3
SUCSFLM 202-10 5/8" 4.45" 3.54" 0.59" 0.47" 1.00" 0.47" 2.36" 1.31" 1.2205" 0.5000" 0.7205" 3/8" 2,331 1,142 SUC 202-10 SFLM 204 1.3
SUCSFLM 203 17mm 4.45" 3.54" 0.59" 0.47" 1.00" 0.47" 2.36" 1.31" 1.2205" 0.5000" 0.7205" M10 2,331 1,142 SUC 203 SFLM 204 1.3
SUCSFLM 204-12 3/4" 4.45" 3.54" 0.59" 0.47" 1.00" 0.47" 2.36" 1.31" 1.2205" 0.5000" 0.7205" 3/8" 2,331 1,142 SUC 204-12 SFLM 204 1.3
SUCSFLM 204 20mm 4.45" 3.54" 0.59" 0.47" 1.00" 0.47" 2.36" 1.31" 1.2205" 0.5000" 0.7205" M10 2,331 1,142 SUC 204 SFLM 204 1.3
SUCSFLM 205-14 7/8" 5.12" 3.90" 0.63" 0.55" 1.06" 0.63" 2.68" 1.41" 1.3425" 0.5630" 0.7795" 1/2" 2,542 1,349 SUC 205-14 SFLM 205 1.8
SUCSFLM 205-15 15/16" 5.12" 3.90" 0.63" 0.55" 1.06" 0.63" 2.68" 1.41" 1.3425" 0.5630" 0.7795" 1/2" 2,542 1,349 SUC 205-15 SFLM 205 1.8
SUCSFLM 205 25mm 5.12" 3.90" 0.63" 0.55" 1.06" 0.63" 2.68" 1.41" 1.3425" 0.5630" 0.7795" M14 2,542 1,349 SUC 205 SFLM 205 1.8
SUCSFLM 205-16 1" 5.12" 3.90" 0.63" 0.55" 1.06" 0.63" 2.68" 1.41" 1.3425" 0.5630" 0.7795" 1/2" 2,542 1,349 SUC 205-16 SFLM 205 1.8
SUCSFLM 206-17 1-1/16" 5.83" 4.61" 0.71" 0.51" 1.22" 0.63" 3.15" 1.58" 1.5000" 0.6260" 0.8740" 1/2" 3,554 1,942 SUC 206-17 SFLM 206 2.2
SUCSFLM 206-18 1-1/8" 5.83" 4.61" 0.71" 0.51" 1.22" 0.63" 3.15" 1.58" 1.5000" 0.6260" 0.8740" 1/2" 3,554 1,942 SUC 206-18 SFLM 206 2.2
SUCSFLM 206 30mm 5.83" 4.61" 0.71" 0.51" 1.22" 0.63" 3.15" 1.58" 1.5000" 0.6260" 0.8740" M14 3,554 1,942 SUC 206 SFLM 206 2.2
SUCSFLM 206-19 1-3/16" 5.83" 4.61" 0.71" 0.51" 1.22" 0.63" 3.15" 1.58" 1.5000" 0.6260" 0.8740" 1/2" 3,554 1,942 SUC 206-19 SFLM 206 2.2
SUCSFLM206-20 1-1/4" 5.83" 4.61" 0.71" 0.51" 1.22" 0.63" 3.15" 1.58" 1.5000" 0.6260" 0.8740" 1/2" 3,554 1,942 SUC 206-20 SFLM 206 2.2
SUCSFLM 207-20 1-1/4" 6.34" 5.12" 0.75" 0.59" 1.34" 0.63" 3.54" 1.75" 1.6890" 0.6890" 1.0000" 1/2" 4,683 2,626 SUC 207-20 SFLM 207 3.1
SUCSFLM 207-21 1-15/16" 6.34" 5.12" 0.75" 0.59" 1.34" 0.63" 3.54" 1.75" 1.6890" 0.6890" 1.0000" 1/2" 4,683 2,626 SUC 207-21 SFLM 207 3.1
SUCSFLM 207-22 1-3/8" 6.34" 5.12" 0.75" 0.59" 1.34" 0.63" 3.54" 1.75" 1.6890" 0.6890" 1.0000" 1/2" 4,683 2,626 SUC 207-22 SFLM 207 3.1
SUCSFLM 207 35mm 6.34" 5.12" 0.75" 0.59" 1.34" 0.63" 3.54" 1.75" 1.6890" 0.6890" 1.0000" M14 4,683 2,626 SUC 207 SFLM 207 3.1
SUCSFLM 207-23 1-7/16" 6.34" 5.12" 0.75" 0.59" 1.34" 0.63" 3.54" 1.75" 1.6890" 0.6890" 1.0000" 1/2" 4,683 2,626 SUC 207-23 SFLM 207 3.1
SUCSFLM 208-24 1-1/2" 6.89" 5.67" 0.83" 0.61" 1.42" 0.63" 3.94" 2.02" 1.9370" 0.7480" 1.1890" 1/2" 5,294 3,057 SUC 208-24 SFLM 208 3.5
SUCSFLM 208-25 1-9/16" 6.89" 5.67" 0.83" 0.61" 1.42" 0.63" 3.94" 2.02" 1.9370" 0.7480" 1.1890" 1/2" 5,294 3,057 SUC 208-25 SFLM 208 3.5
SUCSFLM 208 40mm 6.89" 5.67" 0.83" 0.61" 1.42" 0.63" 3.94" 2.02" 1.9370" 0.7480" 1.1890" M14 5,294 3,057 SUC 208 SFLM 208 3.5
SUCSFLM 209-26 1-5/8" 7.32" 5.83" 0.87" 0.63" 1.50" 0.75" 4.19" 2.06" 1.9370" 0.7480" 1.1890" 5/8" 5,923 3,507 SUC 209-26 SFLM 209 4.0
SUCSFLM 209-27 1-11/16" 7.32" 5.83" 0.87" 0.63" 1.50" 0.75" 4.19" 2.06" 1.9370" 0.7480" 1.1890" 5/8" 5,923 3,507 SUC 209-27 SFLM 209 4.0
SUCSFLM 209-28 1-3/4" 7.32" 5.83" 0.87" 0.63" 1.50" 0.75" 4.19" 2.06" 1.9370" 0.7480" 1.1890" 5/8" 5,923 3,507 SUC 209-28 SFLM 209 4.0
SUCSFLM 209 45mm 7.32" 5.83" 0.87" 0.63" 1.50" 0.75" 4.19" 2.06" 1.9370" 0.7480" 1.1890" M16 5,923 3,507 SUC 209 SFLM 209 4.0
SUCSFLM 210-30 1-7/8" 7.68" 6.18" 0.87" 0.67" 1.57" 0.75" 4.45" 2.15" 2.0315" 0.7480" 1.2835" 5/8" 6,402 4,046 SUC 210-30 SFLM 210 5.3
SUCSFLM 210-31 1-15/16" 7.68" 6.18" 0.87" 0.67" 1.57" 0.75" 4.45" 2.15" 2.0315" 0.7480" 1.2835" 5/8" 6,402 4,046 SUC 210-31 SFLM 210 5.3
SUCSFLM 210 50mm 7.68" 6.18" 0.87" 0.67" 1.57" 0.75" 4.45" 2.15" 2.0315" 0.7480" 1.2835" M16 6,402 4,046 SUC 210 SFLM 210 5.3
SUCSFLM 210-32 2" 7.68" 6.18" 0.87" 0.67" 1.57" 0.75" 4.45" 2.15" 2.0315" 0.7480" 1.2835" 5/8" 6,402 4,046 SUC 210-32 SFLM 210 5.3
SUCSFLM 211-32 2" 8.78" 7.24" 0.98" 0.79" 1.69" 0.75" 5.12" 2.30" 2.1890" 0.8740" 1.3150" 5/8" 7,931 5,036 SUC 211-32 SFLM 211 6.4
SUCSFLM 211-34 2-1/8" 8.78" 7.24" 0.98" 0.79" 1.69" 0.75" 5.12" 2.30" 2.1890" 0.8740" 1.3150" 5/8" 7,931 5,036 SUC 211-34 SFLM 211 6.4
SUCSFLM 211 55mm 8.78" 7.24" 0.98" 0.79" 1.69" 0.75" 5.12" 2.30" 2.1890" 0.8740" 1.3150" M16 7,931 5,036 SUC 211 SFLM 211 6.4
SUCSFLM 211-35 2-3/16" 8.78" 7.24" 0.98" 0.79" 1.69" 0.75" 5.12" 2.30" 2.1890" 0.8740" 1.3150" 5/8" 7,931 5,036 SUC 211-35 SFLM 211 6.4
SUCSFLM 212-36 2-1/4" 9.80" 7.95" 1.14" 0.81" 1.89" 0.91" 5.59" 2.70" 2.5630" 1.0000" 1.5630" 3/4" 9,554 5,921 SUC 212-36 SFLM 212 9.7
SUCSFLM 212 60mm 9.80" 7.95" 1.14" 0.81" 1.89" 0.91" 5.59" 2.70" 2.5630" 1.0000" 1.5630" M20 9,554 5,921 SUC 212 SFLM 212 9.7
SUCSFLM 212-38 2-3/8" 9.80" 7.95" 1.14" 0.81" 1.89" 0.91" 5.59" 2.70" 2.5630" 1.0000" 1.5630" 3/4" 9,554 5,921 SUC 212-38 SFLM 212 9.7
SUCSFLM 212-39 2-7/16" 9.80" 7.95" 1.14" 0.81" 1.89" 0.91" 5.59" 2.70" 2.5630" 1.0000" 1.5630" 3/4" 9,554 5,921 SUC 212-39 SFLM 212 9.7

(5) SNCSFLM 200 Normal Duty 2-Bolt Flange Bearing With Eccentric Locking Collar (large Bolt Holes)

Bearing #
Shaft Diameter (d)
(A)
(E)
(I)
(G)
(L)
(S)
(B)
(Z)
(Bi)
(N)
(M)
Bolt Size
Dynamic Load Rating (LBS)
Static Load Rating (LBS)
Bearing Insert
Housing Number
Weight (LBS)
SNCSFLM 201-8 1/2" 4.45" 3.54" 0.59" 0.47" 1.00" 0.47" 2.36" 1.64" 1.5472" 0.5000" 0.6732" 3/8" 2,331 1,142 SNC 201-8 SFLM 204 1.5
SNCSFLM 202-10 5/8" 4.45" 3.54" 0.59" 0.47" 1.00" 0.47" 2.36" 1.64" 1.5472" 0.5000" 0.6732" 3/8" 2,331 1,142 SNC 202-10 SFLM 204 1.5
SNCSFLM 204-12 3/4" 4.45" 3.54" 0.59" 0.47" 1.00" 0.47" 2.36" 1.64" 1.5472" 0.5000" 0.6732" 3/8" 2,331 1,142 SNC 204-12 SFLM 204 1.5
SNCSFLM 204 20mm 4.45" 3.54" 0.59" 0.47" 1.00" 0.47" 2.36" 1.64" 1.5472" 0.5000" 0.6732" M10 2,331 1,142 SNC 204 SFLM 204 1.5
SNCSFLM 205-14 7/8" 5.12" 3.90" 0.63" 0.55" 1.06" 0.63" 2.68" 1.69" 1.6220" 0.5630" 0.6850" 1/2" 2,542 1,349 SNC 205-14 SFLM 205 2.0
SNCSFLM 205-15 15/16" 5.12" 3.90" 0.63" 0.55" 1.06" 0.63" 2.68" 1.69" 1.6220" 0.5630" 0.6850" 1/2" 2,542 1,349 SNC 205-15 SFLM 205 2.0
SNCSFLM 205 25mm 5.12" 3.90" 0.63" 0.55" 1.06" 0.63" 2.68" 1.69" 1.6220" 0.5630" 0.6850" M14 2,542 1,349 SNC 205 SFLM 205 2.0
SNCSFLM 205-16 1" 5.12" 3.90" 0.63" 0.55" 1.06" 0.63" 2.68" 1.69" 1.6220" 0.5630" 0.6850" 1/2" 2,542 1,349 SNC 205-16 SFLM 205 2.0
SNCSFLM 206-17 1-1/16" 5.83" 4.61" 0.71" 0.51" 1.22" 0.63" 3.15" 1.89" 1.8110" 0.6260" 0.7165" 1/2" 3,554 1,942 SNC 206-17 SFLM 206 2.4
SNCSFLM 206-18 1-1/8" 5.83" 4.61" 0.71" 0.51" 1.22" 0.63" 3.15" 1.89" 1.8110" 0.6260" 0.7165" 1/2" 3,554 1,942 SNC 206-18 SFLM 206 2.4
SNCSFLM 206 30mm 5.83" 4.61" 0.71" 0.51" 1.22" 0.63" 3.15" 1.89" 1.8110" 0.6260" 0.7165" M14 3,554 1,942 SNC 206 SFLM 206 2.4
SNCSFLM 206-19 1-3/16" 5.83" 4.61" 0.71" 0.51" 1.22" 0.63" 3.15" 1.89" 1.8110" 0.6260" 0.7165" 1/2" 3,554 1,942 SNC 206-19 SFLM 206 2.4
SNCSFLM 206-20 1-1/4" 5.83" 4.61" 0.71" 0.51" 1.22" 0.63" 3.15" 1.89" 1.8110" 0.6260" 0.7165" 1/2" 3,554 1,942 SNC 206-20 SFLM 206 2.4
SNCSFLM 207-20 1-1/4" 6.34" 5.12" 0.75" 0.59" 1.34" 0.63" 3.54" 2.02" 1.9606" 0.6890" 0.7402" 1/2" 4,683 2,626 SNC 207-20 SFLM 207 3.1
SNCSFLM 207-21 1-15/16" 6.34" 5.12" 0.75" 0.59" 1.34" 0.63" 3.54" 2.02" 1.9606" 0.6890" 0.7402" 1/2" 4,683 2,626 SNC 207-21 SFLM 207 3.1
SNCSFLM 207-22 1-3/8" 6.34" 5.12" 0.75" 0.59" 1.34" 0.63" 3.54" 2.02" 1.9606" 0.6890" 0.7402" 1/2" 4,683 2,626 SNC 207-22 SFLM 207 3.1
SNCSFLM 207 35mm 6.34" 5.12" 0.75" 0.59" 1.34" 0.63" 3.54" 2.02" 1.9606" 0.6890" 0.7402" M14 4,683 2,626 SNC 207 SFLM 207 3.1
SNCSFLM 207-23 1-7/16" 6.34" 5.12" 0.75" 0.59" 1.34" 0.63" 3.54" 2.02" 1.9606" 0.6890" 0.7402" 1/2" 4,683 2,626 SNC 207-23 SFLM 207 3.1
SNCSFLM 208-24 1-1/2" 6.89" 5.67" 0.83" 0.61" 1.42" 0.63" 3.94" 2.20" 2.1220" 0.7480" 0.8425" 1/2" 5,294 3,057 SNC 208-24 SFLM 208 4.0
SNCSFLM 208-25 1-9/16" 6.89" 5.67" 0.83" 0.61" 1.42" 0.63" 3.94" 2.20" 2.1220" 0.7480" 0.8425" 1/2" 5,294 3,057 SNC 208-25 SFLM 208 4.0
SNCSFLM 208 40mm 6.89" 5.67" 0.83" 0.61" 1.42" 0.63" 3.94" 2.20" 2.1220" 0.7480" 0.8425" M14 5,294 3,057 SNC 208 SFLM 208 4.0
SNCSFLM 209-26 1-5/8" 7.32" 5.83" 0.87" 0.63" 1.50" 0.75" 4.19" 2.24" 2.1220" 0.7480" 0.8425" 5/8" 5,923 3,507 SNC 209-26 SFLM 209 4.4
SNCSFLM 209-27 1-11/16" 7.32" 5.83" 0.87" 0.63" 1.50" 0.75" 4.19" 2.24" 2.1220" 0.7480" 0.8425" 5/8" 5,923 3,507 SNC 209-27 SFLM 209 4.4
SNCSFLM 209-28 1-3/4" 7.32" 5.83" 0.87" 0.63" 1.50" 0.75" 4.19" 2.24" 2.1220" 0.7480" 0.8425" 5/8" 5,923 3,507 SNC 209-28 SFLM 209 4.4
SNCSFLM 209 45mm 7.32" 5.83" 0.87" 0.63" 1.50" 0.75" 4.19" 2.24" 2.1220" 0.7480" 0.8425" M16 5,923 3,507 SNC 209 SFLM 209 4.4
SNCSFLM 210-30 1-7/8" 7.68" 6.18" 0.87" 0.67" 1.57" 0.75" 4.45" 2.37" 2.2480" 0.7480" 0.9685" 5/8" 6,402 4,046 SNC 210-30 SFLM 210 5.7
SNCSFLM 210-31 1-15/16" 7.68" 6.18" 0.87" 0.67" 1.57" 0.75" 4.45" 2.37" 2.2480" 0.7480" 0.9685" 5/8" 6,402 4,046 SNC 210-31 SFLM 210 5.7
SNCSFLM 210 50mm 7.68" 6.18" 0.87" 0.67" 1.57" 0.75" 4.45" 2.37" 2.2480" 0.7480" 0.9685" M16 6,402 4,046 SNC 210 SFLM 210 5.7
SNCSFLM 210-32 2" 7.68" 6.18" 0.87" 0.67" 1.57" 0.75" 4.45" 2.37" 2.2480" 0.7480" 0.9685" 5/8" 6,402 4,046 SNC 210-32 SFLM 210 5.7
SNCSFLM 211-32 2" 8.78" 7.24" 0.98" 0.79" 1.69" 0.75" 5.12" 2.70" 2.5906" 0.8740" 1.0906" 5/8" 7,931 5,036 SNC 211-32 SFLM 211 7.0
SNCSFLM 211-34 2-1/8" 8.78" 7.24" 0.98" 0.79" 1.69" 0.75" 5.12" 2.70" 2.5906" 0.8740" 1.0906" 5/8" 7,931 5,036 SNC 211-34 SFLM 211 7.0
SNCSFLM 211 55mm 8.78" 7.24" 0.98" 0.79" 1.69" 0.75" 5.12" 2.70" 2.5906" 0.8740" 1.0906" M16 7,931 5,036 SNC 211 SFLM 211 7.0
SNCSFLM 211-35 2-3/16" 8.78" 7.24" 0.98" 0.79" 1.69" 0.75" 5.12" 2.70" 2.5906" 0.8740" 1.0906" 5/8" 7,931 5,036 SNC 211-35 SFLM 211 7.0
SNCSFLM 212-36 2-1/4" 9.80" 7.95" 1.14" 0.81" 1.89" 0.91" 5.59" 2.98" 2.8425" 1.0000" 1.2165" 3/4" 9,554 5,921 SNC 212-36 SFLM 212 10.6
SNCSFLM 212 60mm 9.80" 7.95" 1.14" 0.81" 1.89" 0.91" 5.59" 2.98" 2.8425" 1.0000" 1.2165" M20 9,554 5,921 SNC 212 SFLM 212 10.6
SNCSFLM 212-38 2-3/8" 9.80" 7.95" 1.14" 0.81" 1.89" 0.91" 5.59" 2.98" 2.8425" 1.0000" 1.2165" 3/4" 9,554 5,921 SNC 212-38 SFLM 212 10.6
SNCSFLM 212-39 2-7/16" 9.80" 7.95" 1.14" 0.81" 1.89" 0.91" 5.59" 2.98" 2.8425" 1.0000" 1.2165" 3/4" 9,554 5,921 SNC 212-39 SFLM 212 10.6

(6) SUESFLM 200 Normal Duty 2-Bolt Flange Bearing With Tru-Loc Concentric Locking Collar Clamp (Large Bolt Holes)

Bearing #
Shaft Diameter (d)
(A)
(E)
(I)
(G)
(L)
(S)
(B)
(Z)
(Bi)
(N)
(M)
Bolt Size
Dynamic Load Rating (LBS)
Static Load Rating (LBS)
Bearing Insert
Housing Number
Weight (LBS)
SUESFLM 204-12 3/4" 4.45" 3.54" 0.59" 0.47" 1.00" 0.47" 2.36" 1.39" 1.2992" 0.5000" 0.7205" 3/8" 2,331 1,142 SUE 202-10 SFLM 204 1.5
SUESFLM 204 20mm 4.45" 3.54" 0.59" 0.47" 1.00" 0.47" 2.36" 1.39" 1.2992" 0.5000" 0.7205" M10 2,331 1,142 SUE 204-12 SFLM 204 1.5
SUESFLM 205-14 7/8" 5.12" 3.90" 0.63" 0.55" 1.06" 0.63" 2.68" 1.46" 1.3937" 0.5630" 0.7795" 1/2" 2,542 1,349 SUE 205-14 SFLM 205 1.8
SUESFLM 205-15 15/16" 5.12" 3.90" 0.63" 0.55" 1.06" 0.63" 2.68" 1.46" 1.3937" 0.5630" 0.7795" 1/2" 2,542 1,349 SUE 205-15 SFLM 205 1.8
SUESFLM 205 25mm 5.12" 3.90" 0.63" 0.55" 1.06" 0.63" 2.68" 1.46" 1.3937" 0.5630" 0.7795" M14 2,542 1,349 SUE 205 SFLM 205 1.8
SUESFLM 205-16 1" 5.12" 3.90" 0.63" 0.55" 1.06" 0.63" 2.68" 1.46" 1.3937" 0.5630" 0.7795" 1/2" 2,542 1,349 SUE 205-16 SFLM 205 1.8
SUESFLM 206-17 1-1/16" 5.83" 4.61" 0.71" 0.51" 1.22" 0.63" 3.15" 1.65" 1.5669" 0.6260" 0.8740" 1/2" 3,554 1,942 SUE 206-17 SFLM 206 2.2
SUESFLM 206-18 1-1/8" 5.83" 4.61" 0.71" 0.51" 1.22" 0.63" 3.15" 1.65" 1.5669" 0.6260" 0.8740" 1/2" 3,554 1,942 SUE 206-18 SFLM 206 2.2
SUESFLM 206 30mm 5.83" 4.61" 0.71" 0.51" 1.22" 0.63" 3.15" 1.65" 1.5669" 0.6260" 0.8740" M14 3,554 1,942 SUE 206 SFLM 206 2.2
SUESFLM 206-19 1-3/16" 5.83" 4.61" 0.71" 0.51" 1.22" 0.63" 3.15" 1.65" 1.5669" 0.6260" 0.8740" 1/2" 3,554 1,942 SUE 206-19 SFLM 206 2.2
SUESFLM 206-20 1-1/4" 5.83" 4.61" 0.71" 0.51" 1.22" 0.63" 3.15" 1.65" 1.5669" 0.6260" 0.8740" 1/2" 3,554 1,942 SUE 206-20 SFLM 206 2.2
SUESFLM 207-20 1-1/4" 6.34" 5.12" 0.75" 0.59" 1.34" 0.63" 3.54" 1.79" 1.7283" 0.6890" 1.0000" 1/2" 4,683 2,626 SUE 207-20 SFLM 207 3.1
SUESFLM 207-21 1-15/16" 6.34" 5.12" 0.75" 0.59" 1.34" 0.63" 3.54" 1.79" 1.7283" 0.6890" 1.0000" 1/2" 4,683 2,626 SUE 207-21 SFLM 207 3.1
SUESFLM 207-22 1-3/8" 6.34" 5.12" 0.75" 0.59" 1.34" 0.63" 3.54" 1.79" 1.7283" 0.6890" 1.0000" 1/2" 4,683 2,626 SUE 207-22 SFLM 207 3.1
SUESFLM 207 35mm 6.34" 5.12" 0.75" 0.59" 1.34" 0.63" 3.54" 1.79" 1.7283" 0.6890" 1.0000" M14 4,683 2,626 SUE 207 SFLM 207 3.1
SUESFLM 207-23 1-7/16" 6.34" 5.12" 0.75" 0.59" 1.34" 0.63" 3.54" 1.79" 1.7283" 0.6890" 1.0000" 1/2" 4,683 2,626 SUE 207-23 SFLM 207 3.1
SUESFLM 208-24 1-1/2" 6.89" 5.67" 0.83" 0.61" 1.42" 0.63" 3.94" 2.06" 1.9764" 0.7480" 1.1890" 1/2" 5,294 3,057 SUE 208-24 SFLM 208 3.7
SUESFLM 208-25 1-9/16" 6.89" 5.67" 0.83" 0.61" 1.42" 0.63" 3.94" 2.06" 1.9764" 0.7480" 1.1890" 1/2" 5,294 3,057 SUE 208-25 SFLM 208 3.7
SUESFLM 208 40mm 6.89" 5.67" 0.83" 0.61" 1.42" 0.63" 3.94" 2.06" 1.9764" 0.7480" 1.1890" M14 5,294 3,057 SUE 208 SFLM 208 3.7
SUESFLM 209-26 1-5/8" 7.32" 5.83" 0.87" 0.63" 1.50" 0.75" 4.19" 2.09" 1.9764" 0.7480" 1.1890" 5/8" 5,923 3,507 SUE 209-26 SFLM 209 4.2
SUESFLM 209-27 1-11/16" 7.32" 5.83" 0.87" 0.63" 1.50" 0.75" 4.19" 2.09" 1.9764" 0.7480" 1.1890" 5/8" 5,923 3,507 SUE 209-27 SFLM 209 4.2
SUESFLM 209-28 1-3/4" 7.32" 5.83" 0.87" 0.63" 1.50" 0.75" 4.19" 2.09" 1.9764" 0.7480" 1.1890" 5/8" 5,923 3,507 SUE 209-28 SFLM 209 4.2
SUESFLM 209 45mm 7.32" 5.83" 0.87" 0.63" 1.50" 0.75" 4.19" 2.09" 1.9764" 0.7480" 1.1890" M16 5,923 3,507 SUE 209 SFLM 209 4.2
SUESFLM 210-30 1-7/8" 7.68" 6.18" 0.87" 0.67" 1.57" 0.75" 4.45" 2.19" 2.0709" 0.7480" 1.2835" 5/8" 6,402 4,046 SUE 210-30 SFLM 210 5.5
SUESFLM 210-31 1-15/16" 7.68" 6.18" 0.87" 0.67" 1.57" 0.75" 4.45" 2.19" 2.0709" 0.7480" 1.2835" 5/8" 6,402 4,046 SUE 210-31 SFLM 210 5.5
SUESFLM 210 50mm 7.68" 6.18" 0.87" 0.67" 1.57" 0.75" 4.45" 2.19" 2.0709" 0.7480" 1.2835" M16 6,402 4,046 SUE 210 SFLM 210 5.5
SUESFLM 210-32 2" 7.68" 6.18" 0.87" 0.67" 1.57" 0.75" 4.45" 2.19" 2.0709" 0.7480" 1.2835" 5/8" 6,402 4,046 SUE 210-32 SFLM 210 5.5
SUESFLM 211-32 2" 8.78" 7.24" 0.98" 0.79" 1.69" 0.75" 5.12" 2.34" 2.2283" 0.8740" 1.3150" 5/8" 7,931 5,036 SUE 211-32 SFLM 211 6.6
SUESFLM 211-34 2-1/8" 8.78" 7.24" 0.98" 0.79" 1.69" 0.75" 5.12" 2.34" 2.2283" 0.8740" 1.3150" 5/8" 7,931 5,036 SUE 211-34 SFLM 211 6.6
SUESFLM 211 55mm 8.78" 7.24" 0.98" 0.79" 1.69" 0.75" 5.12" 2.34" 2.2283" 0.8740" 1.3150" M16 7,931 5,036 SUE 211 SFLM 211 6.6
SUESFLM 211-35 2-3/16" 8.78" 7.24" 0.98" 0.79" 1.69" 0.75" 5.12" 2.34" 2.2283" 0.8740" 1.3150" 5/8" 7,931 5,036 SUE 211-35 SFLM 211 6.6
SUESFLM 212-36 2-1/4" 9.80" 7.95" 1.14" 0.81" 1.89" 0.91" 5.59" 2.76" 2.6220" 1.0000" 1.5630" 3/4" 9,554 5,921 SUE 212-36 SFLM 212 9.9
SUESFLM 212 60mm 9.80" 7.95" 1.14" 0.81" 1.89" 0.91" 5.59" 2.76" 2.6220" 1.0000" 1.5630" M20 9,554 5,921 SUE 212 SFLM 212 9.9
SUESFLM 212-38 2-3/8" 9.80" 7.95" 1.14" 0.81" 1.89" 0.91" 5.59" 2.76" 2.6220" 1.0000" 1.5630" 3/4" 9,554 5,921 SUE 212-38 SFLM 212 9.9
SUESFLM 212-39 2-7/16" 9.80" 7.95" 1.14" 0.81" 1.89" 0.91" 5.59" 2.76" 2.6220" 1.0000" 1.5630" 3/4" 9,554 5,921 SUE 212-39 SFLM 212 9.9

Company Information

We are a professional bearing exporter in China, producing many different types and sizes of bearings. We can provide you with excellent service in a wide range of bearings with world-class quality, such as deep groove ball bearings, spherical roller bearings, self-aligning ball bearings, cylindrical roller bearings, tapered roller bearings, angular contact ball bearings, needle roller bearings, crossed roller bearings, pillow block bearing, slewing bearings, plain bearings, etc. Bearings can also provide OEM services according to customer requirements. Our bearings products are widely used in various applications, such as port, ship, vehicle, mining, engineering, lifting, environmental protection, oil, chemicals, light industry, metallurgical machinery, the military, etc. Products are exported to the United States, Germany, Japan, Spain, Canada, Italy, France, Finland, South Korea, India, Singapore, Brazil, Australia, and other countries. If you need stainless steel bearings, please contact us.

Q. Are you a trading company or a manufacturer?

A: We are a manufacturer.

Q: How long is your stainless steel bearings delivery time?

A: Generally, it is 3-5 days if the goods are in stock. Or it is 15-20 days if the goods are not in stock, according to quantity.

Q: Do you provide samples for stainless steel bearings? Is it free or extra?

A: Yes, we could offer the sample for free but do not pay the freight cost.

Q: Could you accept OEM and customize stainless steel bearings?

A: We can customize it for you according to the sample or drawing.

Q: What are your terms of payment?

A: Payment<=1000USD, 100% in advance.Payment>=1000USD, 30% T/T in advance ,pay the balance before shippment.

Q: Will you check these products before shipment?

A: Our factory QC Process System will strictly inspect products before shipment. We have a professional QC team.

Q: What will we do if you are unsatisfied with the product?

A: If you have any abnormal, Please contact us for the first time, and we will immediately process them.

If you need stainless steel bearings or any models of bearings, please contact me!

Products Category

industries we service

We promise will offer the best price by the high quality in china! We also accept special order about the products. If you are interested in our products. Please do not hesitate to let us know.We are pleased to give you the detailed information.We promise that our products would be safety and were in high quality and reasonable price. If you are interested in our products, please contact us asap.We are sincerely looking for your cooperation.

Most of our products are exported to Europe or Americas, both standard and nonstandard products available. We can produce as per your drawing or sample. Material can be standard or as per your special request. If you choose us, you choose reliable.

hzpt oem odm banner
