Stainless Steel Leaf Chain

The stainless steel leaf chain consists of staggering plates and is fixed together by rivet pins. Their manufacturing accuracy is as high as our roller chains. Selected steel and unique heat treatment ensure high strength and durability. Stainless steel leaf chains are ideal for heavy-duty hanging, balancing, or motion transmission applications like forklifts, material handling, lift trucks, and container lifts.

Get a Quote

Stainless Steel Leaf Chain

The stainless steel leaf chain consists of staggering plates and is fixed together by rivet pins. Their manufacturing accuracy is as high as our roller chains. Leaf chains are used in applications that require strong, flexible links to transmit motion or lift. Selected steel and unique heat treatment ensure high strength and durability. The first or more numbers in the leaf chain represent the chain pitch, and the last two numbers represent the tie of the chain.

Stainless Steel Leaf Chain Stainless Steel Leaf Chain

HZPT has the best prices and quality available on leaf chains with our premium and economy lines. You’ll find the right product whether you need a leaf chain for forklifts, machine tools, rolling door counterbalances, or any other application. We vet all leaf chain suppliers and products for the highest-quality, most durable leaf chains. All of our leaf chains are heavy-duty with tensile strengths that vary from thousands to tens of thousands of pounds. Our store features two types of leaf chains, the AL-series leaf chain for lighter lifting and the BL series leaf chain for more heavy-duty work. Additionally, our leaf chains meet both ANSI and ASME standards.

When you buy leaf chains from HZPT, you won’t have to reorder for a good while. We have confidence in our products. If you’re not sure what chain you need to reorder for your machine, please don’t hesitate to give us a call. We get calls from customers regarding this issue all the time, and we’re happy to help.

Stainless Steel Leaf Chain Size Chart

Stainless Steel Leaf Chain

(1) LH Stainless Steel Leaf Chain

ISO Chain No. ANSI Chain No. Pitch Chain Lacing Plate depth Plate thickness Pin diameter Pin length Ultimate tensile strength Average tensile strength Weight per meter
P h2(max) T(max) d2(max) L(max) Q(min) Q0 q
mm mm mm mm mm kN kN kg/m
LH0822SS BL422SS 12.7 2X2 12.07 2.08 5.09 11.05 13.32 16.56 0.64
LH0823SS BL423SS 2X3 13.16 13.32 16.56 0.8
LH0834SS BL434SS 3X4 17.4 20.04 24.84 1.12
LH0844SS BL444SS 4X4 19.51 26.7 33.6 1.28
LH0846SS BL446SS 4X6 23.75 26.7 33.6 1.6
LH0866SS BL466SS 6X6 17.99 10.02 49.02 1.92
LH0888SS BL488SS 8X8 36.45 53.4 65.64 2.56
LH1022SS BL522SS 15.875 2X2 15.09 2.44 5.96 12.9 20.04 25.86 0.88
LH1023SS BL523SS 2X3 15.37 20.04 25.86 1.1
LH1034SS BL634SS 3X4 20.32 29.34 39.36 1.5
LH1044SS BL544SS 4X4 22.78 40.02 50.7 1.8
LH1046SS BL546SS 4X6 17.74 40.02 50.7 2.2
LH1066SS BL566SS 6X6 32.69 60.06 75.06 2.65
LH1088SS BL588SS 8X8 42.57 80.04 101.7 3.5
LH1222SS BL622SS 19.05 2X2 18.11 3.3 7.94 17.37 29.34 38.16 1.45
LH1223SS BL623SS 2X3 20.73 29.34 38.16 1.8
LH1234SS BL634SS 3X4 27.43 45.36 61.68 2.5
LH1244SS BL644SS 4X4 30.78 58.74 72.54 2.9
LH1246SS BL646SS 4X6 37.49 58.74 72.54 3.6
LH1266SS BL666SS 6X6 44.2 88.08 114.48 4.3
LH1288SS BL688SS 8X8 57.61 117.42 143.28 5.8
LH1622SS BL822SS 25.4 2X2 24.13 4.09 9.54 21.34 50.7 64.92 2.2
LH1623SS BL823SS 2X3 25.48 50.7 64.92 2.7
LH1634SS BL834SS 3X4 33.76 77.4 102 3.8
LH1644SS BL844SS 4X4 37.9 101.4 128.76 4.3
LH1646SS BL846SS 4X6 46.18 101.4 128.76 5.4
LH1666SS BL866SS 6X6 54.46 152.16 194.7 6.5
LH1688SS BL888SS 8X8 71.02 202.86 259.62 8.6

(2) BL Stainless Steel Leaf Chain

DIN ISO Chain No. ANSI Chain No. Pitch Chain Lacing Plate depth Plate thickness Pin diameter Pin length Ultimate tensile strength Average tensile strength Weight per meter
P h2(max) T(max) d2(max) L(max) Q(min) Q0 q
mm mm mm mm mm kN kN kg/m
LH2022SS BL1022SS 31.75 2X2 30.18 4.9 11.11 25.37 69.36 90.48 3.4
LH2023SS BL1023SS 2X3 30.33 69.36 90.48 4.3
LH2034SS BL1034SS 3X4 40.23 109.44 138.96 6
LH2044SS BL1044SS 4X4 45.19 138.78 174.84 6.9
LH2046SS BL1046SS 4X6 55.09 138.78 174.84 8.6
LH2066SS BL1066SS 6X6 65 208.2 258.18 10.3
LH2088SS BL1088SS 8X8 84.81 277.56 333.06 13.8
LH2422SS BL1222SS 38.1 2X2 36.2 5.77 12.71 29.62 90.72 115.2 4.6
LH2423SS BL1223SS 2X3 35.43 90.72 115.2 5.8
LH2434SS BL1234SS 3X4 47.07 146.76 189.54 8.1
LH2444SS BL1244SS 4X4 52.88 181.5 228.6 9.3
LH2446SS BL1246SS 4X6 64.52 181.5 228.6 11.6
LH2466SS BL1266SS 6X6 76.15 272.22 326.16 13.9
LH2488SS BL1288SS 8X8 99.42 363 435.6 18.6
LH2822SS BL1422SS 44.45 2X2 42.24 6.55 14.29 33.55 114.78 135.42 6.1
LH2823SS BL1423SS 2X3 40.16 114.78 135.42 7.6
LH2834SS BL1434SS 3X4 53.37 189.48 196.56 10.6
LH2844SS BL1444SS 4X4 59.97 229.56 270.72 12.2
LH2846SS BL1446SS 4X6 73.18 229.56 270.72 15.2
LH2866SS BL1466SS 6X6 86.39 346.98 409.44 18.2
LH2888SS BL1488SS 8X8 112.8 459.06 541.68 24.3
LH3222SS BL1622SS 50.8 2X2 48.26 7.52 17.46 39.01 173.46 204.66 8
LH3223SS BL1623SS 2X3 46.58 173.46 204.66 10
LH3234SS BL1634SS 3X4 61.72 264.24 311.76 14
LH3244SS BL1644SS 4X4 69.29 346.98 408.24 16
LH3246SS BL1646SS 4X6 84.43 346.98 408.24 20
LH3266SS BL1666SS 6X6 99.57 514.44 600.42 24
LH3288SS BL1688SS 8X8 129.84 693.9 818.76 32
LH4022SS BL2022SS 63.5 2X2 60.33 9091 23.81 51.74 260.22 307.02 15.87
LH4023SS BL2023SS 2X3 61.7 260.22 307.02 19.8
LH4034SS BL2034SS 3X4 81.61 389.64 459.72 27.7
LH4044SS BL2044SS 4X4 91.57 520.44 614.1 31.6
LH4046SS BL2046SS 4X6 111.48 520.44 614.1 39.5
LH4066SS BL2066SS 6X6 131.39 780.66 921.12 47.4
LH4088SS BL2088SS 8X8 171.22 1040.88 1227.9 63.2

(3) LL Stainless Steel Leaf Chain

DIN ISO Chain No. Pitch Chain Lacing Plate depth Plate thickness Pin diameter Pin length Ultimate tensile strength Average tensile strength Weight per meter
P h2(max) T(max) d2(max) L(max) Q(min) Q0 q
mm mm mm mm mm kN kN kg/m
LL0822SS 12.7 2X2 10.6 1.3 4.45 7.6 10.68 12.24 0.35
LL0844SS 4X4 13 18.66 21.42 0.069
LL0866SS 6X6 18.2 26.7 30.54 1
LL0888SS 8X8 23.5 37.32 42.72 1.33
LL1022SS 15.875 2X2 13.7 1.6 5.08 9.2 13.38 15.3 0.54
LL1044SS 4X4 15.8 26.7 30.6 1.06
LL1066SS 6X6 22.1 40.02 45.78 1.57
LL1088SS 8X8 28.8 53.4 61.14 2.1
LL1222SS 19.05 2X2 16 1.85 5.72 10.4 17.34 19.92 0.73
LL1244SS 4X4 17.9 34.68 39.84 1.44
LL1266SS 6X6 25.4 52.02 59.82 2.15
LL1288SS 8X8 32.9 69.36 79.74 2.84

Stainless Steel Leaf Chains Design Characteristics

  • Select high-quality stainless steel material
  • High strength and precision
  • Corrosion resistance, high and low-temperature resistance
  • Long life, clean and sanitary

Stainless Steel Leaf Chain Applications

Stainless steel leaf chains are constructed with stacked plates and pins to provide high strength for various high-load applications. Stainless steel leaf chains is ideal for heavy-duty hanging, balancing, or motion transmission applications like:

  • Forklifts
  • Material Handling
  • Lift trucks
  • Container lifts
  • Machine tools
  • Elevator and oven doors
  • Spinning frames
Stainless Steel Leaf Chain Applications Stainless Steel Leaf Chain Applications

Why Does the Leaf Chain Have a Deviation Problem?

1. Too fast chain starting speed can also cause deviation. Start at a slow pace at this time. If the winding motor is used, it can be restarted after two jogs and can also get rid of the deviation condition reasonably.

2. The initial supporting force of the chain is minimal. The lack of support at the conveyor belt leaving the drum causes the conveyor belt to deviate. This type of situation usually occurs at startup, and the way to deal with it is to adjust the tensioning device to increase the initial support force.

3. The end transmission roller bearing is damaged and does not rotate, or the left and right roller bearings are damaged and do not rotate too much. The cause of the damage is that the tail sinks and floats too much. There is no immediate repair and replacement of the components that have been damaged or rotated inefficiently, which increases the frictional resistance and leads to deviation.

4. If the load of the stainless steel chain is too large, it will run off if it exceeds the electrical working capacity. The beneficial side of running deviation at this time is the maintenance effect on electricity. Otherwise, the electricity will be damaged after a long time. But for the operation, it is a deviation accident.

5. To eliminate the deviation of the stainless steel chain conveyor belt, first look for the reason for the departure and then take measures to deal with it. In that way, many conveniences have been produced for everyone’s work.

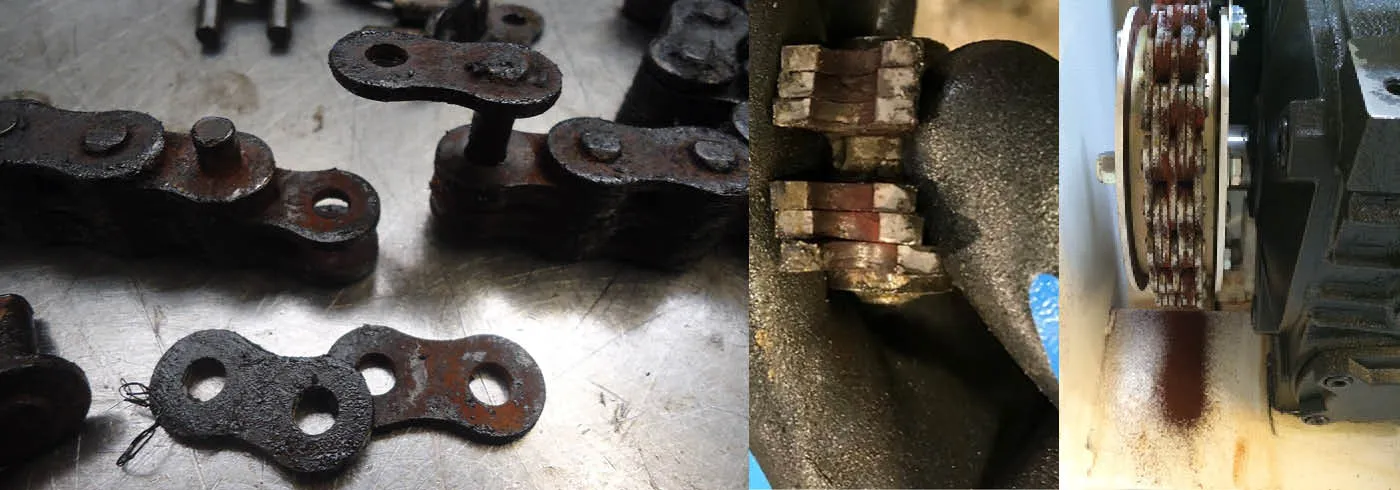

Stainless Steel Leaf Chain Inspection

It is important to inspect your stainless steel leaf chains regularly to prevent catastrophic failure that can result in equipment and person damage. The chart below indicates several common wear and protocols for your stainless steel leaf chain.

Stainless Steel Leaf Chain Inspection

Problem Possible Cause Solution
Circumferential Wear of Plate Wear Replace the chain if wear is or exceeds 5% of original side-plate height.
Oblique Wear of Plate and Pin Head Misalignment of Guide or Pulleys Re-Align Machine
Stiff Link Dust or foreign substances are contained in a bending portion
corrosion and rust
Bent Pin
Wash Chain and Lubricate
Replace the Chain
Replace the Chain
Abnormal Protrusion or Rotation of Pin Head Excessive Tension by Overload or Insufficient Lubrication Replace the chain, lubricate, and eliminate overload
Wear Elongation This occurs with normal wear over time or can be the result of a permanent deformation due to overload. Replace the chain when its length becomes 1.03L.
Note: Wear elongation of a chain will lower its tensile strength (wear elongation of 3% lowers the tensile strength by 18%)
The wear life of the chain can be increased by using lubrication.
Cracked Plate (1) where the crack from hole of a link plate in the direction perpendicular to tension direction. Load exceeding the allowable tension of chain Replace the chain with a chain of higher maximum allowable tension, or lower the load of dynamic shock load.
Cracked Plate (2) where the crack takes place in an oblique direction against tension direction Heavy rust or corrosion to a corrosive material. Replace the chain and protect it from corrosive circumstances.
Broken Plate by High Tension Overload Replace the chain and eliminate the cause of overload.
Enlarged plate hole Overload Replace the chain and eliminate the cause of overload.
Corrosion of pit Corrosive Circumstances Replace the chain, and protect from corrosive circumstances
Wear of Connecting Pin Normal Wear Replace the Worn Component
