Stainless Steel Splined Hubs with Flange

Stainless Steel Splined Hubs with Flange

Stainless steel splined hubs with flange are mechanical components used to connect two shafts together and transmit torque. They are commonly used in machinery and equipment that require precise and efficient power transmission.

Splined hubs are designed with a series of splines or ridges on the outer surface of the hub, which mesh with corresponding splines on the inner surface of a mating component, such as a shaft. The splines provide a secure and precise connection that can transmit high levels of torque without slipping. The flange on the splined hub is a flat, circular disc that extends from the hub and provides a mounting surface for other components, such as couplings or bearings. The flange can also help to support the weight of the shaft and the attached components.

Stainless steel is a popular material for splined hubs because it is durable, corrosion-resistant, and can withstand high temperatures and pressures. This makes it suitable for use in harsh environments and applications where hygiene and cleanliness are important, such as in the food and beverage industry. If you are looking for a strong, durable, and corrosion-resistant way to connect two shafts together, then stainless steel splined hubs with flange are a great option. They are available in a variety of sizes and materials to suit your specific needs.

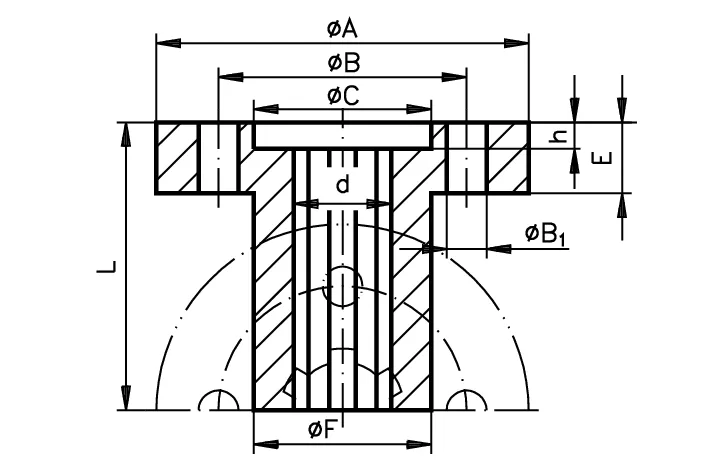

▍Stainless Steel Splined Hubs with Flange Dimensions:

Profile Type [mm]	Material	ØA  [mm]	ØB [mm]	ØB1  [mm]	Ø C H7 [mm]	Ø F h8 [mm	Ø d H7 [mm]	E  [mm]	h  [mm]	L  [mm]	Weight [kg]
KN 11 x 14	Stainless Steel	42	28	4.5	20	20	11	8	3	35	0.1
KN 13 x 16	Stainless Steel	50	36	4.5	22	25	13	8	3	40	0.18
KN 16 x 20	Stainless Steel	52	38	5.5	25	28	16	10	3	40	0.22
KN 18 x 22	Stainless Steel	54	40	5.5	30	30	18	10	3.5	45	0.26
KN 21 x 25	Stainless Steel	62	48	6.6	35	34	21	10	3.5	50	0.34
KN 23 x 28	Stainless Steel	64	50	6.6	36	36	23	10	3.5	55	0.41
KN 26 x 32	Stainless Steel	70	56	6.6	40	42	26	10	3.5	60	0.5
KN 28 x 34	Stainless Steel	78	60	9	46	45	28	12	3.5	60	0.64
KN 32 x 38	Stainless Steel	82	65	9	50	50	32	12	3.5	60	0.72
KN 36 x 42	Stainless Steel	90	70	9	52	52	36	16	4	80	0.94
KN 42 x 48	Stainless Steel	95	75	11	60	60	42	16	4	80	1.22
KN 46 x 54	Stainless Steel	100	80	11	65	65	46	16	4	100	1.5

▍Advantages of Stainless Steel Splined Hubs with Flange

The advantages of using stainless steel splined hubs with flange include:

1. Corrosion resistance: Stainless steel splined hubs with flange is highly resistant to corrosion, which makes it suitable for use in harsh environments, such as those found in marine or chemical processing industries.

2. Durability: Stainless steel is a strong and durable material that can withstand high levels of stress and wear without degrading. This makes stainless steel splined hubs with flange suitable for use in heavy-duty applications.

3. High temperature resistance: Stainless steel can withstand high temperatures without losing its strength or corroding, which makes stainless steel splined hubs with flange suitable for use in high-temperature applications such as steam turbines.

4. Hygiene: Stainless steel is easy to clean and sanitize, which makes it suitable for use in applications where hygiene is important, such as in the food and beverage industry.

5. Precise power transmission: The splined design of the splined hub provides a secure and precise connection that can transmit high levels of torque without slipping, which makes it suitable for use in machinery and equipment that require precise and efficient power transmission.

6. Flange for mounting: The flange on the stainless steel splined hub provides a convenient and secure mounting surface for other components, such as bearings or couplings, which simplifies the assembly and maintenance of the equipment.

▍Other Types of Splined Hubs with Flange

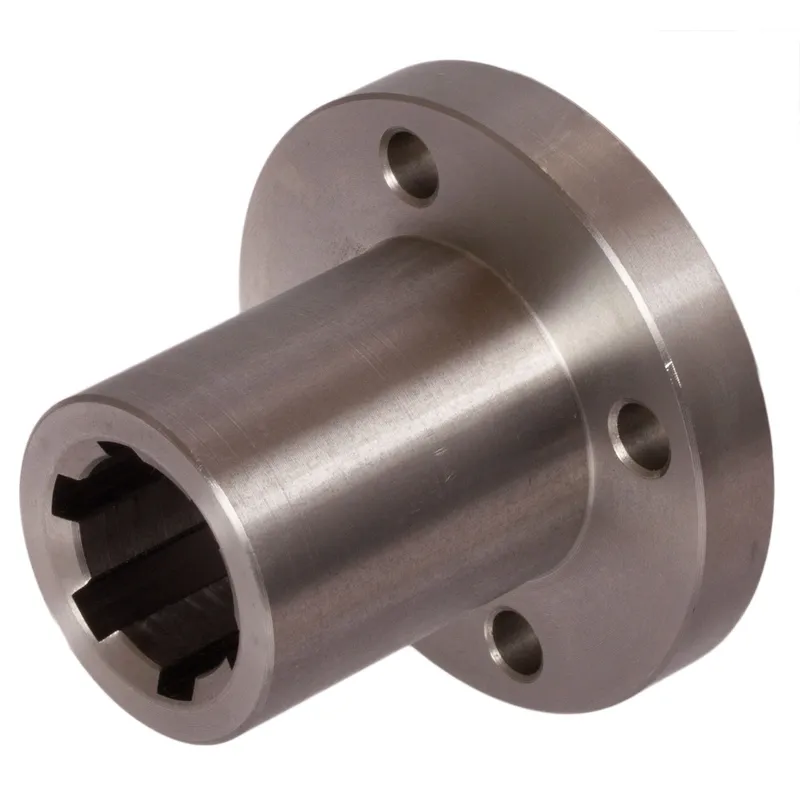

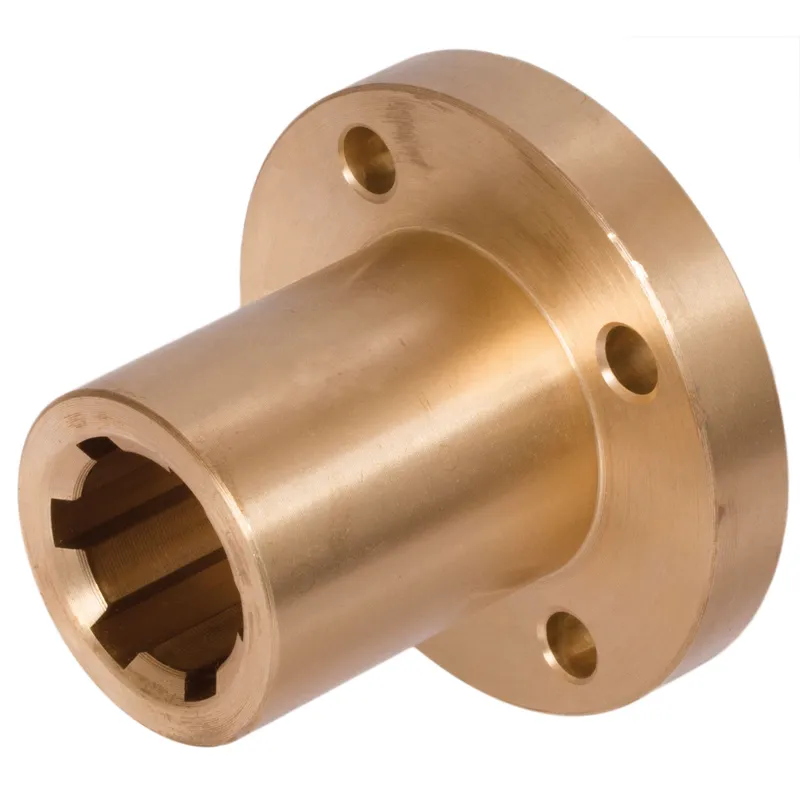

Steel Splined Hubs with Flange	Red Brass Splined Hubs with Flange

▍Stainless Steel Splined Hubs with Flange Applications

Stainless steel splined hubs with flange are used in a wide range of applications where precise and efficient power transmission is required. Some of the common applications of stainless steel splined hubs with flange include:

1. Industrial machinery: Stainless steel splined hubs with flange are commonly used in industrial machinery such as pumps, compressors, and power transmission equipment.

2. Marine and offshore: Stainless steel splined hubs with flange are widely used in marine and offshore applications due to their corrosion-resistant properties and ability to withstand harsh environments.

3. Food and beverage industry: Stainless steel splined hubs with flange are commonly used in the food and beverage industry due to their hygienic properties, corrosion resistance, and ability to withstand high temperatures.

4. Aerospace and defense: Stainless steel splined hubs with flange are used in aerospace and defense applications due to their ability to withstand high stress and extreme temperatures.

5. Medical equipment: Stainless steel splined hubs with flange are used in medical equipment due to their hygienic properties, corrosion resistance, and ability to withstand sterilization processes.

6. Power generation: Stainless steel splined hubs with flange are used in power generation equipment such as steam turbines, gas turbines, and generators due to their ability to transmit high levels of torque without slipping, and resistance to high temperatures.

▍Stainless Steel Splined Hubs with Flange Installation

The installation of stainless steel splined hubs with flange involves the following steps:

Preparation: Before installing the splined hubs with flange, it is important to clean and inspect all the components to ensure that they are free from dirt, debris, and damage.

Align the hubs: The splined hubs with flange should be aligned with the mating component, such as a shaft, to ensure proper engagement of the splines. The splines should be aligned to prevent any misalignment that may cause damage to the splines.

Apply lubrication: A small amount of lubricant should be applied to the splines before installation to ensure smooth engagement and prevent galling or seizing.

Press fit: The splined hubs with flange should be pressed onto the shaft or mating component using a hydraulic press or another suitable tool. Care should be taken to ensure that the splined hubs with flange is fully seated on the shaft and that the flange is aligned with the mounting surface.

Secure the hub: Once the spline hub with flange is in place, it should be secured to the shaft or mating component using a suitable fastener, such as a set screw or retaining ring. The fastener should be tightened to the recommended torque specifications.

Mount other components: The flange on the splined hub can be used to mount other components, such as couplings or bearings, which should be installed according to the manufacturer's instructions.

Test and inspect: After installation, the equipment should be tested and inspected to ensure that the splined hub with flange is properly engaged and that there are no signs of damage or excessive wear.
