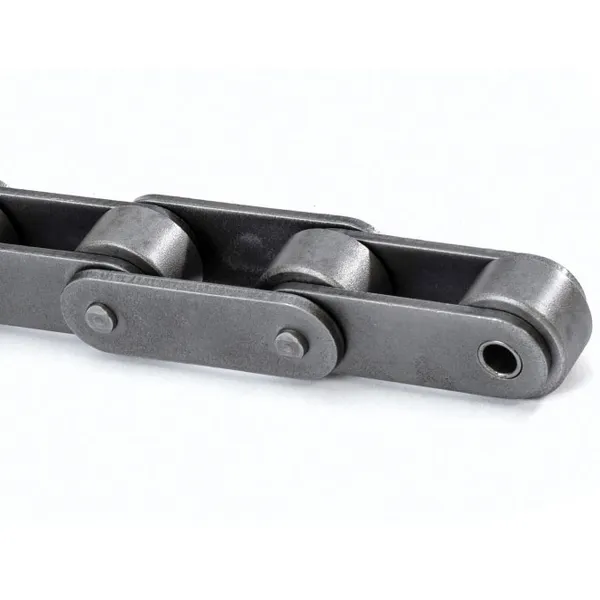

Standard Double Pitch Conveyor Chains

Standard Double Pitch Conveyor Chains

Double Pitch Conveyor Chains are roller chains with a higher pitch than standard roller chains. These chains are often used in conveying applications and come in many styles. They may have straight or bent side-plates, and many have additional features. Custom designs are also available.

Double Pitch Conveyor Chains are commonly used in agriculture, construction, and road building equipment. They can also be used in packaging and textile machinery. Since they have twice the pitch of standard chains, they put less strain on the chain. The sprockets in double pitch chains are typically longer than the standard size.

Double Pitch Chains feature a unique base design. The extended pin allows for a greater range of adjustment. Double Pitch Conveyor Chains can use either R or S rollers and are compatible with standard Double Pitch Chains. In addition, these chains have a black oxide coating on the outer link plates, which improves their precision.

Double Pitch Conveyor Chains are used for conveying loads that require a moderate or low speed. These chains are also available with large rollers. They may have rollers of different sizes and may have a large number of links. In addition, double-pitch conveyor chains may have large rollers for the conveyed load.

Double Pitch Conveyor Chains are commonly used in many manufacturing processes. The sprockets of double-pitch chains must be made with great precision, as they must fit perfectly to ensure accurate positioning.

Standard Double Pitch Conveyor Chains Specifications

Small Roller Type

Large Roller Type

ISO Chain No.	ANSI Chain No.	Pitch	Roller diameter	Width between inner plates	Pin diameter	Pin length		Inner plate depth	Plate thickness	Ultimate tensile strength	Average tensile strength	Weight per meter
		P	d1 max	b1 min	d2 max	L max	Lc max	h2 max	T max	Q min	Q0	q
		mm	mm	mm	mm	mm	mm	mm	mm	kN/lbf	kN	kg/m
C208A C208AL	C2040 C2042	25.40	7.95 15.88	7.85	3.96	16.6	17.8	12.0	1.50	14.1/3205	16.7	0.50 0.84
C208AH	C2040H	25.40	7.95	7.85	3.96	18.8	19.9	12.0	2.03	14.1/3205	17.2	0.65
C208B C208BL		25.40	8.51 15.88	7.75	4.45	16.7	18.2	11.8	1.60	18.0/4091	19.4	0.55 0.89
C210A C210AL	C2050 C2052	31.75	10.16 19.05	9.40	5.08	20.7	22.2	15.0	2.03	22.2/5045	28.1	0.78 1.27
C212A C212AL	C2060 C2062	38.10	11.91 22.23	12.57	5.94	25.9	27.7	18.0	2.42	31.8/7227	36.8	1.12 1.61
C212AH C212AHL	C2060H C2062H	38.10	11.91 22.23	12.57	5.94	29.2	31.6	18.0	3.25	31.8/7227	41.6	1.44 2.07
C216A C216AL	C2080 C2082	50.80	15.88 28.58	15.75	7.92	32.7	36.5	24.0	3.25	56.7/12886	65.7	2.08 3.12
C216AH C216AHL	C2080H C2082H	50.80	15.88 28.58	15.75	7.92	36.2	39.4	24.0	4.00	56.7/12886	70.0	2.54 3.58
C220A C220AL	C2100 C2102	63.50	19.05 39.67	18.90	9.53	40.4	44.7	30.0	4.00	88.5/20114	102.6	3.01 4.83
C220AH C220AHL	C2100H C2102H	63.50	19.05 39.67	18.90	9.53	43.6	46.9	30.0	4.80	88.5/20114	112.4	3.56 5.38
C224A C224AL	C2120 C2122	76.20	22.23 44.45	25.22	11.10	50.3	54.3	35.7	4.80	127.0/28864	147.3	4.66 7.66
C224AH C224AHL	C2120H C2122H	76.20	22.23 44.45	25.22	11.10	53.5	57.5	35.7	5.60	127.0/28864	160.9	5.26 8.26
C232A C232AL	C2160 C2162	101.60	28.58 57.15	31.75	14.27	64.8	69.6	47.8	6.40	226.8/51545	278.9	8.15 13.00
C232AH C232AHL	C2160H C2162H	101.60	28.58 57.15	31.75	14.27	68.2	73.0	47.8	7.20	226.8/51545	285.8	9.06 13.84

Double Pitch Conveyor Chain Features

• Made to ANSI standards
• Lighter weight and lower cost than standard roller chain
• Solid bushing and rollers
• Pre-stretched and Pre-lubricated

Double Pitch Conveyor Chains Applications

Double pitch conveyor chains are commonly found in a variety of applications, from light to heavy duty material handling. A well-constructed chain should be able to sustain the load without sacrificing its longevity. Choosing the right one depends on the specific application. The size of the rollers, the length of the chain and the allowable tension are important factors to consider.

Double pitch chains are a useful feature in a variety of applications, from material handling to agriculture. They are available in different styles, configurations and materials. It is best to choose a double pitch chain that suits the needs of the application. Some common styles include the oversized roller and the standard double pitch conveyor chain.

Oversized roller double pitch chains are usually used in applications with a product sitting atop the chain. This provides for smoother rolling action.

Type of Double Pitch Conveyor Chains

When selecting a chain for your conveyor system, it is important to know what you're getting. Learn about Hollow-pin and S-roller chains. Each type of chain has its own unique benefits and drawbacks, so it is vital to choose the right one for your application. Below is a brief overview of each type. When looking for a double-pitch chain, make sure to compare the following specifications:

Hollow-pin Conveyor Chain

When it comes to conveyor chains, hollow-pin double-pitch options have a few distinct advantages over self-lube and roller chain. This is because the latter type uses rollers and has a much lower maximum allowable load. Moreover, they allow for custom attachments such as cross rods and sprockets to be mounted. In addition, hollow-pin double-pitch options are more versatile than roller chains and are available in stainless steel and carbon steel.

Double-pitch hollow-pin conveyor chains are similar to roller chains, but they come without rollers. Their unique design allows for the insertion of cross rods and other attachments, like mesh nets, in the middle of the chain. These chains fit into standard sprockets and are usually used in tandem with roller chains. Because of their versatility, these chains are commonly used in conveying systems. Because of their low price, they are an excellent investment for any business.

Double-pitch roller chains are the most common type of roller chain in use. They're commonly used in the auto parts, electrical, and precision machinery industries. They have the same basic construction as standard roller chains, but they have flat-shaped link plates and longer attachments. In terms of specification, Double-pitch chains are governed by ANSI B29.4, ISO 1275-A, and JIS B 1803.

S-roller Conveyor Chain

Double pitch conveyor chains are made with larger roller diameters than standard chains. Double pitch chains are typically used for agricultural and light-duty conveyor applications. The roller diameter is larger than the chain's side plates to keep the chain in place. Double pitch chains have oversized rollers and are commonly used on conveyors used in cotton fields. They also meet the requirements of the American Standard standards for length and width of plates.

The S-roller is an ideal attachment for short-length conveyors, while the R-roller is made for longer ones. Both have a variety of standard and special attachments. Roller chains are made with cottered connecting links. The cotter-shaft connection design prevents excessive wear, while the pre-loaded rollers reduce initial elongation. They are available in sizes from RF2060 to RF2100.

The C2000 series S-roller is an excellent option for double-pitch chain applications. Larger rollers project above and below the link plates, producing a rolling action. Larger rollers minimize friction across the supporting surface. An S-roller requires at least 30 teeth for maximum efficiency. When choosing a double-pitch roller chain, the maximum tension and roller load are considered. If heavy bending or twisting forces are present, large-pitch chains should be used.

Double Pitch Conveyor Chain Sprocket

Double pitch conveyor chain sprockets are a standard issues in many manufacturing operations. These sprockets are designed with a greater number of teeth and provide better wear life than single pitch sprockets. Double pitch sprockets come in a single or double toothed design. Double pitch conveyor chains have a wider chain pitch and are used for applications that require precise positioning.

The double pitch conveyor chain sprockets are made from flame-cut steel and are precision machined. They are available in two types: A Type and B Type. The B Type is less expensive and uses a single hub, while the C Type has two.

Choosing the right sprocket can help you to keep your chain functioning longer. With the proper selection, you can reduce downtime and maintain the chain's performance in challenging conditions. Various types of sprockets are available in the market, including double pitch sprockets, split sprockets, and sprocket gears. They are produced in different materials, and are used in a variety of applications.

Sprockets are used in a variety of industrial and commercial settings. Food processing, plastics, and steel-working are some examples of industries that benefit from them. The best sprockets are made from high quality materials and manufactured to provide long life and durability. Sprockets come in a variety of sizes and are commonly manufactured in either bolt-together or one-piece construction. Generally, sprockets are secured to the shaft by a keyway. Depending on the application, you may want to use a standard keyway or a set screw.

We specialize in chains made to customers’ drawings and specifications. Our advantage is reliable quality, competitive price, prompt delivery, and good service. Standard products include various transmission and conveyor chains, like roller chains, double pitch conveyor chains, hollow pin chains, leaf chains, flat top chains, side bow chains, lumber chains, agriculture chains, silent chains, PIV chains, stainless steel chains, nickel/ zinc plated chain, slient chain, engineering chain, steel pintle chain, welded steel chain, forged chain, malleable iron chain, and many other types. Different kinds of attachments are available.

We Also Provide Sprockets to Match Your Conveyor Chains

Packaging of Conveyor Chains

Our chain is most commonly supplied in 10ft boxes, including one connecting link per box, but we can also supply this chain at custom lengths as needed. We also offer a full line of good-quality sprockets for this chain. For pricing and availability, please contact us at any time.
