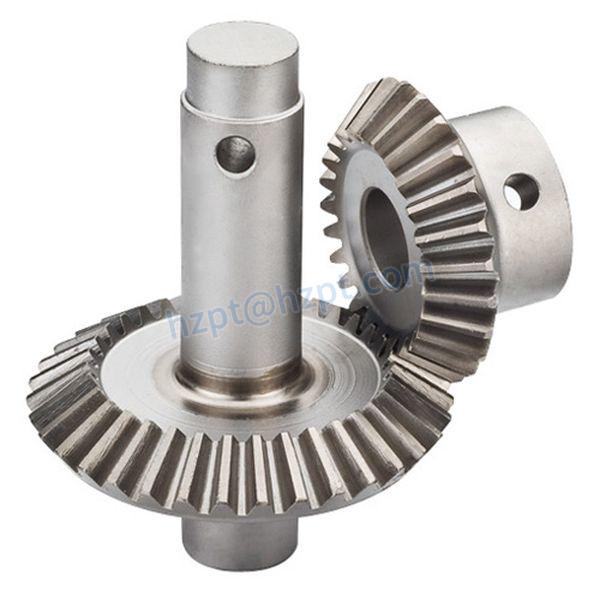

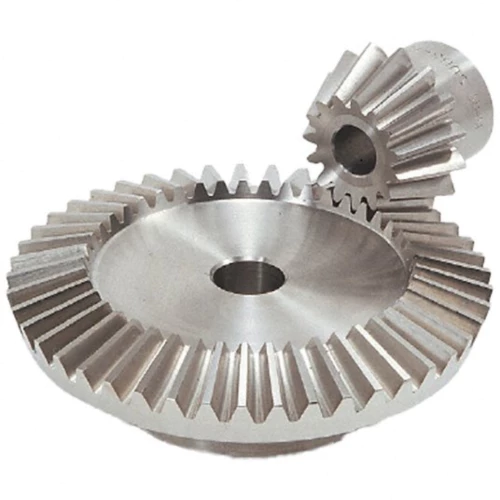

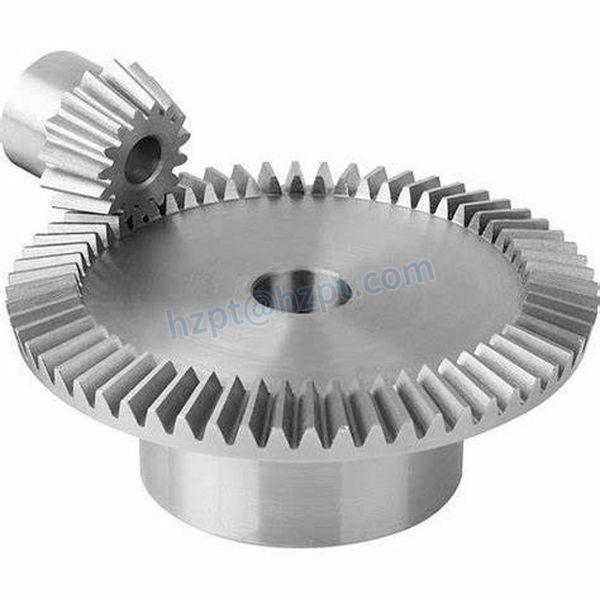

Straight Bevel Gear

The straight bevel gear is the simplest type of bevel gear. The pitch cone tooth line is a radial straight line, and each tooth line passes through the tip of the pitch cone, and its gear teeth follow the direction of the cone generatrix and gradually shrink from the large end of the gear truncated cone to the small end in proportion. Finally, they intersect at the intersection of the two-phase meshing gear axis in space.

Description

Model Number	M3,M4,M5,M8,M12 and etc.
Material	Brass, C45 steel, Stainless steel, Copper, POM, Aluminum, Alloy, and so on
Surface treatment	Zinc-plated, Nickel plated, Passivation, Oxidation, Anodization, Geomet, Dacromet, Black Oxide, Phosphatizing, Powder Coating, and Electrophoresis
Standard	ISO, DIN, ANSI, JIS, BS, and Non-standard.
Precision	DIN6,DIN7,DIN8,DIN9.
Teeth treatment	Hardened, Milled, or Ground
Tolerance	0.001mm-0.01mm-0.1mm
Finish	shot/sandblast, heat treatment, annealing, tempering, polishing, anodizing, zinc-plated
Items packing	Plastic bag+Cartons Or Wooden Packing
Payment terms	T/T, L/C
Production lead time	20  business days for sample,25 days for the bulk
Samples	Sample price range from $2 to $100. sample express request paid by clients
Application	1. Automatic controlling machine 2. Semi-conductor industry 3. General industry machinery 4. Medical equipment 5. Solar energy equipment 6. Machine tool 7. Parking system 8. High-speed rail and aviation transportation equipment, etc.

Application

1. Automotive Industry: Straight bevel gears are widely used in automotive applications, such as in the differential gears of rear-wheel drive vehicles. They help transmit power from the engine to the wheels while allowing for the necessary change in direction.

2. Industrial Machinery: Straight bevel gears are utilized in various types of industrial machinery, including machine tools, printing presses, conveyors, and packaging equipment. They play a crucial role in transmitting power and motion between different components of these machines.

3. Power Generation: Straight bevel gears can be found in power generation systems, such as wind turbines and hydroelectric plants. They are used to transfer power from the turbine or generator to other components, such as gearboxes or drive shafts.

4. Marine Equipment: Straight bevel gears are employed in marine applications, including propulsion systems of boats and ships. They help transfer power from the engine to the propeller, enabling efficient and reliable propulsion.

5. Construction Machinery: Straight bevel gears are used in construction equipment, such as excavators, loaders, and cranes. They facilitate power transmission between the engine and various mechanical components, enabling the movement and operation of these machines.

6. Agricultural Machinery: Straight bevel gears are utilized in agricultural equipment, such as tractors, combines, and harvesters. They assist in transmitting power from the engine to different agricultural implements, enabling tasks like plowing, harvesting, and seeding.

7. Power Tools: Straight bevel gears are incorporated into power tools, such as drills, saws, and grinders. They play a crucial role in transferring power from the motor to the cutting or grinding components, enabling efficient and controlled operation.

8. Robotics and Automation: Straight bevel gears are employed in robotic systems and automated machinery where precise and reliable power transmission is required to control the movement and operation of robotic arms, grippers, and other components.

How to select the right straight bevel gear?

1. Design Requirements: Determine the specific design requirements of the gear system, including the desired torque, speed, and power transmission capabilities. Consider the gear ratio needed to achieve the desired output and the space constraints within the application.

2. Load Capacity: Evaluate the anticipated load conditions and select a straight bevel gear that can handle the expected load without failure. Consider factors such as the material strength, gear size, and tooth profile to ensure the gear can withstand the applied loads.

3. Gear Material: Choose a gear material that matches the application requirements in terms of strength, durability, and resistance to wear. Common materials for straight bevel gears include alloy steels, carbon steels, and stainless steels. Consider factors such as hardness, toughness, and corrosion resistance.

4. Efficiency: Assess the efficiency requirements of the gear system. Higher quality gears typically have better efficiency and lower frictional losses. Consider factors such as gear tooth profile, surface finish, and lubrication requirements to optimize efficiency.

5. Noise and Vibration: Evaluate the noise and vibration considerations of the application. Look for straight bevel gears that are designed for quiet operation, with features such as precision machining, proper tooth profile, and noise reduction measures.

6. Accuracy and Tolerance: Consider the required precision and tolerance levels for the gear system. Choose gears that are manufactured with the necessary accuracy to ensure smooth meshing and reliable operation.

7. Environmental Factors: Take into account the environmental conditions in which the gear will operate. Consider factors such as temperature, humidity, dust, and corrosive substances. Select gears that are suitable for the specific environmental conditions to ensure long-term performance.

8. Manufacturer Reputation: Research and select a reputable gear manufacturer known for producing high-quality, reliable gears. Consider factors such as their experience, certifications, and customer reviews.
