Straight Running Flat-top Chain with Low Noise Accumulation Rollers

This new series of thermoplastic chains is the solution to the pressure created between products and the conveying surface created by the accumulation of products. This is achieved by having a series of small-width rollers, which provides a stable conveying surface and enables the product to be handled without damage; however, the chain still provides a positive forward motion and is based on our standard series. These chains feature rollers made of low-friction and low-noise materials for reduced packing line stress and quiet operation.

Category:
Get a Quote

Straight Running Flat-top Chain with Low Noise Accumulation Rollers

This new series of thermoplastic chains is the solution to the pressure created between products and the conveying surface created by the accumulation of products. This is achieved by having a series of small-width rollers, which provides a stable conveying surface and enables the product to be handled without damage; however, the chain still provides a positive forward motion and is based on our standard series. These chains feature rollers made of low-friction and low-noise materials for reduced packing line stress and quiet operation.

Application
Ideal for the food and beverage industry packaging lines and general purpose conveying applications to reduce pressure created between product and flite surface. The small-width rollers provide a stable conveying surface and enable the product to be handled without damage while continuing a positive forward motion.

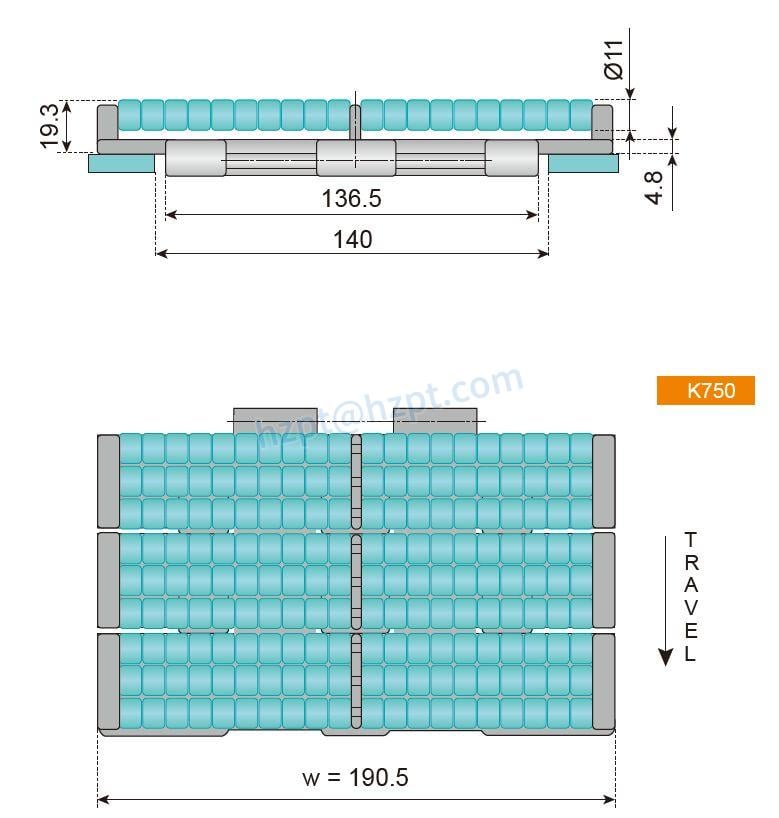

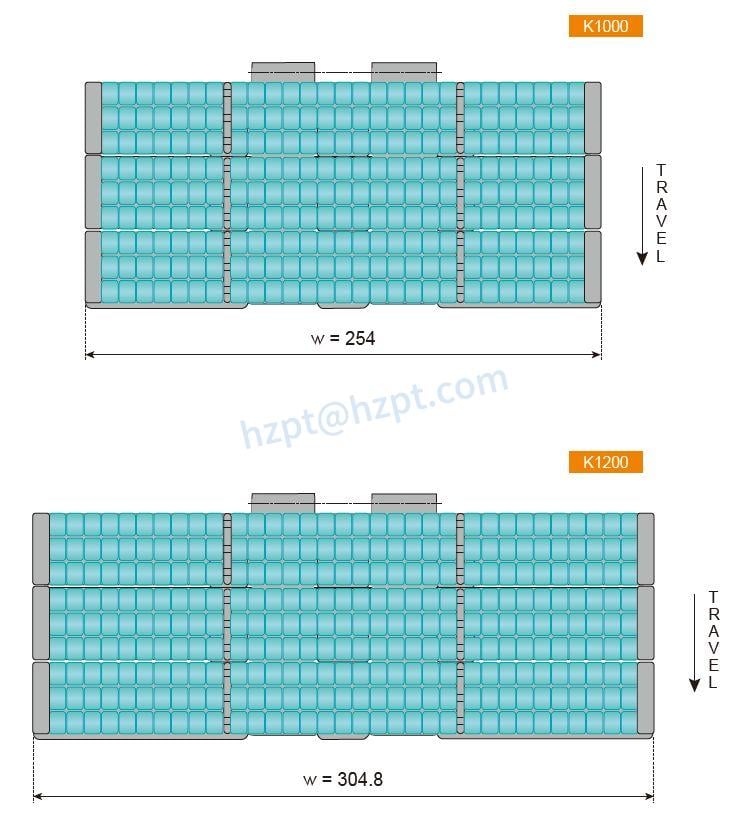

(1) LBP821 Double Hinge Straight Running Chian with Low Noise Accumulation Rollers

Product Specifications

链号
Chain No.
宽度 Width ( W ) 重量 Weight
mm inch kg/m
LBP821 - K750 190.5 7.5 5.4
LBP821 - K1000 254.0 10 6.8
LBP821 - K1200 304.8 12 8.1

Mainly used for food industries, such as beverage, bottle, can, and other conveyors wrap packing.
The longest distance: 12M
Working load: 2750N
Pin material: austenitic stainless steel
Plate and rollers material: POM acetal
(Temperature: -40 ~ 90℃)
Packing: 5 feet = 1.524 M/box 26pcs/M

(2) LBP8257 Heavy Duty Single Hinge Straight Running Chains with Low Noise Accumulation Rollers

Product Specifications

链号
Chain No.
宽度 Width ( W ) 重量 Weight
mm inch kg/m
LBP8257 - K750 190.5 7.5 5.6
LBP8257 - K1000 254.0 10 7.2
LBP8257 - K1200 304.8 12 8.1

Mainly used for food industries, such as beverage, bottle, can, and other conveyors wrap packing.
The longest distance: 12M
Working load: 2750N
Pin material: austenitic stainless steel
Plate and rollers material: POM acetal
(Temperature: -40 ~ 90℃)
Packing: 5 feet = 1.524 M/box 26pcs/M

(3) LBP831 Single Hinge Straight Running Chain with Low Noise Accumulation Rollers

Product Specifications

链号
Chain No.
宽度 Width ( W ) 重量 Weight
mm inch kg/m
LBP831 - K325 82.5 3.25 2.2
LBP831 - K450 114.3 4.5 2.6

Mainly used for food industries, such as beverage, bottle, can, and other conveyors wrap packing.
The longest distance: 12M
Working load: 2750N
Pin material: austenitic stainless steel
Plate and rollers material: POM acetal
(Temperature: -40 ~ 90℃)
Packing: 10 feet = 3.048 M/box 26pcs/M
