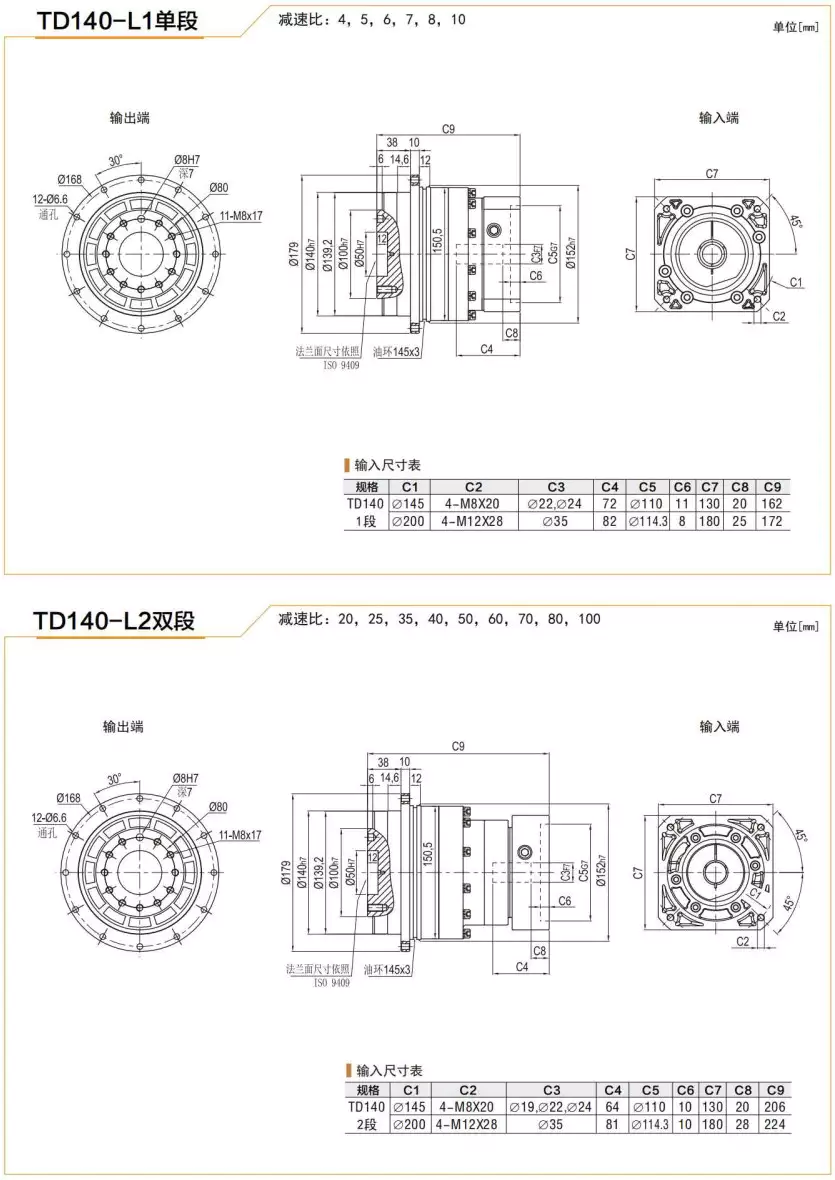

Overview of TD140 Series High Precision Planetary Gearbox Helical Gear Reducer

TD140 Series High Precision Planetary Gearbox Helical Gear Reducer is a type of gearbox that is commonly used in industrial automation equipment for precise speed control and position positioning. This gearbox is also known as a servo motor planetary gearbox or low backlash planetary gearbox. It is designed for high precision applications that require low backlash and high torsional stiffness. The gearbox is made up of several components that work together to achieve high accuracy and reliability.

Basic Structure of High Precision Planetary Gearbox

The high precision planetary gearbox consists of the following components:

• Sun Gear

  The sun gear is located at the center of the planetary gearbox and is usually connected to the input shaft or fixed to the housing as a stationary part.

• Planet Gears

  The planet gears rotate around the sun gear and are supported and kept in relative position to each other by the planet carrier. Each planet gear meshes with both the sun gear and the internal gear, and they jointly bear and distribute the load when power is input.

• Planet Carrier

  The planet carrier is a structure with multiple planet gear shaft holes. It carries the planet gears and allows them to rotate relative to the sun gear. The planet carrier can be used as an output element or connected to another shaft to transmit or receive torque.

• Ring Gear/Annulus

  The internal gear is a large diameter circular gear fixed inside the housing with teeth on both inner and outer surfaces, which meshes with the planet gears. In some applications, the internal gear can also be used as an input or output end.

• Bearings and Shaft System

  The bearings in the high precision planetary gearbox support the input shaft, output shaft, and planet carrier to ensure stable rotation and smooth operation of each component.

• Housing and Seals

  The housing is the external frame of the gearbox, which protects the internal components from external environmental influences and provides installation interfaces. The seal ensures that the internal lubricant does not leak and prevents dust and moisture from entering the gearbox.

Working Principles of High Precision Planetary Gearbox

The working principles of the high precision planetary gearbox are as follows:

• Torque Transmission

  When power is input to the sun gear, the planet gears around it rotate. Since the planet gears mesh with both the sun gear and the internal gear, they rotate around their own axis while revolving around the center of the sun gear with the planet carrier. In this way, the torque input to the sun gear is amplified and evenly distributed to the planet carrier at the output end through the planet gears.

• Speed Conversion and Torque Amplification

  By adjusting the gear ratio of different components, speed conversion and torque amplification between input and output can be achieved. Generally, increasing the number of planet gears or the gear ratio results in a more significant increase in torque, but the output speed will decrease.

• Low Backlash Design

  In high precision applications, preloading technology is used to reduce or eliminate the backlash between gears, which is called "zero/low backlash" design. This design ensures accurate position control and minimum mechanical clearance.

• Load Distribution and Dynamic Response

  An important advantage of the planetary gear mechanism is that it can evenly distribute the load among multiple planet gears, thereby improving the bearing capacity and stability of the entire system and optimizing dynamic response performance.

Design and Selection Considerations of High Precision Planetary Gearbox

The design and selection considerations of high precision planetary gearbox are as follows:

Applications of High Precision Planetary Gearbox

The applications of high precision planetary gearbox are as follows:

• Servo Motor Systems

  High precision planetary gearbox is used in conjunction with servo motors for precise speed control and position positioning in industrial automation equipment such as robot joint drives, precision machine tool feed mechanisms, and semiconductor manufacturing equipment.

• Medical Equipment

  High precision planetary gearbox is used in high-end medical equipment such as CT scanners, MRI machines, and surgical robots for precise motion control and torque amplification.

• Aerospace

  High precision planetary gearbox is used in aircraft landing gear retraction systems, flight control system actuators, and satellite attitude adjustment devices that require high reliability and accuracy.

• Precision Instruments

  High precision planetary gearbox is used in scientific experimental equipment, precision measurement instruments, optical tracking systems, and other applications that require high transmission accuracy.

• Automotive Manufacturing

  High precision planetary gearbox is used in the power steering system of new energy vehicles, the drive unit of electric vehicles, and the transmission system of high-performance racing cars.

• Robotics

  High precision planetary gearbox is used in the joint drive part of industrial robots, service robots, and special operation robots.

• Logistics Automation

  High precision planetary gearbox is used in automated storage systems such as lifters, conveyor drives, and AGVs (automatic guided vehicles).

About Us

We are a professional manufacturer of transmission equipment located in Hangzhou, Zhejiang. Our company operates strictly in accordance with the international quality management system standard ISO9001:2015, and our products have passed the compulsory CCC certification in China and the CE certification of the European Community. Our products are produced according to international IC standards and have reached the advanced level of similar international products.

Our advantages include:

• Strict quality control system
• Advanced production technology
• Professional technical team
• Fast and efficient after-sales service

Author: Miya
