THS060 Series Precision Hollow Rotating Platform

THS060 Series Precision Hollow Rotating Platform

The THS060 series precision hollow rotating platform is a game-changer in rotational motion control. Engineered with precision and versatility in mind, this platform offers unparalleled performance for a wide range of applications. This article will explore the key characteristics, usage methods, and maintenance guidelines for the THS060 Series, empowering you to leverage its capabilities and elevate your rotational motion control.

The THS060 series precision hollow rotating platform revolutionizes rotational motion control with its unmatched precision, versatile open structure, high load capacity, and compact design. By following the recommended usage methods and maintenance practices, you can maximize the performance and longevity of this exceptional product. Step into a new era of rotational motion control with the THS060 series precision hollow rotating platform and unleash the full potential of your applications.

THS060 Series Precision Hollow Rotating Platform Parameter:

Key Characteristics and Benefits of THS060 Series Precision Hollow Rotating Platform:

1. Unmatched Precision

• The THS060 series precision hollow rotating platform sets new standards for precision in rotational motion control.
• Advanced servo control technology and high-resolution encoders ensure accurate and repeatable positioning, enabling precise control over rotational movements.

2. Hollow Structure with Large Aperture

• Featuring a hollow structure and a large aperture, the THS060 series offers unparalleled versatility and convenience.
• The large aperture allows for the passage of cables, optics, or other elements through the center, facilitating seamless integration and enhancing the flexibility of your setup.

3. High Load Capacity

• The THS060 Series is designed to handle high load capacities, making it suitable for various applications.
• Its robust construction and optimized bearing system ensure reliable performance even under heavy loads, allowing for efficient and precise operation.

4. Compact and Lightweight Design

• The THS060 series excels in space-constrained environments with its compact and lightweight design.
• The streamlined form factor enables easy integration into existing systems without compromising performance or requiring extensive modifications.

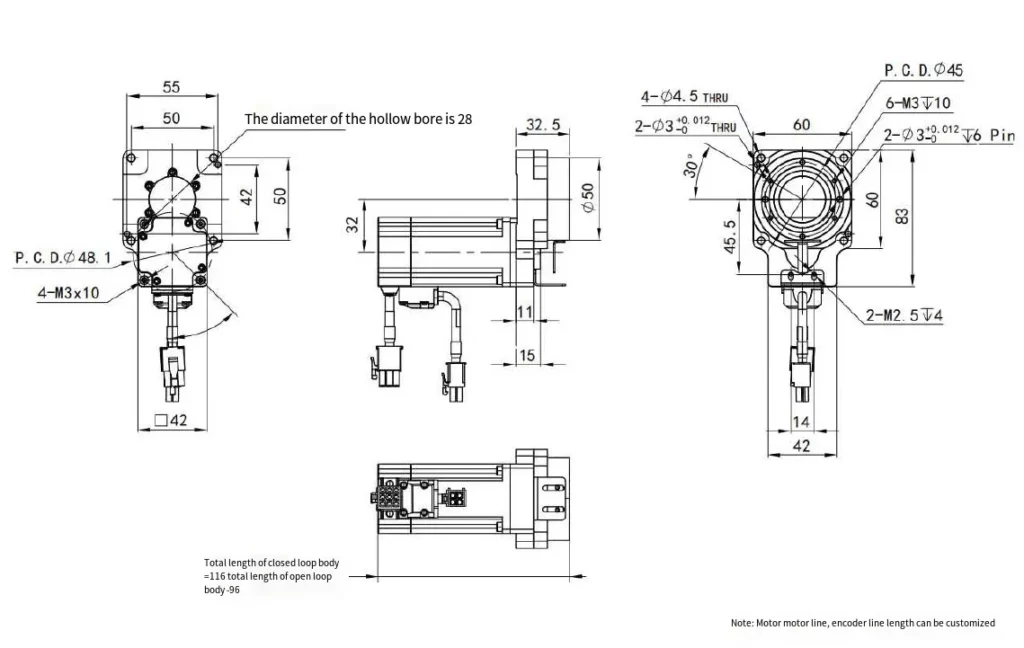

THS060-(i) Series Precision Hollow Rotating Platform Diagram:

Usage Method of THS060 Series Precision Hollow Rotating Platform:

Using the THS060 series precision hollow rotating platform is simple. Here's a step-by-step guide to help you make the most of this exceptional product:

1. Mounting

• Securely mount the rotating platform to a stable surface or structure, ensuring proper alignment and stability for precise rotational motion.
• Follow the manufacturer's instructions and guidelines for mounting procedures to ensure optimal performance and safety.

2. Power and Control Connection

• Connect the rotating platform to a suitable power supply, adhering to the manufacturer's specifications and electrical codes.
• Establish the necessary control connections through a dedicated controller or integration with a larger motion control system.

3. Configuration and Programming

• Configure the rotational parameters, such as speed, acceleration, and positioning, based on your specific application requirements.
• Program the platform's motion control system to achieve the desired rotational behavior and control options.

4. Operation

• Once the platform is mounted, powered, and properly configured, initiate rotational motion according to your programmed parameters.
• Experience the precision and versatility provided by the THS060 series precision hollow rotating platform.

Model Identification Method:

Characteristics Of Hollow Rotating Platform:

Mono Product

TH series combines hollow, rotating platforms and servo motor products. The internal structure of the platform is a deceleration ratio, which can realize off-output drive.

Short Time Positioning

Inertial load positioning can be realized in a short time.

High Precision Positioning Without Backlash

No backlash helical, helical teeth, grinding machine gear, gear module to achieve high torque repeated positioning accuracy ±5arcsrc (±0.001°)
* Accuracy is the value at a specific load and a specific temperature (average temperature)

Reduce Design Time And Delivery Time

Output platform A workbench or robotic arm for mounting equipment directly. Compared with belts, belt pulleys, and other mechanism parts, it can reduce the time of mechanism design, parts allocation, belt tension adjustment, and cost-saving equipment design time, which helps shorten the delivery time.

Large Diameter Hollow Output Platform Saves Wiring And Piping

The large diameter hollow hole (through) can be used in the distribution pipe around the shuttle, which can simplify the equipment design.

Internal Structure Of The Hollow Rotating Platform:

Example of Use:

Installation direction free design
TH rotating platform, in addition to horizontal installation, can be installed vertically or upside down; the device design range is wide.
Please note when using:
The hollow rotary transmission occasionally has a small amount of oil leaking out.
If the oil leakage causes pollution to the surrounding environment, please check regularly.
Check to confirm or install the oil tray and other devices.

Model Identification Method:

Hollow rotating platform:

The motor can refer to the example diagram to provide the relevant size.
