Trailer Wheel Hub H865-2A Idler 8 Bolts

Trailer Wheel Hub H865-2A

H865-2A
Bt Idler 8-bolts 6.5”BC;
6000-7000lbs
Hub+bolts+nuts +bearing cups 14276/25520 +bearing cone 14125/25520 +seals+dust cap

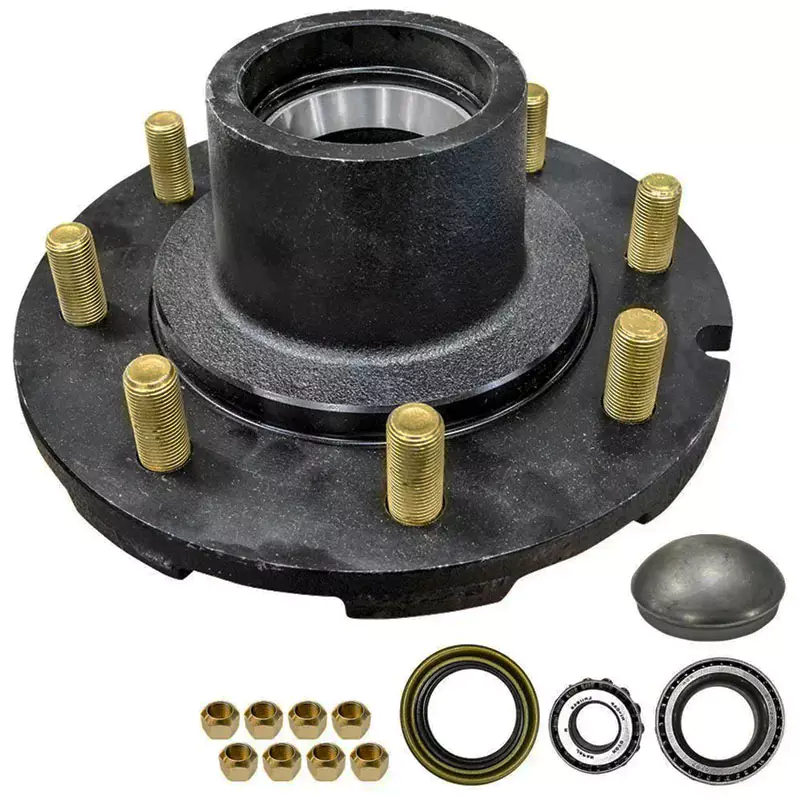

With a 6000-7000lbs weight capacity, this trailer hub assembly has 8 studs on an 8 inch bolt pattern. This trailer hub assembly comes with two races, two bearings, a seal and a dust cap.

Trailer Hub and Drum

	H440-2A Bt Idler 4-bolts 4.0” BC 2000-22001bs Hub+bolts+nut+bearing cups 44610/44610+bearing cone 44649/44649+seals+dust cap		H865-2A Bt Idler 8-bolts 6.5”BC; 6000-7000lbs Hub+bolts+nuts +bearing cups 14276/25520 +bearing cone 14125/25520 +seals+dust cap
	H545-1A / H550-1A / H555-1A Bt Idler 5-bolts 4.5”;5.0;4.0;5.5BC 2000-2200lbs Hub+bolts+nuts+bearing cups 44610/68111+bearing cone 44649/68149+seals+dust cap		D545-1FA 10'' fanned brake drum 5 bolt on 4,5 b.c 3500lbs Hub drum+bolts+nuts+bearing cups 44610/68111+bearing cone 44649/68149+seals+dust cap
	H545-2A Bt Idler 5-bolts 4.5”BC 3500lbs Hub+bolts+nuts +bearing cups 44610/68111 +bearing cone 44649/68149 +seals+dust cap		D655-12A Brake drum 12” 6bolts 5.5” BC 6000lbs Hub drum+bolts+nuts+bearing cups 15245/25520+bearing cone 15123/25580+seals+dust cap
	H655-2A Bt Idler 6-bolts 5.5”BC 6000lbs Hub+bolts+nuts +bearing cups 15245/25520 +bearing cone 15123/25580 +seals+dust cap		D865-12 Brake drum 12” 8bolts 6.5” BC 7000lbs Hub+drum+bolts+nuts+bearing cups 14276/25520+bearing cone 14125/25520+seals+dust cap

Trailer Parts Factory

Our company specializes in the production of trailer hub assemblies, brake hub assemblies, spindles, axle assemblies, axles, brake discs, brake calipers, etc., with a complete range of accessories, including bolts, nuts, bearings, oil seals, dust covers, spindles, axle assemblies, lock nuts, cotter pins, gaskets, brake washers, oil nozzles, electric brakes, etc. Our company produces conventional products in markets such as the United States, Canada, Australia, etc.
In recent years, our company has continuously increased equipment investment and introduced and trained professional technical personnel, and has developed into a factory specializing in the production of high-precision and high-quality brake system products
Our company specializes in producing various types of car wheels, trailer wheels, axles, brake discs, refrigeration compressor main castings, gasoline engine flywheels, etc. The materials are mainly HT200, HT250, G3000, QT450-10. We produce, process, and export various casting products. I have nearly 20 years of export experience. The product sells well in Europe and the United States
Wheel hubs and brake discs: Currently, we have produced more than 20 types of nine major specifications, mainly made of materials such as HT200, HT250, G3000, QT450-10, etc., suitable for trailers, trucks, beach trucks, etc. Our products are mainly exported to Europe and the United States, and are matched with domestic vehicle manufacturers
Refrigeration compressor main body castings: Production of low-pressure and medium high back pressure refrigeration compressor main body castings and valve plates, pistons, auxiliary shaft seats, etc., mainly made of HT200 and HT250 materials, suitable for supporting refrigeration compressor manufacturers such as air conditioners, freezers, display cabinets, etc., from 2 to 5 pieces are produced
Gasoline engine flywheel type: mainly made of HT200 and HT250 materials, suitable for small gasoline engines, lawn mowers, etc
The casting pro ducts include: A: gray iron, B: ductile iron, and C: aluminum casting.

The company has
A: cupola 3.5 tons 2 sets 2. 5 tons per unit 5 tons per unit
B: Medium frequency electric furnace 0. 5 tons per unit
C: 1 clamp boiler
D: 2 automatic mechanical molding casting lines
E: 20 CNC lathes of various types, 6150/10 CNC lathes in Dalian, 6140/10 CNC lathes in Dalian, and over 40 other ordinary lathes
F: The main casting products include casting tools, electromechanical equipment, mechanical accessories, etc.
G: Our company's monthly production capacity is 1150 tons
H: Please provide product drawings or actual samples
I: Please elaborate. Our company is willing to invite you to visit the factory for on-site inspection.
The above products can be produced according to the drawings and samples, with excellent quality and affordable quality.
We hope to cooperate sincerely with your company. If there are any outstanding matters, please check
