Trailing Suction Dredger Heave Compensation Cylinder

Trailing Suction Dredger Heave Compensation Cylinder

A trailing suction dredger heave compensation cylinder is a hydraulic cylinder that is used to compensate for the vertical movement of the dredger hull caused by waves. This allows the dredger to maintain a constant position over the seabed, even in rough conditions.

The heave compensation cylinder is typically mounted on the hull of the dredger and is connected to the draghead by a cable or wire rope. When the hull moves up, the cylinder extends, and when the hull moves down, the cylinder retracts. This movement of the cylinder keeps the cable or wire rope taut and helps to keep the draghead in a fixed position.

The heave compensation cylinder is a critical component of a trailing suction dredger, as it allows the dredger to operate effectively in a variety of sea conditions. Without a heave compensation cylinder, the dredger would be unable to maintain a constant position over the seabed and would be less productive.

Here are some of the features of a trailing suction dredger heave compensation cylinder:

• It is typically made of a high-strength steel alloy.
• It has a large bore diameter and stroke length to accommodate the large forces involved.
• It is equipped with a piston seal to prevent leakage of hydraulic fluid.
• It is controlled by a hydraulic system that responds to the movement of the hull.

The heave compensation cylinder is a complex and essential component of a trailing suction dredger. It is designed to withstand the harsh conditions of the marine environment, and to provide reliable operation for many years.

Trailing Suction Dredger Heave Compensation Cylinder Specifications:

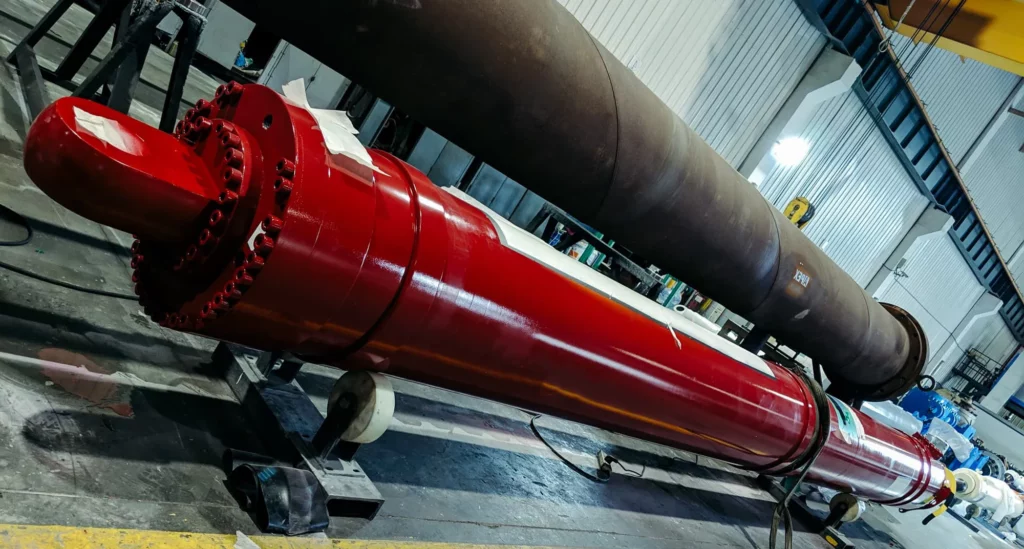

Trailing Suction Dredger Heave Compensation Cylinder Advantages:

The trailing suction dredger heave compensation cylinder offers several advantages that contribute to the efficiency and effectiveness of dredging operations. Here are some key advantages:

1. Enhanced Dredging Accuracy: The heave compensation cylinder helps maintain a consistent dredging depth by counteracting the vessel's vertical motion induced by waves. This ensures that the dredging arm or drag head remains at the desired level, resulting in more accurate and precise dredging operations. It helps prevent under-dredging or over-dredging, leading to improved efficiency and cost-effectiveness.

2. Increased Productivity: By compensating for heave motion, the heave compensation cylinder allows the trailing suction dredger to operate in a wider range of sea conditions. It reduces the downtime caused by excessive vessel movement, enabling continuous and uninterrupted dredging activities. This leads to increased productivity and a higher volume of materials removed within a given timeframe.

3. Improved Safety: The heave compensation cylinder enhances the safety of dredging operations by minimizing the impact of wave-induced vessel motion. It provides more stability to the dredging arm or drag head, reducing the risk of equipment damage, accidents, and injuries. The controlled and consistent dredging depth achieved through the cylinder's compensation further enhances safety by preventing sudden depth changes that could destabilize the vessel.

4. Versatility: Trailing suction dredgers equipped with heave compensation cylinders can adapt to varying seabed conditions and different project requirements. The cylinder's ability to compensate for heave motion allows efficient dredging in areas with irregular seabed profiles, varying water depths, and challenging sea conditions. It offers versatility and flexibility in dredging operations, making the vessel suitable for a wide range of marine construction and maintenance projects.

5. Cost Savings: The precise and accurate dredging achieved through the heave compensation cylinder helps optimize the use of resources and reduces wastage. By avoiding excessive dredging or incomplete removal of materials, the cylinder contributes to cost savings in terms of fuel consumption, equipment maintenance, and project duration. It also minimizes the need for rework or corrective dredging, further reducing expenses.

Trailing Suction Dredger Heave Compensation Cylinder Maintenance:

The heave compensation cylinder on a trailing suction hopper dredger is a critical component that helps to keep the dredge pipe stable in the water, even when the vessel is pitching and rolling. Proper maintenance of this hydraulic cylinder is essential to ensure the safety and efficiency of the dredge operation.

The following are some of the key elements of heave compensation cylinder maintenance:

• Regular visual inspection of the cylinder for signs of wear and tear, such as cracks, dents, or corrosion.
• Periodic lubrication of the cylinder according to the manufacturer's instructions.
• Replacement of any worn or damaged seals or gaskets.
• Inspecting and testing the cylinder's hydraulic system for leaks and other problems.
• Calibrating the cylinder to ensure that it is operating properly.

In addition to these regular maintenance tasks, it is also important to perform more thorough inspections and maintenance at regular intervals, such as every 1,000 hours of operation or every year. This more in-depth maintenance should include the following:

• Disassembling the cylinder and inspecting all of the components for wear and tear.
• Repairing or replacing any damaged components.
• Reassembling the cylinder and re-calibrating it.

By following these maintenance procedures, you can help to ensure the long-term reliability and performance of your trailing suction hopper dredger's heave compensation cylinder.

Here are some additional tips for maintaining the heave compensation cylinder on your trailing suction hopper dredger:

• Keep the cylinder clean and free of debris.
• Inspect the cylinder for leaks regularly.
• Do not over-extend the cylinder.
• Do not operate the cylinder outside of its specified operating range.
• Operate the cylinder in a smooth and controlled manner.

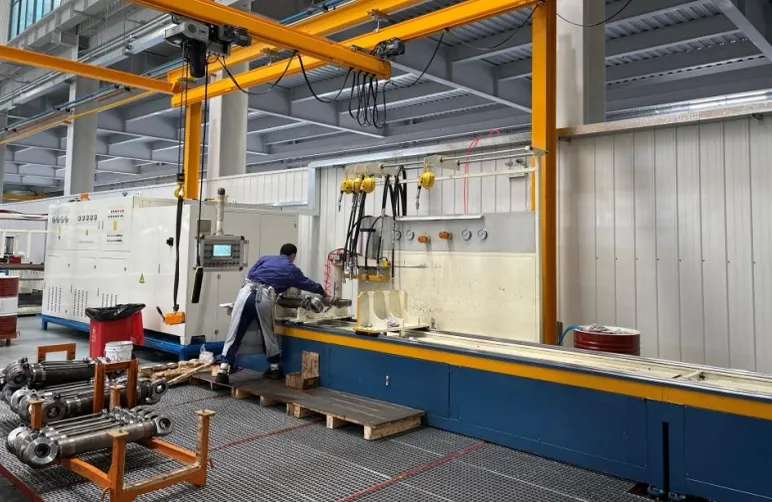

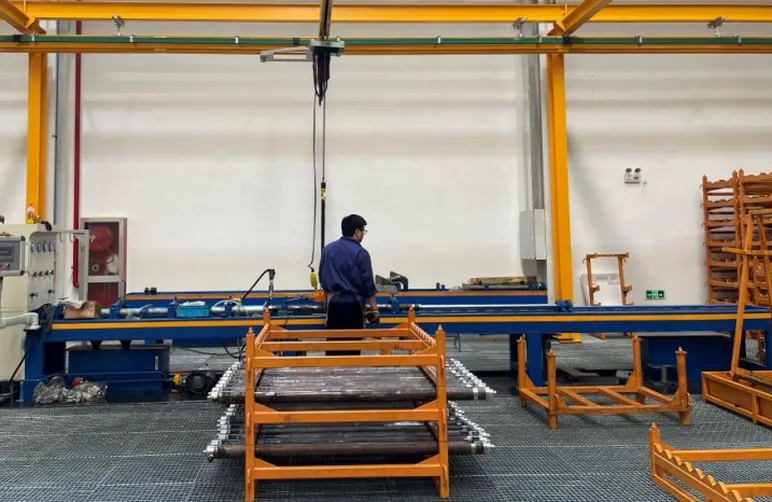

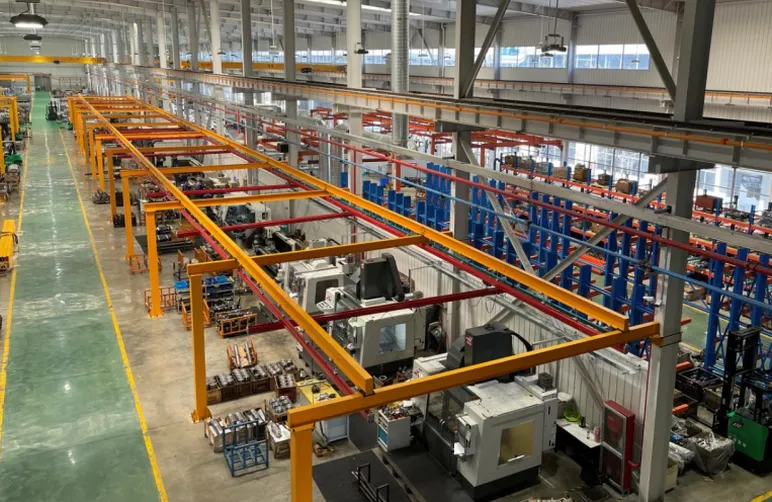

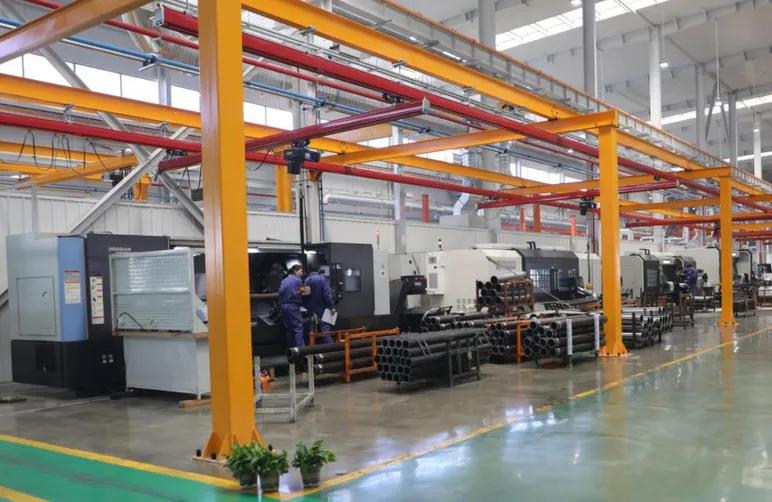

China Dredger Tank Cylinder Manufacturers

In 30 years of focusing on innovation, HZPT has reached the forefront of the world’s hydraulic industry in terms of both production scale and technical level. Meanwhile, HZPT is now a widely recognized benchmarking enterprise in the domestic hydraulic industry. Headquartered in Hangzhou, HZPT has founded five hydraulic R&D centers in China, Germany, the United States, Japan, and Mexico, and ten manufacturing bases worldwide. HZPT the establishment of a high-precision foundry and a pump & valve factory, HZPT has mastered the key to developing and manufacturing more advanced hydraulic transmission and control components to supply high-pressure cylinders, hydraulic pump valves, motors, precision castings, and the complete hydraulic system. Well sold in over 20 countries and regions, the products are widely applied in various fields such as mobile machinery, agricultural machinery, industrial engineering, offshore, energy technology, and tunnel boring machines.

HZPT is a company in the R&D and manufacture of hydraulic cylinders. It maintains a leading position in the market segment of hydraulic cylinders in China. In 2020, the domestic market share was around 29%. We produce industrial vehicle hydraulic cylinders, aerial work vehicle hydraulic cylinders, mobile machinery cylinders, industrial engineering hydraulic cylinders, construction machinery hydraulic cylinders, forklift hydraulic cylinders, crane luffing hydraulic cylinders, and sanitation machinery hydraulic cylinders. Hydraulic cylinder is a non-standard product and all products are independently developed by ourselves.
