Trapezoidal Screw Rod Shaft For Screw Jack Construction Lifting Elevator

Trapezoidal Screw Rod

Trapezoidal
We provide a variety of trapezoidal lead screws and nuts inventory.
The thread shape angle of the trapezoidal screw is 30 °. Along with ACME (29 °), the trapezoidal screw is still the most common screw type in the world. Trapezoidal screws have high strength and can withstand large loads. They are inefficient but cost-effective products because they are easy to manufacture. We stock many trapezoidal screws, starting with a 10mm diameter. We will cut to your length for a nominal cutting charge.
Trapezoid option
--Steel and stainless steel
--Left and right thread
--Steel, bronze, and plastic nuts

The utility model relates to a popular linear driving mechanism suitable for cases where constant motion is not required. It can be used manually or electrically for machine adjustment, gate or guard opener, and press. Due to its self-locking characteristics, it is ideal for intermittent lifting.

Related products

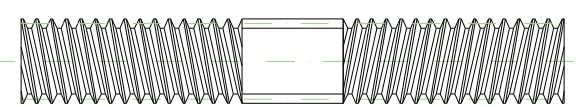

Double Acting Thread Trapezoidal Screw	Material S45C (1045 med tensile) Single shaft with left and right-hand threads Talk to us about nonstandard lengths and machining.
Flanged Nuts	Available in left and right-hand threads Material BC6 Bronze Optional oil hole (code –O ex TTM25-O) Plastic nut available (code –P ex TTMP25) Material Acetal (POM)

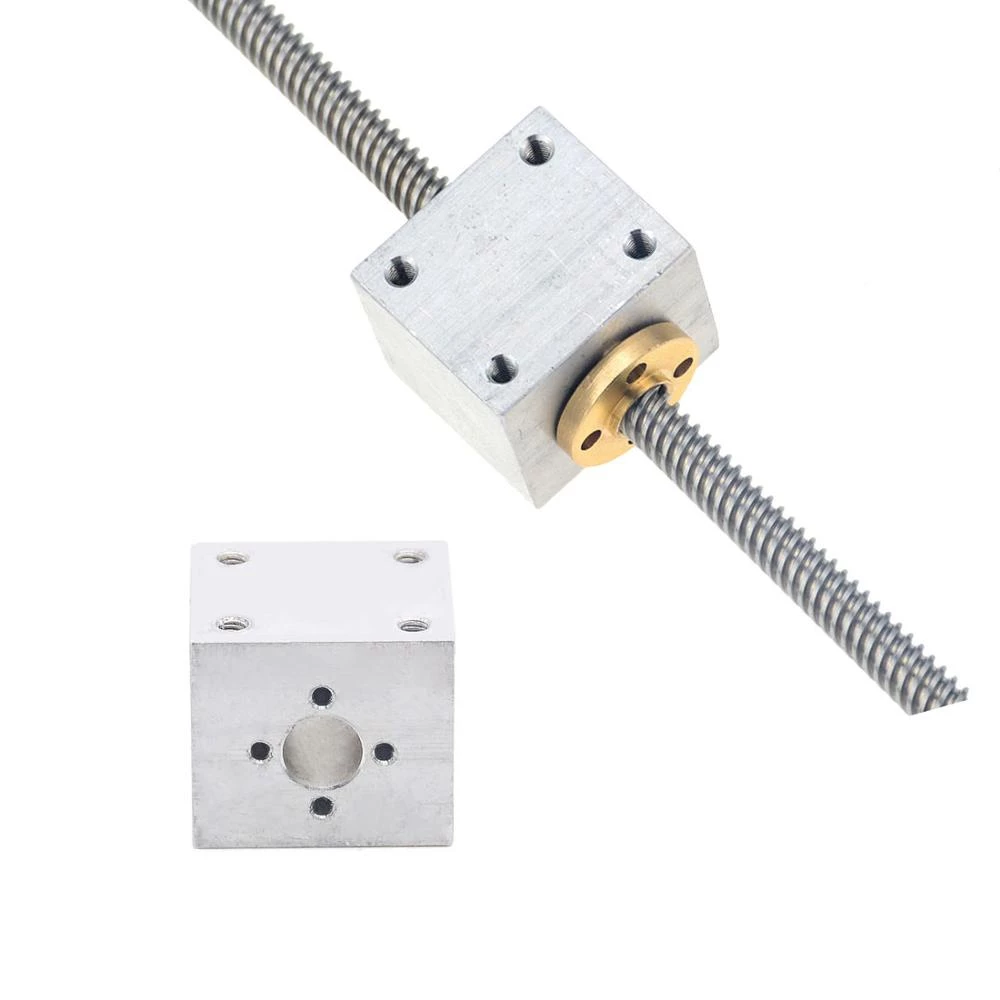

Block Nuts	Available on the left and right-hand threads Material BC6 Bronze Optional oil hole
Tubular Nuts	Available on the left and right-hand threads Material BC6 Bronze Optional oil hole Also Available with external keyway

Trapezoidal Screw Rod For Screw Jack System

What is the Difference Between Acme and Trapezoidal Threads?

The difference between Acme and trapezoidal threads is reduced to one degree. The flank angle of trapezoidal thread used in America is 29 degrees, while that of trapezoidal thread used in Europe is 30 degrees.
Both thread forms produce linear motion during rotation, usually under heavy loads. Some common uses include bench lifts, clamps, vises, valve stems, jack supports and lead screws for a linear drive on CNC machines.
Acme threads are more widely used and have become a more recognized standard, but both are good choices. The choice is usually determined by the source of the finished part and the user's destination. Although the physical differences may be minor, the thread type may be necessary to the manufacturer.
Whatever you choose, it is essential that your stick is reliable and of high quality. Unlimited rolling of threads can help you achieve this. Contact us for more information.

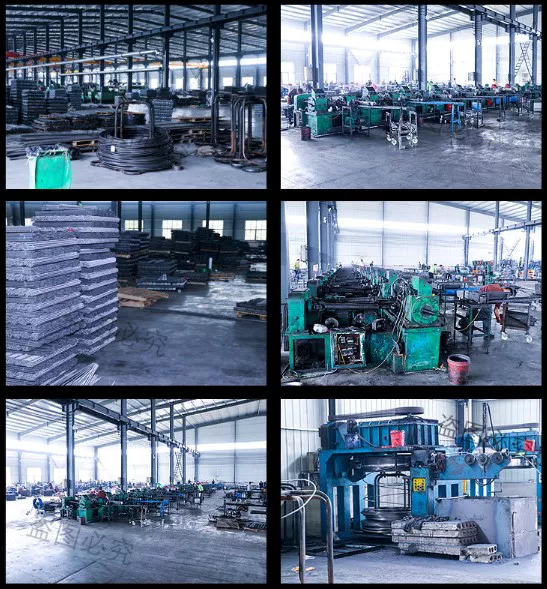

Trapezoidal Screw Manufacturer

Supporting screw rod
The manufacturer independently researched and developed, mainly produced, rolling film, saving every cost.

quality assurance
The company provides iso9000:2015 international appropriate system certification, and the screw rod and terminal pass the quick test of Guan Weibiao with guaranteed quality.

Small error
Universal tool microscope, contour projector, roughness meter, salt spray testing machine, three-needle inspection, and hardness tester to ensure your tolerance requirements.

Advanced equipment
Imported thread mill with spiral angle up to 45 °, vacuum quenching furnace, Taiwan Techwater, several CNC lathes, milling machines, and precision straightening machines.

Nonstandard customization need not worry about the delivery schedule.
Independent mold production, the first batch of major manufacturers of significant lift angle molds in China specialized in producing 54 holes and 75 holes, with a pitch of 1-8, a head number of 1-10, a helix angle of 1.5-42 degrees, left-handed and right-handed rotation, and a workpiece length of 100-9000 mm. There is no need to worry about large lift angles and large lead multi-head numbers.
